How to Install the BEDSLIDE 1000 Classic, 1500 Contractor, and 2000 Heavy Duty

Feb 24 2026

The BEDSLIDE is built for serious hauling power, with smooth, effortless access to your cargo. Whether you're outfitting your work truck or upgrading your weekend adventure rig, this guide walks you through the full assembly and installation process.

This blog is based on the official BEDSLIDE Assembly & Installation Instructions and breaks everything down into easy-to-follow steps. This guide walks through the installation instructions for the BEDSLIDE 1000 Classic, 1500 Contractor, and 2000 Heavy Duty.

Before You Start

Supplied Hardware (Assembly)

  • (14) 1/4"-20 Allen head bolts
  • (18) UHMW mount blocks
  • (4) D-ring tie downs
  • (2) Corner towers
  • (2) Side towers
  • (1) Head rail
  • (2) Side rails
Supplied Hardware (Installation)

  • (4) 5/16" riv nuts
  • (1) Riv nut tool
  • (4) 5/16" x 2" hex head bolts
  • (4) 5/16" split lock washers
  • (4) 3/8" flat washers
  • Tools Required
  • Allen wrench
  • Drill
  • 1/2" drill bit
  • Sharpie
  • Tape measure
  • 1/2" socket & ratchet
  • 1/2" open-end wrench

Part 1: Assembling Your BEDSLIDE 1000 Classic, 1500 Contractor, or 2000 Heavy Duty

Step 1: Insert Mount Blocks (Cab End)

  • Loosen the set screw on the plastic end cap at the cab end of the BEDTRAX rail. Remove the cap and insert (2) mount blocks into the track. Reinstall the end cap and tighten the set screw.
  • These blocks will secure your corner towers in the next step

Step 2: Mount the First Corner Tower (Tailgate End)

At the rear (handle end), remove the plastic end caps and insert:
  • (4) mount blocks per side
  • (If equipped with guardrails, insert 6 per side.)
  • Invert the corner tower (they ship upside down), position it over the mount blocks, and secure using 1/4"-20 x 3/4" Allen bolts
  • Reinstall end caps once secured.

Step 3: Attach the Head Rail

  • Slide one end of the head rail (slot facing forward) into the mounted corner tower.
  • Insert a mount block into the head rail and align it with the tower's mounting hole. Secure with a 1/4"-20 x 3/4" Allen bolt



Step 4: Install the Opposite Corner Tower

  • Insert a mount block into the open end of the head rail. Invert the second corner tower and slide it into position.
  • Insert (2) mount blocks underneath the tower and fasten with supplied bolts



Step 5: Install Side Towers & Pre-Install D-Rings

  • Invert both side towers (mount holes facing inward).
  • Slide (2) mount blocks underneath each tower.
  • Important: Pre-install a D-ring tie down in front of and behind each side tower before tightening.
  • Secure using 1/4"-20 x 3/4" Allen bolts.
  • Do not fully tighten yet.

Step 6: Install Guard Rails (If Equipped)

If your BEDSLIDE includes guard rails:
  • Insert (2) mount blocks into each guard rail.
  • Slide guard rails into the corner towers.
  • Secure with Allen bolts.
  • Insert side towers into guard rail ends and fasten.
  • For best appearance, allow approximately 6 inches of guard rail to extend past the side tower

Step 7: Install D-Ring Tie Downs

  • Thread the (4) D-ring tie downs into the previously installed mount blocks. Position as desired and tighten.
  • Reinstall the plastic end caps and tighten the set screws.
Your BEDSLIDE is now fully assembled!


Part 2: Installing the BEDSLIDE Into Your Truck

Step 1: Position & Center the Unit

  • Place the assembled BEDSLIDE into your truck bed.
  • Center it between the wheel wells.
  • Leave 1½ inches of clearance between the bulkhead and the BEDSLIDE frame.
  • Confirm the tailgate closes without contacting the BEDSLIDE
  • If your truck has a stepped tailgate or insufficient clearance, you may need the Lift Block Kit (Part #BSA-SPACEBLKIT)

Step 2: Mark & Drill Mounting Holes

  • Slowly extend the upper tray while keeping the unit in position.
  • Using the pre-punched holes at:
    • The cab end
    • The center cross member
    • Mark (4) mounting locations.
    • Drill four 1/2" holes, choosing the hole location that rests on the highest part of the truck bed floor



Step 3: Install Riv Nuts

Move the BEDSLIDE aside to access the drilled holes.
  • For each hole:
    • Insert a 5/16" bolt through the riv nut tool and into a riv nut.
    • Insert assembly into hole.
    • Tighten while holding tool steady with a wrench.
    • Ensure the riv nut sits flush and compresses securely underneath.
    • Do not over-tighten.
    • Do not use air impact tools.
    • Repeat for all four holes.

Step 4: Bolt Down the BEDSLIDE

  • Reposition the BEDSLIDE into the truck bed.
  • Align mounting holes with installed riv nuts and secure using:
  • 5/16" x 2" bolts
  • Split lock washers
  • Flat washers
  • Tighten all hardware securely

Step 5: Remove Protective Film

  • Peel away protective film from tie-down rails.
  • If any lettering lifts with the film, reposition it and press firmly using a card or your hand to ensure proper adhesion.

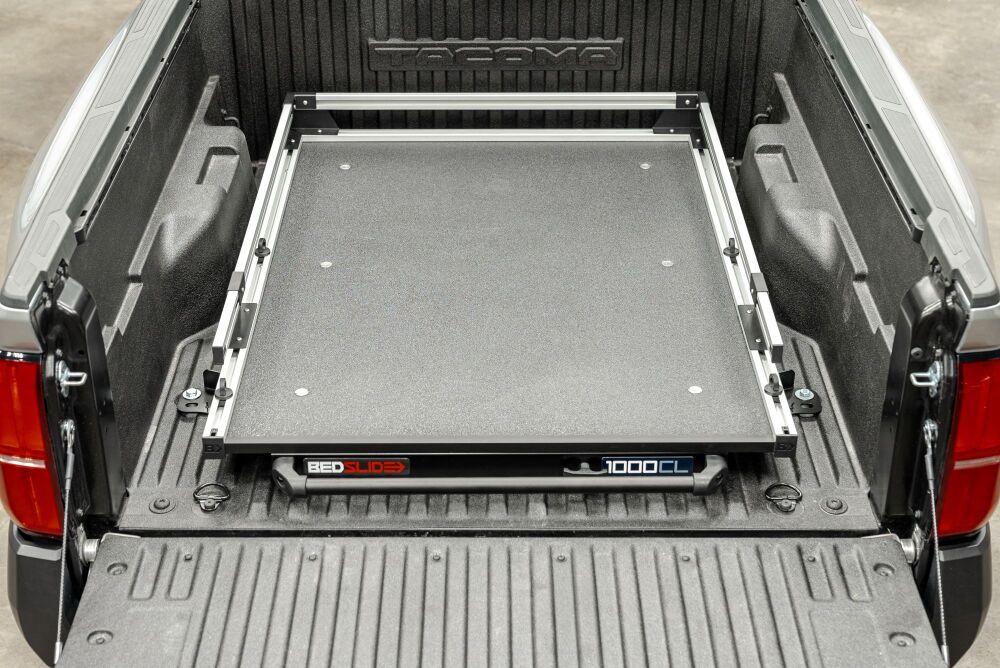

Installation Complete

Your BEDSLIDE is now fully installed and ready to handle gear, tools, coolers, or equipment; all accessible at the pull of a handle. Here are links to installation guides by truck model and make:
