RIGID Modular Bumper Triple SR-M Fog Light Kit



The RIGID Modular Bumper Triple SR-M Fog Light Kit fills both fog pockets of a compatible heavy-duty modular bumper with six low-profile SR-M pods. Each side receives an SAE fog light, a Drive light, and a Spot light, creating a complete three-zone lighting system without placing a large bar across the grille. The integrated arrangement suits customers who want functional trail lighting and a clean factory-bumper appearance.

The SAE pods create controlled low and wide illumination for the foreground, shoulders, and poor-weather driving area. Drive optics extend the useful beam farther ahead while retaining enough spread for winding access roads and trail approaches. Spot optics add a concentrated distance beam for open terrain, remote routes, and off-road conditions where early obstacle recognition matters.

All three beam roles work together to build depth from the bumper outward. The fog beam fills the near field, the Drive beam supports mid-range awareness, and the Spot beam reaches into the distance. Customers can wire and operate the circuits for the conditions at hand, then aim each pair independently so the light lands where it provides the greatest benefit.

The slim SR-M form factor fits the modular bumper pockets with minimal visual bulk. Approximate output values are 1,179 raw lumens for each SAE pod, 2,376 raw lumens for each Drive pod, and 1,584 raw lumens for each Spot pod. Approximate power is 15W for the SAE pods, 23W for the Drive pods, and 15W for the Spot pods, all within a 9V to 36V DC operating range.

RIGID's vehicle-specific brackets are made from stainless steel and finished with a UV-resistant, abrasion-resistant powder coat. The kit also includes harnesses, connectors, mounting hardware, and yellow covers, helping customers complete the bumper lighting system with matched components. Four Deutsch-to-flying-lead connectors support organized electrical integration with the included harnesses.

The kit is designed around the Ford Performance heavy-duty modular bumper and should be matched carefully to the vehicle's bumper, sensors, tow points, and factory equipment. Customers should plan wire routing before tightening the brackets and complete final aiming on level ground. Whether customers are upgrading for fog, trail dust, remote travel, dark backroads, or a complete low-profile bumper lighting package, the RIGID Modular Bumper Triple SR-M Fog Light Kit delivers layered illumination in a compact six-pod system. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific modular bumper fog light kit

Brand: RIGID Industries

Series: SR-M

Vehicle Fitment: Ford Bronco equipped with the Ford Performance heavy-duty modular bumper

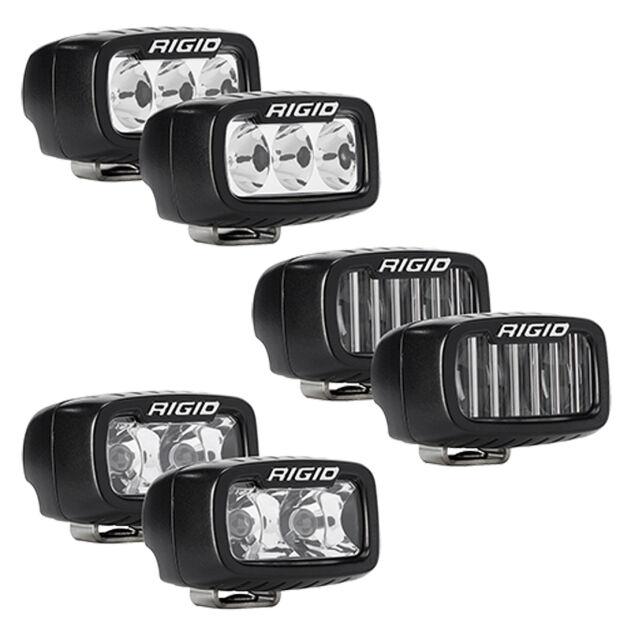

Light Count: Six pods; two SAE, two Drive, and two Spot

Mounting Location: Left and right modular bumper fog pockets

Input Voltage: 9V to 36V DC

Raw Lumens: Approximately 1,179 SAE, 2,376 Drive, and 1,584 Spot per listed pod type

Power: Approximately 15W SAE, 23W Drive, and 15W Spot per listed pod type

Bracket Material: Stainless steel

Bracket Finish: UV-resistant and abrasion-resistant powder coat

Electrical Connections: Harnesses plus Deutsch-to-flying-lead connectors

Functionality:

• Fills both modular bumper fog pockets with three compact SR-M pods per side
• Uses SAE fog optics for controlled foreground and poor-weather illumination
• Uses Drive optics for broader mid-range trail and road coverage
• Uses Spot optics for concentrated long-distance off-road visibility
• Allows each beam pair to be aimed for its specific lighting zone
• Keeps the lighting low and integrated instead of adding a large grille or roof bar
• Includes matched brackets, harnesses, connectors, hardware, and covers
• Supports road, work, overland, and permitted off-road lighting roles



---



Why Choose

This product is ideal for customers who want a complete six-pod SR-M system that integrates three useful beam patterns into a heavy-duty modular bumper.

• Low-profile SR-M housings fit neatly within the bumper fog pockets
• SAE, Drive, and Spot pairs create useful light from the foreground to the distance
• Vehicle-specific brackets reduce custom fabrication and alignment work
• Stainless-steel construction supports long-term strength in an exposed bumper location
• UV-resistant powder coating protects the brackets and coordinates with the dark housings
• Included electrical components simplify planning for all six lights
• Independent beam aiming lets customers tune the system for vehicle height and terrain
• Complete-kit packaging helps prevent mismatched pods, brackets, and connectors



---

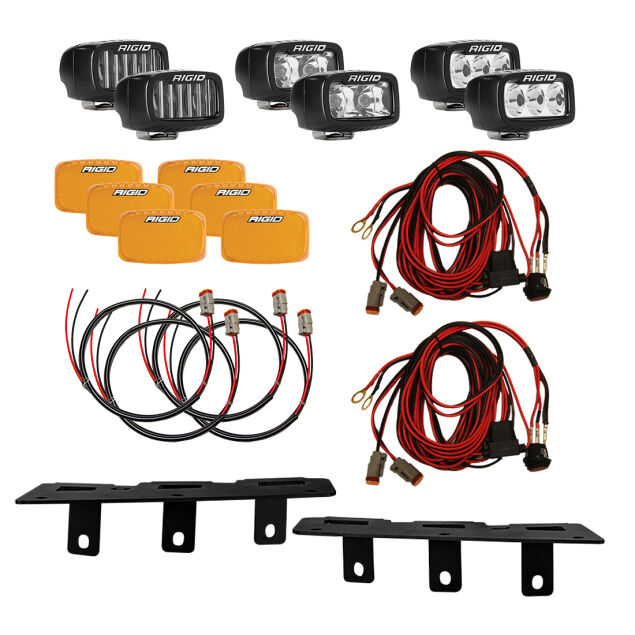

What's Included

• Two RIGID SR-M SAE fog light pods
• Two RIGID SR-M Drive light pods
• Two RIGID SR-M Spot light pods
• Left and right vehicle-specific stainless-steel brackets
• Mounting hardware
• Two wiring harnesses
• Four Deutsch-to-flying-lead connectors
• Six yellow protective light covers

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the vehicle is equipped with the required Ford Performance heavy-duty modular bumper and verify sensor, tow point, and accessory clearance.
• Position the brackets in the factory fog pockets, leave the pods loose enough for aiming, and check clearance before final tightening.
• Route both harnesses away from exhaust heat, sharp edges, steering components, suspension movement, and pinch points, then secure all connectors against water and vibration.
• Aim the SAE, Drive, and Spot pairs independently and operate each circuit only where its beam pattern is permitted.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

RIGID warranty coverage applies to qualifying defects under the terms supplied with the Modular Bumper Triple SR-M Fog Light Kit.

Coverage typically excludes improper installation, incorrect wiring, misuse, unauthorized modifications, overloading, damaged coatings or connectors, impact damage outside warranty terms, and non-compliant use. Proof of purchase may be required for a claim.
