Rigid Ignite Back-Up Kit



The RIGID Ignite Back-Up Kit adds a pair of compact rear-facing LED lights for customers who need better visibility while reversing, positioning a trailer, working around cargo, or maneuvering through dark campsites and job sites. The Ignite platform is one of RIGID's smallest light formats, allowing meaningful auxiliary illumination to fit where larger pods can interfere with bumpers, racks, body panels, or other rear accessories. Its low-profile size makes the kit especially useful for clean utility installations that still need dependable light output.

Each Ignite light produces 1,000 raw lumens from a housing only 1.4 inches wide and 2.1 inches deep. The diffused optic spreads the beam across a broad short-range area rather than concentrating it into a narrow distance pattern, helping illuminate the ground, obstacles, hitch components, tools, and nearby surroundings behind the vehicle. This close-range coverage supports careful low-speed movement and practical work-area visibility without requiring an oversized rear light bar.

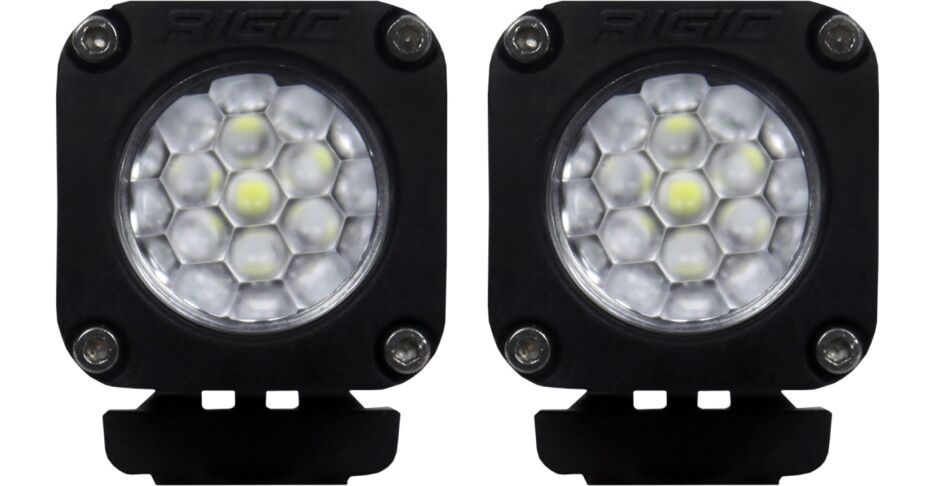

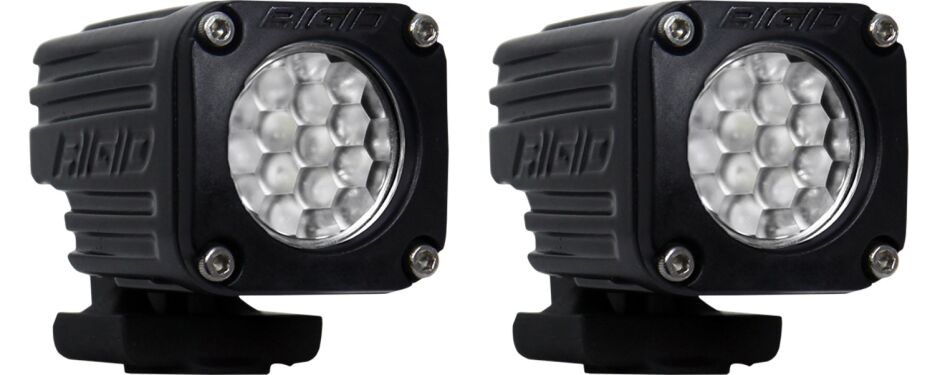

The standard surface-mount version uses compact black pods with adjustable mounting brackets that can be positioned on suitable bumpers, racks, trailer structures, utility panels, or fabricated tabs. A flush-mount version is also available for customers who prefer a recessed appearance in a compatible panel or bumper. Both approaches retain the small Ignite light format, allowing the installation style to be chosen around the available space and desired finished look.

The Ignite platform operates from 9-24V and draws 0.85A at 14V, making it practical for properly designed auxiliary lighting circuits. Each light is rated at 12W and uses a diffused pattern with a wide horizontal and vertical spread for nearby illumination. Open wire leads simplify routing into a custom rear-lighting plan, while the compact housings give installers flexibility in tight areas where a larger connector or bracket assembly may not fit.

RIGID equips the kit with a light pair, mounting hardware, compact brackets, and 48-inch open wire leads on the surface-mount version. The polycarbonate lens and rugged exterior are designed for vehicle use, while the small housings reduce exposure and visual bulk when placed thoughtfully. Customers can use the kit for backup assistance, trailer alignment, cargo handling, scene lighting, or rear utility work on compatible trucks, SUVs, trailers, and specialty vehicles.

A successful installation depends on a safe mounting surface, protected wiring, correct circuit design, and careful beam aim. Whether customers are upgrading for dark-driveway reversing, trailer hookup, campsite positioning, work-zone visibility, or compact rear utility lighting, the RIGID Ignite Back-Up Kit delivers broad short-range illumination from a remarkably small package. Now Available at LEER!



---



Features & Specifications

Product Type: Dual LED back-up light kit

Brand: RIGID Industries

Light Series: Ignite

Light Quantity: Two LED pods

Beam Pattern: Diffused

Mounting Style: Surface mount or flush mount, depending on selected version

Light Output: 1,000 raw lumens per light

Power Draw: 12W and 0.85A at 14V per light

Voltage Range: 9-24V

Beam Angle: 55.8 degrees horizontal and 54.3 degrees vertical

Dimensions: 1.4 inches wide and 2.1 inches deep per surface-mount light

Weight: 0.3 pounds per light

Housing Color: Black on the surface-mount version

Wiring: 48-inch open wire leads on the surface-mount kit

Functionality:

• Adds compact rear-facing illumination where factory backup lights provide limited coverage
• Spreads light across a nearby work zone with a diffused optic suited to reversing and scene lighting
• Helps reveal trailer couplers, obstacles, curbs, gear, and uneven ground during low-speed maneuvering
• Fits tight bumper, rack, trailer, and utility-panel locations that cannot accommodate larger pods
• Supports either an external surface-mounted look or a recessed flush-mounted appearance
• Uses low-current LED operation for integration into a properly designed auxiliary circuit
• Provides a matched light pair for more balanced coverage across the rear of the vehicle
• Works for backup assistance, cargo handling, campsite setup, work tasks, and custom utility lighting



---



Available Options

The RIGID Ignite Back-Up Kit is available in two mounting configurations:

• Surface Mount -- Uses compact external pods with mounting brackets and open wire leads for bumpers, racks, trailers, utility panels, and other suitable mounting areas.

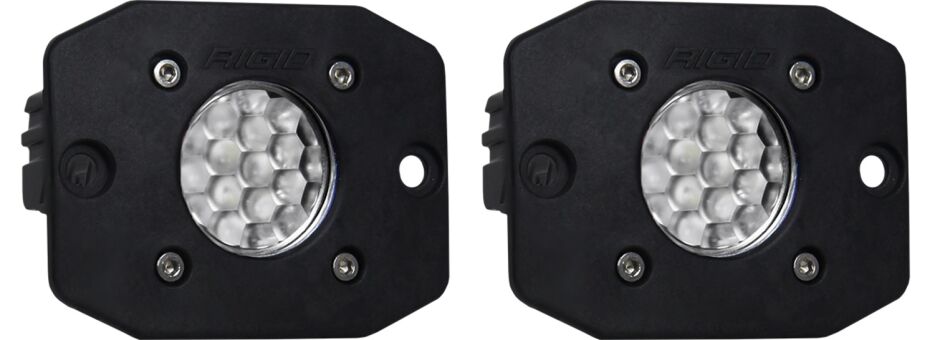

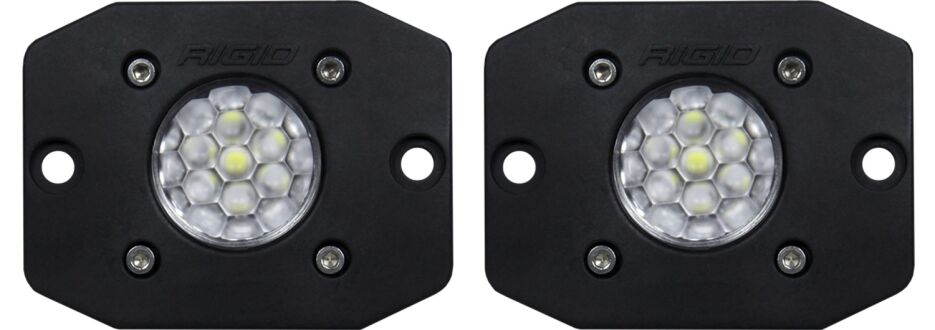

• Flush Mount -- Recesses the Ignite lights into a compatible panel or bumper for a lower-profile integrated appearance.

Choose the surface-mount kit for an adjustable external installation, or choose the flush-mount kit for a recessed look when the mounting surface provides enough rear clearance for cutting and wiring.



---



Why Choose

This product is ideal for customers who want broad backup and utility lighting from one of RIGID Industries compact light formats.

• Small housings fit rear locations where larger pods would interfere with other equipment
• A matched pair produces more balanced illumination across the rear zone
• Diffused optics support close-range visibility for reversing and work tasks
• Surface and flush mounting choices accommodate different bumper and panel designs
• Low current draw simplifies planning for a properly protected auxiliary circuit
• Open wire leads allow flexible routing in custom truck, SUV, trailer, and utility installations
• Compact dimensions preserve a clean appearance while adding practical light output
• The kit supports everyday parking needs as well as towing, camping, loading, and off-road use



---



What's Included

• Two RIGID Ignite diffused LED lights
• Mounting hardware for the selected version
• GoPro-compatible mounting brackets with the surface-mount kit
• 48-inch open wire leads with the surface-mount kit
• Installation instructions

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the selected surface-mount or flush-mount version matches the available bumper, panel, rack, trailer, or utility-body space.
• Protect the circuit with correctly sized wiring, switching, and overcurrent protection, and verify the electrical system is compatible with 9-24V operation.
• For flush mounting, inspect the area behind the panel before cutting and maintain clearance from structural members, sensors, tanks, harnesses, and moving components.
• Aim the lights toward the ground and rear work zone so the added illumination does not create unsafe glare.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

RIGID Industries lists this lighting kit with a limited lifetime warranty for qualifying defects under the brand warranty terms in effect at the time of purchase.

Coverage may exclude improper installation, unsupported electrical connections, misuse, alterations, overloading, tampering, collision damage, impact damage outside warranty terms, normal wear, or non-compliant use. Proof of purchase may be required for a warranty claim.
