Rigid Adapt LED Light Bar for Trucks & SUVs



RIGID Adapt LED Light Bar is an advanced single-fixture lighting system for customers who want to change beam width, reach, and appearance without replacing hardware. Built for trucks, SUVs, and off-road vehicles, it combines selectable beam patterns, automatic speed-responsive operation, and customizable RGBW accent lighting. The system is equally at home on technical trails, open desert routes, overland travel, remote worksites, and custom builds that need flexible lighting from one bar.

Eight selectable patterns range from a broad 90-degree field for close-range awareness to a focused 15-degree pattern for longer-distance projection. Customers can choose a pattern from the dash controller when a particular trail, task, or mounting position calls for a specific shape. Integrated spot, flood, and driving optic zones allow the bar to create these different patterns electronically, with no moving optical parts inside the housing.

Active View Technology adds an automatic mode that uses GPS-based vehicle speed information to adjust the beam as driving conditions change. Wider illumination supports slower trail travel where obstacles, turns, and terrain edges are close to the vehicle, while a narrower pattern provides greater forward reach as speed rises. This automatic response helps customers keep both hands focused on driving instead of repeatedly changing auxiliary light settings.

Selectable RGBW accent lighting gives the Adapt a second visual role when the main forward beam is not required. The backlighting can be programmed across a broad range of colors to complement a custom build, identify the vehicle around camp, or add a distinctive parked appearance where permitted. A backlit dash controller, GPS module, under-dash module, and dedicated wiring bring the beam and accent functions together in one coordinated system.

An alloy housing and heat sink protect the electronics while helping manage operating temperature during extended use. The impact-resistant polycarbonate lens, pressure-equalizing vent, and IP68 dust and water ingress protection prepare the bar for wet trails, dust, mud, vibration, and changing weather. The 9V to 36V operating range supports a broad range of vehicle electrical systems when the installation is properly planned.

Available lengths let customers balance mounting space, electrical demand, and desired coverage. Compact versions suit bumpers and grille areas, while longer bars bring more presence and output to racks, roofs, and wide front-end locations. Whether customers are upgrading for selectable beam control, automatic speed-based lighting, RGBW styling, or all-around off-road visibility, the RIGID Adapt LED Light Bar delivers broad capability from one integrated system. Now Available at LEER!



---



Features & Specifications

Product Type: Adaptive off-road LED light bar system

Brand: RIGID Industries

Series: Adapt

Selectable Patterns: Eight beam patterns from 90 degrees to 15 degrees

Adaptive Technology: GPS-based Active View Technology

Optic Zones: Spot, flood, and driving

Accent Lighting: Selectable RGBW backlighting

Voltage Range: 9V to 36V DC

Housing: Alloy housing and heat sink

Lens: Impact-resistant polycarbonate

Ingress Protection: IP68 dust and water ingress protection

LED Lifespan: 50,000 hours or more

Available Lengths: 10 inch, 20 inch, 30 inch, and 40 inch

Functionality:

• Provides eight driver-selectable beam patterns for different terrain, speeds, and mounting positions.
• Automatically changes beam distribution in Adapt mode as vehicle speed changes.
• Creates broad close-range illumination for technical trails, recovery work, and campsite access.
• Provides focused forward projection for open terrain and faster off-road travel.
• Combines spot, flood, and driving optic zones inside one fixture.
• Adds programmable RGBW accent lighting for a customizable parked or auxiliary appearance.
• Uses an in-cab controller to manage beam patterns, adaptive operation, and lighting presets.
• Supports bumper, grille, rack, roof, and custom mounting locations with appropriate hardware.



---



Available Options

The RIGID Adapt LED Light Bar is available in multiple lengths:

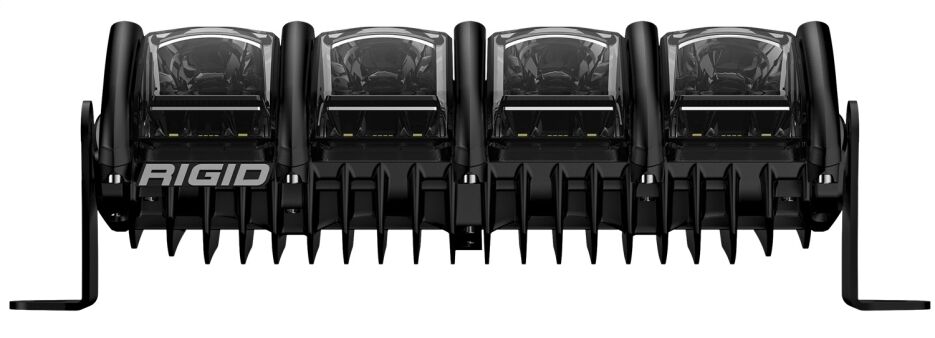

• 10 Inch - Compact adaptive lighting for tight bumper, grille, and auxiliary mounting areas.

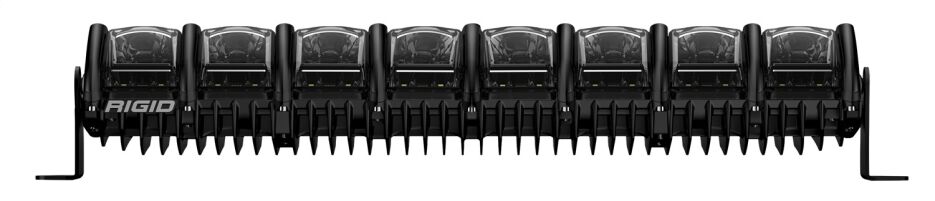

• 20 Inch - A versatile mid-size choice that balances output, mounting flexibility, and manageable electrical demand.

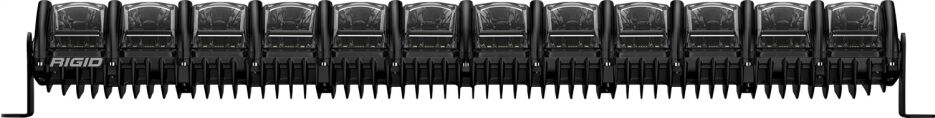

• 30 Inch - A wider option for customers who want stronger coverage across the front of a truck or SUV.

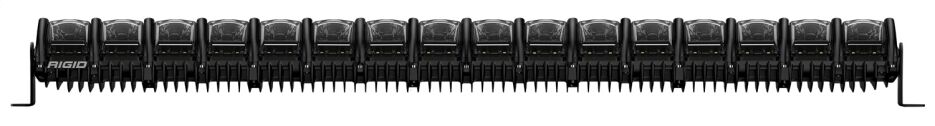

• 40 Inch - A high-output choice for broad rack, roof, and front-end installations.

Choose the 10-inch or 20-inch bar for compact, flexible mounting, or choose the 30-inch or 40-inch bar for wider coverage and a more prominent lighting installation.



---



Why Choose

This product is ideal for customers who want one advanced light bar that can deliver selectable patterns, automatic beam changes, and customizable accent lighting.

• Eight selectable patterns let customers match illumination to close-range work, balanced driving, or long-distance visibility.
• Active View Technology can adjust the beam automatically as vehicle speed changes.
• Integrated optic zones reduce the need to install several fixed-pattern bars for different conditions.
• RGBW backlighting adds a customizable visual element independent of the main forward beam.
• The included control system gives the driver direct access to beam and accent functions.
• Multiple lengths support compact installations as well as wider, high-output builds.
• Impact-resistant and sealed construction supports use in harsh off-road environments.
• The distinctive housing and illuminated controls create a premium, integrated lighting upgrade.



---



What's Included

• RIGID Adapt LED Light Bar in the selected length
• GPS module
• Dash-mounted controller
• Under-dash control module
• Wiring harness and switching components
• Mounting hardware and installation documentation

Note: Confirm included components before installation.



---



Installation Notes

• Confirm bar length, mounting clearance, bracket compatibility, controller location, module location, and wiring route before installation.
• Install the GPS and control modules as directed so adaptive operation can receive reliable speed information.
• Route power and control wiring away from sharp edges, heat sources, moving components, and areas exposed to repeated abrasion.
• Professional installation is recommended when integrating the Adapt with custom switches, accessory control systems, or fabricated mounts.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

RIGID Adapt lighting is covered by the warranty terms in effect for the product and purchase date. Proof of purchase may be required, and the condition of the housing, controller, modules, wiring, and mounting points may be reviewed during a warranty claim.

Coverage typically excludes improper installation, misuse, unauthorized modification, electrical faults, tampering, impact damage outside the warranty terms, or operation outside the intended application.
