ReadyLift 8" Big Lift Kit



The ReadyLIFT 8" Big Lift Kit is engineered specifically for 2019–2022 Chevrolet Silverado 1500 High Country and GMC Sierra 1500 Denali 4WD trucks equipped with Adaptive Ride Control (ARC) seeking maximum ride height, larger tire clearance, and premium suspension performance while maintaining factory ride quality and ARC functionality. Built around ReadyLIFT’s advanced big lift suspension architecture, this premium system combines heavy-duty suspension correction components with ARC-compatible engineering for superior drivability and off-road capability.

Designed specifically for ARC-equipped GM 1500 trucks, the ReadyLIFT system retains full functionality of the factory Adaptive Ride Control suspension system while significantly improving ground clearance and tire fitment capability. ReadyLIFT engineered the system to preserve ride comfort and handling characteristics even with oversized wheels and tires installed.

The suspension system utilizes heavy-duty boxed steel front and rear crossmembers combined with a full-width 3/16-inch steel skid plate for improved durability and protection. ReadyLIFT also engineered new 1/4-inch boxed differential drop brackets featuring gusseted reinforcement and boxed center ribs designed to withstand differential torsional loading under aggressive off-road conditions.

A major advantage of the ReadyLIFT 8-inch system is its angled and offset lower clamshell-style strut extensions designed specifically to realign the ARC-equipped front struts for improved shock performance and reduced wear. The system also incorporates specially designed preload spacers that slightly increase spring rate to better handle oversized wheel and tire packages commonly used with high-lift trucks.

The rear suspension includes fabricated steel rear lift blocks with integrated bump stop landings along with ARC-compatible rear shock extensions engineered to maintain proper operation of the factory rear adaptive suspension system. Cast iron steering knuckles are included to preserve OEM steering geometry and ride quality after lifting.

ReadyLIFT confirms the system supports up to 37x12.50-inch tires on 20x9 wheels with 0 offset without trimming. Larger wheel and tire combinations may require minor trimming depending on wheel width, tire design, and offset specifications.

Extensive engineering and road testing were completed specifically for GM ARC-equipped trucks, with ReadyLIFT stating the system delivers ride quality that performs “better than stock” on properly equipped applications.

Whether you're building a premium show truck, overland rig, or aggressive daily-driven Sierra Denali or Silverado High Country, the ReadyLIFT 8" Big Lift Kit delivers premium suspension enhancement with full ARC compatibility. Now Available at LEER!



---



Features & Specifications

Product Type: Big Lift Suspension System
Material: Heavy-duty boxed steel with cast iron steering knuckles
Finish Options: Black powder-coated finish
Mounting Type: Complete bolt-on suspension lift system
Fitment: 2019–2022 Chevy Silverado 1500 High Country & GMC Sierra 1500 Denali ARC-equipped 4WD models
Lift Height: 8 inches
Maximum Tire Size: 37x12.50
Design: ARC-compatible big lift suspension system

Functionality:

• Improved ground clearance
• Enhanced off-road capability
• ARC suspension retention
• Larger tire clearance
• Maintained steering geometry
• OEM-style ride quality retention



---



Available Options

The ReadyLIFT 8" Big Lift Kit is available in:

Vehicle Fitments

• 2019–2022 Chevrolet Silverado 1500 High Country 4WD with ARC
• 2019–2022 GMC Sierra 1500 Denali 4WD with ARC

Finish Options

• Black powder-coated suspension components
• Heavy-duty boxed steel finish
• Cast iron steering knuckle finish

Configurations

• 8-inch big lift suspension configuration
• ARC-compatible suspension setup
• Boxed crossmember configuration
• Differential drop bracket setup
• Clamshell strut extension configuration
• Rear ARC shock extension setup
• Bolt-on suspension installation system
• 37-inch tire clearance setup
• Off-road and show truck suspension configuration
• OEM-style steering geometry setup

Choose the ReadyLIFT ARC-compatible big lift system if you want maximum ride height and oversized tire capability while retaining factory Adaptive Ride Control performance.



---



Why Choose the ReadyLIFT 8" Big Lift Kit?

This product is ideal for customers who want maximum ride height and premium suspension performance without sacrificing factory ARC ride quality.

• Adds 8 inches of lift for aggressive stance and improved clearance
• Retains factory ARC functionality for OEM-style ride comfort and handling
• Supports up to 37-inch tires on compatible wheel setups
• Uses heavy-duty boxed steel construction for improved durability and strength
• Includes cast iron steering knuckles for corrected suspension geometry
• Provides complete bolt-on installation using application-specific hardware



---

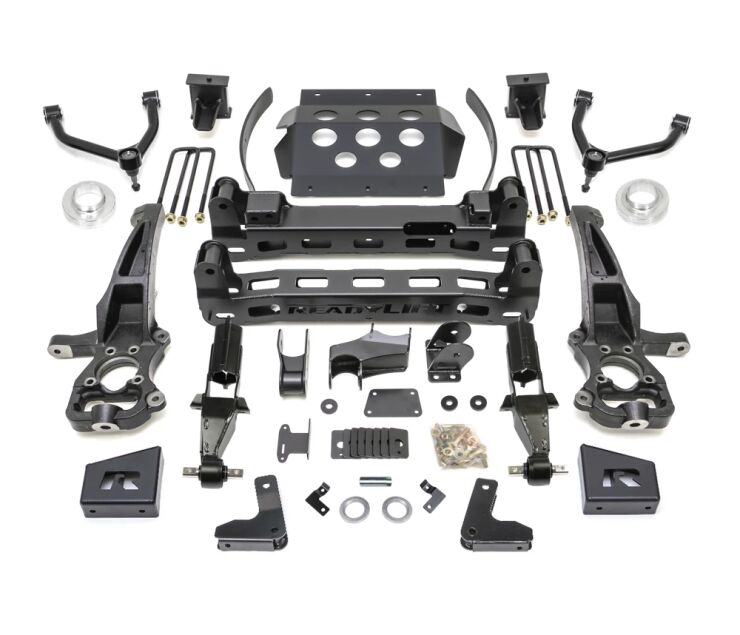

What’s Included

• Heavy-duty boxed front crossmembers
• Heavy-duty boxed rear crossmembers
• Full-width skid plate
• Differential drop brackets
• Cast iron steering knuckles
• Lower clamshell strut extensions
• Rear fabricated lift blocks
• Rear ARC shock extensions
• Sway bar drop brackets
• Application-specific mounting hardware
• Installation instructions



---

Installation Notes

• Designed specifically for 2019–2022 Silverado High Country and Sierra Denali 1500 4WD models equipped with Adaptive Ride Control
• Professional installation is strongly recommended
• Alignment inspection is required after installation
• Every wheel and tire combination should be test fit before final installation
• Retains full operation of the factory ARC suspension system
• Not compatible with Trail Boss, AT4, AT4X, ZR2, or diesel-equipped models
• Not compatible with rear mono-leaf spring applications
• Single cab fitment has not been validated by ReadyLIFT
• Use of Auto 4 Hi feature is not recommended after installation
• Not compatible with certain late-model 2023+ applications due to CV axle angles
• Minor trimming may be required for aggressive wheel/tire combinations
• Headlamp aim should be checked and adjusted after installation



---



Tire Fitment Notes

ReadyLIFT confirms support for up to 37x12.50-inch tires on 20x9 wheels with 0 offset without trimming. Larger wheel widths and aggressive offsets may require trimming of the front valance, wheel liner, or mud flap areas.



---



Warranty Information

ReadyLIFT Warranty

ReadyLIFT products are backed by a “No Hassle” product warranty for the original purchaser. ReadyLIFT states that missing or defective components are covered and that qualifying replacement parts may be provided under warranty.
