Oracle Universal Concept LED Strip

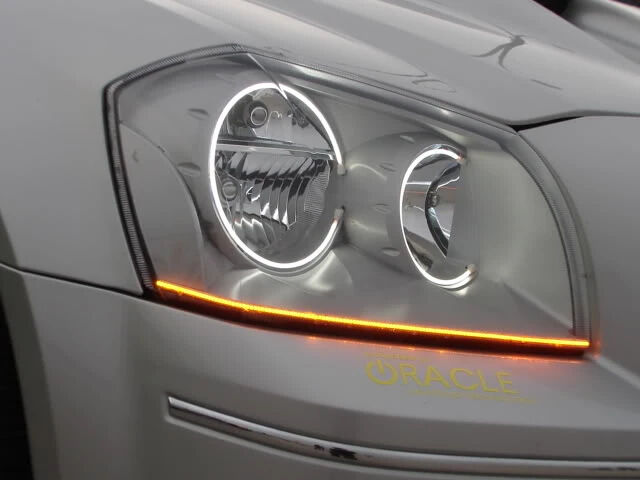

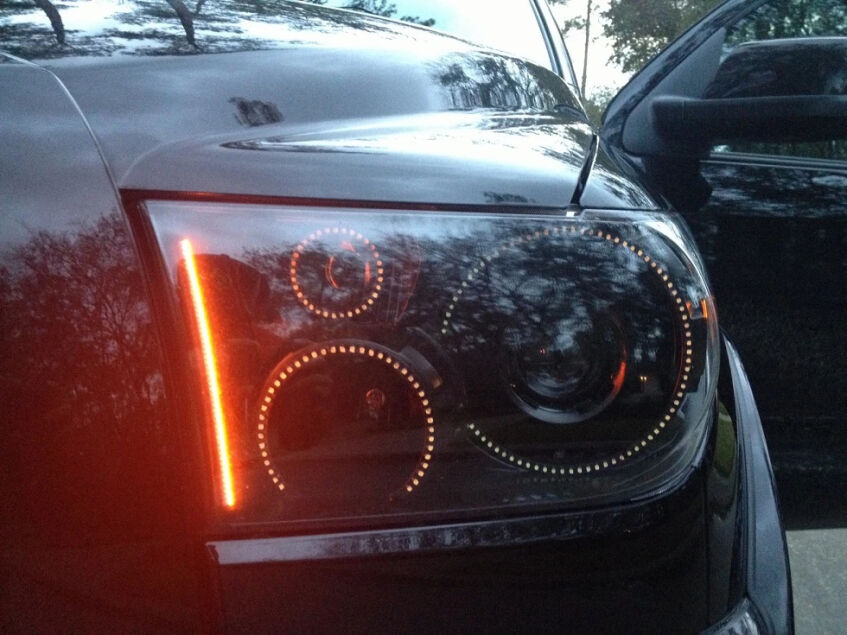

Oracle Universal Concept LED Strip gives custom-lighting builders a compact semi-rigid light source for headlight housings, marker-light replacements, brake-light details, turn-signal projects, and exterior accent designs. The tightly spaced LEDs create a bright continuous-looking line that can sharpen the appearance of an original lighting assembly or add a new illuminated detail to a custom panel. White, red, and amber versions let customers match the strip to the intended visual and functional role.

The premium LEDs are mounted on a semi-rigid circuit board that can bend through gentle curves while holding a more defined shape than a soft flexible strip. Minimal spacing between the light points creates uniform intensity and a laser-like visual line. This construction works especially well when the design calls for a clean geometric accent inside a headlight, around a marker opening, or along a custom trim feature.

Universal 12-volt operation makes the paired concept strips adaptable to many automotive projects, while the waterproof single-strip versions support exposed marker, brake, and accent-light locations. Pre-installed 3M or 3M VHB adhesive on the applicable strip helps with placement after the mounting surface has been cleaned and test fitted. The installer remains responsible for selecting a flat or gently curved surface that supports the strip without twisting or overstressing the board.

White strips provide a neutral accent for headlight and running-light projects, amber strips suit marker and signal-inspired applications, and red strips are useful for rear-facing marker, brake-light, or accent designs where permitted. A compatible dual-intensity circuit can support two-stage operation on selected projects, such as steady running light with flashing signal behavior. That added function may require soldering and careful circuit planning beyond a basic single-intensity connection.

Available lengths range from compact 4-inch pairs to 16-inch pairs, along with 9-inch and 17-inch waterproof single-strip formats. Paired strips are useful when matching left and right lighting locations, while single strips serve center-mounted or one-piece accent projects. Some strips can be shortened at approved cut locations, but customers should confirm the construction and cut guidance for the selected length before trimming.

Custom installation may involve headlight opening, soldering, circuit protection, external mounting, and careful resealing, so professional help is recommended for complex builds. Customers should confirm color restrictions, mounting orientation, voltage, and the intended lighting function before using the strip on a public road. Whether customers are upgrading for custom headlight accents, marker lighting, brake-light details, or a sharp continuous LED appearance, the Oracle Universal Concept LED Strip delivers flexible project options in a compact semi-rigid format. Now Available at LEER!



---



Features & Specifications

Product Type: Universal semi-rigid concept LED strip

Brand: Oracle Lighting

Voltage: 12-volt automotive application for paired concept strips

Board Construction: Semi-rigid circuit board with tightly spaced premium LEDs

Color Options: White, red, or amber depending on selected length

Length Options: 4-inch, 8-inch, 9-inch, 12-inch, 16-inch, or 17-inch formats

Package Style: Pair or single strip depending on selected length

Mounting: Pre-installed 3M adhesive or 3M VHB tape on applicable versions

Water Protection: Waterproof construction on the 9-inch and 17-inch external-mount versions

Optional Function: Compatible dual-intensity circuit can support selected running-light and signaling layouts

Warranty Term: One year under the applicable Oracle Lighting product terms

Functionality:

• Adds a sharp continuous-looking LED accent to original or custom lighting housings.
• Supports marker-light, brake-light, turn-signal, running-light, and decorative applications when wired appropriately.
• Bends through gentle curves while retaining a defined semi-rigid shape.
• Provides white, amber, or red output for different front, side, and rear lighting projects.
• Offers paired formats for matched left-and-right installations.
• Offers waterproof single-strip formats for selected exposed mounting locations.
• Allows approved lengths to be shortened for a more exact custom fit.
• Can work with a compatible dual-intensity circuit when a two-function lighting layout is required.



---



Available Options

The Oracle Universal Concept LED Strip is available in multiple lengths, colors, and package formats:

• 4-Inch White Pair - A compact matched pair for short headlight, marker, trim, and interior-housing accents.
• 8-Inch White Pair - A mid-length matched pair for balanced left-and-right custom lighting projects.

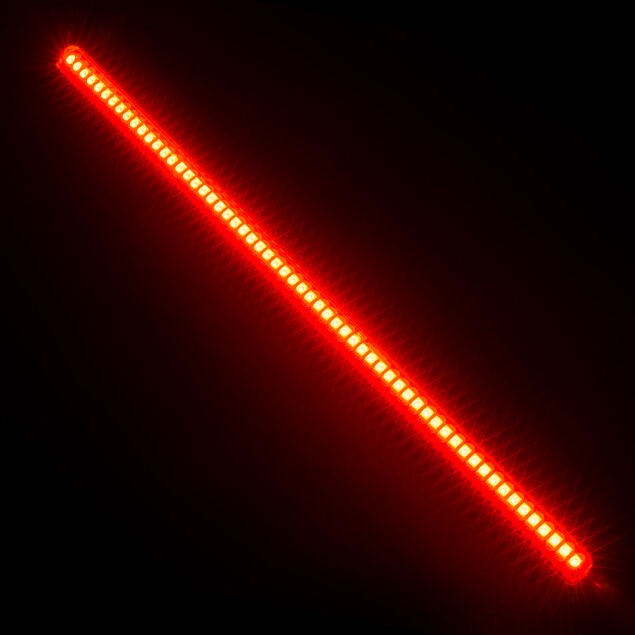

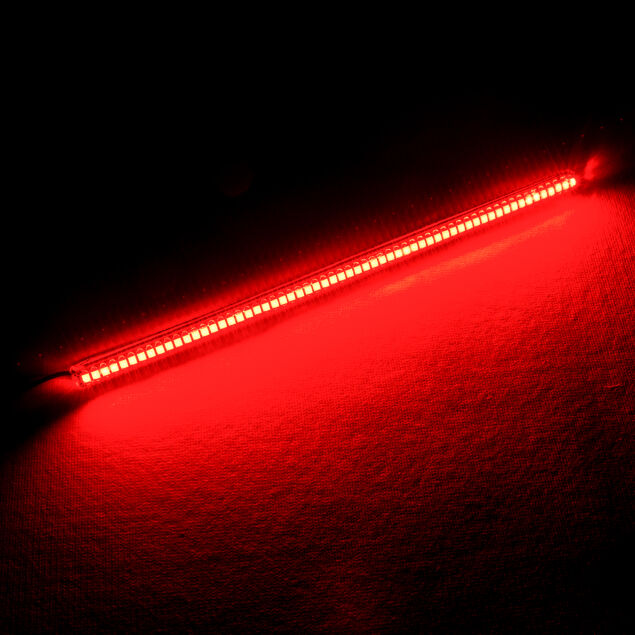

• 9-Inch Waterproof Single Strip - An externally mountable single strip offered in red or amber for brake-light, marker-light, signal-inspired, or accent applications.
• 12-Inch White Pair - A longer matched pair for broader headlight outlines and custom housing details.
• 16-Inch White Pair - The longest paired white format for sweeping headlight or trim accents and larger custom-lighting designs.

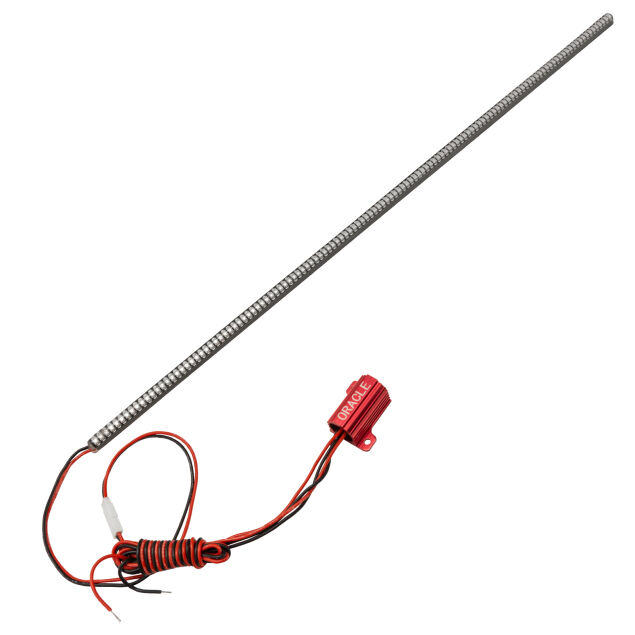

• 17-Inch Waterproof Red Single Strip - A long external-mount red strip with a wide-range voltage driver for brake-light, marker-light, or rear accent projects.

Choose a paired white strip set for matched headlight or trim accents, or choose a waterproof red or amber single strip for an exposed marker, brake-light, or custom exterior lighting location.



---



Why Choose

This product is ideal for customers who want a bright semi-rigid LED strip that can be shaped into clean custom automotive lighting details.

• Tightly spaced LEDs create a more uniform line than widely spaced accent lights.
• Semi-rigid construction holds a defined contour while allowing gentle bends.
• Multiple lengths support everything from compact markers to long headlight accents.
• White, red, and amber choices help match front, side, or rear lighting roles.
• Paired and single-strip formats suit both symmetrical and center-mounted projects.
• Waterproof versions expand the range of suitable exterior mounting locations.
• Optional dual-intensity capability supports more advanced running-light and signal layouts.
• Pre-installed adhesive on applicable strips simplifies careful test placement and final mounting.



---



What's Included

• Oracle Concept LED Strip in the selected length, color, and pair or single format
• Integrated LED circuit board and attached lead wiring
• Pre-installed mounting adhesive on applicable versions
• Wide-range voltage LED driver with applicable waterproof single-strip versions

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the selected strip length, color, package quantity, voltage requirements, and intended lighting function before mounting or wiring.
• Test fit the strip without forcing sharp bends, clean the mounting surface, and bench-test polarity and output before final attachment.
• Cut only versions that permit shortening and only at approved locations; soldering or a dual-intensity circuit may be required for advanced functions.
• Professional installation is recommended for headlight disassembly, sealed-housing work, external safety-light functions, or complex custom wiring.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Oracle Concept LED Strips are supported by a one-year warranty under the applicable product terms. On waterproof strip versions, coverage generally applies to the LED and driver components, while environmental aging of exposed hard parts may be excluded.

Warranty coverage typically excludes improper bending, cutting at an unapproved location, adhesive failure caused by poor surface preparation, incorrect wiring, soldering damage, unauthorized modifications, impact damage, or moisture intrusion caused by an incomplete installation.
