Oracle Slim Strobe Lights



The ORACLE Slim Strobe Lights provide high-visibility warning output in an exceptionally thin flush-mount housing for service, recovery, fleet, worksite, and specialty vehicles. Their 0.12-inch profile helps installers place attention-getting lightheads on bumpers, body panels, equipment enclosures, and other mounting areas without the visual bulk of a larger beacon. Customers can build a clean warning-light layout while selecting the LED count and output color that best match the vehicle role.

Solid-state LED construction supports quick flash response and dependable operation across repeated warning cycles. An integrated controller supplies 19 selectable flash patterns, eliminating the need for a separate external pattern controller in a basic installation. This self-contained approach reduces the number of components that must be mounted and makes each lighthead easier to integrate into a single-light setup or a coordinated multi-light system.

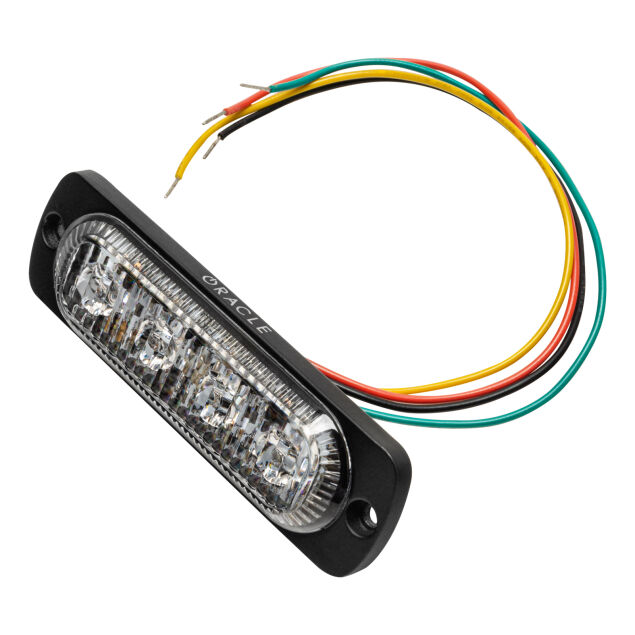

The compact four-LED dual-color model measures 1 inch wide, 3.75 inches long, and 0.12 inches high, with a 2-watt rating and 12-24V input range. It combines amber and white output in one lighthead, giving installers more visual flexibility where both colors are permitted. The six-LED models extend the housing to 4.36 inches while retaining the same 1-inch width and 0.12-inch height for a consistent low-profile appearance.

Six-LED choices include a dual-color amber and white version along with single-color amber and single-color white versions. Each six-LED light is rated at 3 watts and uses six 0.5-watt LEDs, delivering a larger illuminated footprint than the four-LED design. Single-color models are useful when a fleet standard or work function calls for one dedicated warning color, while the dual-color models support more flexible signaling strategies.

Pattern selection is controlled through the light wiring, allowing installers to advance, reverse, or reset the active sequence on supported versions. Available behavior includes steady illumination and multiple single, double, triple, quad, quint, burst, and combination patterns. Proper synchronization planning is important when several lightheads are installed together, because a well-organized pattern can improve recognition and present a more professional appearance than unrelated flashing.

Flush mounting requires a suitable flat surface, accurate hole placement, protected cable routing, and weather-resistant electrical connections. Voltage compatibility from 12V through 24V makes the family useful for many passenger, commercial, fleet, and equipment applications, but color and flash use remain subject to local restrictions. Whether customers are adding compact scene awareness, fleet identification, recovery-vehicle visibility, or worksite warning coverage, ORACLE Slim Strobe Lights deliver a low-profile package with selectable flash control. Now Available at LEER!



---



Features & Specifications

Product Type: Flush-mount LED warning strobe

Brand: ORACLE Lighting

Input Voltage: 12V-24V

Flash Patterns: 19 selectable patterns

Mounting Style: Low-profile flush mount

Four-LED Dimensions: 1 inch wide x 3.75 inches long x 0.12 inches high

Six-LED Dimensions: 1 inch wide x 4.36 inches long x 0.12 inches high

Electrical Output: 2 watts for the four-LED model and 3 watts for the six-LED models

Certification: ECE R10 Class 1 listed by ORACLE Lighting

Functionality:

• Adds compact warning illumination to service, recovery, fleet, worksite, and specialty vehicles.
• Provides 19 selectable flash patterns through the built-in controller module.
• Supports steady, single, multi-flash, burst, and combination warning sequences.
• Fits shallow mounting locations with a housing height of only 0.12 inches.
• Accepts 12V-24V input for compatibility with a broad range of vehicle electrical systems.
• Offers amber, white, and amber-white output choices for different operating needs.
• Allows pattern changes through the dedicated control wire on supported configurations.
• Reduces external component requirements by integrating the flash controller into the lighthead.



---



Available Options

The ORACLE Slim Strobe Lights are available in multiple LED-count and color configurations:

• Four-LED Amber and White - combines two warning colors in the shortest housing, making it useful where mounting space is limited and dual-color signaling is permitted.
• Six-LED Amber and White - adds a larger six-LED illuminated area while retaining dual-color flexibility for service, recovery, and fleet applications.
• Six-LED Amber - provides a dedicated amber warning signal for work vehicles, roadside support, equipment, and other approved uses.
• Six-LED White - provides a dedicated white warning or scene-support signal where white flashing light is permitted and appropriate.

Choose the four-LED model for the smallest mounting footprint, or choose a six-LED model for a longer illuminated surface. Choose a single-color version for a consistent dedicated signal, or choose amber and white when a dual-color lighthead better matches the planned system.



---



Why Choose

This product is ideal for customers who want compact warning lights with an integrated controller, selectable patterns, and a nearly flush finished appearance.

• The 0.12-inch housing height keeps the installation visually clean on body panels and equipment panels.
• Nineteen flash patterns give installers flexibility to match different warning and identification needs.
• A built-in controller avoids the space and wiring demands of a separate basic pattern module.
• Four-LED and six-LED choices make it easier to balance mounting space with illuminated surface area.
• Amber, white, and dual-color options support different approved service and fleet roles.
• The 12V-24V input range works with many passenger, commercial, and equipment electrical systems.
• Solid-state LEDs provide immediate response and are suited to frequent flashing cycles.
• Individual lightheads can be positioned around the vehicle to create a tailored visibility layout.



---



What's Included

• One ORACLE Slim Strobe Light in the selected four-LED or six-LED configuration.
• Integrated wiring and pattern-control electronics built into the selected lighthead.
• Product documentation or installation instructions when supplied with the selected configuration.

Note: Confirm included components before installation.



---



Installation Notes

• Flush mounting may require drilling, precise panel preparation, corrosion protection, and access behind the selected mounting surface.
• Confirm 12V-24V compatibility, circuit protection, wire routing, grounding, and weather sealing before powering the light.
• Use the pattern-control wire only as directed for the selected model, and plan synchronization before installing multiple lightheads.
• Verify that the selected color and flash behavior are permitted for the vehicle type and operating environment.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

ORACLE Lighting lists its strobe-light products under one-year warranty coverage for eligible defects in materials and workmanship. Proof of purchase may be required, and warranty service remains subject to the brand terms in effect for the selected light.

Coverage typically excludes improper installation, incorrect voltage, inadequate circuit protection, wiring errors, unauthorized modification, impact damage, water intrusion caused by poor sealing, misuse, restricted-color operation, or normal wear. Installation should follow the supplied electrical and mounting guidance to preserve product performance and warranty eligibility.
