ORACLE Off-Road LASER Fog Lights



The ORACLE Off-Road LASER Fog Lights are built for customers who need focused long-distance illumination beyond the reach of a conventional fog beam. These vehicle-specific systems place laser auxiliary modules low in the bumper or factory fog light area, creating a clean installation for high-speed trail travel, desert routes, open terrain, and remote access roads. Their purpose is distance and precision, allowing drivers to identify terrain changes and obstacles much farther ahead during off-road use.

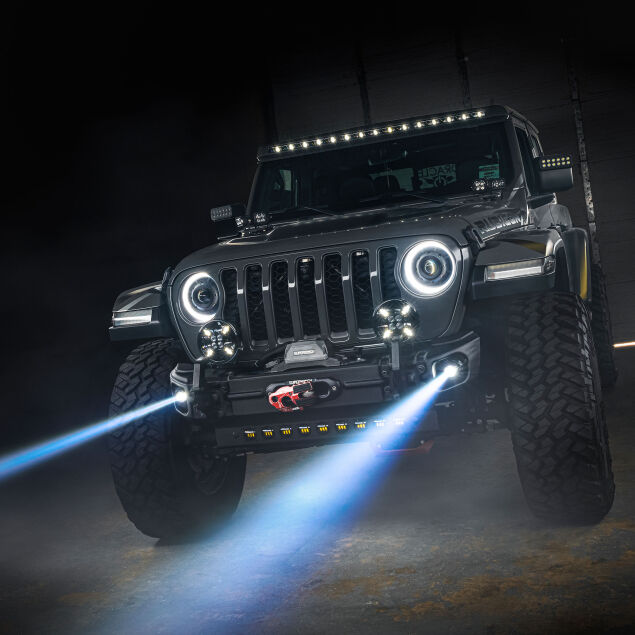

Laser projection concentrates light into a narrow, far-reaching beam rather than spreading output across the foreground. That focused pattern complements wider bumper lights or driving beams by extending the visible corridor down the trail. Each laser element can be aimed to place the projected light where it is most useful, which is especially important on lifted vehicles or builds with altered ride height.

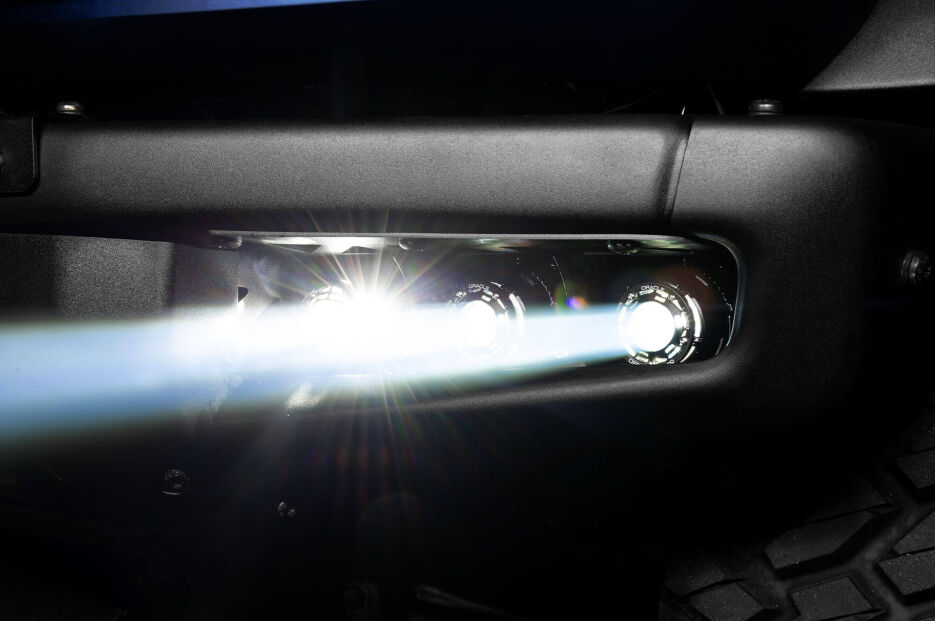

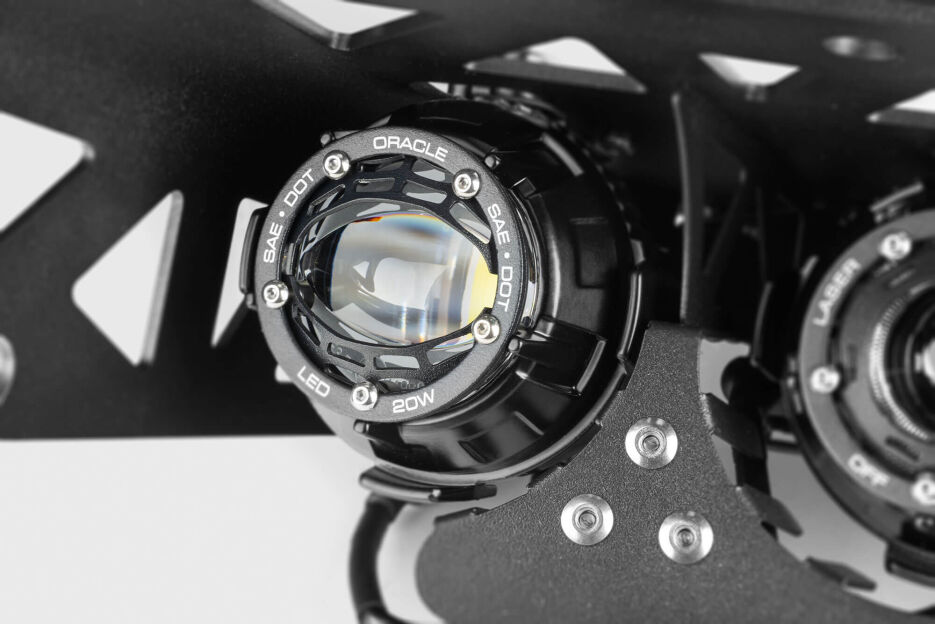

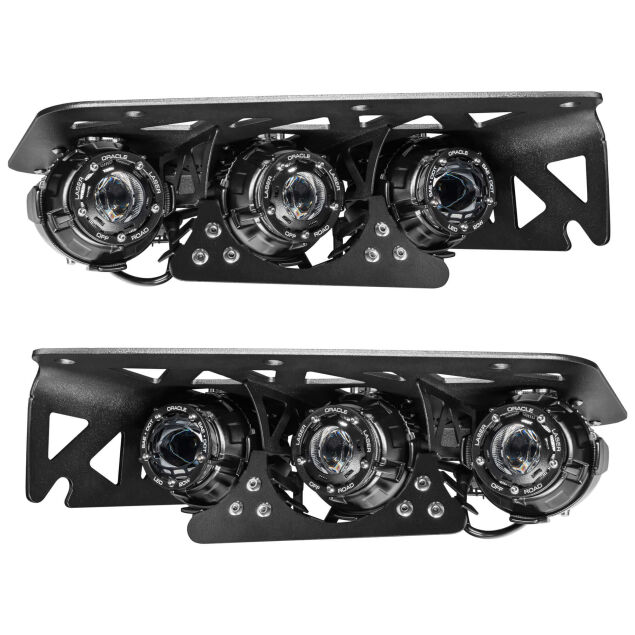

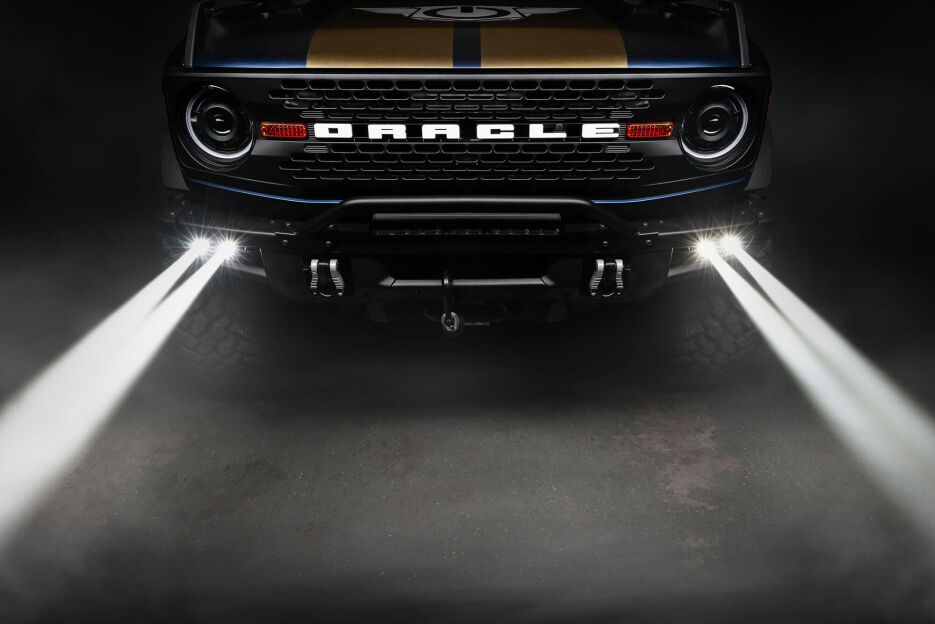

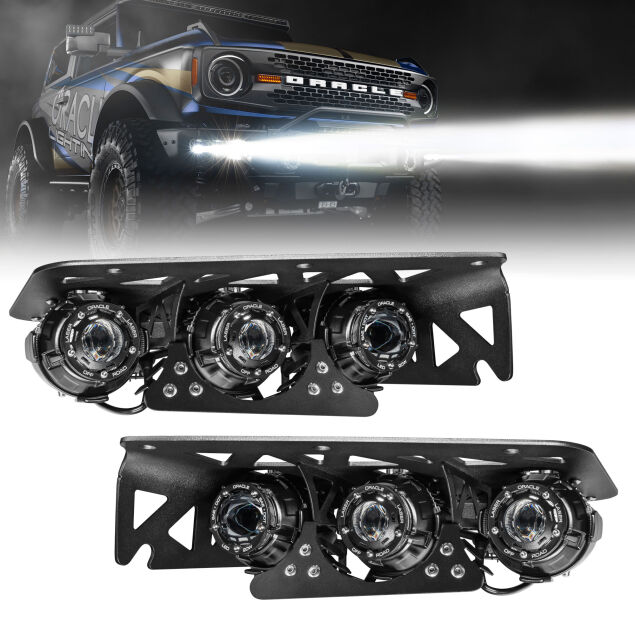

One configuration combines two off-road laser modules with an integrated LED fog light inside each bumper assembly. The complete system produces 7,000 total raw lumens and 100W total power, with laser projection reaching approximately 3,250 feet and LED projection reaching approximately 980 feet. The LED fog function uses a controlled SAE-compliant pattern, while the laser modules are reserved for off-road distance lighting.

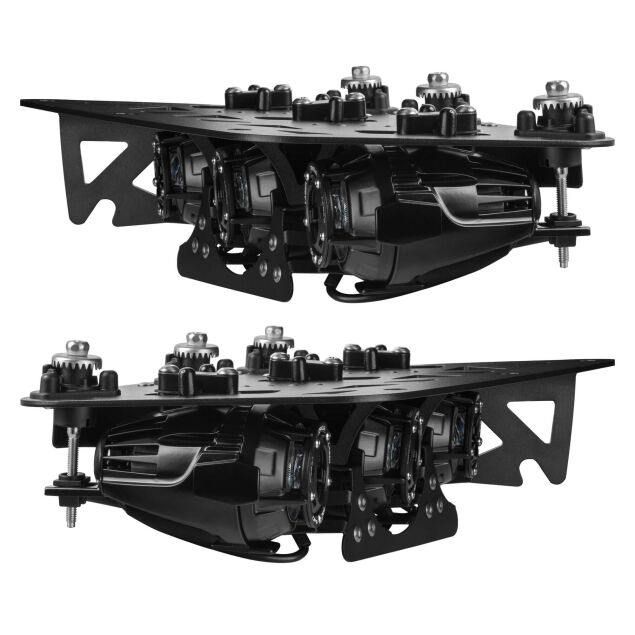

The integrated laser and LED assemblies use polycarbonate lenses, die-cast aluminum housings, powder-coated carbon steel mounts, Deutsch DT connectors, and IP67 sealing. This construction supports repeated exposure to vibration, dust, water spray, and rough terrain while keeping the modules securely positioned in the bumper. The modular layout also gives the front end a purposeful technical appearance without relying on a large roof-mounted light bar.

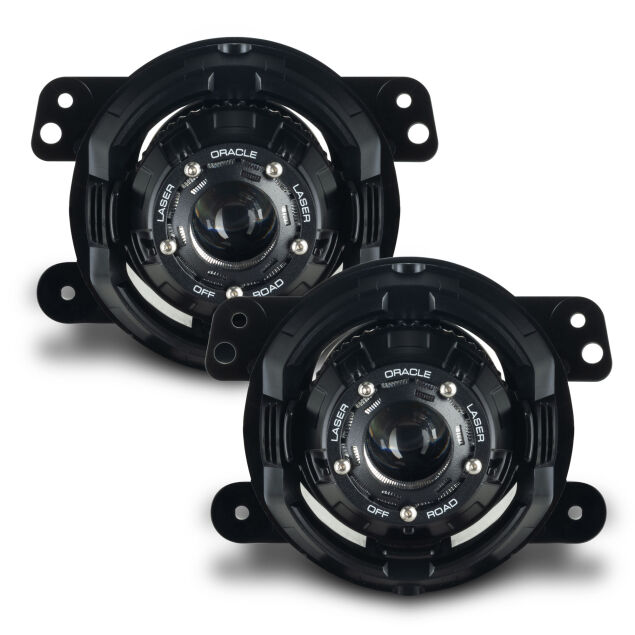

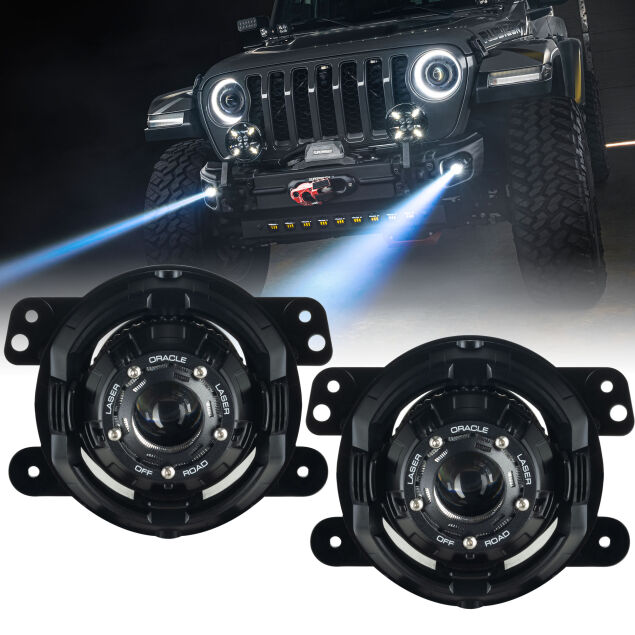

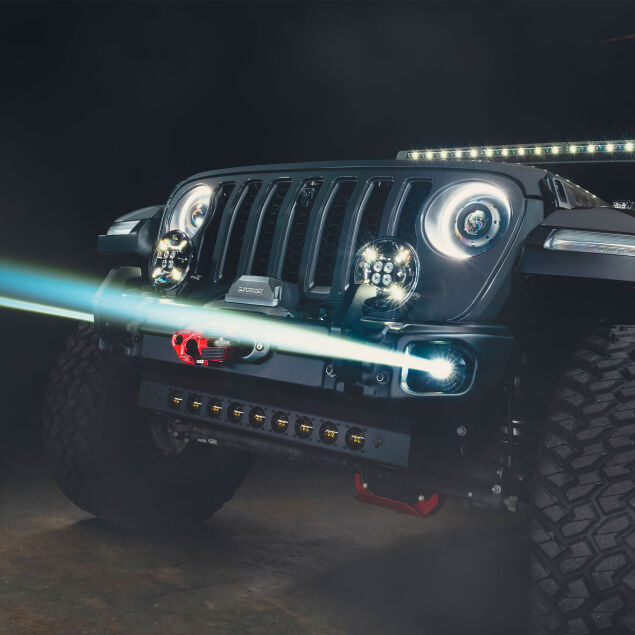

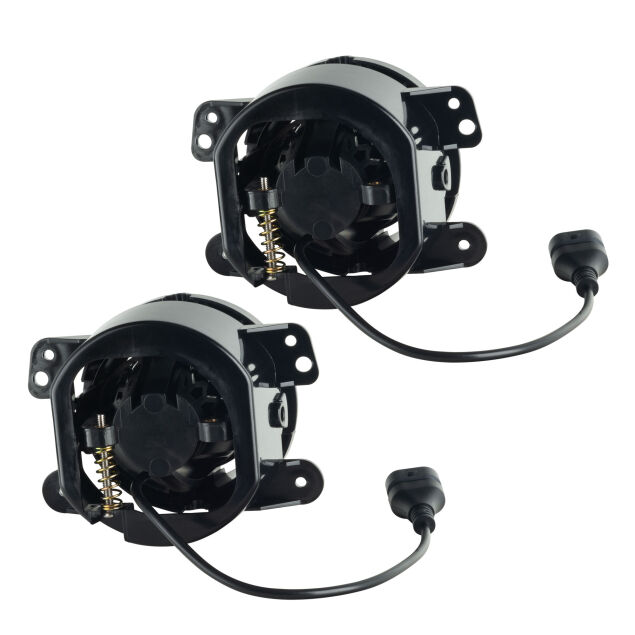

A second configuration upgrades compatible factory fog lights with 15W laser modules that project a super-focused beam more than 3,000 feet. These compact assemblies use PMMA lenses, aluminum housings, polycarbonate bracket components, a 12V to 24V operating range, and approximately one amp of draw per side. Individual leveling adjustment helps customers align each laser beam after installation for the vehicle's stance and intended trail speed.

Both designs rely on application-specific hardware and electrical connections to keep installation organized. Customers should confirm bumper type, factory fog light design, trim requirements, and any supplemental bracket needs before disassembly, then aim every beam in a controlled off-road setting. Whether customers are upgrading for desert travel, long-range trail visibility, remote backroads, or high-speed off-road use, ORACLE Off-Road LASER Fog Lights deliver concentrated projection in a rugged vehicle-specific system. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific off-road laser auxiliary light system

Brand: ORACLE Lighting

Beam Type: Hyper-focused long-range laser projection

Integrated System Output: 7,000 total raw lumens on the laser and LED modular bumper kit

Integrated System Power: 100W total on the laser and LED modular bumper kit

Projection Distance: Approximately 3,250 feet for the integrated laser system and more than 3,000 feet for the 15W replacement modules

Replacement Module Power: 15W per laser module

Input Voltage: 12V DC for the integrated bumper kit; 12V to 24V for the replacement modules

Housing: Die-cast or machined aluminum, depending on configuration

Lens: Polycarbonate or PMMA, depending on configuration

Ingress Protection: IP67

Mounting Style: Factory fog light or steel modular bumper location, depending on application

Functionality:

• Projects a narrow beam far beyond the reach of a typical fog light
• Helps drivers identify distant terrain changes and obstacles during off-road travel
• Complements wider driving, flood, or fog lighting with a dedicated distance beam
• Provides individual beam leveling for precise setup on supported configurations
• Uses factory hardware or application-specific mounts for an integrated bumper installation
• Offers plug-and-play wiring on compatible replacement-module applications
• Combines off-road laser distance with an SAE-compliant LED fog function in the integrated kit
• Resists dust and water exposure with IP67-sealed components



---



Available Options

The ORACLE Off-Road LASER Fog Lights are available in two distinct configurations:

• Integrated Laser and LED Fog Kit - Combines two off-road laser modules and one SAE-compliant LED fog light per side for customers who want distance lighting and controlled fog output in a steel modular bumper.
• 15W Laser Replacement Modules - Upgrades compatible factory fog lights with compact hyper-focused laser emitters for customers prioritizing maximum off-road projection from the original fog light area.

Choose the integrated laser and LED kit for combined fog and distance lighting, or choose the 15W replacement modules for a compact factory-location laser setup.



---



Why Choose

This product is ideal for customers who want extreme-distance off-road visibility with precise aiming and vehicle-specific bumper integration.

• Laser projection reaches much farther than conventional fog or flood lighting
• Low bumper placement keeps the system integrated with the vehicle rather than adding roof-mounted bulk
• Individual aiming helps adapt the beam to ride height, terrain, and preferred viewing distance
• The integrated kit combines controlled fog output with dedicated off-road laser modules
• The replacement modules use the original fog light area for a compact finished appearance
• Aluminum housings and durable lenses support repeated use in rough environments
• IP67 protection helps resist dust, rain, splashes, and trail contamination
• Application-specific brackets and connectors reduce the need for fully custom fabrication



---



What's Included

• ORACLE off-road laser light assemblies in the selected configuration
• Application-specific housings or mounting brackets
• Wiring connectors and related electrical components supplied with the selected kit
• Integrated LED fog modules when the laser and LED bumper kit is selected
• Installation hardware supplied for the selected application

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the vehicle platform, bumper type, factory fog light configuration, and any trim-specific bracket requirement before installation.
• Use the factory mounting points and supplied hardware where applicable, then route wiring away from heat, sharp edges, steering components, and suspension movement.
• Aim each laser module in a controlled off-road area and keep the projected beams away from public traffic.
• Laser auxiliary modules are intended for off-road use; use the integrated SAE fog function for permitted road operation when the selected kit includes it.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

ORACLE Off-Road LASER Fog Light applications are backed by a limited two-year replacement warranty on qualifying products.

Coverage generally excludes improper installation, wiring errors, misuse, unauthorized modification, damaged seals, collision or impact damage, off-road abuse outside warranty terms, and normal wear. Proof of purchase may be required for a claim.
