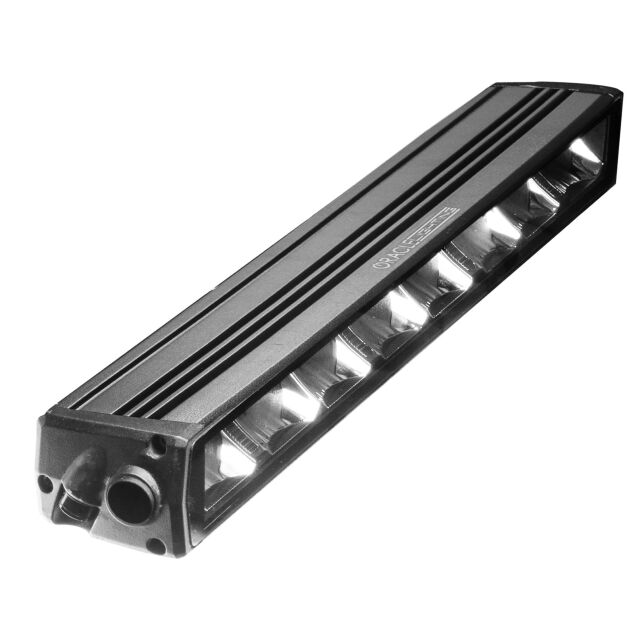

The ORACLE Multifunction Reflector-Facing Technology LED Light Bar is a slim, technology-driven lighting solution for drivers who want strong forward visibility, clean fitment, and added marker-light functionality in one package. Instead of using a traditional forward-facing LED layout, the RFT design directs light into precision reflectors to improve beam control and efficiency.
ORACLE’s Reflector-Facing Technology helps create a focused driving beam while keeping the housing under 2 inches tall. The result is a low-profile light bar that fits well in tight locations such as bumpers, grille openings, roof rack channels, and other areas where a standard light bar may be too bulky.
The system is designed around a 40-degree driving beam with an effective range of up to approximately 2,000 feet at 1 lux, making it useful for highway visibility, off-road driving, overlanding, and work applications. Depending on size, output can reach up to approximately 18,000 raw lumens.
A standout feature is the integrated amber and white clearance-light function. This allows the bar to serve as both a primary driving light and a marker / running-light accent, adding function and styling in a single compact unit.
With electronic thermal management, a 4-pin Deutsch waterproof connector, and dual heavy-duty adjustable brackets, the ORACLE RFT Light Bar is designed for clean installation and dependable performance. Now available at LEER.
Features & Specifications
-
Technology: Reflector-Facing Technology (RFT)
-
Beam Pattern: 40° driving beam
-
Max Output: Up to approximately 18,000 raw lumens, depending on size
-
Range: Up to approximately 2,000 feet at 1 lux
-
Housing: Ultra-slim aluminum design under 2 inches tall
-
Lighting Functions: White driving light with amber/white clearance lights
-
Cooling: Electronic Thermal Management (ETM)
-
Connector: 4-pin Deutsch waterproof connector
-
Color Temperature: Approximately 5500K–6000K
-

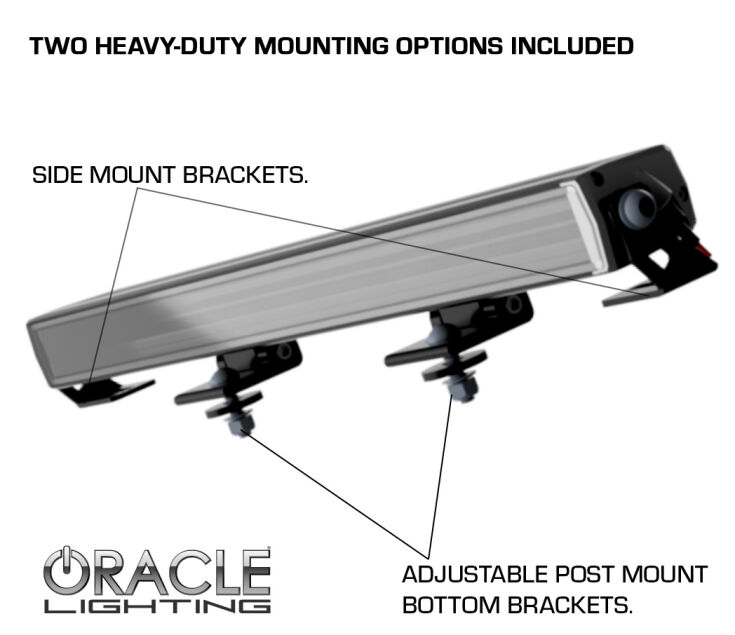

Mounting: Dual heavy-duty adjustable brackets
Size Options
-
14-Inch Light Bar: Compact grille, bumper, or small mounting locations
-
20-Inch Light Bar: Mid-size auxiliary lighting setups
-
30-Inch Light Bar: Balanced output and coverage
-
50-Inch Light Bar: Full-width roof or bumper setups
All sizes use the same RFT design and multifunction lighting concept.
Why Choose the ORACLE RFT Light Bar?
This is a modern alternative to traditional forward-facing LED light bars.
- Reflector-facing design improves beam control and efficiency
- Ultra-slim profile fits where larger bars may not
- Built-in amber/white marker light function adds versatility
- Strong long-range driving beam performance
- Heavy-duty brackets allow secure mounting and aiming
What’s Included
- ORACLE RFT LED light bar (size varies)

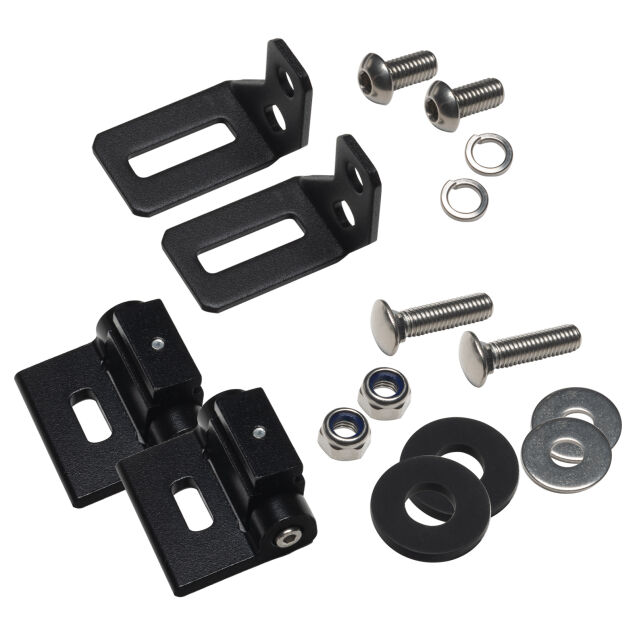

- Dual mounting brackets
- Installation hardware
Installation Notes
- Universal fitment
- Ideal for tight mounting areas
- Requires wiring for both the main beam and clearance-light functions
- Professional installation is recommended
Warranty Information
ORACLE Lighting Warranty
Backed by a 1-year limited warranty covering defects in materials and workmanship.
