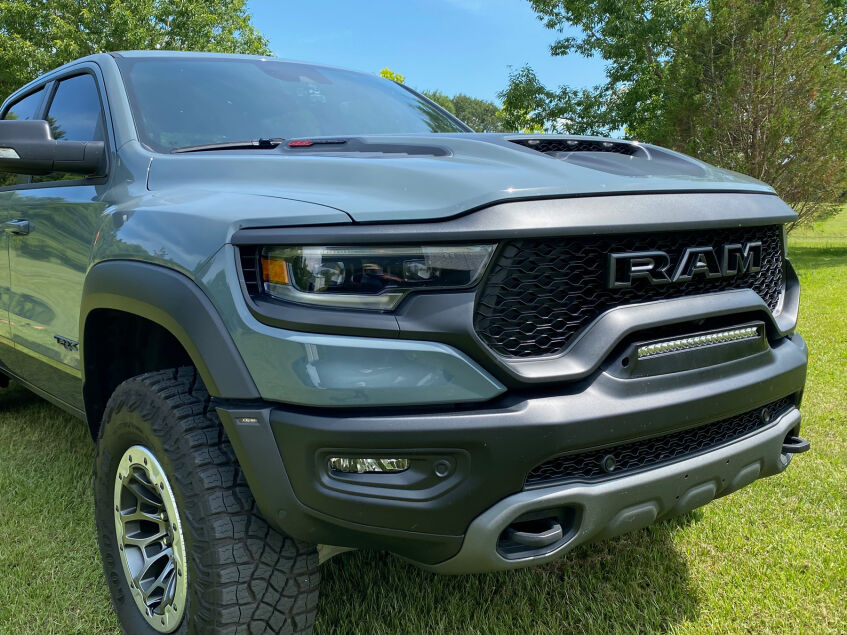

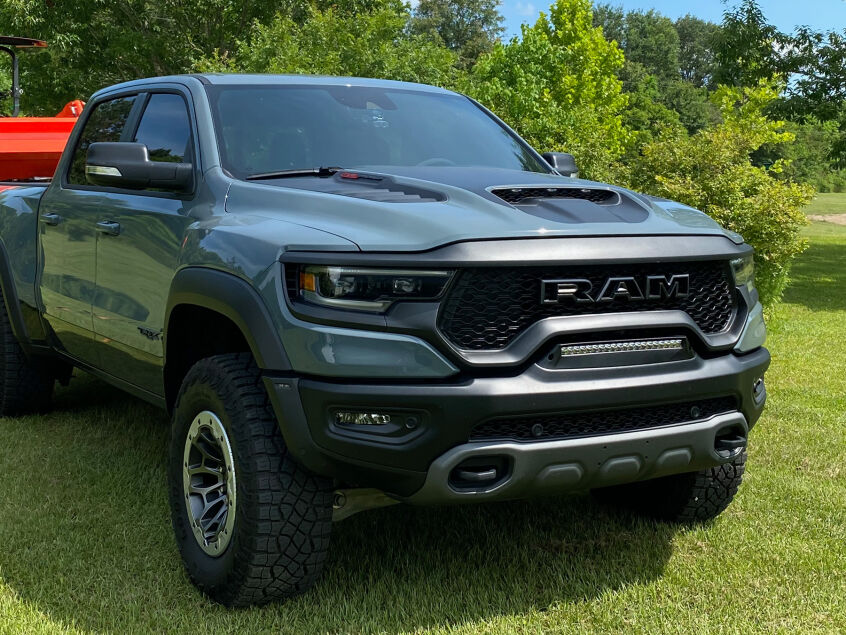

The ORACLE Front Bumper Flush LED Light Bar System is designed for RAM owners who want powerful auxiliary lighting without disrupting the aggressive factory styling of the truck. Unlike a traditional bolt-on light bar, this system installs flush into the front bumper opening for a clean OEM+ look while adding high-output forward visibility. ORACLE lists this system for 2019–2025 RAM Rebel, TRX, and RHO applications.
Built for serious lighting performance, this system produces 12,000 raw lumens with 100W total output and 54,107 candela. The lighting package uses 20 Osram CRDP LEDs, combining 8 flood LEDs with 45-degree optics and 12 spot LEDs with 25-degree optics to provide both wide-area coverage and long-range visibility.

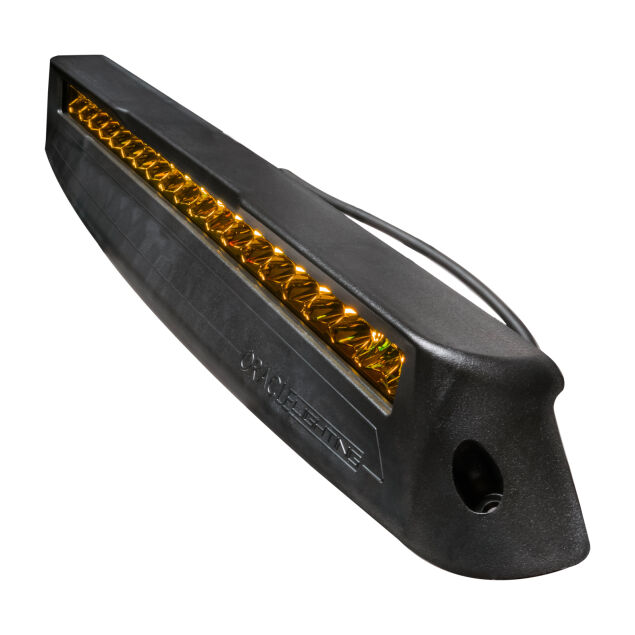

The flush light bar is constructed with a durable polycarbonate housing and an optically clear Lexan lens. It carries an IP69K waterproof rating, helping protect the system from water, dust, mud, and demanding off-road conditions. ORACLE also lists a 9–36V DC input range, 7.5A draw at 12V DC, and 50,000+ hour LED lifespan.

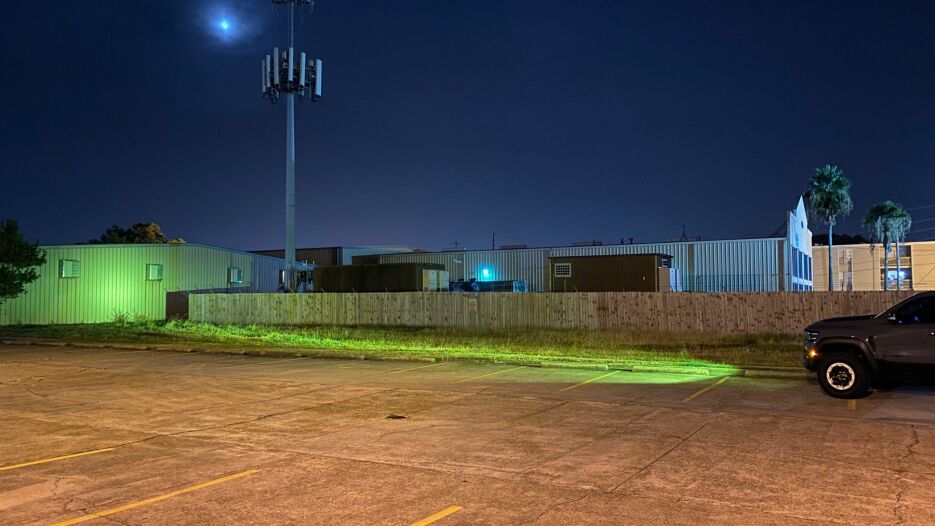

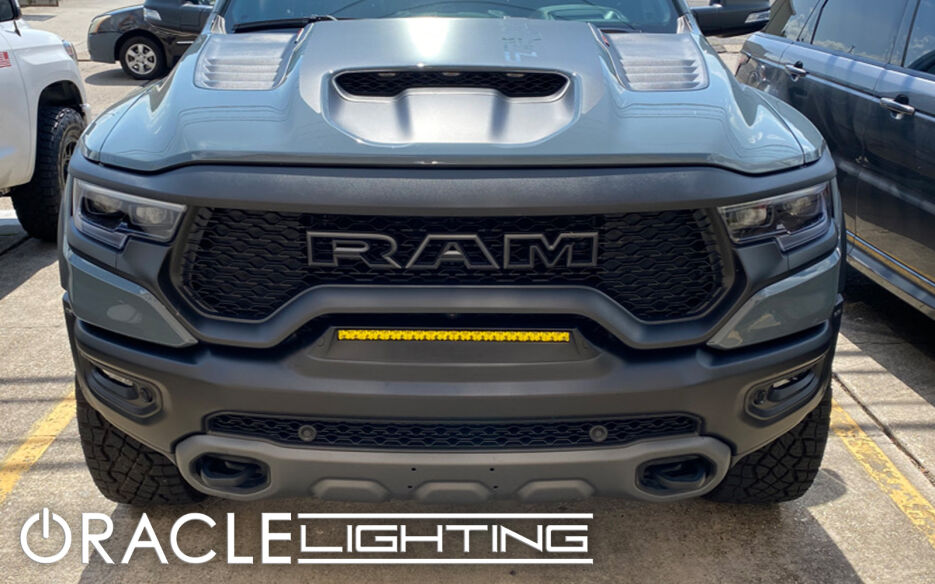

This system is available with White 5500K, Amber, or Yellow LED emitters. White is a strong all-around choice for maximum visibility, Amber helps reduce glare in dust, fog, and inclement weather, and Yellow is well suited for fog, dust, and harsh off-road environments.

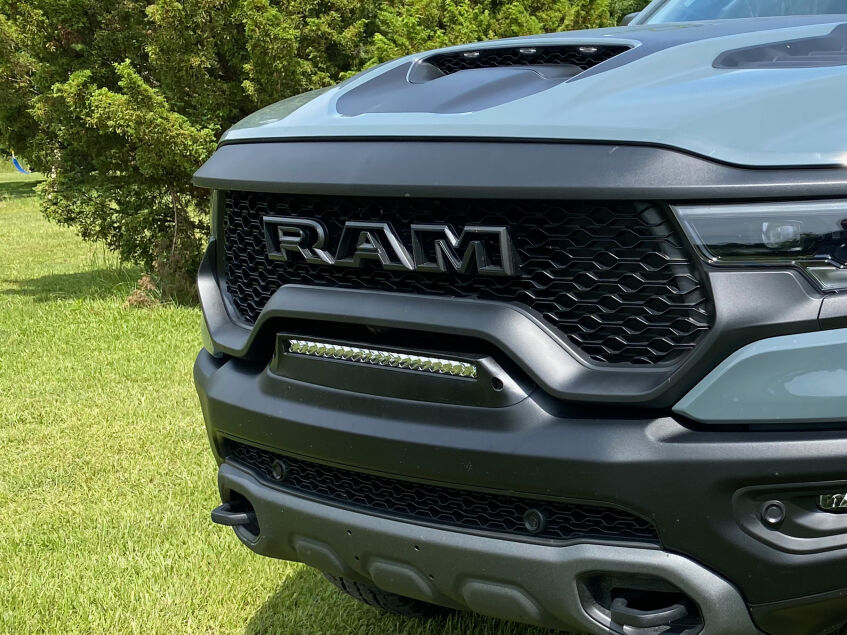

Installation is designed for clean integration into the RAM front bumper. ORACLE lists an estimated install time of approximately 2 hours, with rivet nuts included and two 3/8-inch mounting holes required. The system is designed to wire directly to factory AUX switches for integrated control.
Whether you're upgrading for nighttime trail use, rural road visibility, off-road performance, or a cleaner front-end lighting setup, the ORACLE Front Bumper Flush LED Light Bar System delivers a high-output lighting upgrade with a seamless factory-style appearance. Now Available at LEER!
Features & Specifications
Product Type: Front bumper flush LED light bar system

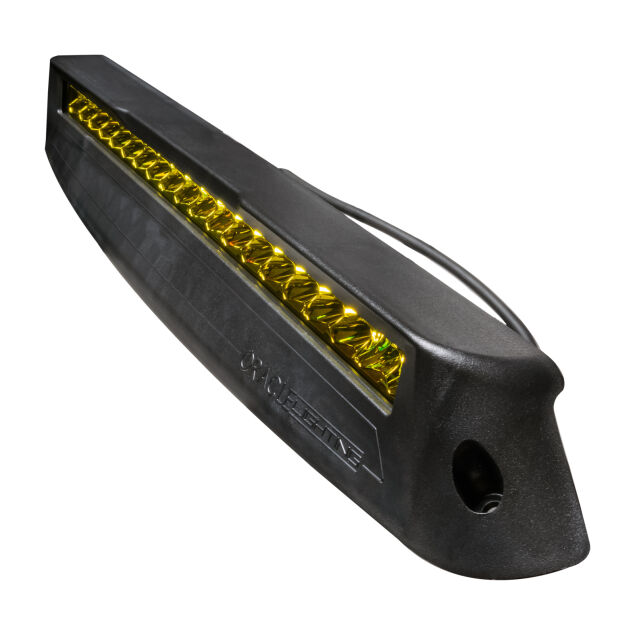

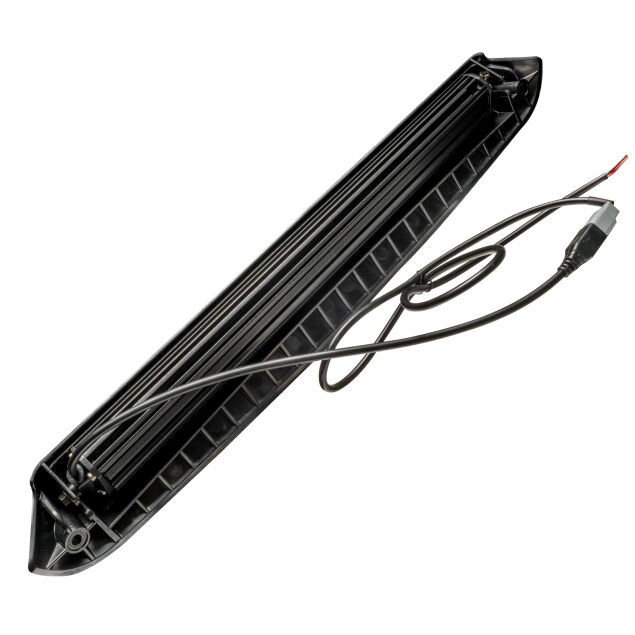

Material: Durable polycarbonate housing with optically clear Lexan lens
Finish Options: White, Amber, or Yellow LED emitters
Mounting Type: Flush front bumper mounting
Fitment: Vehicle-specific RAM Rebel, TRX, and RHO applications
Design: Flush-mount integrated front bumper LED light bar
Key Dimensions: Vehicle-specific bumper-integrated fitment
Functionality:
- 12,000 raw lumens
- 100W total output
- 20 x 5W Osram CRDP LEDs
- 54,107 candela total output
- Mixed spot / flood beam pattern
- 8 LEDs with 45-degree flood optics
- 12 LEDs with 25-degree spot optics
- 7.5A draw at 12V DC
- 9–36V DC input voltage
- 50,000+ hour LED lifespan
- IP69K waterproof rating
- Factory AUX switch integration
- Flush OEM+ bumper appearance
Available Options
The ORACLE Front Bumper Flush LED Light Bar System is available in:
Vehicle Fitments:
- 2019–2025 RAM Rebel
- 2019–2025 RAM TRX
- 2019–2025 RAM RHO
Finish Options:

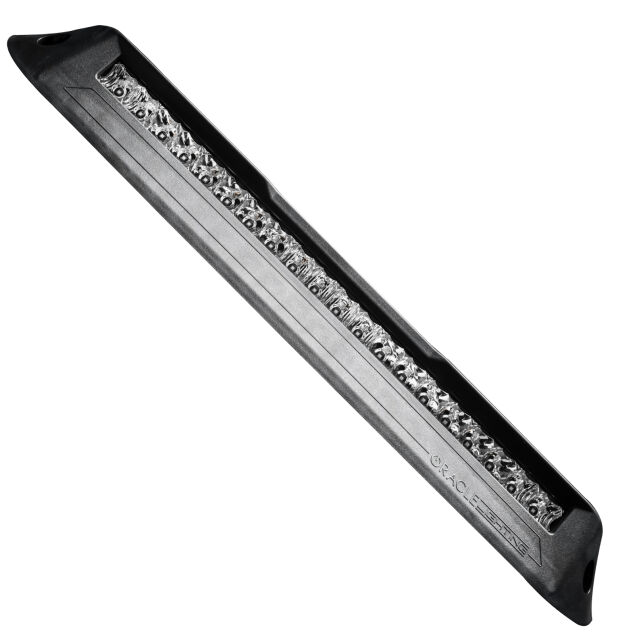

- White LED Emitter, 5500K

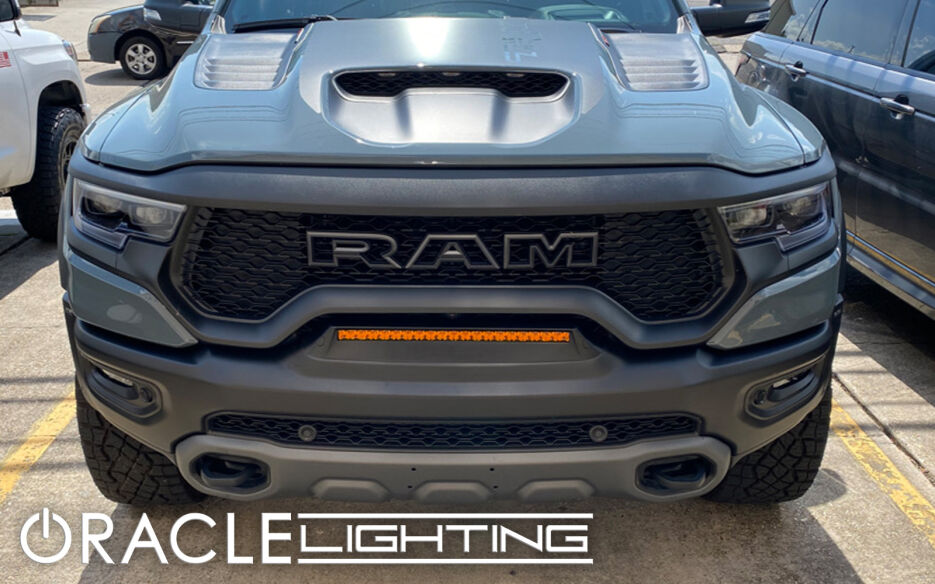

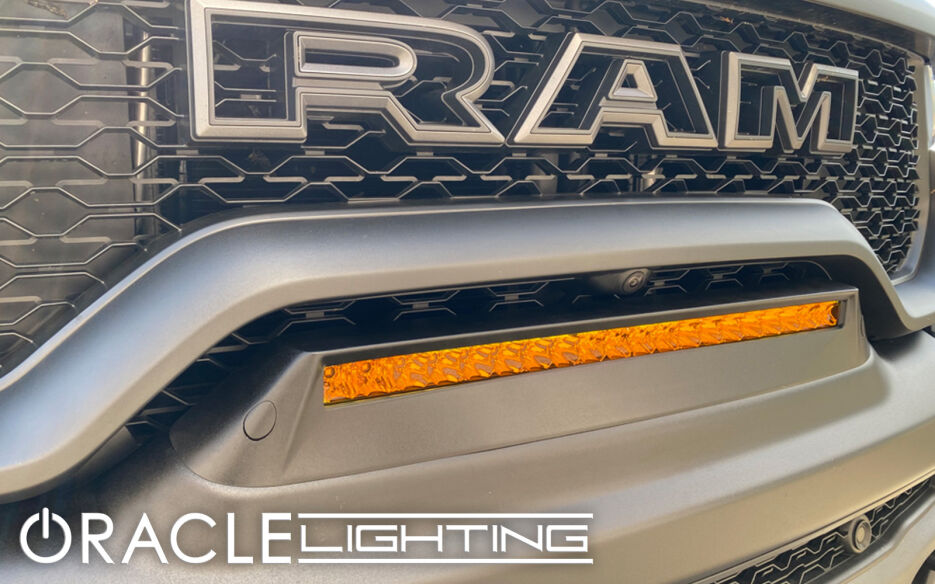

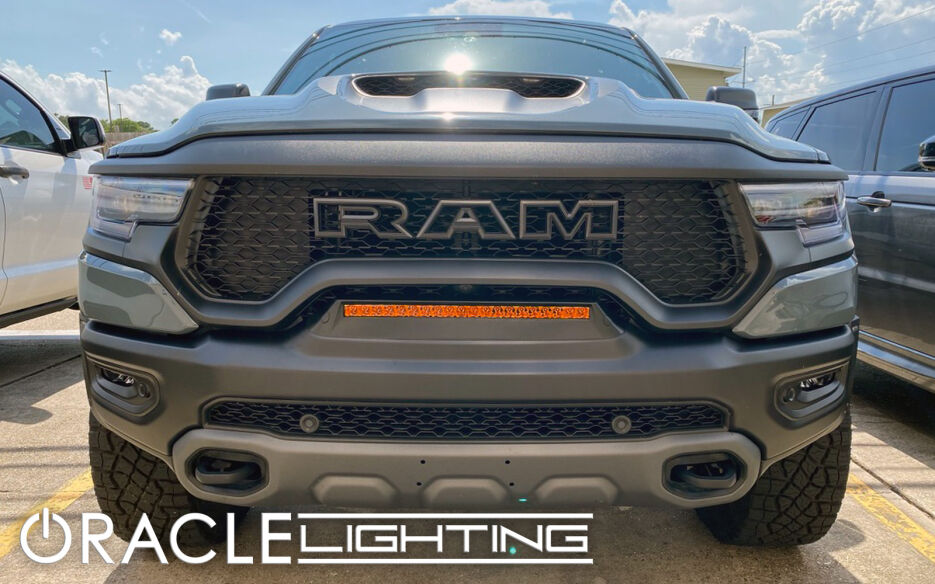

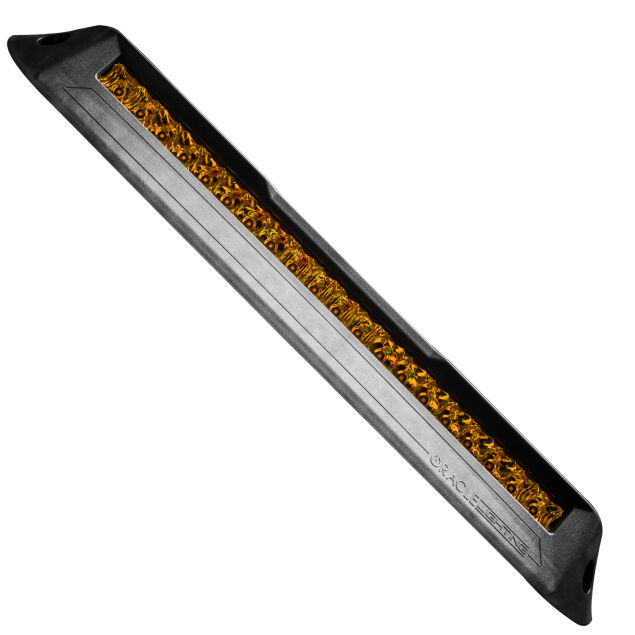

- Amber LED Emitter

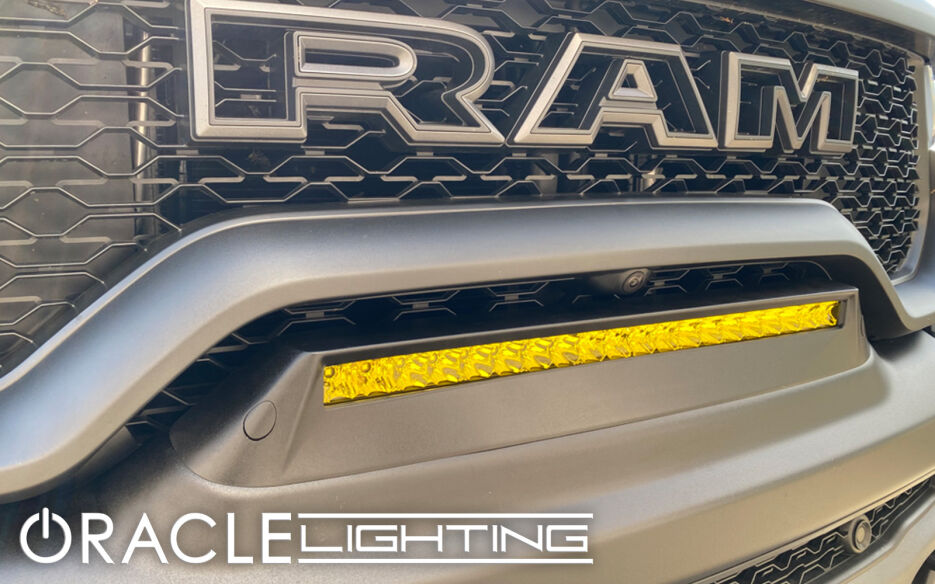

- Yellow LED Emitter
Configurations:
- White LED Emitter, ORACLE Part #5885-001
- Amber LED Emitter, ORACLE Part #5885-005
- Yellow LED Emitter, ORACLE Part #5885-006
Choose White for maximum all-around visibility, Amber for reduced glare in dust, fog, and inclement weather, or Yellow for improved contrast in fog, dust, and harsh off-road conditions.
Why Choose
This product is ideal for RAM owners who want professional-grade auxiliary lighting with a clean factory-style appearance.
- Flush-mount design integrates cleanly into the front bumper
- 12,000 raw lumens provide serious forward visibility
- Mixed spot/flood optics balance distance and wide-area coverage
- IP69K protection supports demanding off-road conditions
What’s Included
- One ORACLE Front Bumper Flush LED Light Bar System
- Complete mounting hardware
- Rivet nuts
- Installation instructions
Installation Notes
- Designed for 2019–2025 RAM Rebel, TRX, and RHO applications
- Estimated installation time is approximately 2 hours
- Requires drill, 3/8-inch drill bit, and basic hand tools
- Rivet nuts are included
- Requires two 3/8-inch mounting holes
- Designed to connect to factory AUX switches for integrated control
- Wiring harness may be required for vehicles without factory AUX switches
- Professional installation is recommended for drilling, wiring, light alignment, and AUX switch integration
- Verify vehicle year, trim, bumper compatibility, and emitter color before ordering
- Check local laws before using auxiliary off-road lighting on public roads
Warranty Information
ORACLE Warranty
ORACLE products are backed by a limited warranty, covering defects in materials and workmanship.
1-year limited warranty coverage listed for the ORACLE Front Bumper Flush LED Light Bar System
Excludes damage from improper installation, misuse, accidents, unauthorized modifications, wiring errors, incorrect voltage use, impact damage, off-road abuse, water intrusion caused by improper installation, drilling errors, or normal wear
Proof of purchase required for warranty claims
