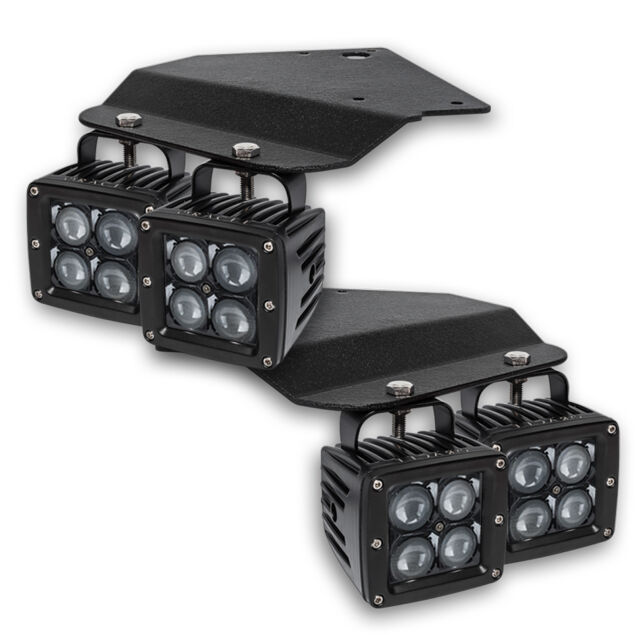

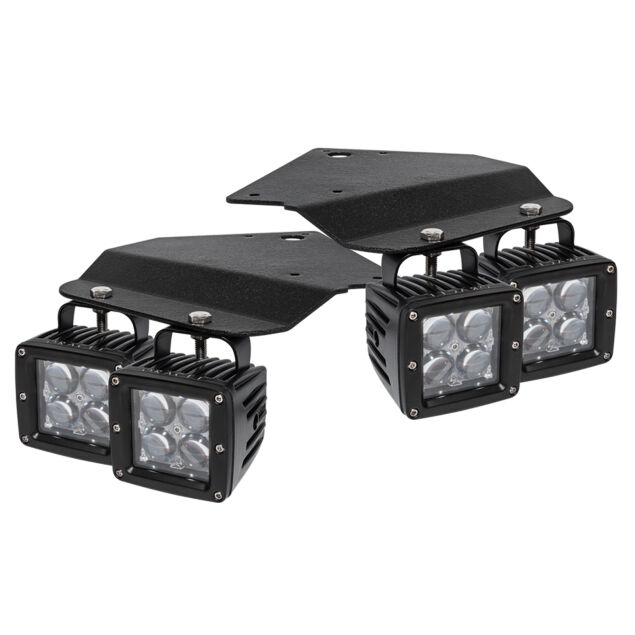

ORACLE Fog Light Brackets & Light Combo



The ORACLE Fog Light Brackets & Light Combo turns the lower bumper area of a compatible performance truck into a purpose-built four-pod auxiliary lighting position. The kit combines vehicle-specific welded steel brackets with four ORACLE VEGA Series 4 LED spotlights, giving customers a coordinated mounting and lighting package instead of a mix of universal parts. The result is a clean, low-mounted setup designed for trail travel, open terrain, worksite access, and nighttime driving away from public-road traffic.

Each bracket is shaped for the factory lower-front mounting area and attaches with factory bolt hardware. That vehicle-specific design helps keep the pods aligned and supported while avoiding the compromises of improvised tabs or generic plates. Welded steel construction and a weather-resistant coating add strength for a location that regularly sees road spray, dust, mud, vibration, and debris.

The four VEGA Series 4 spotlights concentrate their output into a distance-focused beam. Each pod uses four OSRAM LED chips for 40 watts of chip power, 4,000 raw lumens, and a 6000K white color temperature. The published projection distance of 1,049 feet makes the combo useful when customers need to identify terrain, obstacles, gates, or work areas farther ahead.

Lighting hardware is built for demanding exterior use. Powder-coated aluminum housings manage heat and resist corrosion, polycarbonate lenses protect the optics, and 304 stainless steel mounting hardware supports long-term exposure. Deutsch DT two-pin connectors and IP69K ingress protection help the lights tolerate wet conditions, high-pressure cleaning, and repeated off-road use.

The four-pod layout gives the front bumper a symmetrical appearance and spreads the available lighting across both sides of the vehicle. Customers can aim the individual spotlights to overlap for a concentrated center beam or stagger them slightly to increase useful coverage across a wider path. Careful aiming is especially important because the spot pattern is intended for distance rather than conventional street-fog use.

This combo is a strong fit for customers who want the mounting brackets, lights, connectors, and hardware selected as one system. Whether customers are upgrading for desert travel, rural property access, trail driving, nighttime work, or a more aggressive lower-bumper lighting layout, the ORACLE Fog Light Brackets & Light Combo delivers a durable vehicle-specific foundation with focused four-pod output. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific fog light bracket and LED spotlight combo

Brand: ORACLE Lighting

Bracket Construction: Welded steel

Bracket Finish: Weather-resistant coating

Light Model: VEGA Series 4 LED pod spotlight

Light Quantity: Four pods

Beam Pattern: Spot

Brightness: 4,000 raw lumens per light

Color Temperature: 6000K

Power: 40 watts of LED chip power per light

Current Draw: 1.5 amps per light

Projection Distance: 1,049 ft

Connector: Deutsch DT two-pin

Housing Material: Powder-coated aluminum

Lens Material: Polycarbonate

Ingress Protection: IP69K

Mounting Hardware: 304 stainless steel

Vehicle Fitment: 2010-2014 Ford Raptor

Functionality:

• Converts the lower factory fog-light mounting area into a four-pod auxiliary lighting layout.
• Uses vehicle-specific brackets for a cleaner and more stable installation than universal plates.
• Projects focused spot beams for long-range trail, property, and worksite visibility.
• Allows individual pod aiming to concentrate or slightly spread the distance lighting.
• Uses factory bolt locations for bracket attachment without additional bracket fabrication.
• Handles road spray, mud, pressure washing, vibration, and off-road exposure with IP69K lights.
• Provides waterproof-style connectors for reliable exterior electrical connections.
• Creates a balanced two-bracket and four-light appearance across the lower front bumper.



---



Why Choose

This product is ideal for customers who want a complete vehicle-specific lower-bumper spotlight system with four high-output pods and durable steel mounting brackets.

• The bracket and light combination removes uncertainty about matching universal mounts to the bumper.
• Four VEGA Series 4 pods create a substantial increase in distance-focused auxiliary lighting.
• Factory bolt mounting helps preserve a clean installation without custom bracket fabrication.
• Welded steel brackets support the weight and vibration of a multi-light off-road setup.
• 6000K output gives the lighting a crisp white appearance that pairs well with modern headlights.
• Polycarbonate lenses, aluminum housings, and stainless hardware support harsh exterior use.
• Deutsch connectors and IP69K protection add confidence in wet and dirty environments.
• The symmetrical four-pod arrangement gives the lower bumper a purposeful performance look.



---



What's Included

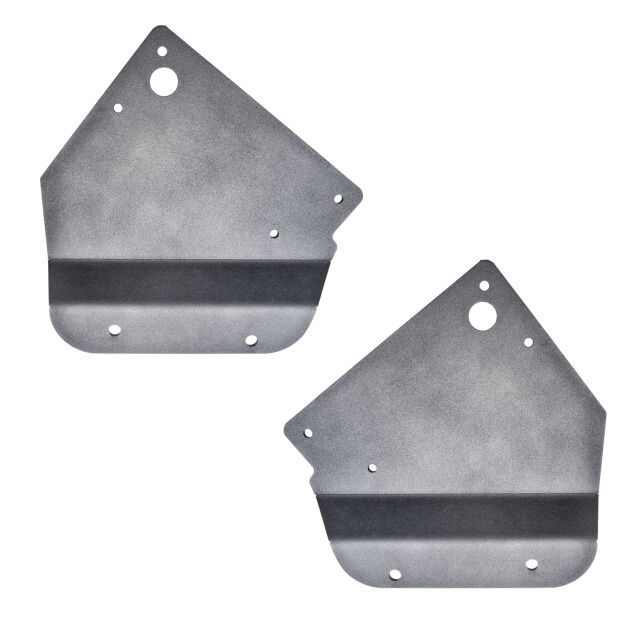

• Two ORACLE vehicle-specific fog light replacement brackets

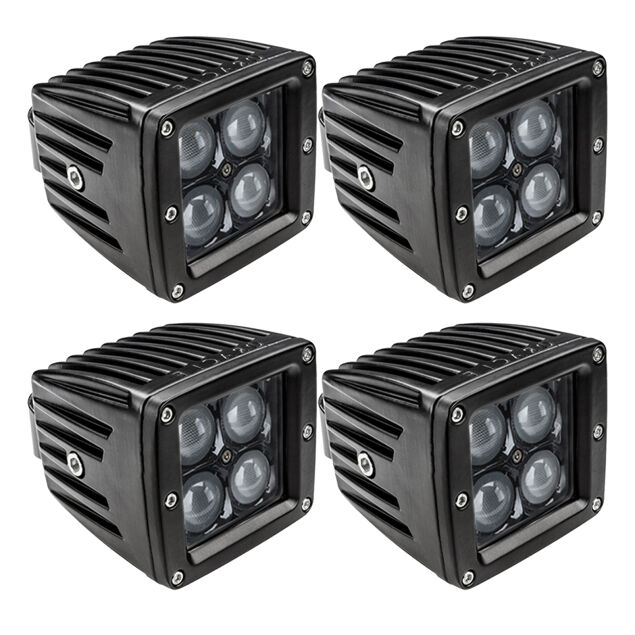

• Four ORACLE VEGA Series 4 LED light pod spotlights
• Water-resistant electrical connectors
• Mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the vehicle matches the listed model years and retains the compatible factory lower-bumper mounting structure.
• Attach the brackets with the factory bolt hardware, then verify both brackets are secure before installing and aiming the lights.
• Route wiring through protected areas and use properly fused switching suitable for the combined electrical load of four pods.
• Aim the spot beams for off-road or worksite use and avoid directing concentrated output toward oncoming traffic.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

ORACLE lists a five-year warranty term for the included VEGA Series 4 LED light pod spotlights. Coverage applies to qualifying defects in materials or workmanship under the published warranty terms.

Warranty coverage generally excludes improper installation, wiring errors, misuse, accidents, unauthorized modifications, impact damage, corrosion caused by damaged finishes, and normal wear. Proof of purchase may be required for a claim.
