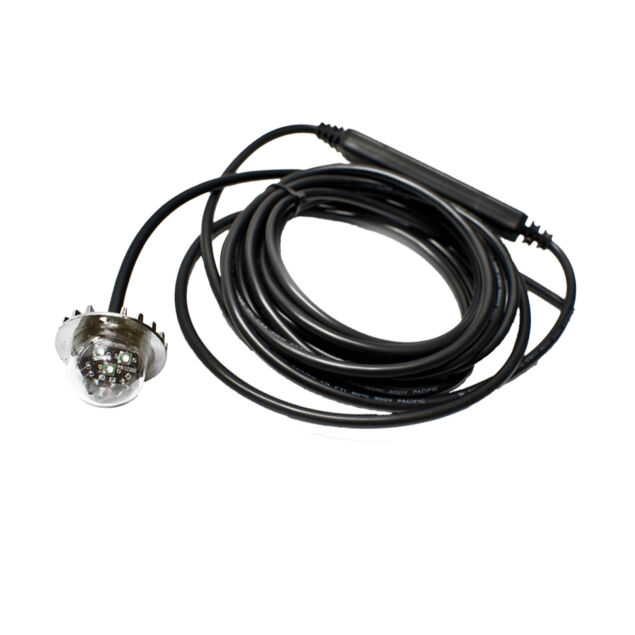

Oracle 4 LED Omni-Directional Emergency Strobe



The ORACLE 4 LED Omni-Directional Emergency Strobe delivers concentrated warning visibility from a compact self-contained lighthead that can be recessed into a lamp assembly or mounted externally. Its small form is suited to emergency-support, fleet, recovery, worksite, and specialty vehicles where a conventional beacon or large surface light would be difficult to place. Customers gain selectable flash behavior and multi-light synchronization capability without adding a separate remote flasher.

At only 7/8 inch high, the light can fit tight locations while maintaining a clearly visible four-LED signal. A one-inch opening is required when it is installed through a compatible headlight, cornering-light, or tail-light housing, and the design can also support an exterior mounting approach when the selected surface and environment are appropriate. Omni-directional positioning gives installers flexibility to orient the lighthead for the available space and desired viewing angle.

Ten flash patterns allow the warning behavior to be matched to the intended system. Modes include steady illumination, SOS-style sequences, multiple burst counts, and fast-flash combinations. A dedicated synchronization wire can coordinate several compatible strobes for simultaneous or alternating operation, helping a multi-light installation look organized and easier to recognize from a distance.

The light operates from 10-16VDC and uses a separate driver module connected to power, ground, pattern, and synchronization wiring. This arrangement keeps the visible lighthead small while supplying the control functions needed for pattern changes and coordinated flashing. The IP65 rating supports resistance to dust and water spray, but careful sealing remains important whenever the light is installed through an exterior lamp housing or body surface.

Blue and red output choices are intended for authorized applications where those warning colors are legally permitted. The product is not identified for unrestricted road use, so customers must match the selected color and operating pattern to agency, fleet, property, and jurisdictional requirements. Worksite or off-road operation does not automatically permit restricted colors, making policy review an essential part of system planning.

Installation quality has a direct effect on visibility, weather resistance, and long-term operation. The mounting hole should be accurately prepared, the gasket should seat evenly, and all wiring should be protected from abrasion, heat, moisture, and moving components. Whether customers are building a synchronized warning array, adding a discreet hideaway signal, or equipping a specialty support vehicle, the ORACLE 4 LED Omni-Directional Emergency Strobe provides compact output with flexible control. Now Available at LEER!



---



Features & Specifications

Product Type: Compact omni-directional LED warning strobe

Brand: ORACLE Lighting

LED Quantity: Four LEDs

Operating Voltage: 10-16VDC

Flash Patterns: Ten selectable modes

Ingress Protection: IP65

Lighthead Dimensions: 1.5 inches wide x 0.875 inch high

Driver Dimensions: 4.75 inches long x 0.9375 inch wide x 0.4375 inch high

Mounting Requirement: One-inch opening for recessed lamp-housing installation

Available Colors: Blue or red

Functionality:

• Adds a compact high-visibility warning signal to approved specialty vehicle applications.
• Supports recessed installation in compatible headlight, cornering-light, or tail-light housings.
• Can be positioned externally when the mounting surface and weather-sealing plan are appropriate.
• Provides ten selectable patterns including steady, SOS, burst, and fast-flash sequences.
• Uses a synchronization wire for coordinated or alternating multi-strobe operation.
• Fits restricted locations with a lighthead height of only 7/8 inch.
• Operates without a separate remote flasher because the supplied driver manages the patterns.
• Allows omni-directional orientation to suit different lamp and body-panel layouts.



---



Available Options

The ORACLE 4 LED Omni-Directional Emergency Strobe is available in two output-color configurations:

• Blue - intended for authorized emergency, agency, or specialty applications where blue warning illumination is permitted.
• Red - intended for authorized emergency, agency, or specialty applications where red warning illumination is permitted.

Choose the output color only after confirming the vehicle role, agency policy, property rules, and applicable lighting regulations. Neither color should be assumed legal for unrestricted public-road use.



---



Why Choose

This product is ideal for customers who want a discreet warning lighthead with selectable patterns and synchronization support for approved installations.

• The shallow lighthead fits locations that cannot accommodate a conventional surface beacon.
• A one-inch recessed opening supports clean hideaway placement in compatible lamp assemblies.
• Ten patterns provide useful flexibility for warning, identification, and coordinated system design.
• Synchronization wiring allows multiple strobes to flash together or in an alternating arrangement.
• The separate driver preserves a small visible lighthead while supplying pattern-control functions.
• IP65 protection supports demanding environments when the complete installation is sealed correctly.
• Omni-directional positioning helps installers adapt the light to varied mounting orientations.
• Blue and red versions serve distinct authorized roles without requiring a color-changing controller.



---



What's Included

• One ORACLE four-LED omni-directional strobe in the selected color.
• One connected driver module.
• Power, ground, pattern-selection, and synchronization wiring.
• Two mounting screws.
• One mounting gasket.

Note: Confirm included components before installation.



---



Installation Notes

• A recessed installation requires an accurately positioned one-inch opening and enough rear clearance for the lighthead, wiring, and driver.
• Seat the gasket evenly and seal any modified lamp housing or exterior panel to help prevent moisture intrusion.
• Connect power, ground, pattern, and synchronization wires using the supplied guidance, using proper circuit protection.
• Confirm authorization for the selected blue or red output before installation or operation.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

ORACLE Lighting lists strobe-light products under one-year warranty coverage for eligible defects in materials and workmanship. Warranty processing may require proof of purchase and compliance with the brand claim procedure.

Coverage typically excludes incorrect voltage, improper wiring, unauthorized modification, impact damage, poor sealing, moisture intrusion caused by installation, misuse, restricted-color operation, or normal wear. Cutting or altering the lighthead, driver, or wiring outside the installation instructions may affect coverage.
