KMC KM549 GRS Wheel - Satin Black

KMC KM549 GRS Wheel in satin black gives trucks and Jeeps a more intentional wheel upgrade with KMC style and real fitment flexibility. It is built for truck and Jeep enthusiasts who want iconic KMC off-road style with practical street and trail manners. The result is a wheel that looks at home on a clean daily driver, a weekend trail setup, or a vehicle that needs a stronger stance without losing everyday usability.

The GRS design is built around strength, airflow, and classic off-road style that works as well on the commute as it does on dirt roads. The satin black finish shapes the wheel's personality, adding color depth and contrast where the wheel meets the tire. Customers get a design that feels purposeful from close range and still reads clearly from across a parking lot or trailhead.

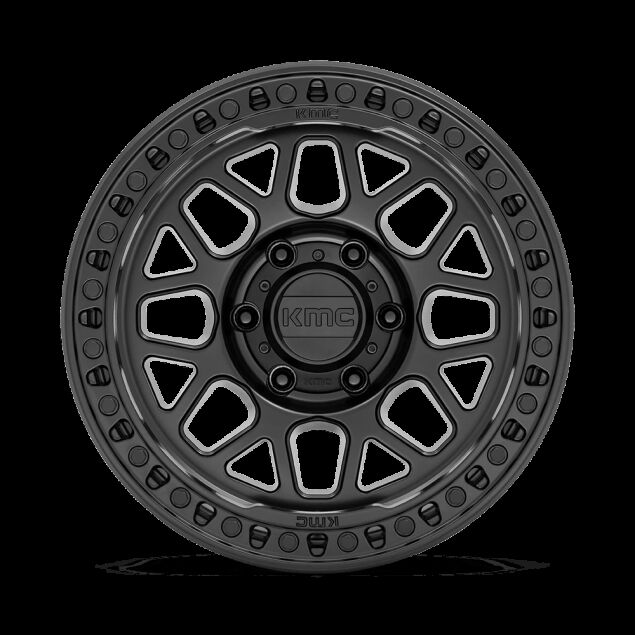

The GRS carries a classic split-spoke layout with a simulated beadlock ring, giving the wheel brake ventilation, debris passthrough, and a rugged motorsports-inspired look. The cast aluminum construction helps keep the wheel suitable for real vehicle use while supporting the appearance customers expect from a KMC upgrade. The finish pairs well with black trim, all-terrain tires, painted flares, and utility-focused exterior accessories.

Sizing includes 17x8.5, 17x9, 18x8.5, 18x9, and 20x9 fitments with bolt patterns such as 5x127, 5x139.7, 5x150, 6x114.3, 6x120, 6x135, 6x139.7, 8x165.1, 8x170, and 8x180. Offset choices include -12 mm and +18 mm, giving customers room to dial in a clean factory-style fit, a more aggressive tire position, or a stance that works with lift and tire changes when the vehicle supports it. Center bore and backspacing vary across the fitment range, so the wheel should be matched to the exact vehicle and tire package.

Load ratings reach 2500 lb and 3700 lb, supporting the needs of daily drivers, adventure vehicles, and work-oriented builds when the correct fitment is selected. The wheel is TPMS compatible and uses a matched center cap, helping the finished setup look complete once mounted. Finish coverage is supported by a one year finish warranty, and structural coverage is lifetime for the original retail purchaser under normal intended use.

Whether customers are upgrading for trail builds, overland setups, truck upgrades, or a more aggressive street stance, the KMC KM549 GRS Wheel delivers versatile sizing, robust visual strength, and a recognizable KMC stance for modern truck and Jeep builds. Now Available at LEER!

Features & Specifications

Product Type: Aftermarket wheel

Brand: KMC Wheels

Series: KMC KM549 GRS

Material: Cast aluminum

Finish: Satin Black

Wheel Sizes: 17x8.5, 17x9, 18x8.5, 18x9, and 20x9

Bolt Patterns: 5x127, 5x139.7, 5x150, 6x114.3, 6x120, 6x135, 6x139.7, 8x165.1, 8x170, and 8x180

Offset Range: -12 mm and +18 mm

Backspacing: 4.53 inches, 4.75 inches, 5 inches, and 5.71 inches

Center Bore: 66.06 mm, 66.9 mm, 71.5 mm, 78.1 mm, 87.1 mm, 106.1 mm, 110.1 mm, 124.2 mm, and 125.1 mm

Load Rating: 2500 lb and 3700 lb

Certification: SAEJ2530

Warranty: Lifetime structural warranty and one year finish warranty

Functionality:

• Refreshes the vehicle stance with a stronger wheel design and finish-specific appearance.
• Supports daily driving, road trips, and trail-oriented builds when matched to the correct vehicle fitment.
• Provides multiple bolt pattern and offset choices so the wheel can be matched to the vehicle application.
• Works with compatible TPMS sensors for vehicles equipped with tire pressure monitoring systems.
• Pairs well with all-terrain and highway tire packages within the selected wheel size and vehicle clearance.
• Helps customers tune the look of trucks, Jeeps, SUVs, or crossover builds through wheel diameter, width, and offset.
• Uses a matched center cap for a finished look after mounting and balancing.
• Offers load ratings suited to common light truck and SUV applications when the proper fitment is selected.

Available Options

The KMC KM549 GRS Wheel is available in multiple configurations:

• 17-inch Diameter - offered as 17x8.5 and 17x9 sizing for customers balancing tire sidewall, stance, and wheel presence.
• 18-inch Diameter - offered as 18x8.5 and 18x9 sizing for customers balancing tire sidewall, stance, and wheel presence.
• 20-inch Diameter - offered as 20x9 sizing for customers balancing tire sidewall, stance, and wheel presence.
• Offset Choices - -12 mm and +18 mm options help match factory-style placement, lifted stance, or more aggressive tire position when the vehicle application allows it.
• Bolt Pattern Choices - fitments include 5x127, 5x139.7, 5x150, 6x114.3, 6x120, 6x135, 6x139.7, 8x165.1, 8x170, and 8x180, giving the wheel coverage across a wide range of vehicle platforms.
• Load Rating Choices - 2500 lb and 3700 lb ratings support lighter SUV setups as well as heavier truck applications when the correct wheel is selected.

Choose the smaller diameter fitments for more tire sidewall and everyday ride comfort, or choose the larger diameter fitments for a stronger visual presence and a more filled-out wheel opening.

Why Choose

This product is ideal for customers who want versatile sizing, robust visual strength, and a recognizable KMC stance for modern truck and Jeep builds.

• The satin black finish gives the wheel a distinct appearance that changes the whole attitude of the vehicle.
• Cast aluminum construction keeps the wheel suitable for real-world driving while supporting an upgraded look.
• The KMC KM549 GRS design brings recognizable KMC styling to builds that need more visual strength than the factory wheel.
• Multiple fitments help customers match the wheel to the vehicle instead of forcing a one-size approach.
• Offset variety supports cleaner stance tuning when paired with the right tire size, suspension setup, and clearance.
• TPMS compatibility helps the wheel work with modern tire pressure monitoring systems during a proper installation.
• Matched center cap hardware gives the mounted wheel a complete, finished appearance.
• KMC warranty coverage adds confidence for customers upgrading a vehicle they depend on.

What's Included

• One KMC KM549 GRS Wheel in satin black.
• Matched KMC center cap for the selected fitment.
• Decorative rivet or lip hardware details when included on the selected wheel design.
• Factory wheel packaging for protected handling before installation.

Note: Confirm included components before installation.

Installation Notes

• Confirm bolt pattern, center bore, offset, brake clearance, load rating, and tire size before mounting.
• Professional mounting and balancing are recommended to protect the wheel finish and support proper ride quality.
• Use vehicle-appropriate lug hardware, valve stems, and TPMS sensors; these components may vary by application.
• Check clearance at full steering lock and through suspension travel, especially with larger tires, lifted setups, or aggressive offsets.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.

Warranty Information

KMC Wheels wheels are covered by a limited warranty that includes lifetime structural coverage against structural failure under normal and intended use for as long as the original retail purchaser owns the product. The warranty also includes one year coverage against defects in material and workmanship under normal intended use.

Painted aluminum finishes are covered against peeling or lifting on the face of the wheel for one year. Warranty coverage can be affected by improper installation, misuse, corrosion from improper maintenance, accident damage, road condition damage, racing use, incompatible accessories, or use outside the intended vehicle application.

Proof of purchase may be required for warranty claims, and warranty remedies typically do not include removal, shipping, installation, or reinstallation costs. Customers should inspect wheels before mounting and follow supplied installation and care guidance.
