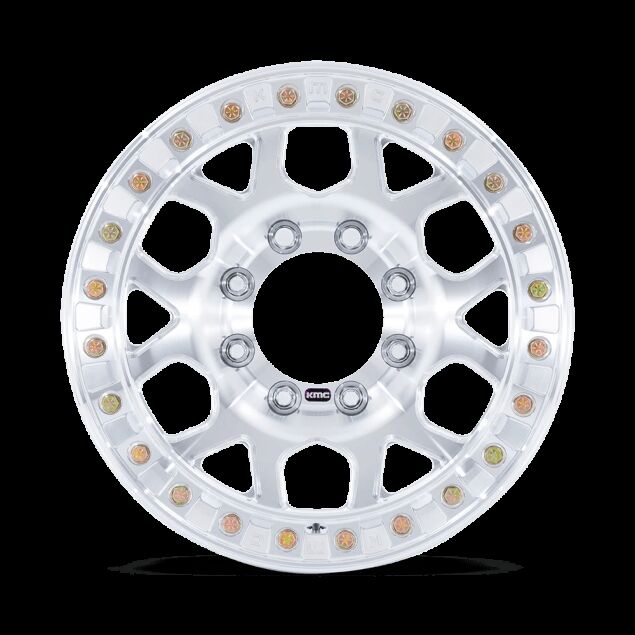

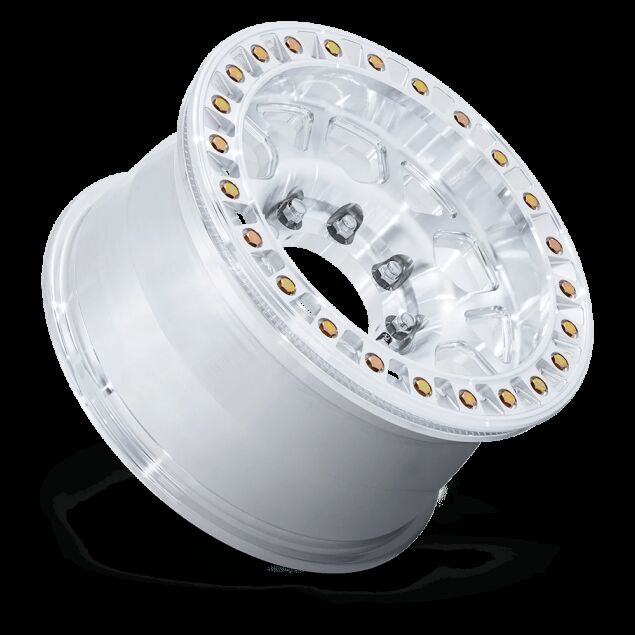

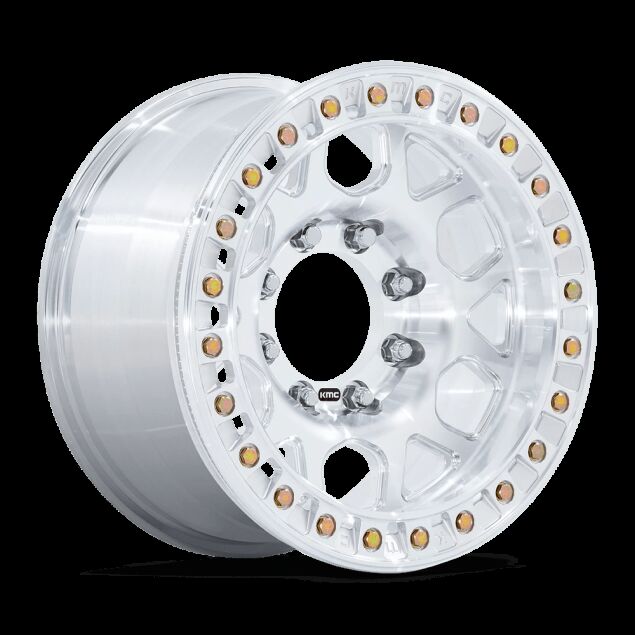

KMC KM450 Mesa Forged Slotted Beadlock Wheel - Raw Machined

KMC KM450 Mesa Forged Slotted Beadlock Wheel gives customers a focused wheel upgrade built around KM450 Mesa Forged Slotted Beadlock style, the Raw Machined finish, and KMC's motorsports-driven design language. It is intended for race and off-road vehicle use where tire pressure, traction, and wheel strength matter more than commuter comfort. The result is a wheel that feels purposeful before the vehicle ever leaves the driveway.

The forged beadlock format is made for customers who need a serious off-road wheel with mechanical tire retention for demanding terrain. The Raw Machined finish keeps the look direct and technical, letting the machining and beadlock hardware define the wheel's race-ready presence. Customers get a visual upgrade that adds presence without turning the wheel into a generic accessory.

The beadlock ring design helps clamp the tire bead for low-pressure trail use, while the forged monoblock base gives the wheel a tough, focused foundation. Monoblock Forged construction and Monoblock Forged material help give the wheel the structure expected from a serious vehicle upgrade. Fitment is matched to the selected vehicle, so customers can focus on stance, tire size, and the way the wheel complements the build.

This wheel is offered in a 17-inch diameter and 9-inch width for 8-lug heavy-duty applications that need added load capacity and off-road capability. The available offsets, bolt patterns, and centerbore dimensions vary by selected version, helping the wheel support different brake packages, hub dimensions, and desired tire placement. Customers should match the wheel to the exact vehicle before installation for the best result.

The wheel's finish and face design make it useful for customers who want an upgrade that looks intentional from every angle. It can support a daily driver, a weekend trail vehicle, a tow-focused build, or a more aggressive tire package when the selected version is properly matched. KMC styling gives the build a motorsports edge while keeping the product practical for real use.

Whether customers are upgrading for desert running, rock work, recovery rigs, or dedicated off-road builds, KMC KM450 Mesa Forged Slotted Beadlock Wheel delivers true beadlock control, forged construction, and a raw competition-inspired look. Now Available at LEER!

Features & Specifications

Product Type: Wheel

Brand: KMC Wheels

Series: KM450 Mesa Forged Slotted Beadlock

Construction: Monoblock Forged

Finish: Raw Machined

Diameter: 17-inch

Width: 9-inch

Lug Pattern: 8-lug

Bolt Pattern: 8X165.1

Offset: -12 mm

Backspacing: 4.53 inches

Load Rating: 3700 lb

TPMS Compatible: Yes

Functionality:

• Provides true beadlock tire retention for dedicated off-road and racing use
• Supports low-pressure tire use when trail traction and bead security matter
• Fits selected 8-lug heavy-duty applications with a strong forged foundation
• Adds raw machined beadlock style to purpose-built off-road vehicles
• Works for recovery rigs, desert builds, rock-focused trucks, and trail-only setups
• Allows customers to build around a serious off-road wheel instead of a style-only upgrade

Why Choose

This product is ideal for customers who want true beadlock control for dedicated off-road and racing builds.

• True beadlock construction supports dedicated off-road tire retention
• Forged build quality gives the wheel a purpose-built foundation
• Raw Machined finish highlights the technical beadlock appearance
• 8-lug sizing suits heavy-duty off-road trucks when properly matched
• The raw, functional design works well on race, trail, and recovery vehicles
• The wheel supports customers who prioritize traction, control, and strength

What's Included

• One KMC wheel in the selected finish, size, bolt pattern, and offset
• Center cap for the matching wheel version
• Beadlock ring and related hardware for the selected beadlock wheel version
• Vehicle-specific installation hardware may be required and should be verified before installation

Note: Confirm included components before installation.

Installation Notes

• Confirm wheel diameter, width, bolt pattern, offset, centerbore, brake clearance, and load rating against the exact vehicle before mounting tires.
• Professional mounting and balancing are recommended, and lug hardware should be torqued to the vehicle and wheel hardware requirements.
• Beadlock installation should be performed by an experienced installer familiar with ring torque sequence, tire seating, and off-road wheel service.
• Beadlock wheels are intended for off-road and racing use; confirm all rules and local requirements before use.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.

Warranty Information

For this wheel, structural coverage is lifetime and finish coverage is one year when warranty terms are met. Customers should retain proof of purchase and follow wheel care, mounting, torque, and service requirements.

Warranty coverage typically excludes improper installation, misuse, modifications, overloading, incorrect hardware, racing damage outside covered terms, chemical damage, impact damage, curb damage, and non-compliant use.
