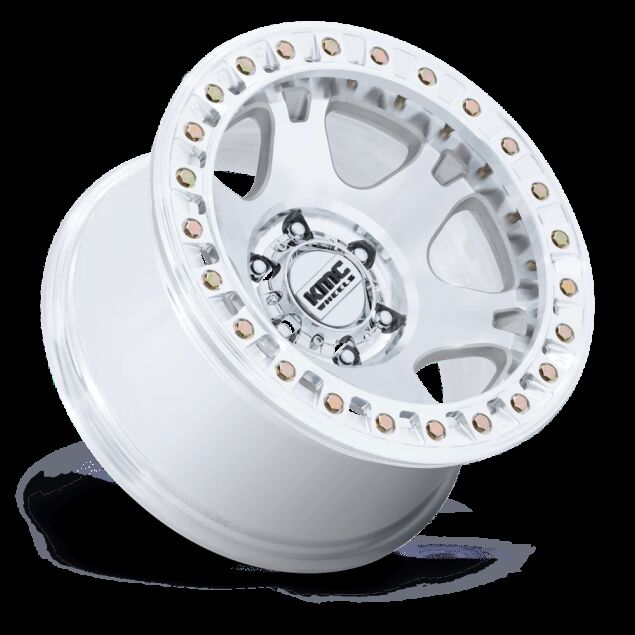

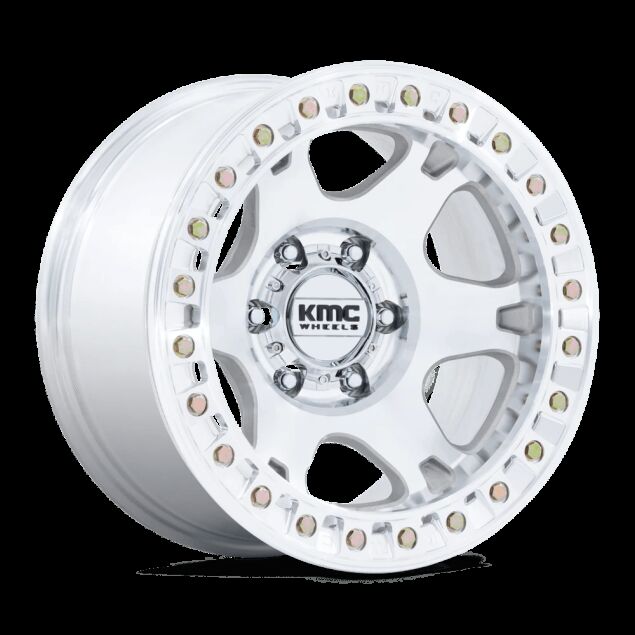

KMC KM238 VI Beadlock Wheel - Machined

The KMC KM238 VI Beadlock Wheel - Machined gives truck and SUV customers a serious wheel upgrade with the stance, finish, and hardware presence expected from KMC off-road design. Built around the KM238 VI Beadlock platform, it suits customers who want their wheel choice to look intentional on the vehicle rather than simply fill the fender opening. The Machined finish helps set the tone of the build while keeping the wheel focused on trail use, tire clearance, and confident vehicle style.

The VI shape leans into a bold 6-spoke layout with a deep concave profile, giving the wheel a strong mechanical look that suits full-size trucks and built trail vehicles. The machined finish gives the wheel a raw metal appearance that highlights spoke shape, lip depth, and beadlock hardware without adding extra color contrast. Customers building around larger all-terrain or mud-terrain tires can use the wheel's size, bolt pattern, and offset choices to create a more purposeful stance without losing sight of proper fitment. The overall shape gives the vehicle visual depth from the side and a more aggressive face from the front corner.

The true beadlock design helps keep the tire bead secure during low-pressure off-road use, and the beadlock ring uses evacuation channels to help release water and debris around the outer edge. This matters most when customers leave pavement, lower tire pressure, and need the wheel and tire package to stay predictable over uneven terrain. The design is not just decorative; the wheel's form, ring detail, and fitment range all support the way off-road trucks and SUVs are actually used. For customers who split time between work, travel, and weekend trail driving, the right wheel choice can change both appearance and confidence.

Fitment coverage in this finish includes 17x9, 20x10 sizing with 9 in, 10 in width coverage, -48 mm, -38 mm, -12 mm, +1 mm offsets, and 5x127, 6x135, 6x139.7, 8x165.1 bolt pattern coverage. Load rating coverage is 4000 lbs, which lets customers match the wheel to a lighter trail build or a heavier truck application when the selected fitment allows. The Cast Aluminum construction gives the wheel a solid foundation, and the 71.5 mm, 87.1 mm, 108 mm, 110.1 mm, 125.1 mm centerbore coverage helps support vehicle-specific matching when paired with the correct hardware and tire package.

This wheel works best for customers who want a product that looks at home on lifted trucks, trail-ready SUVs, overland builds, and vehicles running more aggressive tire sidewalls. It can support a daily-driven build visually, but true fitment depends on suspension height, tire size, wheel position, brake clearance, and the exact vehicle application. Customers should treat the wheel as part of a complete vehicle setup rather than a standalone appearance change, especially when moving to wider tires or a more aggressive offset.

Whether customers are upgrading for trail driving, off-road traction, overlanding, or a stronger truck stance, the KMC KM238 VI Beadlock Wheel delivers rugged KMC style with serious wheel hardware. Now Available at LEER!

Features & Specifications

Product Type: True Beadlock Wheel

Brand: KMC Wheels

Series: KM238 VI Beadlock

Finish: Machined

Beadlock: True beadlock design for off-road use

Material: Cast Aluminum

Wheel Size: 17x9, 20x10

Wheel Width: 9 in, 10 in

Bolt Pattern: 5x127, 6x135, 6x139.7, 8x165.1

Offset: -48 mm, -38 mm, -12 mm, +1 mm

Backspacing: 3.5 in, 3.61 in, 4.53 in, 5.04 in

Centerbore: 71.5 mm, 87.1 mm, 108 mm, 110.1 mm, 125.1 mm

Load Rating: 4000 lbs

Vehicle Fitment: Truck, Jeep, and off-road SUV applications; verify vehicle, trim, brake clearance, wheel position, tire size, and suspension setup before ordering

TPMS: TPMS-compatible

Warranty: lifetime structural warranty, one year finish warranty

Functionality:

• Helps maintain tire bead security during low-pressure off-road driving.
• Supports high-load truck applications with confirmed 4000 lb wheel load rating.
• Adds a deep concave 6-spoke appearance for aggressive off-road stance.
• Uses evacuation channels in the beadlock ring to help move water and debris away.
• Fits common 5-lug, 6-lug, and 8-lug truck applications when matched correctly.
• Offers 17x9 and 20x10 sizing for different tire and stance goals.
• Provides TPMS-compatible fitment for modern trucks and SUVs.

Available Options

The KMC KM238 VI Beadlock Wheel is available in multiple configurations:

• Wheel Size - Choose from 17x9, 20x10 sizing to match the desired tire sidewall, stance, and brake-clearance needs.
• Offset Range - Offset choices include -48 mm, -38 mm, -12 mm, +1 mm, giving customers room to tune tire position and fender stance when the vehicle application supports it.
• Bolt Pattern Coverage - Bolt pattern coverage includes 5x127, 6x135, 6x139.7, 8x165.1, with final fitment matched by vehicle, wheel position, and hardware requirements.
• Load Rating Coverage - Load rating coverage is 4000 lbs, allowing the selected wheel to match the demands of the vehicle application.
• 17x9 or 20x10 Fitments - Choose 17x9 for more sidewall and trail tire flexibility, or 20x10 for a larger-diameter wheel look on compatible trucks.

Choose the 17x9 fitment for trail-focused tire sidewall and off-road flexibility, or choose the 20x10 fitment for a larger wheel profile and more aggressive truck stance.

Why Choose

This product is ideal for customers who want true beadlock function, aggressive KMC styling, and fitment options for trail-focused trucks and SUVs.

• True beadlock capability gives trail-focused customers serious off-road tire retention.
• The 4000 lb rating supports demanding truck and heavy-duty applications.
• The heritage 6-spoke face gives the wheel a clean, strong visual identity.
• Deep concavity helps create an aggressive stance with the right tire package.
• Evacuation channels add functional detail around the beadlock ring.
• Multiple bolt patterns and offsets make it easier to match a wide range of builds.
• The finish choices deliver either a machined metal look or a darker contrast style.
• The design works well for desert, mountain, trail, and overland use.

What's Included

• One KMC KM238 VI Beadlock Wheel in the selected size, bolt pattern, offset, and Machined finish
• Beadlock ring and related hardware when supplied with the selected wheel
• KMC center cap when supplied with the selected wheel
• Manufacturer-supplied wheel packaging and documentation when included

Note: Confirm included components before installation.

Installation Notes

• Confirm fitment by vehicle year, trim, drivetrain, wheel position, tire size, suspension setup, brake clearance, and hub requirements before installation.
• Professional mounting, balancing, and torque procedures are recommended, especially when pairing the wheel with larger all-terrain or mud-terrain tires.
• True beadlock wheels are intended for off-road use, and customers should verify local rules before using them on public roads.
• Beadlock ring hardware should be installed, inspected, and maintained using the correct sequence and torque practices for the selected wheel.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.

Warranty Information

KMC Wheels limited warranty coverage includes protection against structural failure under normal and intended use for as long as the original retail purchaser owns the product. Finish warranty coverage is one year for this wheel finish.

Warranty coverage typically excludes improper installation, misuse, modifications, incorrect hardware, overloading, impact damage outside warranty terms, racing damage, tampering, or non-compliant use. Proof of purchase may be required for warranty claims.
