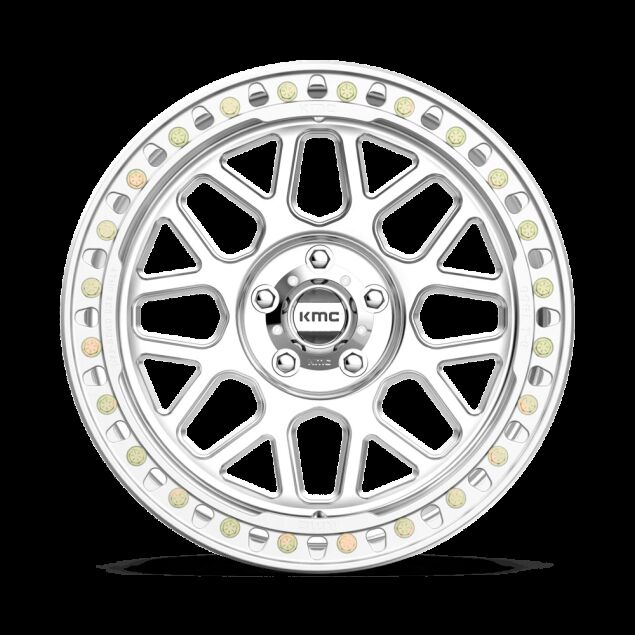

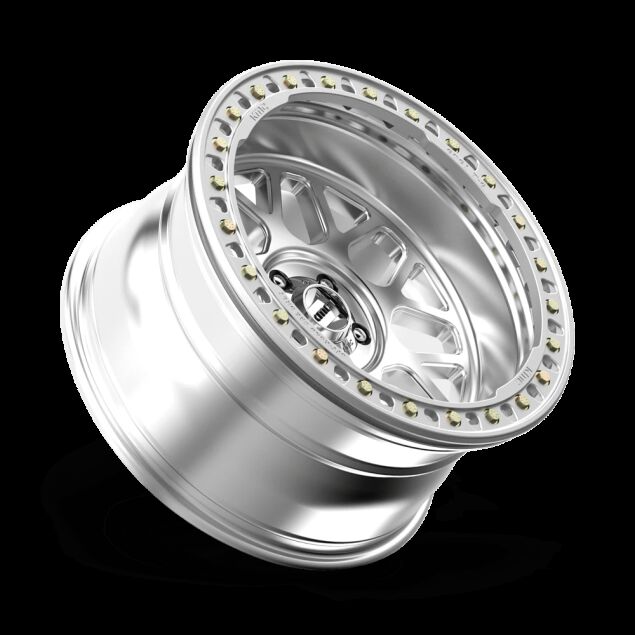

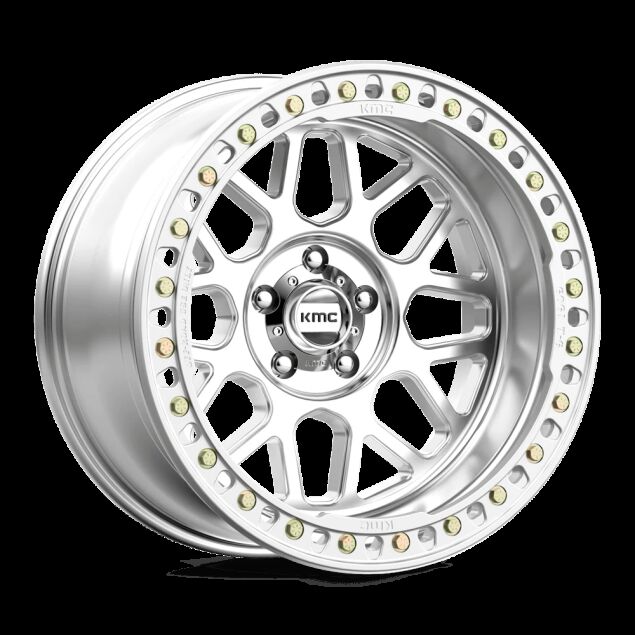

KMC KM235 Grenade Crawl Beadlock Wheel - Machined

KMC KM235 Grenade Crawl Beadlock Wheel is built for customers who want a dedicated off-road wheel with beadlock character, cast aluminum construction, and a stance that looks at home on trail-ready trucks and sport utility builds. The Grenade Crawl design is made for customers who want a beadlock wheel with deep visual depth and crawl-ready attitude. The Machined finish highlights the wheel face and lip detail, adding a raw metallic look that suits functional off-road builds and high-clearance tire packages.

The beadlock ring, exposed hardware, and deep outer-lip detail give the wheel a functional, motorsport-inspired appearance that fits serious off-road builds. This beadlock wheel is intended for off-road use, racing, and trail applications where beadlock construction and ring hardware are part of the build plan. Customers planning this wheel should match it carefully to tire size, suspension clearance, brake clearance, and the vehicle's intended use before installation.

The wheel is offered in 17x8.5, 17x9, 18x9, 20x10, with load ratings of 2500 to 3640 lb across the listed options. Cast aluminum construction gives the wheel a rugged foundation, while 24 ring bolts provide the visible beadlock hardware detail that defines the outer edge. The selected size and offset affect both stance and clearance, so the final setup should be checked against the full vehicle package.

Fitment is matched through bolt pattern, center bore, offset, and backspacing. Available bolt patterns include 5X5.0, 6X135, 6X6.5, 6X5.5, 8X170, 8X6.5, with offsets such as -48mm, -38mm, -24mm, 10mm and backspacing values such as 3.5, 3.61, 4.06, 4.75, 5.39. These dimensions support a range of 5-lug, 6-lug, and 8-lug off-road applications, depending on the exact selected wheel.

The KM235 Grenade Crawl Beadlock is a strong match for customers building around larger tires, armor, suspension upgrades, and low-pressure trail use. The beadlock styling gives the wheel a purposeful look, while the Machined finish keeps the visual theme clear from the front, side, and rear of the vehicle. It is a wheel choice for customers who want aggressive hardware detail and fitment-driven sizing rather than a mild street-only appearance.

Whether customers are upgrading for rock crawling, off-road racing, desert-inspired builds, or a more aggressive trail stance, KMC KM235 Grenade Crawl Beadlock Wheel delivers beadlock style, cast aluminum strength, and purposeful off-road fitment. Now Available at LEER!

Features & Specifications

Product Type: Cast aluminum beadlock wheel

Brand: KMC Wheels

Series: Grenade Crawl Beadlock

Finish: Machined

Wheel Sizes: 17x8.5, 17x9, 18x9, 20x10

Bolt Patterns: 5X5.0, 6X135, 6X6.5, 6X5.5, 8X170, 8X6.5

Offsets: -48mm, -38mm, -24mm, 10mm

Backspacing: 3.5, 3.61, 4.06, 4.75, 5.39

Center Bore: 71.5, 87.1, 108, 125.1

Load Rating: 2500 to 3640 lb

Lug Count: 5, 6, 8

Lip Depth: 2.43, 2.47, 3.81, 4.74

Beadlock Hardware: 24 ring bolts

Use Type: Off-road use only

Certification: SAE J2530

TPMS Compatibility: Compatible

Functionality:

• Supports dedicated off-road builds that need beadlock hardware and aggressive wheel styling.
• Helps match larger tire packages when size, offset, and backspacing are selected correctly.
• Adds strong trail presence through exposed ring hardware and deep outer-lip detail.
• Works for rock-crawling, trail, desert-inspired, and racing applications where off-road-only beadlock use is appropriate.
• Uses cast aluminum construction for demanding off-road wheel applications.
• Gives customers multiple bolt-pattern and offset choices across selected applications.
• Provides TPMS compatibility for supported wheel and vehicle combinations.

Available Options

The KMC KM235 Grenade Crawl Beadlock Wheel is available in multiple wheel options:

• Wheel Sizes - Choose from 17x8.5, 17x9, 18x9, 20x10 sizing to match tire package, brake clearance, and the intended vehicle stance.
• Offset Range - Select offset values such as -48mm, -38mm, -24mm, 10mm to fine-tune how the wheel sits in relation to the fender and suspension setup.
• Bolt Patterns - Match the selected wheel to compatible bolt patterns including 5X5.0, 6X135, 6X6.5, 6X5.5, 8X170, 8X6.5 for supported truck and sport utility applications.
• Load Rating - Choose the fitment that matches the required load rating, with listed values of 2500 to 3640 lb across the available wheel options.

Choose the smaller diameter and lower-offset versions for tighter trail packaging, or choose the larger and heavier-duty fitments when the build needs a stronger stance and the vehicle supports the added size.

Why Choose

This product is ideal for customers who want a beadlock wheel with aggressive hardware detail, cast aluminum construction, and off-road-only trail purpose.

• Beadlock ring hardware gives the wheel a serious off-road look and purpose-built edge.
• Machined finish creates a clear visual theme for the build.
• Cast aluminum construction supports demanding off-road wheel use when matched to the correct application.
• Multiple offsets and bolt patterns help customers dial in stance and clearance.
• Deep lip detail adds visual depth behind larger tires and high-clearance suspension setups.
• Strong load-rating options support a wide range of off-road truck and sport utility builds.
• Off-road-only design suits customers planning trail, crawl, desert, or racing use rather than a mild street replacement.

What's Included

• KMC KM235 Grenade Crawl Beadlock Wheel in the selected size, finish, and bolt pattern.
• Beadlock ring hardware for the selected wheel application.
• Center cap components where supplied for the selected fitment.

Note: Confirm included components before installation.

Installation Notes

• Confirm wheel diameter, width, bolt pattern, offset, backspacing, center bore, and load rating before installation.
• Beadlock wheels require proper beadlock ring assembly, torque procedure, and periodic inspection.
• Verify tire clearance, brake clearance, suspension clearance, and intended off-road use before mounting.
• These beadlock applications are intended for off-road use only and may be restricted on public roads.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.

Warranty Information

KMC Wheels provides limited warranty coverage for structural failure under normal and intended use for the original retail purchaser, with painted aluminum finish coverage for peeling or lifting on the wheel face for one year when applicable.

Off-road beadlock use requires proper installation, maintenance, and inspection. Warranty coverage may be affected by improper installation, misuse, racing, unapproved accessories, adapters, impact damage, modifications, or non-compliant use; proof of purchase may be required for warranty claims.
