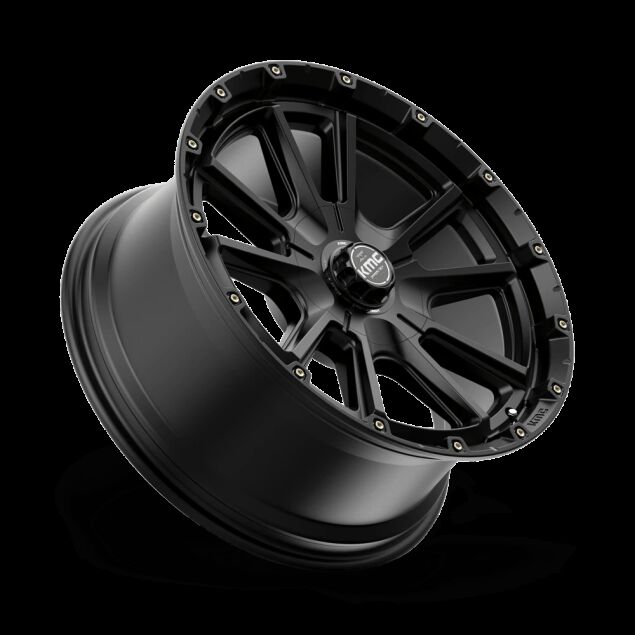

KMC KM100 Sync Wheel - Satin Black



KMC KM100 Sync Wheel brings a split five-spoke design to trucks and sport utility builds that need a sharper wheel upgrade without losing everyday drivability. The Offroad Tech Series design combines off-road attitude with clean fitment-focused proportions, making it a strong choice for customers who want a wheel that looks purposeful on daily drivers, weekend trail rigs, and lifted builds. The Satin Black finish gives the wheel its page-defining look, pairing the model's shape with a clear visual direction for lifted trucks, sport utility builds, and trail-focused rigs.

The design uses removable gold zinc star head bolts around the rim to add mechanical detail around the outer edge, while an interchangeable center cap, detail ring, and design-integrated lug cover plate helps the center of the wheel look finished and intentional. These details give the wheel a layered appearance from the side and a strong presence when paired with all-terrain or mud-terrain tires. The result is a cast aluminum wheel that feels more customized than a plain replacement wheel while still keeping a clean KMC identity.

Cast aluminum construction keeps the wheel practical for truck and sport utility use, with sizing in 17x9, 20x9 and load ratings of 2500 lb across the listed options. The wheel is built for common 5-lug and 6-lug truck applications where the selected size, bolt pattern, center bore, and offset must match the vehicle. Customers can use the wheel to refine stance, fill the wheel openings, or support a larger tire package when the selected vehicle and suspension setup allow it.

Fitment is matched through wheel dimensions rather than a one-size approach. Available bolt patterns include 5X150, 5X5.0, 5X5.5, 6X135, 6X5.5, 6X4.5, 6X5.5, with offsets such as -12mm, 18mm and backspacing values such as 4.53, 5, 5.71, so the final result depends on the chosen vehicle application. That range gives customers room to match the wheel to a stock-height build, a lifted truck, or a sport utility setup that needs a more aggressive tire position.

The KM100 Sync also includes details that matter during setup, including TPMS compatibility, confirmed center-bore sizing, and a finish warranty for painted finish coverage. The wheel's visual accents are useful because they add depth without making the design look overly busy, while the interchangeable cap system lets the center treatment feel coordinated with the rest of the build. It is a wheel for customers who want a distinct off-road look with practical fitment data behind it.

Whether customers are upgrading for daily driving, weekend trail use, larger tire packages, or a cleaner truck stance, KMC KM100 Sync Wheel delivers a balanced mix of style, fitment flexibility, and cast aluminum wheel strength. Now Available at LEER!



---



Features & Specifications

Product Type: Cast aluminum off-road wheel

Brand: KMC Wheels

Series: Offroad Tech Series

Finish: Satin Black

Wheel Sizes: 17x9, 20x9

Bolt Patterns: 5X150, 5X5.0, 5X5.5, 6X135, 6X5.5, 6X4.5, 6X5.5

Offsets: -12mm, 18mm

Backspacing: 4.53, 5, 5.71

Center Bore: 78.1, 106.1, 110.1

Load Rating: 2500 lb

Lug Count: 5, 6

Lip Depth: 1.26, 1.35

Certification: SAE J2530 JWL-T VIA

TPMS Compatibility: Compatible

Functionality:

• Refreshes truck and sport utility styling with a model-specific KMC wheel design.
• Supports stance-focused builds when the selected wheel size and offset match the vehicle.
• Pairs well with all-terrain and mud-terrain tire upgrades for daily and weekend use.
• Adds rim detail through removable gold zinc star head bolts.
• Uses cast aluminum construction for a practical balance of strength and weight.
• Offers TPMS compatibility for modern vehicle setups.
• Gives customers selectable wheel sizing for common 5-lug and 6-lug applications.



---



Available Options

The KMC KM100 Sync Wheel is available in multiple wheel options:

• Wheel Sizes - Choose from 17x9, 20x9 sizing to match tire package, brake clearance, and the intended vehicle stance.
• Offset Range - Select offset values such as -12mm, 18mm to fine-tune how the wheel sits in relation to the fender and suspension setup.
• Bolt Patterns - Match the selected wheel to compatible bolt patterns including 5X150, 5X5.0, 5X5.5, 6X135, 6X5.5, 6X4.5, 6X5.5 for supported truck and sport utility applications.

Choose the 17 inch options for a tire-forward off-road look, or choose the 20 inch options for a larger wheel profile that keeps the Satin Black finish more visually prominent.



---



Why Choose

This product is ideal for customers who want a cast aluminum wheel that combines KMC off-road style with everyday truck and sport utility fitment flexibility.

• Distinct model-specific spoke design gives the vehicle a more intentional stance.
• Satin Black finish makes the wheel easy to coordinate with dark trim, lifted suspensions, and larger tire packages.
• Offroad Tech Series cap and ring detail adds customization value without overwhelming the wheel face.
• Load-rated construction supports truck and sport utility use when matched to the proper vehicle application.
• Multiple bolt-pattern choices help cover a broad range of common builds.
• TPMS compatibility helps keep the upgrade practical for modern vehicles.
• Balanced styling works for daily drivers, tow rigs, overland builds, and weekend trail vehicles.



---



What's Included

• KMC KM100 Sync Wheel in the selected size, finish, and bolt pattern.
• Red, Blue, and Black interchangeable caps for the center cap system.
• Center cap face plate and cap ring components for the selected wheel application.

Note: Confirm included components before installation.



---



Installation Notes

• Confirm wheel diameter, width, bolt pattern, offset, backspacing, and center bore before installation.
• Verify tire size, brake clearance, suspension clearance, and TPMS service needs for the selected vehicle.
• Professional mounting, balancing, and torque checks are recommended after installation and after initial driving.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

KMC Wheels provides limited warranty coverage for structural failure under normal and intended use for the original retail purchaser, with painted aluminum finish coverage for peeling or lifting on the wheel face for one year.

Warranty coverage may be affected by improper installation, failure to follow wheel installation guidelines, improper maintenance, accident damage, road conditions, misuse, racing, unapproved accessories, adapters, modifications, or transfer of ownership. Proof of purchase may be required for warranty claims.
