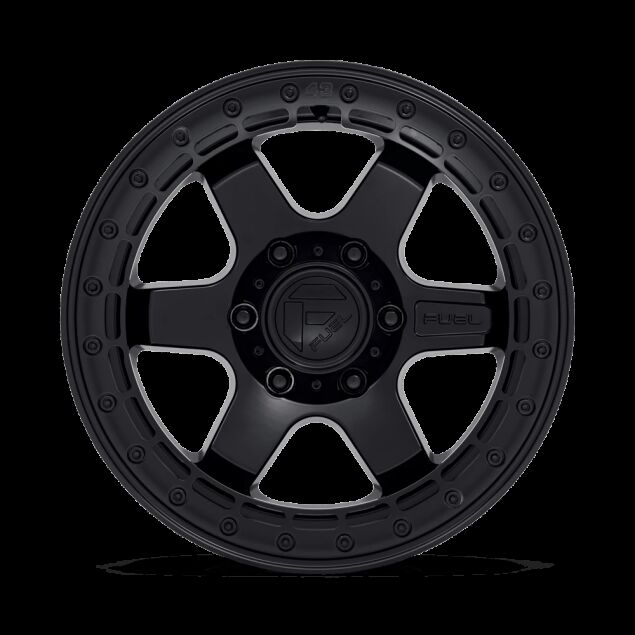

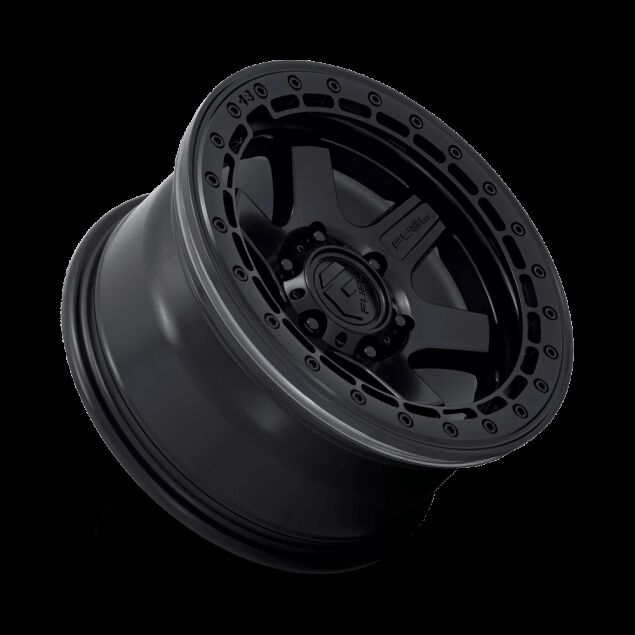

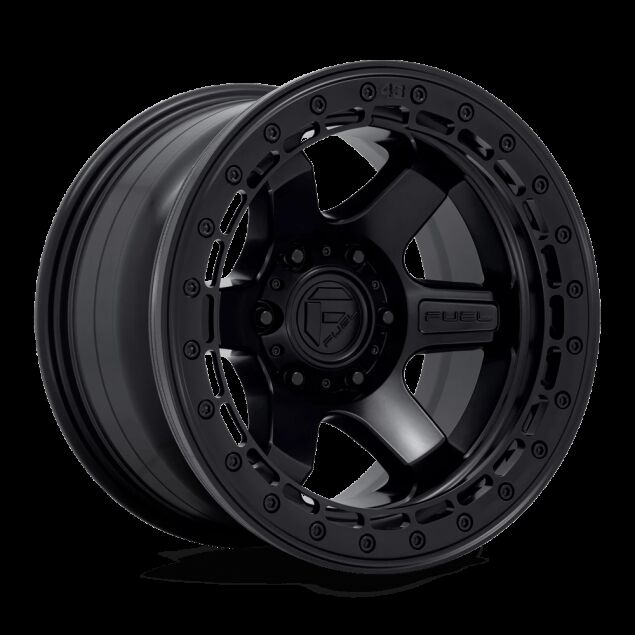

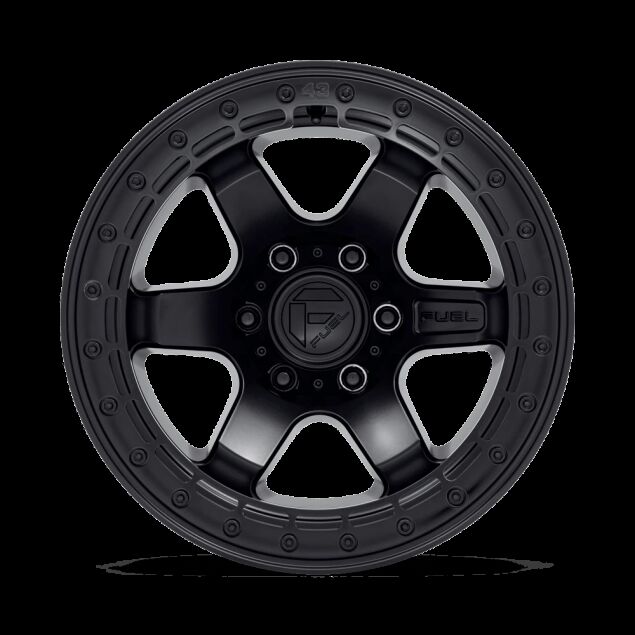

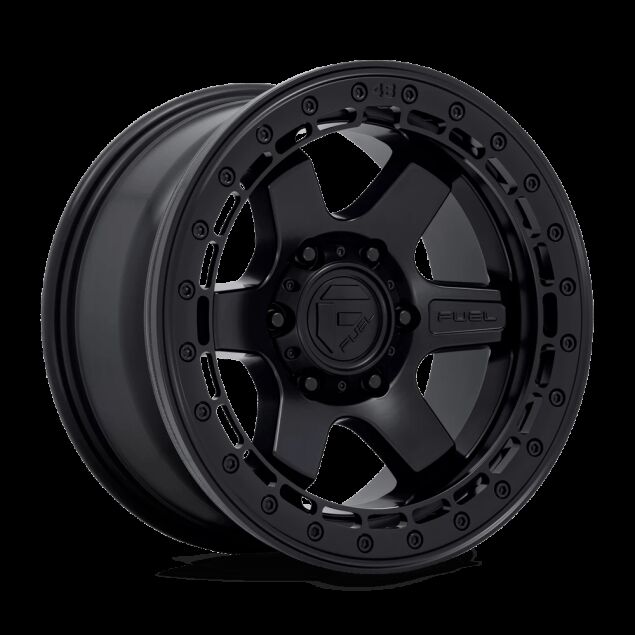

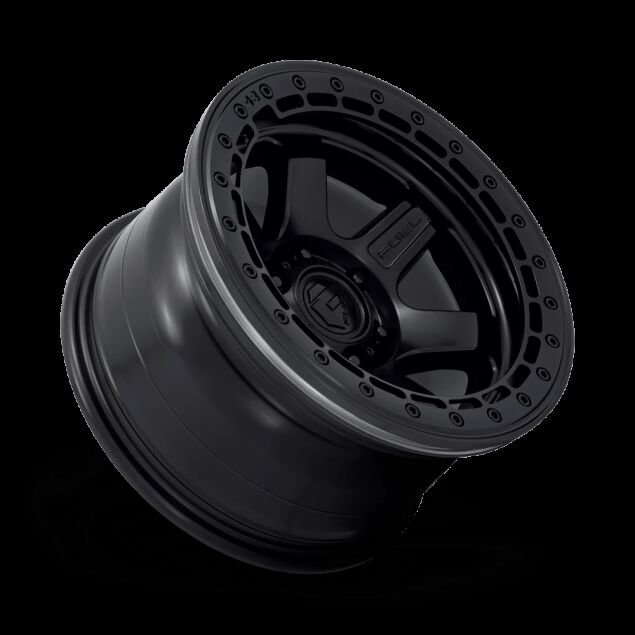

Fuel Block Beadlock Wheel - Matte Black with Matte Black Ring



The Fuel Block Beadlock Wheel - Matte Black with Matte Black Ring is built for customers who want a wheel that does more than change the look of a truck or SUV. Its block-style off-road design with beadlock hardware and a purposeful trail stance gives lifted, leveled, and trail-focused builds a stronger visual stance while keeping the wheel family tied to real off-road purpose.

This wheel gives trucks and Jeeps an aggressive beadlock look with functional off-road bead retention and broad 5-lug, 6-lug, and select 8-lug fitment choices. The Matte Black with Matte Black Ring finish gives the design its own character, helping customers match the wheel to blacked-out builds, high-contrast body colors, aftermarket bumpers, suspension upgrades, and aggressive tire packages.

As a beadlock wheel, the Block Beadlock is intended for serious off-road use where tire retention and trail capability matter. The beadlock ring, deep face detail, and cast aluminum construction work together to create a wheel that looks purposeful from every angle and supports the kind of build that spends real time away from pavement.

Listed applications for this finish include 17x8.5 and 17x9 sizing, 5X150, 6x5.5, and 6X135 bolt pattern coverage, and offset choices of 20mm, 0mm, and -15mm. These choices help customers dial in the right combination of stance, tire clearance, hub fit, and load support for the vehicle.

Fuel Off-Road cast wheel construction is built around styling flexibility, truck-specific fitments, and load ratings designed for the hauling, towing, job-site, and off-road demands that pickups and SUVs see in real use. The result is a wheel that can support a more capable build while still delivering the finish detail customers expect from a premium aftermarket wheel.

Whether customers are upgrading for trail use, overlanding, daily driving, towing stance, or a more aggressive truck appearance, the Fuel Block Beadlock Wheel - Matte Black with Matte Black Ring delivers confident Fuel Off-Road styling with application-specific fitment options. Now Available at LEER!



---



Features & Specifications

Product Type: True beadlock cast aluminum off-road wheel

Brand: Fuel Off-Road

Series: Block Beadlock

Finish: Matte Black with Matte Black Ring

Material: Cast Aluminum

Beadlock: True beadlock wheel

Wheel Size: 17x8.5 and 17x9

Bolt Pattern: 5X150, 6x5.5, and 6X135

Offset: 20mm, 0mm, and -15mm

Backspacing: 5.54, 4.75, and 4.41

Center Bore: 110.1, 106.1, and 87.1

Load Rating: 2500 lbs

Lip Depth: 2.29 and 1.81

Center Cap: 1006-45BLD, 1006-12BLD, and 1006-11BLD

TPMS Compatible: Yes

Fitment: Vehicle-specific by selected wheel application

Use: Off-road use only

Functionality:

• Functional beadlock wheel upgrade for dedicated off-road vehicles
• Aggressive stance support for lifted and leveled builds
• Application-specific fitment by bolt pattern, offset, and center bore
• Cast aluminum wheel construction for truck-focused use
• Finish-specific styling for coordinated exterior builds
• Support for larger tire packages when matched to the correct vehicle setup
• Trail, overland, work truck, and daily-driver appearance upgrades
• Beadlock ring support for serious low-speed trail use



---



Available Options

The Fuel Off-Road Block Beadlock - Matte Black with Matte Black Ring is available in application-specific fitments that help match the wheel to the build:

• Wheel Size: Choose 17x8.5 and 17x9 sizing based on the customer's tire package, stance goals, and vehicle clearance needs.
• Bolt Pattern: Choose from 5X150, 6x5.5, and 6X135 applications to match the vehicle hub pattern before installation.
• Offset: Available offset choices include 20mm, 0mm, and -15mm, allowing the wheel position to be matched to the customer's stance, tire width, and suspension setup.
• Load Rating: Listed load ratings include 2500 lbs, depending on the chosen wheel application.
• Center Bore: Center bore dimensions vary by vehicle application, with listed values including 110.1, 106.1, and 87.1.

Choose the wheel size, bolt pattern, and offset that match the customer's vehicle, tire package, and stance goals.



---



Why Choose

This product is ideal for customers who want functional beadlock performance with aggressive Fuel Off-Road styling.

• True beadlock design supports serious off-road use in the Matte Black with Matte Black Ring finish
• Application-specific sizing helps match the wheel to the vehicle, tire package, and stance goal
• Cast aluminum construction supports a strong balance of style, fitment coverage, and truck-ready use
• Deep face detail and Fuel Off-Road design language help create a more aggressive exterior appearance
• Compatible bolt pattern options make it easier to support Jeep, truck, and SUV build plans
• Offset choices help customers tune how the wheel sits under the fender or flare
• Strong choice for customers upgrading wheels alongside tires, suspension, bumpers, armor, or overland equipment
• Off-road-only warning helps customers understand the intended use before installation



---



What's Included

• Fuel Off-Road wheel in the selected finish and application
• Beadlock ring and related beadlock hardware when applicable
• Center cap when applicable
• Valve stem when applicable
• Wheel-specific hardware when applicable

Note: Confirm included components before installation.



---



Installation Notes

• Choose the application matched to the vehicle bolt pattern, center bore, offset, tire size, brake clearance, and suspension setup.
• Professional mounting, balancing, torque verification, and post-install inspection are recommended for proper wheel installation.
• Beadlock wheels are intended for off-road use only and require proper beadlock hardware installation, torque checks, and regular inspection.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Fuel Off-Road Warranty

Fuel Off-Road wheels are covered by the Wheel Pros Limited Warranty. Fuel Off-Road warrants that its wheels will be free from structural failure under normal and intended use for as long as the original retail purchaser owns the product.

Warranty coverage requires proper installation and use in accordance with Fuel Off-Road consumer information and aftermarket wheel installation guidelines. Warranty coverage typically excludes improper installation, misuse, modifications, overloading, impact damage outside warranty terms, non-compliant use, racing use, or failure to follow installation and care instructions. Proof of purchase may be required for warranty claims.
