Diode Dynamics Stage Series Reverse Light Wiring Harness Kit



Diode Dynamics Stage Series Reverse Light Wiring Harness Kit is built for customers adding Diode Dynamics backlit pods or reverse-light upgrades to compatible trucks and SUVs. The harness connects compatible backlit pods to vehicle backup wiring so the rear lighting setup can work with the vehicle's normal lighting behavior. It gives customers a cleaner, more integrated way to add useful lighting control or replacement lighting without turning the vehicle into a complicated custom wiring project.

The main value is everyday confidence. When paired with the correct Diode Dynamics lights, the harness supports reverse-light activation and helps keep auxiliary rear lighting tied into a planned electrical path. Instead of leaving extra lights, lamp assemblies, or accessory wiring feeling unfinished, this upgrade helps the lighting system behave with a polished, intentional feel that belongs on a finished truck, SUV, Jeep, car, or powersports build.

Diode Dynamics designs these components for customers who care about fit, durability, and simple operation. The black wiring and accessory hardware keep the installation looking tidy, while the application-specific or universal layout helps support dependable connections in demanding automotive environments.

Multiple harness versions are offered for different vehicle and pod combinations, including backlit pod, C1/C2 pod, and C1R pod compatibility. The result is a practical upgrade with differences focused on connection style, mounting location, light function, or vehicle match.

Fitment is vehicle-specific, with applications covering Bronco, Tacoma, Maverick, Colorado, and compatible pod styles shown for the selected option. Customers should confirm the selected application before installation so the connector style, mounting location, wiring path, and lighting function match the vehicle.

Whether customers are upgrading for better rear visibility, cleaner auxiliary wiring, or a more complete reverse-light upgrade, the Diode Dynamics Stage Series Reverse Light Wiring Harness Kit delivers a practical, well-integrated solution for a cleaner lighting build. Now Available at LEER!



---



Features & Specifications

Product Type: Reverse light wiring harness kit

Brand: Diode Dynamics

Operating Voltage: 9-16V

Operating Temperature: -40C to 85C (-40F to 185F)

Color: Black

Vehicle Fitment: 2021-2025 Ford Bronco, 2016-2026 Toyota Tacoma, 2022-2024 Ford Maverick, and 2023-2024 Chevrolet Colorado options

Functionality:

• Helps connect Diode Dynamics lighting accessories to vehicle power, trailer wiring, or lighting signals.
• Supports cleaner routing than improvised wiring on lighting upgrades.
• Helps preserve a more finished appearance around bumpers, hitches, lamp openings, or accessory mounting areas.
• Provides a useful replacement or companion part for Diode Dynamics lighting systems.
• Supports everyday lighting operation when paired with compatible lights and the proper vehicle application.
• Keeps the installation focused on matching connectors and planned wiring paths instead of universal guesswork.
• Helps customers complete a lighting build with parts designed around automotive use.



---



Available Options

The Stage Series Reverse Light Wiring Harness Kit is available in multiple vehicle and light-compatibility options:

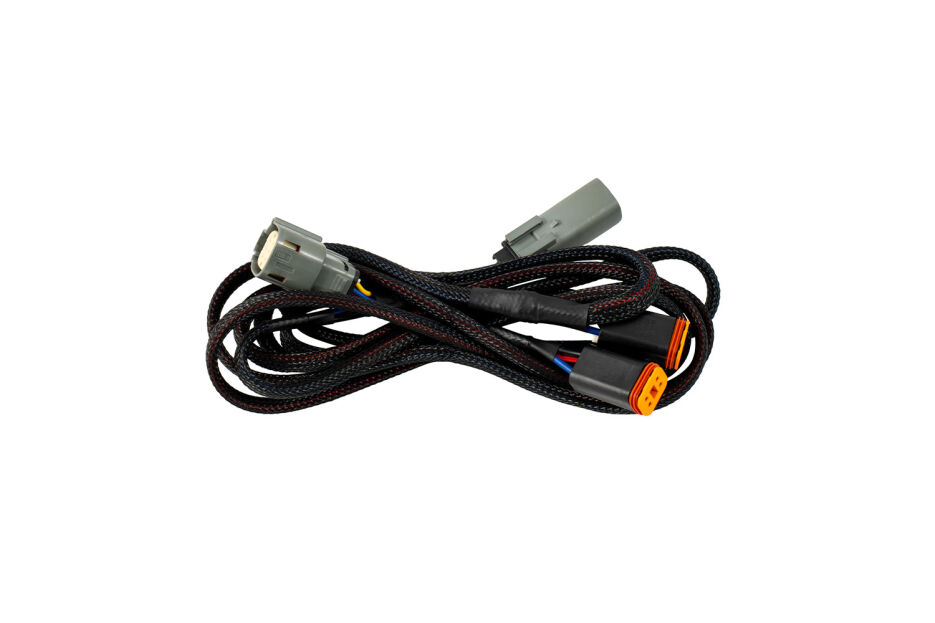

• Backlit Pod Harness -- connects compatible backlit pods to selected vehicle backup wiring for clean rear-light operation
• C1/C2 Pod Harness -- matches Chevrolet Colorado applications using compatible C1 or C2 pod lighting
• C1R Pod Harness -- supports C1R pod applications where red running, brake, or reverse-light functions are part of the lighting setup

Choose the backlit pod harness for compatible backlit pod upgrades, or choose the C1/C2 or C1R harness for the matching pod style and vehicle application.



---



Why Choose

This product is ideal for customers who want a cleaner reverse-light wiring path for compatible Diode Dynamics pods.

• Designed for customers who prefer purpose-built wiring over one-off electrical improvisation.
• Helps reduce exposed wiring and keeps lighting upgrades easier to service later.
• Useful for truck, SUV, Jeep, and off-road lighting builds that need clean signal or power routing.
• Pairs with compatible Diode Dynamics lights for a more integrated installation.
• Keeps connections organized around the selected lighting function.
• Supports a cleaner final appearance than loose wiring near visible mounting areas.
• Gives installers a more straightforward starting point for accessory lighting work.



---

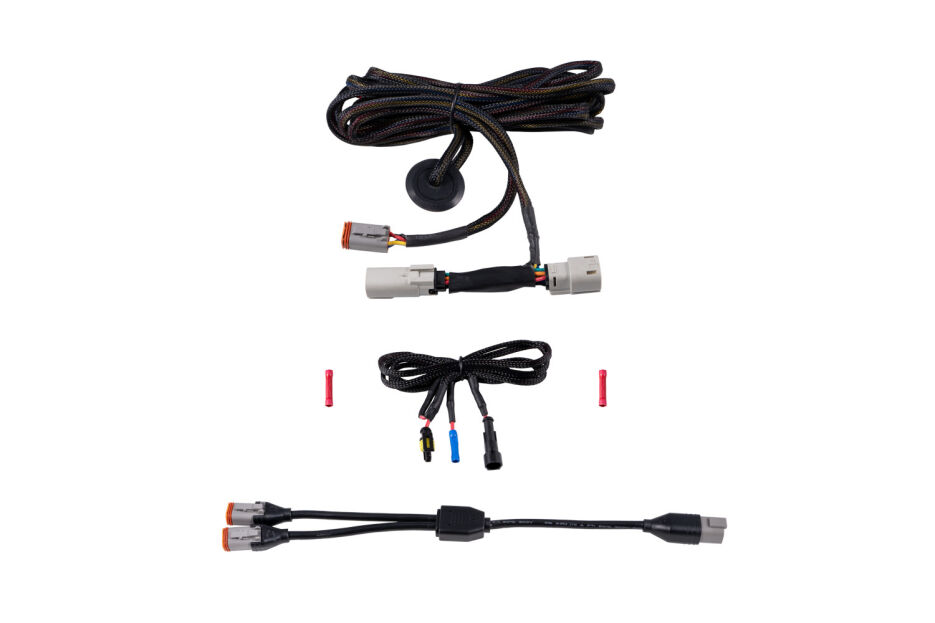

What's Included

• Backup wiring harness or vehicle-specific harness
• DT 4-pin 2-way splitter on applicable versions
• 18-22AWG butt connectors on applicable versions

Note: Confirm included components before installation.



---



Installation Notes

• Confirm compatibility with the selected vehicle, light model, connector type, and intended lighting function before installation.
• Route wiring away from heat, sharp edges, moving parts, and areas where the harness may be pinched.
• Secure wiring after test fitting and verify all lighting functions before final reassembly.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Warranty coverage is handled through Diode Dynamics and may vary by product type and application. Coverage typically applies to defects in materials or workmanship under normal use within the stated warranty period for the product.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
