Diode Dynamics Stage Series Reverse Light Wiring Harness

FROM: $19.95 USD

CONFIRM THIS ITEM FITS YOUR TRUCK:

Year

2026 2025 2024 2023 2022 2021 2020 2019 2018 2017 2016 2015 2014 2013 2012 2011 2010 2009 2008 2007 2006 2005

Make

Model

  • Free Shipping

    This product qualifies for free shipping.

  • Fast Fulfillment
  • Military Discount

    For all active, reservist, veteran, and retired U.S. military personnel.

    Verify Military Status


Disclaimer: Product information and images are provided by the manufacturer. While we strive for accuracy, LEER is not responsible for errors, omissions, or discrepancies in manufacturer-supplied-content.

Product Overview



Diode Dynamics Stage Series Reverse Light Wiring Harness connects Diode Dynamics backlit reverse-light pods to the vehicle wiring needed for simple rear lighting operation. It is built for customers adding auxiliary reverse lighting who want the lights to respond to factory lighting signals instead of relying only on a standalone switch.

The harness is designed to support Diode Dynamics lights with backlight functionality. When paired with compatible pods that use a white main beam and red backlight, the setup can operate as an additional red accent light with the vehicle tail lights and automatically change to a high-power backup light when reverse is engaged.

Plug-and-play OEM-style connectors are available for supported vehicle applications, while the universal reverse-light wiring kit connection supports broader pod installs. High-capacity wiring, dual Deutsch DT output connectors, and a waterproof fuse help create a clean electrical foundation for rear-facing Stage Series pods.

The included override function gives customers more control when extra rear lighting is needed outside normal reverse operation. That makes the harness useful for hitching a trailer, setting up camp, loading gear, checking a work area, or using auxiliary rear light output during off-road travel.

Available harness applications include Toyota Tacoma and Toyota 4Runner vehicle connections as well as a backlit-pod reverse wiring harness for compatible Diode Dynamics lights. Each application is intended to simplify wiring while keeping the installation organized and serviceable.

Whether customers are upgrading for trailer work, campsite visibility, jobsite lighting, or cleaner control of backlit reverse pods, the Diode Dynamics Stage Series Reverse Light Wiring Harness helps tie the rear lighting system together. Now Available at LEER! The compact format keeps the upgrade tidy for a daily-driven vehicle or weekend trail rig.





Features & Specifications

Product Type: Reverse light wiring harness

Brand: Diode Dynamics

Series: Stage Series

Color: Black

Operating Voltage: 9-16V

Wire Capacity: 14AWG and 18AWG wiring depending on harness application

Connectors: Dual Deutsch DT output connectors

Fuse: 10A waterproof fuse

Functionality:

  • Connects compatible Diode Dynamics reverse-light pods to vehicle rear lighting signals.
  • Supports white main reverse-light output and red backlight operation with compatible pods.
  • Allows vehicle signal control for everyday reverse-light use.
  • Adds an override option for manually activating the main beam when needed.
  • Helps keep auxiliary reverse-light wiring organized and serviceable.
  • Uses high-capacity wiring for rear pod lighting installations.
  • Includes dual Deutsch DT outputs for connecting compatible pod lights.
  • Supports Toyota Tacoma, Toyota 4Runner, and compatible backlit-pod wiring applications represented in this group.





Available Options

The Stage Series Reverse Light Wiring Harness is available in multiple harness configurations:

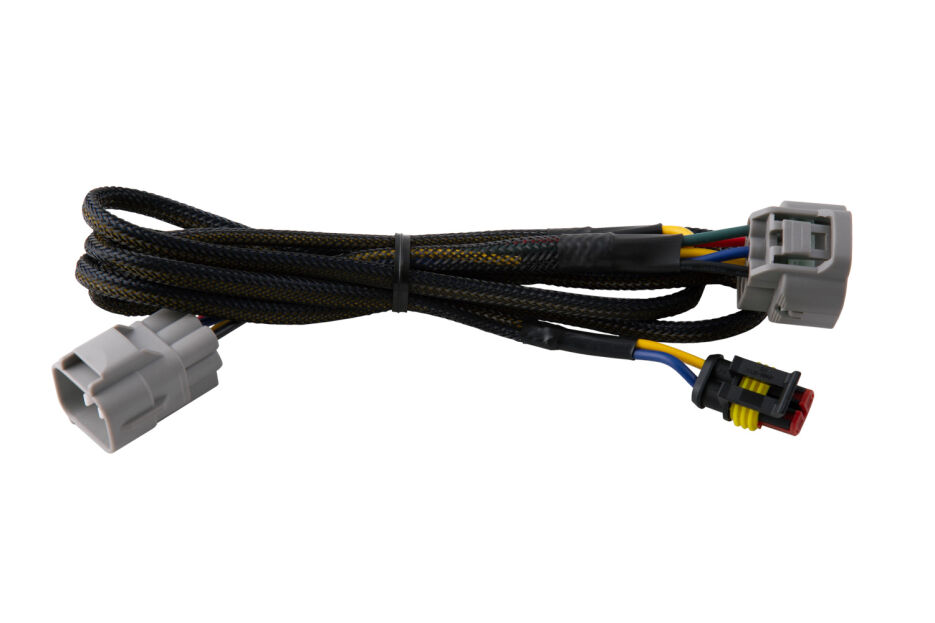

  • 2005-2015 Toyota Tacoma Harness -- plug-and-play tail-light connection for compatible Tacoma reverse-light installations.

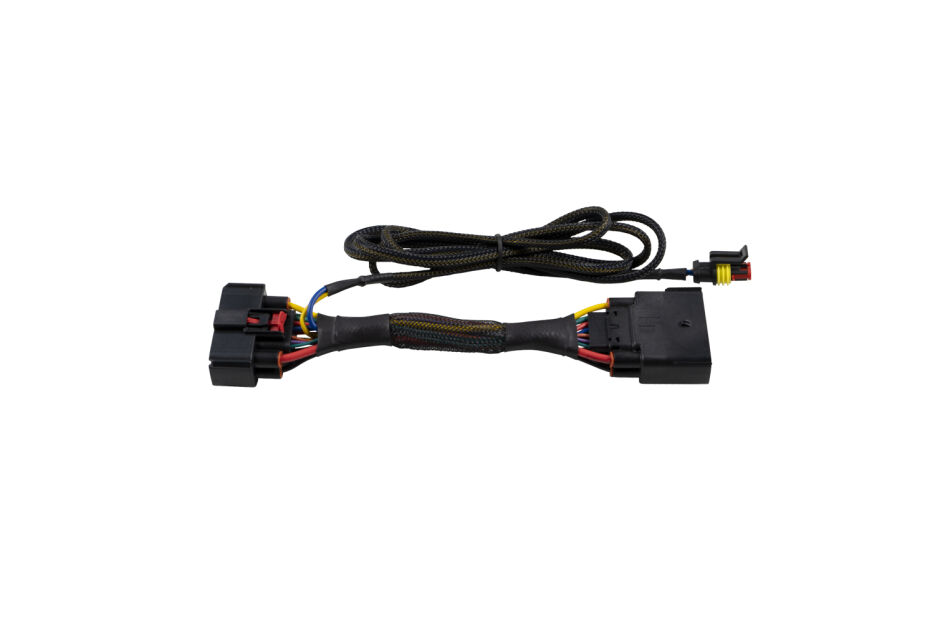

  • 2016-2021 Toyota Tacoma Harness -- vehicle-specific tail-light connection for later Tacoma reverse-light installations.

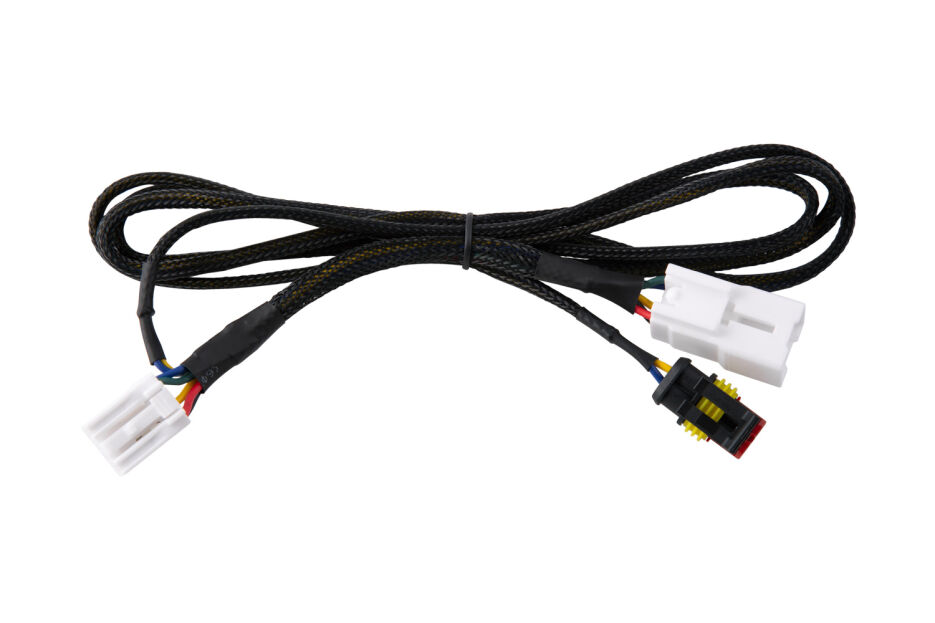

  • 2010-2021 Toyota 4Runner Harness -- plug-and-play connection for compatible 4Runner reverse-light pod setups.

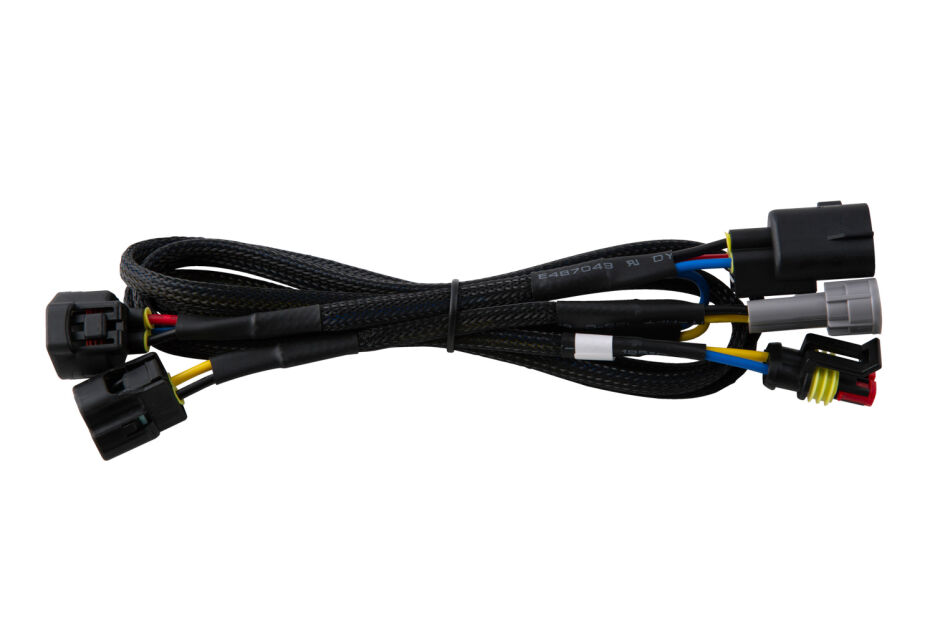

  • Backlit Pod Reverse Wiring Harness -- harness for connecting compatible Diode Dynamics lights with backlight functionality to vehicle backup wiring.

Choose a vehicle-specific harness for Tacoma or 4Runner applications, or choose the backlit-pod reverse wiring harness for compatible auxiliary reverse-light wiring needs.





Why Choose

This product is ideal for customers who want clean control of auxiliary reverse lights and backlit rear pods.

  • Simplifies wiring by connecting compatible lights to vehicle rear lighting signals.
  • Supports both main reverse output and red backlight operation with compatible pods.
  • Helps reduce wiring guesswork compared with assembling a harness from separate components.
  • Vehicle-specific connectors support cleaner Tacoma and 4Runner installations.
  • High-capacity wiring and a waterproof fuse support dependable rear lighting operation.
  • Manual override capability gives customers added control when extra rear light is needed.
  • Deutsch DT outputs keep pod connections secure and service-friendly.
  • A black harness finish helps the wiring blend into typical rear vehicle routing areas.





What's Included

  • One Stage Series reverse light wiring harness in the selected application.
  • Dual Deutsch DT output connectors for compatible pod lights.
  • 10A waterproof fuse integrated into the harness design.
  • Vehicle signal connectors or backlit-pod wiring leads depending on selected harness configuration.
  • Toggle switch or override wiring components when included with the selected harness.

Note: Confirm included components before installation.





Installation Notes

  • Confirm the selected harness matches the vehicle application, tail-light connector style, and Diode Dynamics pod setup before installation.
  • Disconnect power before making wiring connections and test reverse, backlight, and override functions before final wire routing.
  • Route wiring away from exhaust heat, sharp edges, moving suspension parts, and areas where cargo or road debris can damage the harness.
  • Secure all wiring after testing so connectors and fuse locations remain accessible for inspection.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.





Warranty Information

Diode Dynamics warranty support is intended to cover qualifying defects in product materials or workmanship within the applicable brand warranty terms. Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use.

Proof of purchase may be required for warranty claims. Inspect the harness, connectors, fuse holder, and wire routing before use, and follow the installation instructions for the selected vehicle or pod application.
