Diode Dynamics Stage Series Ditch Light Kit - C2 2.0 Pods



The Diode Dynamics Stage Series Ditch Light Kit - C2 2.0 Pods is built for customers who want compact pod lighting above the hood for shoulder, trail-edge, and downrange visibility. It gives customers a purposeful way to add Diode Dynamics auxiliary lighting while keeping the upgrade matched to the vehicle, the mounting location, and the lighting job at hand.

Stage Series Ditch Light Kit centers on C2 2.0 pod output in a low-profile ditch light position that adds usable light without a large roof bar. The result is a lighting upgrade that feels intentional on the vehicle instead of looking like a universal add-on, with the hardware and lamp placement working together for a cleaner finished install.

The product is designed around above the hood near the cowl, making it useful for customers who want added visibility without changing the overall shape of the vehicle. That placement helps direct light where it is needed for dark roads, trail approaches, work sites, campsites, trailer hookup areas, and low-light recovery tasks.

Real configuration choices include Sport output, Pro output, White light, Yellow light and related lighting selections that let customers match the kit to how the vehicle is used. The choices focus on output, light color, beam behavior, wiring style, or kit layout rather than forcing every driver into one lighting setup.

Installation is supported by vehicle-specific brackets are designed to use existing mounting points on compatible applications. Customers should still confirm the selected vehicle application, bumper or receiver style, wiring needs, and lamp compatibility before installation so the final setup matches the vehicle and the intended lighting use.

Whether customers are upgrading for trail driving, work-site visibility, towing support, campsite setup, or a cleaner auxiliary lighting package, the Stage Series Ditch Light Kit brings focused lighting function to the vehicle. Now Available at LEER!



---



Features & Specifications

Product Type: Ditch light kit

Brand: Diode Dynamics

Series: Stage Series C2 2.0

Vehicle Fitment: select Ford, Toyota, Ram, and compact truck applications

Mounting Location: Above the hood near the cowl

Material: C2 2.0 LED pods with vehicle-specific steel brackets

Finish: Black housings and brackets

Measured Output: 1 130 lm, 1 858 lm, 1 988 lm, 777 lm, 871 lm

Input Power: 25.6, 7.7, Main Beam: 25.6 Backlight: 0.7, Main Beam: 7.7 Backlight: 0.7

Beam Pattern: Combo (Driving and Flood)

Color Temperature: 3000K, 6000K

Intrusion Rating: IP69K Waterproof High Pressure

Operating Voltage: 9-16V

Each setup should be matched to the vehicle application, lighting position, wiring requirements, and intended use before installation.

Functionality:

• Adds two C2 2.0 pods above the hood
• Illuminates shoulders, trail edges, campsites, and work areas
• Provides compact auxiliary lighting without a full light bar
• Offers white and yellow color-temperature choices
• Supports Sport and Pro output levels
• Uses vehicle-specific bracket hardware for compatible applications
• Works as a practical supplement to factory forward lighting



---



Available Options

The Stage Series Ditch Light Kit is available in multiple configurations:

• Sport output - 7.7-watt C2 2.0 choices for compact auxiliary lighting with controlled draw
• Pro output - 25.6-watt C2 2.0 choices for higher intensity in the same compact pod size
• White light - 6000K output for crisp cool-white visibility
• Yellow light - 3000K output for stronger contrast in weather, dust, and trail haze

Choose Sport for a compact everyday lighting upgrade, or choose Pro for more C2 2.0 intensity from the same ditch-light location.



---



Why Choose

This product is ideal for customers who want C2 2.0 pod output in a low-profile ditch light position that adds usable light without a large roof bar.

• Keeps the lighting package compact and low-profile
• Improves side-road awareness without dominating the vehicle appearance
• Lets customers tailor output and color to the way the vehicle is used
• Supports a clean above-hood installation on compatible models
• Adds useful light for outdoor work, travel, and trail driving
• Combines pods, brackets, wiring, and hardware in a kit-focused upgrade



---

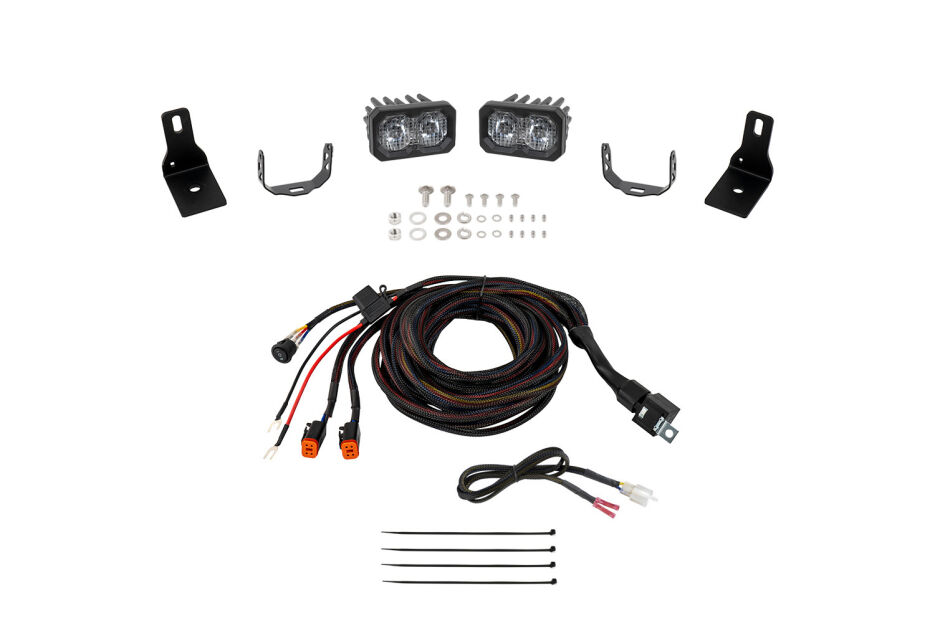

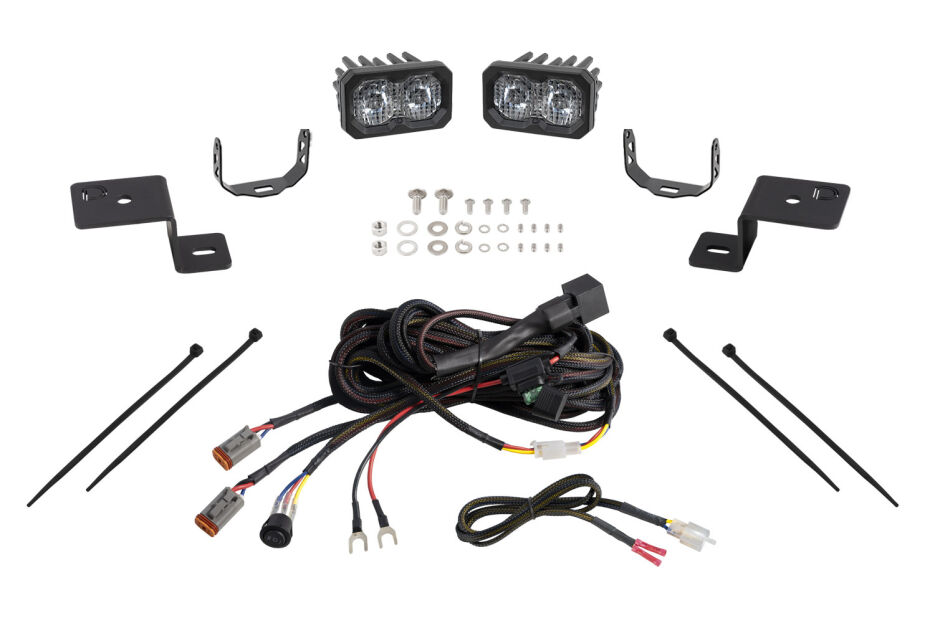

What's Included

• Two C2 2.0 LED pods
• Two ditch light brackets
• Two C2 2.0 mounting brackets
• Heavy-duty dual-output 4-pin wiring harness
• Mounting hardware
• Mounting guide

Note: Confirm included components before installation.



---



Installation Notes

• Designed for compatible truck and SUV ditch-light applications
• Confirm selected output level, light color, and vehicle application before installation
• Aim pods to reduce glare and maintain proper hood clearance

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics carries a Lifetime Limited Warranty on select Stage Series LED pods and off-road mounting brackets, with warranty terms depending on the exact product and purchase date.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.

Warranty review may require documentation, product inspection, or troubleshooting steps before a remedy is approved. Customers should keep the original purchase record and install the product according to the supplied instructions.
