Diode Dynamics SSC1 Fog Light Kit - Type HA



Diode Dynamics SSC1 Type HA Fog Light Kit gives customers upgrading Type HA fog-light applications a clean lighting upgrade built around useful output, matched fitment, and a finished appearance that belongs on the vehicle. It is made for customers who want more confidence after dark without turning the front or rear of the vehicle into a cluttered collection of universal parts.

The core benefit is replacing factory fog lamps with compact SSC1 LED pods that provide a cleaner beam, a factory-style bracketed appearance, and a distinctive amber backlight when wired for accent lighting. The lighting, hardware, and mounting approach work together so customers get a practical improvement they can feel during poor weather, dark roads, trail use, work-site tasks, or vehicle staging.

Diode Dynamics lighting uses focused optics, sealed construction, and purpose-shaped beam patterns to create usable output instead of scattered glare. The result is a lighting upgrade that looks deliberate and performs with the consistency customers expect from a premium LED system.

The Type HA kit is offered with white or selective-yellow fog output. Both choices use the same compact SSC1 platform, black housing, polycarbonate lens, and SAE J583 fog beam pattern, so the main decision is the light color customers prefer for their driving conditions.

The kit is built around bolt-on replacement of compatible factory fog-light locations. Included bracket hardware and plug-and-play style adapters help create a neat installation while preserving a close-to-factory appearance on supported applications. The finished setup helps the lighting feel planned and integrated, giving customers a more confident result when the vehicle is used after sunset, in bad weather, or away from well-lit pavement.

Whether customers are upgrading for poor-weather visibility, a cleaner fog-light appearance, daily driving, or an amber accent look, the Diode Dynamics SSC1 Type HA Fog Light Kit delivers a clean, useful lighting solution with the output, fit, and durability expected from Diode Dynamics. Now Available at LEER!



---



Features & Specifications

Product Type: SSC1 fog light kit

Brand: Diode Dynamics

Series: Stage Series C1

Beam Pattern: SAE J583 fog

Color Temperature: 6000K white or 3000K selective yellow

Measured Output: 430 lumens

Input Power: Main beam 19.2 watts and backlight 0.3 watts

Intrusion Rating: IP69K waterproof and high-pressure rated

Functionality:

• Improves low-mounted visibility in fog, dust, rain, snow, and dark road conditions
• Produces a wide fog beam pattern on SAE fog configurations for usable foreground coverage
• Supports white or selective-yellow output choices for different weather and appearance preferences
• Uses a clean bracket-and-bezel approach to keep the install looking close to factory
• Adds amber backlight functionality on compatible configurations for a distinct accent look
• Connects through included adapters or harnessing where applicable for a cleaner installation
• Pairs compact LED pods with application-minded bracket hardware for supported vehicles



---



Available Options

The SSC1 Type HA Fog Light Kit is available in two color choices:

• White SAE Fog -- 6000K white fog output for a crisp modern appearance and everyday visibility
• Yellow SAE Fog -- 3000K selective-yellow fog output for contrast in dust, rain, snow, and fog

Choose white for a crisp modern fog-light look, or choose selective yellow for added contrast in poor weather.



---



Why Choose

This product is ideal for customers who want a compact fog-light upgrade with a factory-style finished look.

• Adds a major visibility upgrade while keeping a clean bumper appearance
• Lets customers choose white or selective-yellow output for their driving conditions
• Uses engineered fog optics rather than a simple bulb swap
• Works with application-specific brackets to simplify fitment on supported vehicles
• Helps brighten the foreground without relying only on headlamps
• Gives the vehicle a premium lighting upgrade with Diode Dynamics build quality
• Provides a modern accent look when the backlight wiring is connected correctly



---

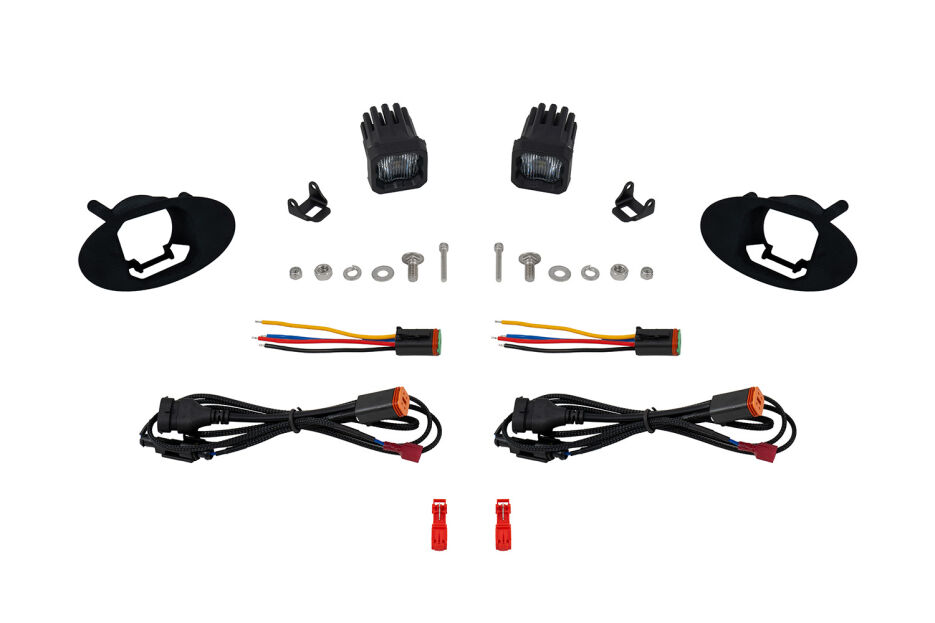

What's Included

• Two SSC1 LED pods in the selected color configuration
• Type HA fog-light brackets and bezels for the selected application
• DT adapter wires or harnessing for the supported fog-light location
• Mounting hardware for the bracket installation

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the Type HA application matches the vehicle before installation
• Aim fog lamps after installation to maintain usable foreground coverage
• Connect backlight wiring only to an appropriate 12-volt function and check local use rules

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics limited lifetime warranty support applies to eligible lighting products when they are installed and used within warranty terms. Coverage typically excludes improper installation, misuse, modifications, electrical issues, tampering, impact damage outside warranty terms, or non-compliant use; proof of purchase may be required for warranty claims.
