Diode Dynamics SS5 CrossLink Windshield Lightbar Kit



The Diode Dynamics SS5 CrossLink Windshield Lightbar Kit gives Jeep Wrangler, Gladiator, and Ford Bronco customers a complete upper lightbar concept built around eight linked SS5 LED pods. It is designed for serious trail, overland, and off-road visibility where a high-mounted lighting package can reach beyond the hood and front bumper.

The CrossLink design connects individual SS5 pods into a windshield-spanning assembly that mounts above the factory windshield with vehicle-specific brackets. This gives customers the intensity and optical control of multiple 5-inch pods while presenting the finished system as a single, purposeful lightbar.

The included SS5 pods use advanced TIR optics to focus usable light efficiently. The kit centers on a combo driving and flood beam pattern, giving customers a mix of distance and width that works well for trail lines, road edges, open terrain, and close foreground awareness around the Jeep.

This product group includes white 6000K and yellow 3000K configurations. White output offers crisp forward visibility and a modern appearance, while yellow output supports contrast-focused visibility in dust, snow, rain, haze, and other challenging conditions. The main beam uses 40W Sport output in the listed configurations.

Fitment covers Jeep Wrangler and Gladiator applications represented in the product data, including 2018-2026 Jeep Wrangler, 2020-2025 Jeep Gladiator, and 2021-2025 Ford Bronco listings. The vehicle-specific brackets are designed around factory mounting points above the windshield on supported applications, with no cutting or drilling required when installed correctly.

Customers should confirm available room, hardware needs, and lighting goals before installation so the finished upgrade feels intentional on the vehicle.

Whether customers are upgrading for trail driving, overlanding, night exploration, or a bold Jeep lighting setup, the Diode Dynamics SS5 CrossLink Windshield Lightbar Kit delivers an eight-pod upper lighting package. Now Available at LEER!



---



Features & Specifications

Product Type: Windshield CrossLink LED lightbar kit

Brand: Diode Dynamics

Vehicle Fitment: Jeep Wrangler, Gladiator, and Ford Bronco applications

Pod Count: Eight linked SS5 LED pods

Beam Pattern: Combo driving and flood

Measured Output: 3,700 lumens per pod

Input Power: 40W main beam with backlight power by selected color configuration

Functionality:

• Mounts eight linked SS5 pods above the Jeep windshield
• Combines driving and flood coverage for mixed distance and width
• Uses vehicle-specific brackets on supported Wrangler and Gladiator applications
• Offers white and yellow output choices for different driving conditions
• Adds selectable backlight capability on compatible configurations
• Creates a complete upper lightbar package for trail and overland visibility
• Uses CrossLink technology to present multiple pods as one clean lightbar



---



Available Options

The Diode Dynamics SS5 CrossLink Windshield Lightbar Kit is available in multiple light-color configurations:

• White combo configuration -- 6000K output for crisp forward visibility and a clean modern lighting appearance
• Yellow combo configuration -- 3000K output for added contrast in dust, snow, rain, haze, and foul-weather conditions
• Wrangler and Gladiator fitment configurations -- vehicle-specific bracket sets that match supported Jeep and Bronco windshield mounting applications

Choose white for crisp clear-weather visibility, choose yellow for added contrast, and match the kit to the supported Jeep or Bronco application before installation.



---



Why Choose

This product is ideal for customers who want a high-mounted eight-pod lightbar with linked SS5 performance.

• Adds serious upper lighting for Jeep trail and overland builds
• Combines the spread of a windshield bar with the optics of SS5 pods
• Keeps the finished installation cleaner than unrelated universal brackets
• Offers white or yellow light output for different terrain and weather needs
• Uses a combo beam to balance distance and foreground coverage
• Gives customers a coordinated kit instead of piecing together unrelated components



---

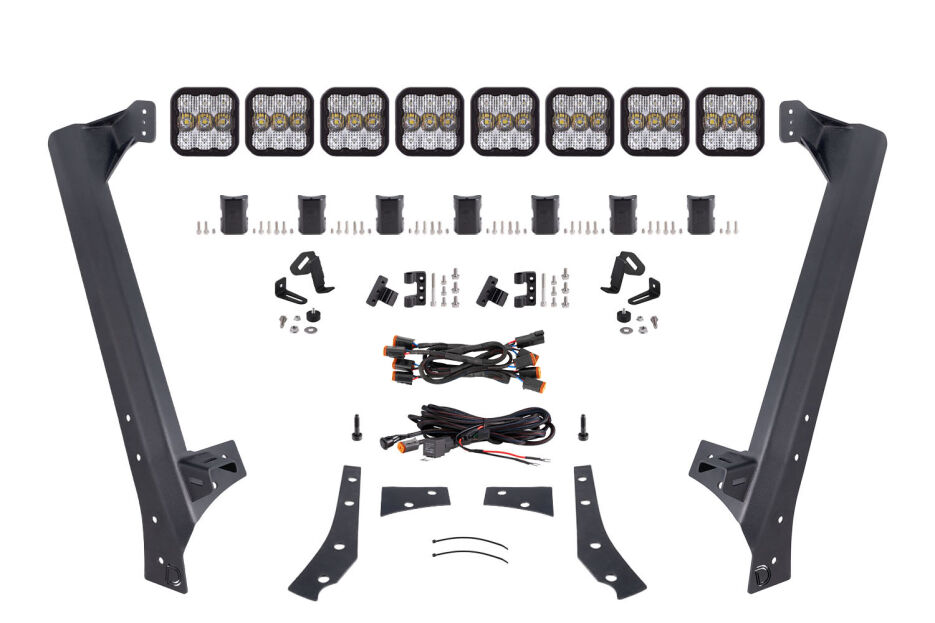

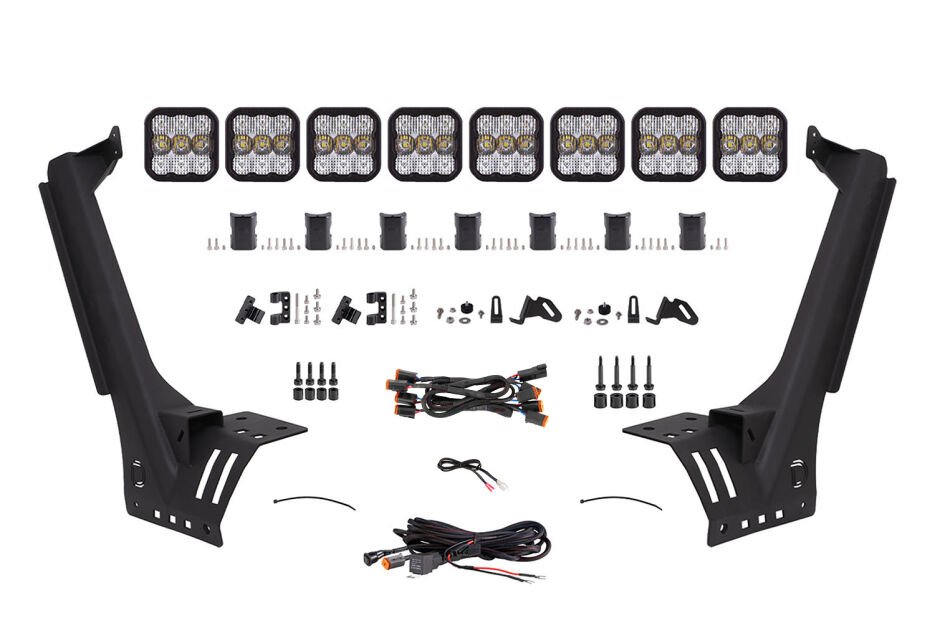

What's Included

• Eight Stage Series SS5 LED pods
• CrossLink hardware for the linked-pod assembly
• Vehicle-specific windshield mounting brackets
• Endmount and support hardware required for the selected kit
• Harness and pigtail components for the selected configuration

Note: Confirm included components before installation.



---



Installation Notes

• Confirm model, model year, windshield mounting points, roof configuration, and accessory clearance before installation.
• Route wiring carefully along the windshield area and protect it from pinch points, sharp edges, and weather exposure.
• Aim the lightbar responsibly after installation and recheck fastener tightness after initial driving.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics Stage Series LED lighting is backed by replacement warranty coverage and limited warranty support for qualifying products. Coverage may require troubleshooting before replacement or service, and proof of purchase may be required for warranty claims.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Customers should keep installation documentation and purchase records for warranty review.

Customers should inspect the product before installation, follow the installation notes for the selected vehicle, and keep all original order details available if warranty support is needed later. Maintaining clean wiring, secure mounting, and original hardware helps simplify future service review.
