Diode Dynamics SS5 CrossLink Bumper Lightbar Kit



The Diode Dynamics SS5 CrossLink Bumper Lightbar Kit is built for Jeep owners who want a low, focused auxiliary lighting upgrade across the front bumper. It gives customers a purposeful way to add Diode Dynamics auxiliary lighting while keeping the upgrade matched to the vehicle, the mounting location, and the lighting job at hand.

SS5 CrossLink Bumper Lightbar Kit centers on linked SS5 pod output that keeps the light package tight to the bumper while spreading useful light forward. The result is a lighting upgrade that feels intentional on the vehicle instead of looking like a universal add-on, with the hardware and lamp placement working together for a cleaner finished install.

The product is designed around factory front bumper, making it useful for customers who want added visibility without changing the overall shape of the vehicle. That placement helps direct light where it is needed for dark roads, trail approaches, work sites, campsites, trailer hookup areas, and low-light recovery tasks.

Real configuration choices include Sport output, Pro output, White light, Yellow light and related lighting selections that let customers match the kit to how the vehicle is used. The choices focus on output, light color, beam behavior, wiring style, or kit layout rather than forcing every driver into one lighting setup.

Installation is supported by application-specific brackets use factory mounting points and require no drilling where specified. Customers should still confirm the selected vehicle application, bumper or receiver style, wiring needs, and lamp compatibility before installation so the final setup matches the vehicle and the intended lighting use.

Whether customers are upgrading for trail driving, work-site visibility, towing support, campsite setup, or a cleaner auxiliary lighting package, the SS5 CrossLink Bumper Lightbar Kit brings focused lighting function to the vehicle. Now Available at LEER!



---



Features & Specifications

Product Type: Bumper lightbar kit

Brand: Diode Dynamics

Series: Stage Series SS5 CrossLink

Vehicle Fitment: Jeep Wrangler JK, Jeep Wrangler JL, and Jeep Gladiator applications

Mounting Location: Factory front bumper

Material: Steel brackets with SS5 LED pods

Finish: Black bracket finish

Measured Output: 3 700 lm, 3 800 lm, 7 900 lm, 9 600 lm

Input Power: Main Beam: 40 Backlight: 3.07, Main Beam: 40 Backlight: 3.17, Main Beam: 90 Backlight: 3.07, Main Beam: 90 Backlight: 3.17

Beam Pattern: Combo (Driving and Flood), Driving 20 x8

Color Temperature: 3000K, 6000K

Intrusion Rating: IP69K Waterproof High Pressure

Operating Voltage: 9-16V

Drilling Required: No

Mounting Hardware Included: Yes

Compliance Rating: SAE J581 Driving/Auxiliary High Beam Pattern

Each setup should be matched to the vehicle application, lighting position, wiring requirements, and intended use before installation.

Functionality:

• Adds forward auxiliary light from the bumper area
• Supports trail lighting, rural roads, and dark work sites
• Keeps linked SS5 pods positioned together in a clean lightbar layout
• Offers color choices for clear white or yellow visibility
• Provides beam choices for balanced spread or distance-focused output
• Pairs bumper placement with a low-profile front-end look
• Uses included harness components for the lighting package



---



Available Options

The SS5 CrossLink Bumper Lightbar Kit is available in multiple configurations:

• Sport output - 40-watt main beam choices for customers who want strong auxiliary light with lower current draw
• Pro output - 90-watt main beam choices for customers who want the highest output available in this group
• White light - 6000K output for a crisp, cool-white look and long-range visibility
• Yellow light - 3000K output for amber-style contrast in dust, rain, snow, and trail haze
• Combo beam - driving and flood coverage for balanced distance and width
• Driving beam - 20 x 8 pattern for a more distance-focused beam

Choose Sport for a balanced lighting upgrade, or choose Pro for maximum intensity in the same bumper-mounted SS5 layout.



---



Why Choose

This product is ideal for customers who want linked SS5 pod output that keeps the light package tight to the bumper while spreading useful light forward.

• Creates a substantial lighting upgrade without moving the pods to the roofline
• Gives Jeep builds a purposeful front-bumper appearance
• Lets customers match output level to their driving environment
• Keeps wiring and mounting hardware together in a kit-focused package
• Supports off-road visibility where factory lighting can feel limited
• Provides confidence for customers who want a premium pod-light setup



---

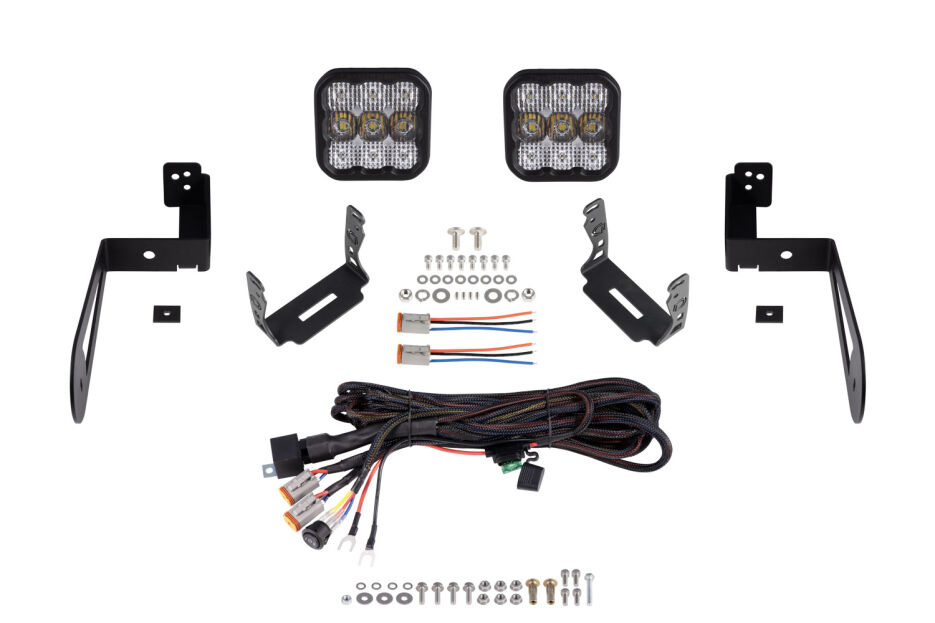

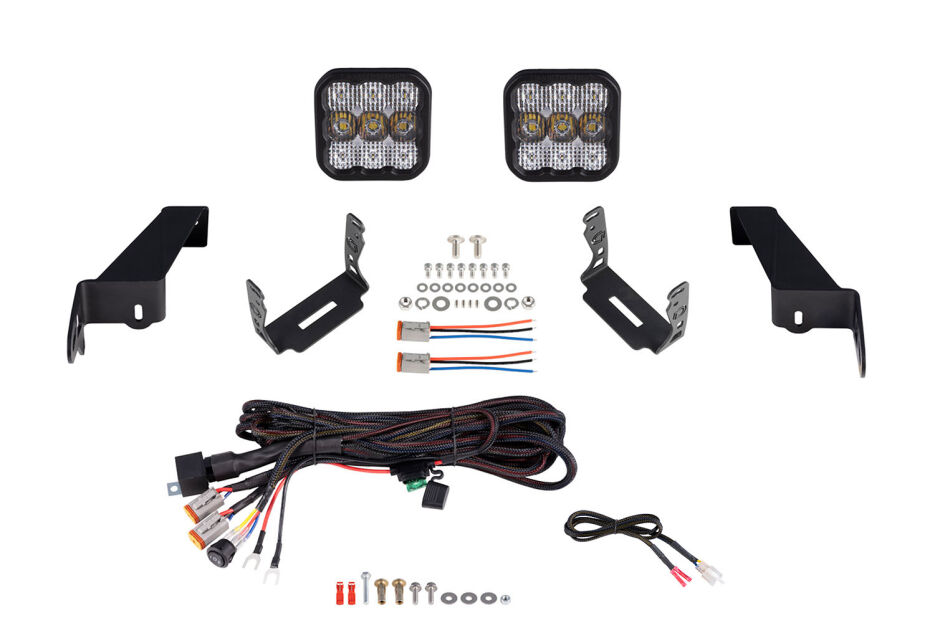

What's Included

• Application-specific heavy-duty steel brackets
• Two Stage Series 5-inch LED pods
• Heavy-duty dual-output wiring harness components
• Installation guide
• Mounting hardware where included by the selected application

Note: Confirm included components before installation.



---



Installation Notes

• Designed for compatible Jeep bumper applications listed for the selected configuration
• Use the included wiring components and follow the installation guide during setup
• Confirm the selected beam, color temperature, output level, and vehicle application before installation

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics carries a Lifetime Limited Warranty on select Stage Series LED pods and off-road mounting brackets, with warranty terms depending on the exact product and purchase date.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.

Warranty review may require documentation, product inspection, or troubleshooting steps before a remedy is approved. Customers should keep the original purchase record and install the product according to the supplied instructions.
