Diode Dynamics SS5 Bumper LED Pod Light Kit



The Diode Dynamics SS5 Bumper LED Pod Light Kit is built for truck customers who want serious auxiliary lighting from a clean bumper-mounted position. It gives customers a purposeful way to add Diode Dynamics auxiliary lighting while keeping the upgrade matched to the vehicle, the mounting location, and the lighting job at hand.

SS5 Bumper LED Pod Light Kit centers on two SS5 LED pods that add focused output without moving lighting to the roof or windshield. The result is a lighting upgrade that feels intentional on the vehicle instead of looking like a universal add-on, with the hardware and lamp placement working together for a cleaner finished install.

The product is designed around factory front bumper, making it useful for customers who want added visibility without changing the overall shape of the vehicle. That placement helps direct light where it is needed for dark roads, trail approaches, work sites, campsites, trailer hookup areas, and low-light recovery tasks.

Real configuration choices include Sport output, Pro output, White light, Yellow light and related lighting selections that let customers match the kit to how the vehicle is used. The choices focus on output, light color, beam behavior, wiring style, or kit layout rather than forcing every driver into one lighting setup.

Installation is supported by application-specific brackets are designed to place the SS5 pods at the factory bumper area. Customers should still confirm the selected vehicle application, bumper or receiver style, wiring needs, and lamp compatibility before installation so the final setup matches the vehicle and the intended lighting use. Customers also get a more complete upgrade path because the hardware, lamp position, and vehicle application work together instead of forcing a pieced-together setup.

Whether customers are upgrading for trail driving, work-site visibility, towing support, campsite setup, or a cleaner auxiliary lighting package, the SS5 Bumper LED Pod Light Kit brings focused lighting function to the vehicle. Now Available at LEER!



---



Features & Specifications

Product Type: Bumper LED pod light kit

Brand: Diode Dynamics

Series: Stage Series SS5

Vehicle Fitment: Ford F-150, Ford Raptor, and Ram 1500 applications

Mounting Location: Factory front bumper

Material: SS5 LED pods with application-specific heavy-duty steel brackets

Finish: Black housings and brackets

Measured Output: 3 700 lm, 3 800 lm, 7 900 lm, 9 600 lm

Input Power: Main Beam: 40 Backlight: 3.07, Main Beam: 40 Backlight: 3.17, Main Beam: 90 Backlight: 3.07, Main Beam: 90 Backlight: 3.17

Beam Pattern: Combo (Driving and Flood), Driving 20 x8

Color Temperature: 3000K, 6000K

Intrusion Rating: IP69K Waterproof High Pressure

Operating Voltage: 9-16V

Each setup should be matched to the vehicle application, lighting position, wiring requirements, and intended use before installation.

Functionality:

• Adds two SS5 LED pods to the factory bumper area
• Supports off-road driving, work-site lighting, and rural-road visibility
• Lets customers choose white or yellow light color
• Offers beam patterns for balanced spread or distance-focused output
• Positions larger 5-inch pods low on the front of the truck
• Includes wiring components for a complete bumper lighting package
• Improves usable forward light beyond the factory lighting system



---



Available Options

The SS5 Bumper LED Pod Light Kit is available in multiple configurations:

• Sport output - 40-watt main beam choices for strong auxiliary light with controlled draw
• Pro output - 90-watt main beam choices for customers who want maximum SS5 intensity
• White light - 6000K output for crisp cool-white visibility
• Yellow light - 3000K output for higher contrast in poor weather and dusty conditions
• Combo beam - driving and flood coverage for a useful blend of distance and width
• Driving beam - 20 x 8 pattern for a longer, narrower beam

Choose Sport for balanced auxiliary output, or choose Pro for the strongest SS5 bumper-light performance in this group.



---



Why Choose

This product is ideal for customers who want two SS5 LED pods that add focused output without moving lighting to the roof or windshield.

• Gives trucks a purposeful bumper-light upgrade with premium SS5 pods
• Keeps the lighting package compact and centered around the front bumper
• Lets customers match output, color, and beam to their driving style
• Adds useful light without requiring a full bumper replacement
• Pairs high-output lamps with application-specific mounting hardware
• Supports practical visibility for dark job sites, trails, and open roads



---

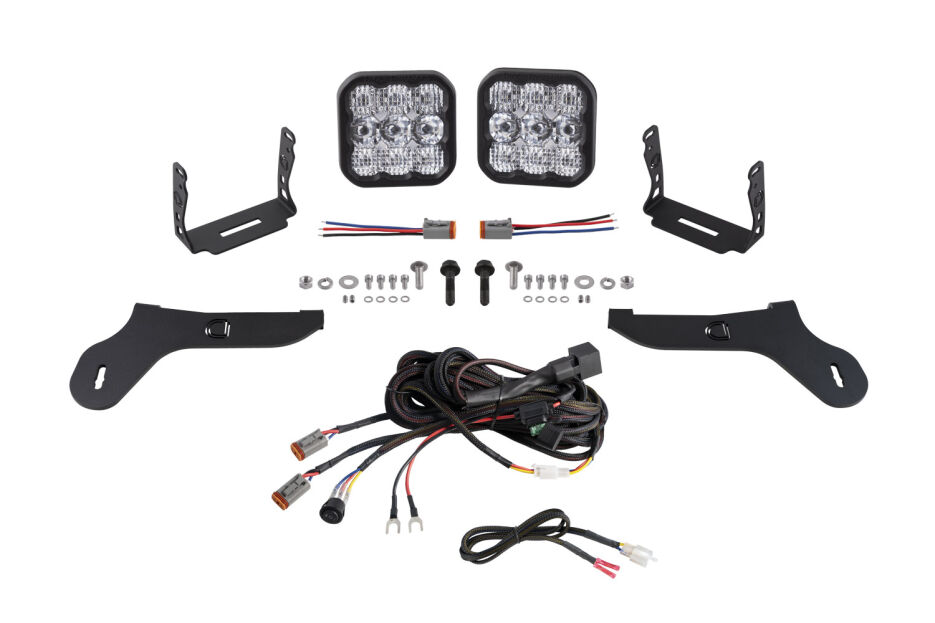

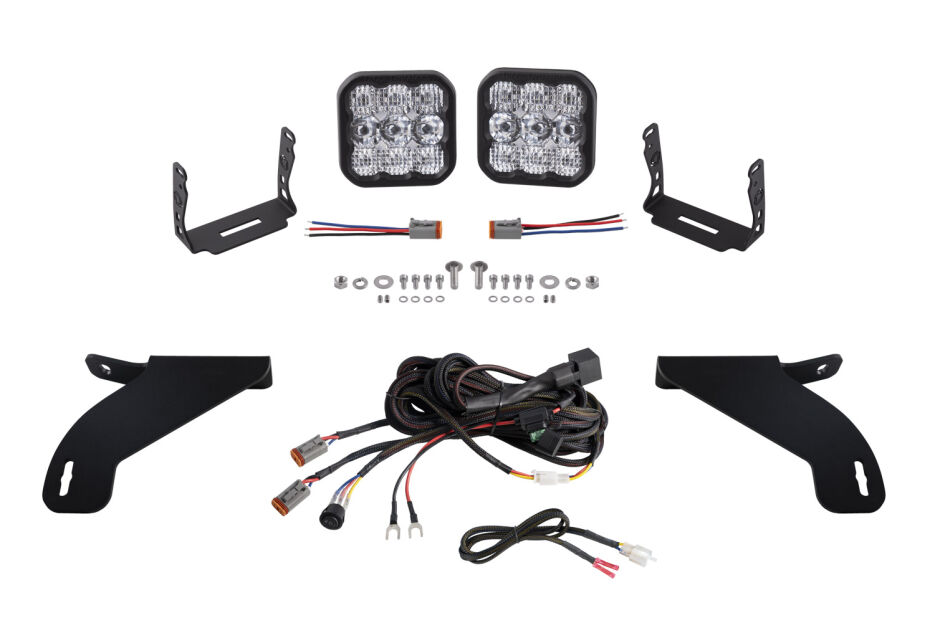

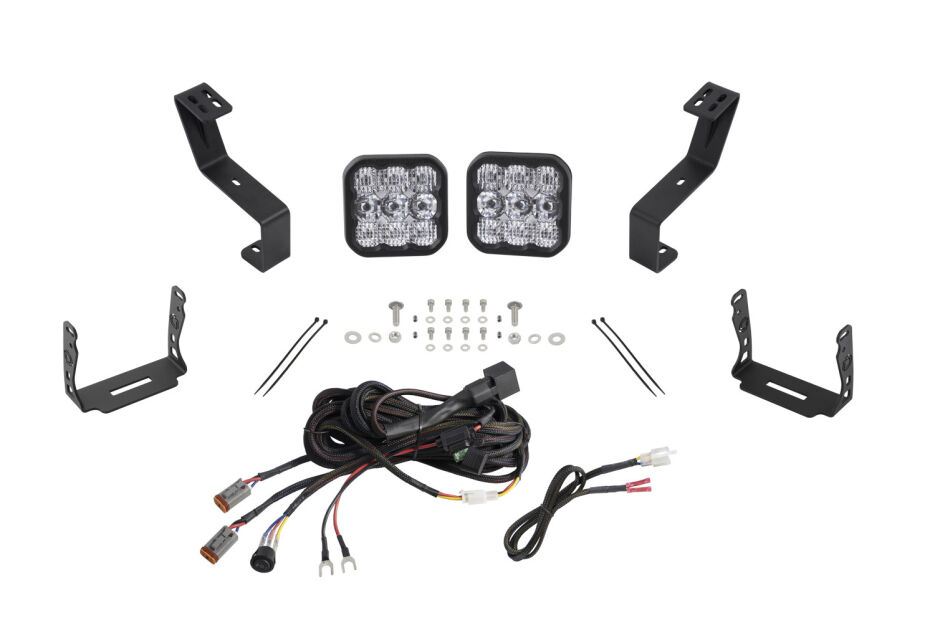

What's Included

• Two application-specific heavy-duty steel brackets
• Two Stage Series 5-inch LED pods
• Heavy-duty dual-output wiring harness
• Installation guide
• Mounting hardware where included by the selected application

Note: Confirm included components before installation.



---



Installation Notes

• Designed for compatible Ford F-150, Ford Raptor, and Ram 1500 bumper applications
• Confirm selected output level, color temperature, beam pattern, and vehicle application before installation
• Aim lights responsibly after installation and verify all wiring connections

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics carries a Lifetime Limited Warranty on select Stage Series LED pods and off-road mounting brackets, with warranty terms depending on the exact product and purchase date.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.

Warranty review may require documentation, product inspection, or troubleshooting steps before a remedy is approved. Customers should keep the original purchase record and install the product according to the supplied instructions.
