Diode Dynamics SS3 Fog Pocket Kit



The Diode Dynamics SS3 Fog Pocket Kit is built for Ford truck customers who want to turn the factory fog pocket area into a more capable lighting zone. It gives customers a purposeful way to add Diode Dynamics auxiliary lighting while keeping the upgrade matched to the vehicle, the mounting location, and the lighting job at hand.

SS3 Fog Pocket Kit centers on four-pod SS3 coverage that combines road-focused fog output with additional off-road lighting from the bumper. The result is a lighting upgrade that feels intentional on the vehicle instead of looking like a universal add-on, with the hardware and lamp placement working together for a cleaner finished install.

The product is designed around factory bumper fog pocket openings, making it useful for customers who want added visibility without changing the overall shape of the vehicle. That placement helps direct light where it is needed for dark roads, trail approaches, work sites, campsites, trailer hookup areas, and low-light recovery tasks.

Real configuration choices include Sport output, Pro output, Max output, White light and related lighting selections that let customers match the kit to how the vehicle is used. The choices focus on output, light color, beam behavior, wiring style, or kit layout rather than forcing every driver into one lighting setup.

Installation is supported by CAD-designed brackets use existing mounting points in compatible Ford bumper openings. Customers should still confirm the selected vehicle application, bumper or receiver style, wiring needs, and lamp compatibility before installation so the final setup matches the vehicle and the intended lighting use. Customers also get a more complete upgrade path because the hardware, lamp position, and vehicle application work together instead of forcing a pieced-together setup.

Whether customers are upgrading for trail driving, work-site visibility, towing support, campsite setup, or a cleaner auxiliary lighting package, the SS3 Fog Pocket Kit brings focused lighting function to the vehicle. Now Available at LEER!



---



Features & Specifications

Product Type: Fog pocket kit

Brand: Diode Dynamics

Series: Stage Series SS3

Vehicle Fitment: Ford F-150 and Ford Super Duty applications

Mounting Location: Factory bumper fog pocket openings

Material: Aluminum SS3 housings with polycarbonate lenses and vehicle-specific brackets

Finish: Black housings and brackets

Measured Output: 1 300 lm, 1 520 lm, 2 700 lm, 3 000 lm, 3 500 lm

Input Power: 14.5, 36, 38.5

Beam Pattern: Combo/Driving 80 x30 Flood 80 x50

Color Temperature: 3000K, 6000K

Intrusion Rating: IP69K Waterproof High Pressure

Operating Voltage: 9-16V

Mounting Hardware Included: Yes

Compliance Rating: SAE J583 Foglamp Beam Pattern

Each setup should be matched to the vehicle application, lighting position, wiring requirements, and intended use before installation.

Functionality:

• Adds four SS3 pods to compatible factory fog pocket openings
• Combines fog lighting with additional off-road lighting
• Supports work-site, trail, and rural-road visibility needs
• Lets customers select white or yellow color temperature
• Provides output choices for different use cases
• Keeps lighting low in the bumper for a clean truck appearance
• Uses a harness package for independent lighting control where included



---



Available Options

The SS3 Fog Pocket Kit is available in multiple configurations:

• Sport output - a balanced SS3 pod choice for daily driving and general auxiliary use
• Pro output - a stronger SS3 pod choice for higher intensity from the same bumper location
• Max output - the highest SS3 output offered in this fog pocket group
• White light - 6000K output for a bright, modern appearance
• Yellow light - 3000K output for added contrast in poor weather, dust, and trail haze

Choose Sport for everyday usefulness, choose Pro for greater intensity, or choose Max for the strongest SS3 fog pocket output.



---



Why Choose

This product is ideal for customers who want four-pod SS3 coverage that combines road-focused fog output with additional off-road lighting from the bumper.

• Makes better use of the factory fog pocket area
• Adds meaningful front-corner visibility for truck owners
• Offers a more complete lighting package than simple replacement bulbs
• Lets customers choose an output level without changing the basic look
• Gives the front bumper a purposeful, integrated lighting presence
• Supports both practical weather visibility and off-road lighting needs



---

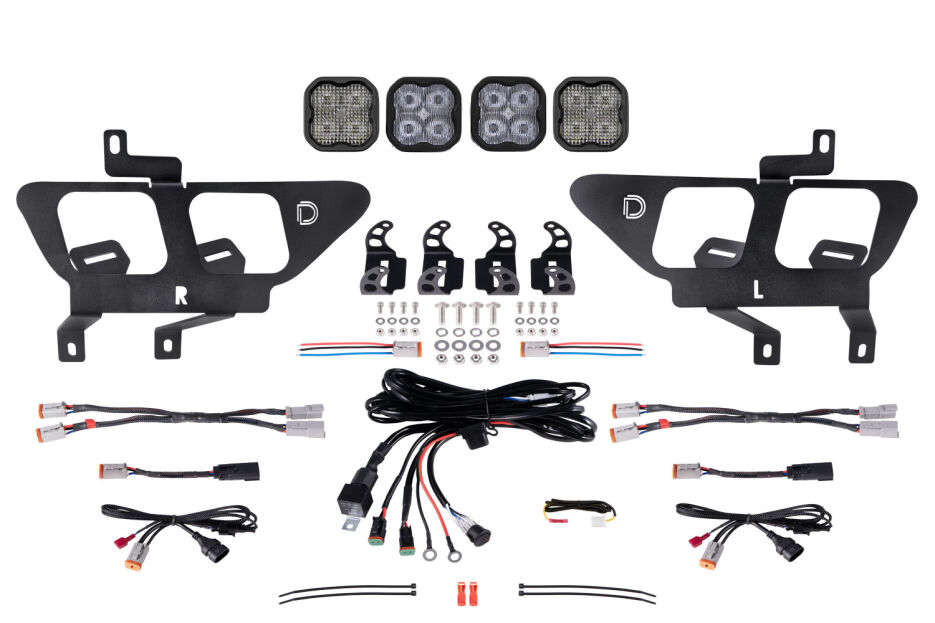

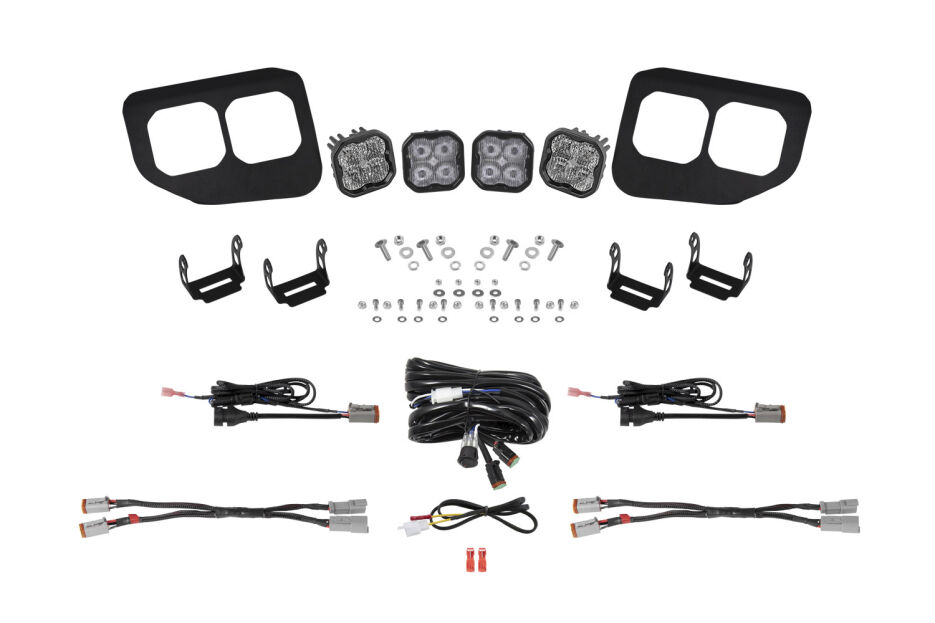

What's Included

• Ford fog pocket brackets
• Four SS3 LED pods in the selected color and output level
• Dual-output fog harness components
• Heavy-duty dual-output wiring harness components
• Adapter wire and backlight tap components where included
• Zip ties and mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Designed for compatible Ford F-150 and Ford Super Duty fog pocket applications
• Confirm bumper style, vehicle application, pod color, and output level before installation
• Wiring and lighting control should follow the included installation guide

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics carries a Lifetime Limited Warranty on select Stage Series LED pods and off-road mounting brackets, with warranty terms depending on the exact product and purchase date.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.

Warranty review may require documentation, product inspection, or troubleshooting steps before a remedy is approved. Customers should keep the original purchase record and install the product according to the supplied instructions.
