Diode Dynamics Headlight Wiring Harness - Polaris RZR Pro



The Diode Dynamics Headlight Wiring Harness supports Stage Series C1 headlight upgrades for Polaris RZR Pro applications by giving the lighting system a clean path for power and backlight operation. It is built for customers replacing factory headlight output with Diode Dynamics pod-based lighting components.

The harness connects directly to the battery and is designed to power Diode Dynamics LED pods with backlight functionality. High-capacity 18AWG wiring, a waterproof fuse, a relay, and Deutsch DT output connections help organize the electrical side of the installation so the lights can be wired with purpose instead of improvised leads.

This product group supports C1 headlight upgrade installations that place SSC1 LED pods in the factory headlight openings. The linked headlight kit uses CAD-designed brackets on compatible applications and brings multiple beam functions into the RZR front lighting area while retaining a vehicle-specific mounting approach.

Backlight functionality gives the lighting package an added accent and daytime-running-light style presence when wired as intended. The main lighting output remains focused on improved visibility, while the backlight gives the front end a distinctive Diode Dynamics look when the primary beam is not being used.

Fitment is centered on 2020-2023 Polaris RZR Pro applications, with selected listings also identifying 2020-2022 Polaris RZR PRO XP. Customers should verify year, trim, and headlight opening compatibility before ordering, especially when matching harnesses with brackets or existing pod lights.

Customers should also consider available room, matching hardware, wiring access, and everyday visibility goals before installation. Careful planning helps the finished upgrade feel intentional and keeps the selected component aligned with the rest of the vehicle build.

Whether customers are upgrading for trail lighting, powersports visibility, or a cleaner headlight conversion, the Diode Dynamics Headlight Wiring Harness helps bring the C1 pod setup together. Now Available at LEER!



---



Features & Specifications

Product Type: Headlight wiring harness and related installation kit

Brand: Diode Dynamics

Vehicle Fitment: 2020-2023 Polaris RZR Pro applications

Wire Gauge: 18AWG harness wiring

Connection Type: Deutsch DT output connector

Electrical Protection: 30A waterproof fuse and 60A 12V relay

Functionality:

• Powers Diode Dynamics LED pods in compatible RZR headlight upgrade installations
• Supports backlight functionality for added front-end accent lighting
• Connects to the battery for a dedicated lighting power path
• Organizes the electrical side of a C1 pod headlight conversion
• Works with vehicle-specific brackets on selected Polaris RZR Pro applications
• Helps customers complete a cleaner installation than loose universal wiring



---



Available Options

The Diode Dynamics Headlight Wiring Harness is available in related installation configurations:

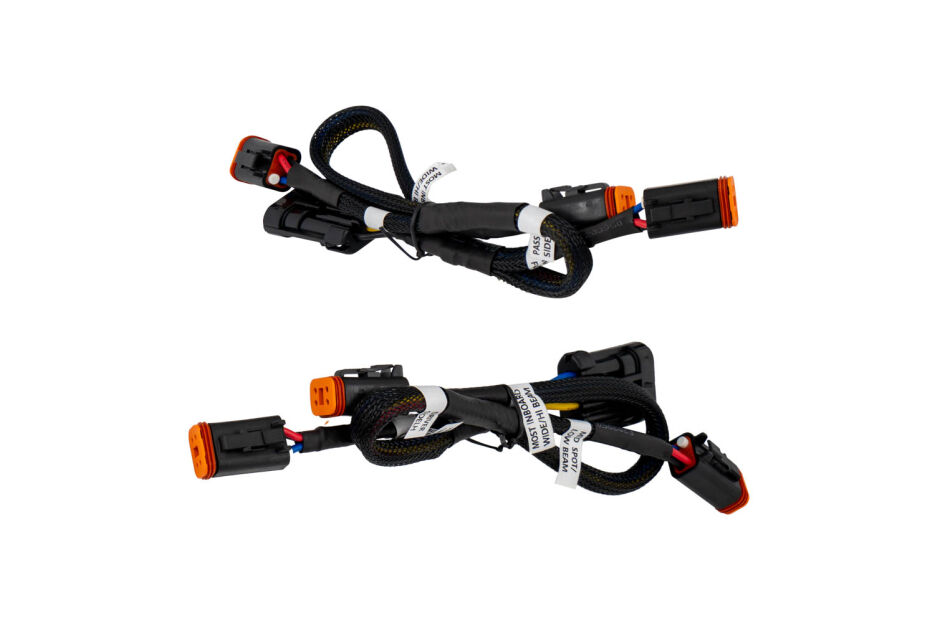

• Harness configuration -- includes left-side and right-side SSC1 headlight wiring harnesses for powering compatible C1 headlight upgrades

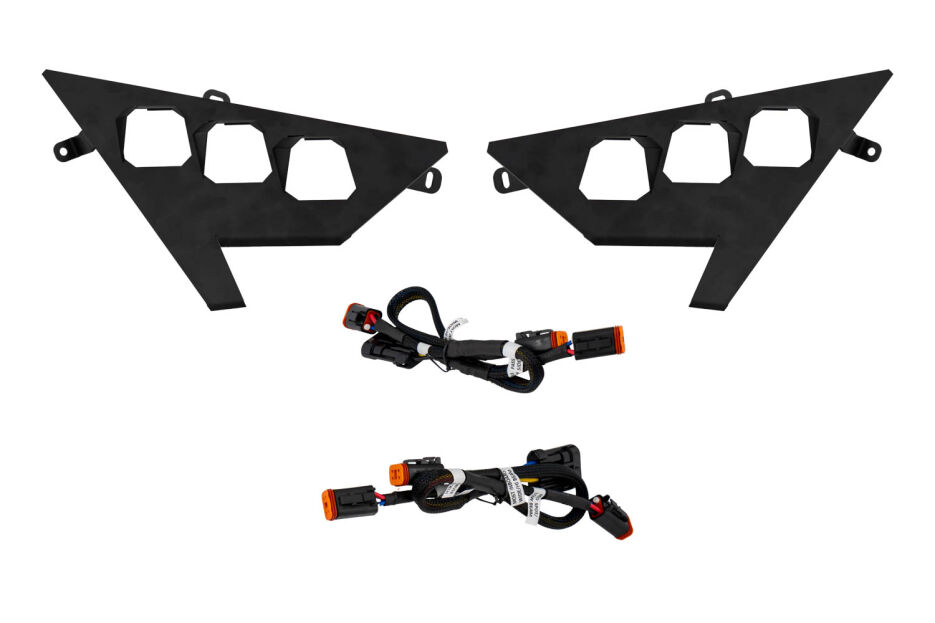

• Harness and bracket configuration -- adds Polaris RZR headlamp brackets for installations that require vehicle-specific headlight mounting hardware

Choose the harness configuration when compatible mounting is already handled, or choose the harness and bracket configuration when the installation also needs RZR headlamp brackets.



---



Why Choose

This product is ideal for customers who want a cleaner electrical foundation for Polaris RZR Pro C1 headlight upgrades.

• Supports a purpose-built C1 pod lighting conversion instead of improvised wiring
• Keeps left and right headlight connections organized during installation
• Adds the wiring support needed for backlight functionality
• Pairs with Diode Dynamics pod lighting for a coordinated front lighting setup
• Helps maintain a clean power path with fuse and relay protection
• Gives customers a more complete route from factory headlights to pod-based output



---



What's Included

• One SSC1 headlight wiring harness for the right side
• One SSC1 headlight wiring harness for the left side
• Selected configurations include Polaris RZR headlamp brackets

Note: Confirm included components before installation.



---



Installation Notes

• Confirm Polaris RZR Pro model year, trim, and headlight opening compatibility before installation.
• Disconnect the battery before wiring and route harness leads away from heat, pinch points, and moving suspension components.
• Verify pod, backlight, fuse, and relay operation before final panel reassembly.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics Stage Series LED lighting is backed by replacement warranty coverage and limited warranty support for qualifying products. Coverage may require troubleshooting before replacement or service, and proof of purchase may be required for warranty claims.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Customers should keep installation documentation and purchase records for warranty review.

Customers should inspect the product before installation, follow the installation notes for the selected vehicle, and keep all original order details available if warranty support is needed later. Maintaining clean wiring, secure mounting, and original hardware helps simplify future service review.
