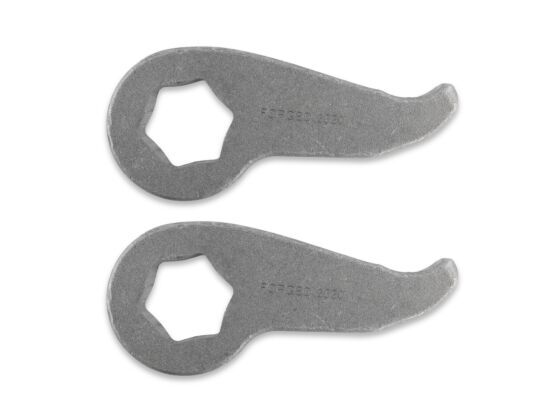

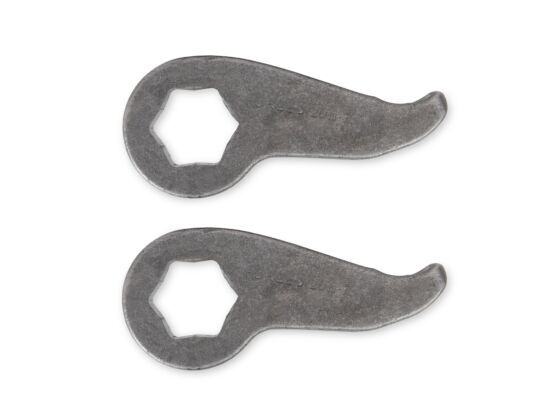

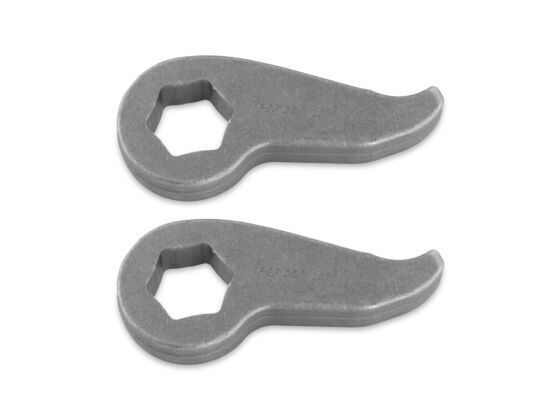

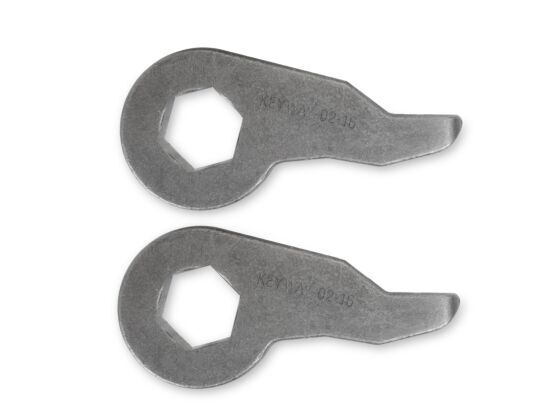

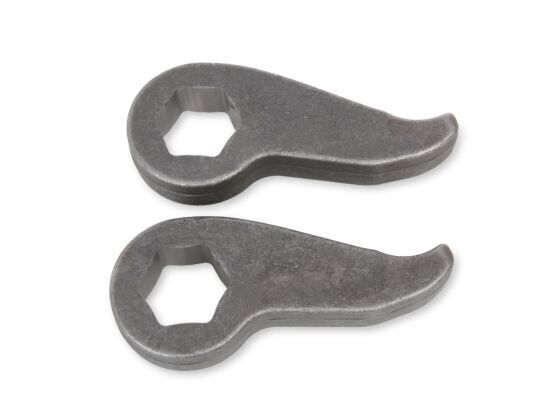

Cognito Torsion Bar Keys

The Cognito Torsion Bar Keys are designed for Chevy Silverado and GMC Sierra owners who need to adjust front ride height on torsion bar-equipped trucks. These keys are commonly used in leveling kit applications and can also be used with lifted applications when the higher setting of a Cognito lift kit range is desired. Cognito notes that torsion bar keys help set the front ride height of the truck and should be adjusted properly to maintain sufficient suspension droop travel for good ride quality.

Built from forged steel, Cognito Torsion Bar Keys offer a durable upgrade over standard adjustment components and are designed for application-specific use on GM trucks. The 2020–2025 HD version features a semi-gloss black finish, while the 1999–2006 1500, 2001–2010 HD, and 2011–2019 HD versions are listed with a raw finish.

Additional features include bolt-in installation, vehicle-specific fitment, and compatibility with select Cognito leveling and lift kit setups. Cognito notes that GM used several torsion bar spring rates depending on vehicle model and features, so some trucks with higher-rate torsion bars may not need aftermarket torsion bar adjuster keys to reach the maximum recommended ride height.

Engineered with vehicle-specific fitment, these torsion bar keys provide a clean front suspension adjustment solution for compatible Silverado and Sierra trucks.

Installation is typically a bolt-in suspension adjustment process. The 2020–2025 HD application lists a 0.5-hour DIY install time, while other applications should be installed and adjusted carefully to preserve suspension droop travel and ride quality.

Whether you're upgrading for front-end leveling, lift kit height adjustment, or improved suspension setup control, Cognito Torsion Bar Keys deliver forged steel strength and proven fitment for GM torsion bar front suspension trucks. Now Available at LEER!

Features & Specifications

Product Type: Torsion Bar Key Set
Material: Forged steel
Finish Options: Raw or semi-gloss black, depending on application
Mounting Type: Bolt-in torsion bar key replacement
Fitment: Select Chevy Silverado/GMC Sierra 1500, 2500, and 3500 2WD/4WD applications
Design: Front ride height adjustment torsion bar keys
Key Dimensions: Application-specific
Functionality:

• Front suspension ride height adjustment
• Leveling kit support
• Lift kit height range tuning
• Torsion bar suspension adjustment
• Front-to-rear stance correction

Available Options

The Cognito Torsion Bar Keys are available in:

Vehicle Fitments

• 1999–2006 Chevy Silverado 1500 2WD/4WD with torsion bar front suspension
• 1999–2006 GMC Sierra 1500 2WD/4WD with torsion bar front suspension
• 2001–2010 Chevy Silverado 2500/3500 2WD/4WD
• 2001–2010 GMC Sierra 2500/3500 2WD/4WD
• 2011–2019 Chevy Silverado 2500/3500 2WD/4WD
• 2011–2019 GMC Sierra 2500/3500 2WD/4WD
• 2020–2025 Chevy Silverado 2500/3500 2WD/4WD
• 2020–2025 GMC Sierra 2500/3500 2WD/4WD

Finish Options

• Raw finish
• Semi-gloss black finish on 2020–2025 HD application

Configurations

• Fits 1999–2006 Silverado/Sierra 1500 2WD/4WD torsion bar front-end trucks
  Forged steel construction
  Raw finish
  Used in leveling kit applications and lifted applications where a higher lift setting is desired, such as taking a 7-inch Cognito lift kit to the 9-inch setting.
• Fits 2001–2010 Silverado/Sierra 2500/3500 2WD/4WD
  Forged steel construction
  Raw finish
  Used in leveling kit applications and lifted applications where a higher lift setting is desired, such as taking a 4-inch Cognito lift kit to the 6-inch setting.
• Fits 2011–2019 Silverado/Sierra 2500/3500 2WD/4WD
  Forged steel construction
  Raw finish
  Used in leveling kit applications and lifted applications where a higher lift setting is desired, such as taking a 4-inch Cognito lift kit to the 6-inch setting.
• Fits 2020–2025 Silverado/Sierra 2500/3500 2WD/4WD
  Forged steel construction
  Semi-gloss black finish
  0.5-hour DIY install time
  Made in the USA

Choose the correct Cognito Torsion Bar Keys based on your truck’s year, model, drivetrain, front suspension type, and leveling or lift kit setup.

Why Choose Cognito Torsion Bar Keys?

This product is ideal for customers who want a durable front ride height adjustment solution for GM torsion bar suspension trucks.

• Helps level the front of the truck with the rear
• Supports leveling kit applications on compatible Silverado and Sierra models
• Allows higher lift kit settings on select Cognito lifted applications
• Forged steel construction provides strength and durability
• Application-specific fitment helps ensure proper installation and adjustment

What’s Included

• Cognito torsion bar keys
• Application-specific key pair
• Installation instructions, where provided

Installation Notes

• Designed for GM trucks equipped with torsion bar front suspension
• Used to set the front ride height of the truck
• Adjustment should leave adequate suspension droop travel to help maintain ride quality
• Some trucks with higher torsion bar spring rates may not need aftermarket torsion bar keys to achieve the recommended ride height
• Professional installation is recommended if you are unfamiliar with torsion bar suspension systems
• Alignment inspection is recommended after ride height changes

Compatibility Notes

These keys are intended for leveling kit applications and lifted applications where the higher setting of the lift kit range is desired. Cognito notes that GM used different torsion bar spring rates depending on model and vehicle features, so the need for aftermarket torsion bar keys can vary by truck.

Warranty Information

Cognito Warranty

Cognito products are backed by a limited lifetime warranty, covering defects in materials and workmanship.
