Baja Designs XL80 Bumper Light Kit



The Baja Designs XL80 Bumper Light Kit brings high-output auxiliary lighting to compatible off-road vehicles through a clean, bumper-mounted installation. A matched pair of XL80 pods, application-specific brackets, and the selected wiring solution create a coordinated package for customers who regularly travel trails, remote roads, and open terrain after dark. The low front mounting position gives the vehicle a purposeful appearance while preserving roof and A-pillar locations for other equipment.

Each XL80 light produces 9,022 raw lumens and uses Baja Designs high-speed reflectors to create a longer, wider Driving/Combo pattern. The beam blends useful distance with near-field width, helping customers identify terrain changes, obstacles, and trail edges before they enter the immediate foreground. With two lights working together, the kit provides a substantial primary auxiliary-lighting layer for demanding nighttime travel.

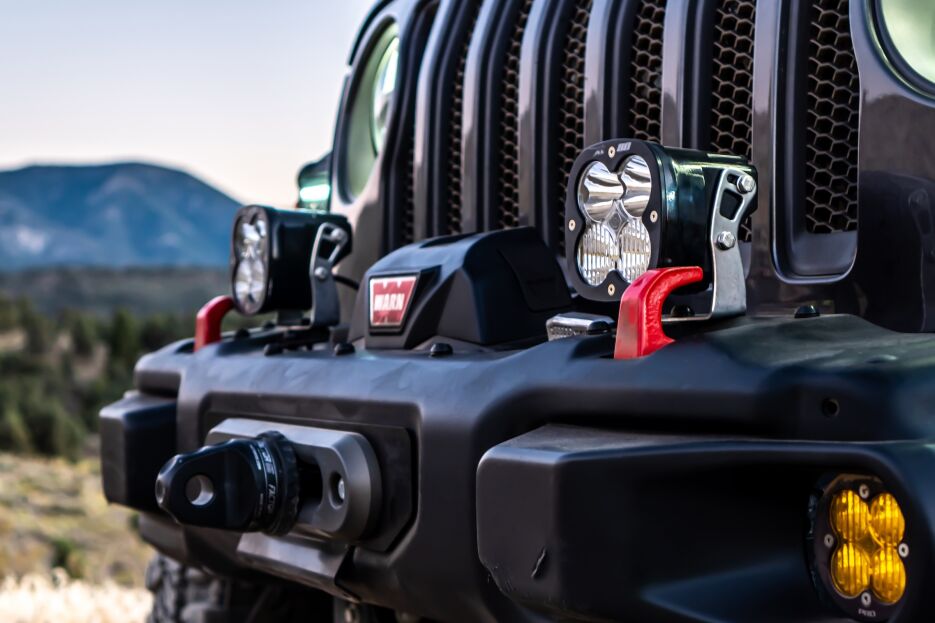

Vehicle-specific brackets place the XL80 housings at established bumper mounting points rather than relying on generic tabs or custom fabrication. The resulting layout keeps the pods aligned across the front of the vehicle and supports consistent aiming on both sides. It also simplifies planning around grille clearance, recovery equipment, sensors, and other bumper accessories when the correct application is selected.

Electrical choices support either a traditional toggle switch or connection to compatible factory auxiliary-switch wiring. Customers can select the control method that matches the vehicle's equipment and the rest of the lighting system. Correct circuit protection, secure routing, weatherproof connections, and adequate electrical capacity remain important because the XL80 pair carries a higher power demand than entry-level auxiliary pods.

Hard-anodized and powder-coated cast aluminum housings, hardcoated polycarbonate lenses, stainless steel hardware, and built-in protection help the lights handle water, dust, vibration, debris, and repeated trail exposure. The XL80 also supports a 20 percent dimming feature when paired with compatible control hardware. This gives customers an additional operating level for staging, low-speed movement, or situations where full output is unnecessary.

Whether customers are upgrading for fast trail travel, open-terrain visibility, remote route finding, or a high-output bumper lighting system, the Baja Designs XL80 Bumper Light Kit delivers powerful controlled illumination, application-specific mounting, and rugged XL-series construction. Now Available at LEER!



---



Features & Specifications

Product Type: High-output vehicle-specific bumper auxiliary light kit

Brand: Baja Designs

Series: XL80

Vehicle Fitment: Compatible Jeep Wrangler JL and Gladiator JT applications with the factory steel bumper

Light Quantity: Pair of XL80 LED pods

Lens Color: Clear

Beam Pattern: Driving/Combo

Raw Light Output: 9,022 lumens per light

Power Draw: Approximately 75.9 watts per light

Current Draw: Approximately 5.5 amps per light

Dimming: 20 percent mode with compatible control hardware

Wiring Options: Toggle switch or compatible auxiliary-switch harness

Functionality:

• Adds a high-output pair of bumper-mounted auxiliary lights.
• Combines strong downrange projection with usable near-field width.
• Creates balanced left-and-right illumination across the trail ahead.
• Uses application-specific brackets for a clean position on the compatible steel bumper.
• Supports toggle-switch or compatible auxiliary-switch control.
• Provides a reduced-output mode when compatible dimming hardware is used.
• Improves terrain recognition during fast trail and open-route travel.
• Preserves upper mounting locations for additional lighting layers.



---



Available Options

The Baja Designs XL80 Bumper Light Kit is available with two control configurations:

• Toggle Switch Harness - Provides dedicated light control through an included cabin switch and supporting circuit components.

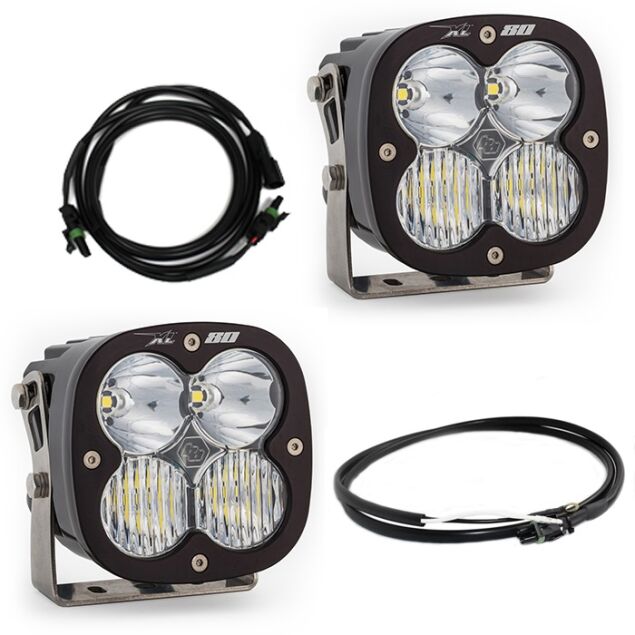

• Auxiliary-Switch Harness - Connects the XL80 pair to compatible factory auxiliary or aftermarket switch-control systems.

Choose the toggle switch harness for dedicated control, or choose the auxiliary-switch harness when the vehicle already has a compatible switch system.



---



Why Choose

This product is ideal for customers who want substantial XL-series output in a coordinated bumper-mounted package.

• 9,022 raw lumens per light supports demanding nighttime trail and open-terrain use.
• Driving/Combo optics balance long reach with useful foreground width.
• Application-specific brackets position the pair without a universal mounting compromise.
• Two harness choices support different vehicle electrical and switch arrangements.
• The 20 percent dimming capability adds flexibility when full output is unnecessary.
• Rugged aluminum housings and polycarbonate lenses support repeated off-road exposure.
• Serviceable lenses and optics help maintain the system over time.
• The matched pair creates a strong primary auxiliary-lighting layer at the front bumper.



---



What's Included

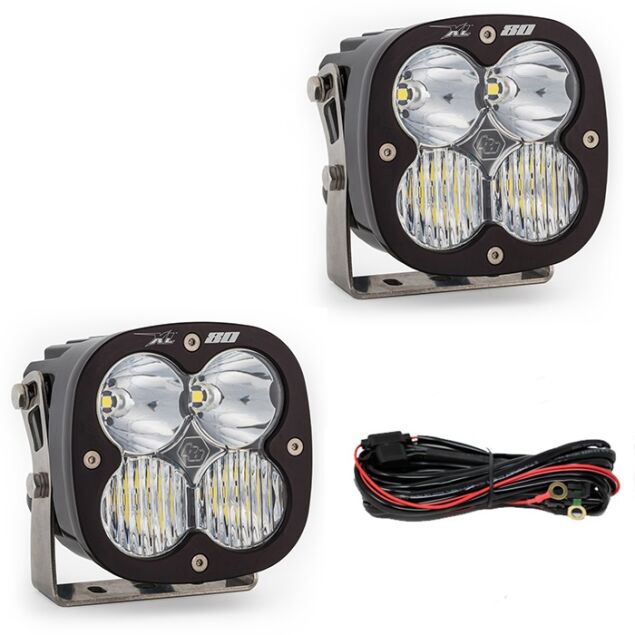

• Pair of Baja Designs XL80 Driving/Combo LED light pods
• Vehicle-specific bumper mounting brackets
• Toggle switch harness or compatible auxiliary-switch harness, depending on the selected configuration
• Stainless steel mounting hardware
• Installation instructions

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the vehicle has the compatible factory steel bumper and verify clearance around recovery equipment, sensors, and grille components.
• Verify charging-system capacity and use the specified circuit protection because the XL80 pair has substantial electrical demand.
• Route and secure wiring away from heat, abrasion, moving components, and pinch points.
• Aim the pair on level ground and confirm dimming operation when compatible control hardware is installed.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lighting products are supported by a limited lifetime warranty and a 30-day satisfaction guarantee under the applicable terms. Proof of purchase may be required for warranty or return service.

Coverage typically excludes improper installation, incorrect wiring, misuse, unauthorized modification, tampering, neglect, and impact damage outside the applicable terms.
