Baja Designs Squadron Pro LED Auxiliary Light Pod



The Baja Designs Squadron Pro LED Auxiliary Light Pod gives customers a focused way to add high-output auxiliary lighting without forcing a large fixture into a limited mounting area. Its compact three-inch square housing gives bumpers, A-pillars, racks, fog pockets, cages, and custom tabs a clean performance-oriented appearance without the packaging demands of a larger lamp. The compact format works especially well on builds where placement, beam control, and a clean finished appearance matter as much as raw brightness.

ClearView optics are available in Spot, Driving/Combo, Wide Cornering, and Work/Scene patterns, giving the same compact platform distinct roles from long-range route definition to broad stationary illumination. Four LEDs produce 4,095 raw lumens per light at 41.4 watts and 3 amps. is organized into usable coverage rather than uncontrolled glare, helping customers place light in the distance, near field, side area, or work zone that matches the selected optic. This makes the light useful as a dedicated upgrade or as one layer within a balanced multi-light system.

A hard anodized and powder coated cast aluminum housing, hardcoated polycarbonate lens, stainless steel mounting hardware, IP69K water resistance, IK10 impact compliance, and testing beyond MIL-STD810G support demanding use. The housing and lens are intended for repeated exposure to vibration, dust, water, debris, and changing temperatures common to off-road and utility use. Built-in overvoltage protection and service-focused component design add practical value for customers planning a long-term installation.

The light works across trucks, SUVs, side-by-sides, powersports machines, trailers, service vehicles, agricultural equipment, and custom builds when the mounting surface and electrical system are appropriate. The available optical and lens choices let customers tailor the light to speed, terrain, weather, and mounting position instead of accepting one broad beam for every task. Clear output suits general nighttime visibility, while Baja Amber options can support contrast and visual comfort in dust, fog, rain, or snow when offered.

The adjustable bracket mount layout supports a deliberate installation with room for aiming, wiring protection, and service access. A single pod does not include a wiring harness, while selected pair packages include coordinated two-light wiring. Customers should match the light quantity, harness, fuse protection, switchgear, and control method to the vehicle electrical system before installation begins.

The Baja Designs Squadron Pro LED Auxiliary Light Pod combines compact packaging with controlled illumination and durable Baja Designs construction for customers who expect auxiliary lighting to work through repeated outdoor use. It can support recreational travel, work after dark, remote access, and custom lighting layouts without overwhelming the vehicle with unnecessary bulk. Whether customers are upgrading for night trail travel, overlanding, work after dark, or a layered auxiliary-light system, the Baja Designs Squadron Pro LED Auxiliary Light Pod delivers strong controllable illumination from a compact serviceable pod. Now Available at LEER!



---



Features & Specifications

Product Type: High-output compact LED auxiliary light pod

Brand: Baja Designs

Series: Squadron Pro

Light Output: 4,095 raw lumens per light

Power Draw: 41.4 watts at 3 amps per light

Operating Voltage: 9-36 volts DC

Dimensions: 3.07 inches by 3.07 inches by 2.77 inches

Weight: 0.75 pounds per light

Housing: Hard anodized and powder coated cast aluminum

Lens: Hardcoated polycarbonate

Beam Patterns: Spot, Driving/Combo, Wide Cornering, and Work/Scene

Lens Colors: Clear and Baja Amber

Mounting Style: Adjustable bracket mount

Durability: IP69K water resistance, IK10 impact compliance, and testing beyond MIL-STD810G

Rated Life: 49,930 hours

Service Features: Built-in overvoltage protection with replaceable lenses and optics

Functionality:

• Supports focused long-range lighting with the Spot pattern.
• Supports mixed distance and width with Driving/Combo optics.
• Supports near-field and side coverage with Wide Cornering optics.
• Supports reverse, cargo, camp, and stationary work zones with Work/Scene optics.
• Fits compact bumper, A-pillar, rack, cage, and custom mounting locations.
• Works as a single dedicated light or as part of a balanced pair.
• Allows Clear or Baja Amber output to match weather and visibility priorities.
• Supports serviceable optical changes as vehicle use evolves.



---



Available Options

The Baja Designs Squadron Pro LED Auxiliary Light Pod is offered in multiple optical, lens, and quantity configurations:

• Spot - Concentrates output for long-distance visibility on open trails, remote roads, and higher-speed off-road routes.
• Driving/Combo - Blends forward reach with additional width for mixed terrain and general-purpose auxiliary lighting.
• Wide Cornering - Creates broad horizontal coverage for trail edges, turns, fog-prone conditions, and lower-speed technical terrain.

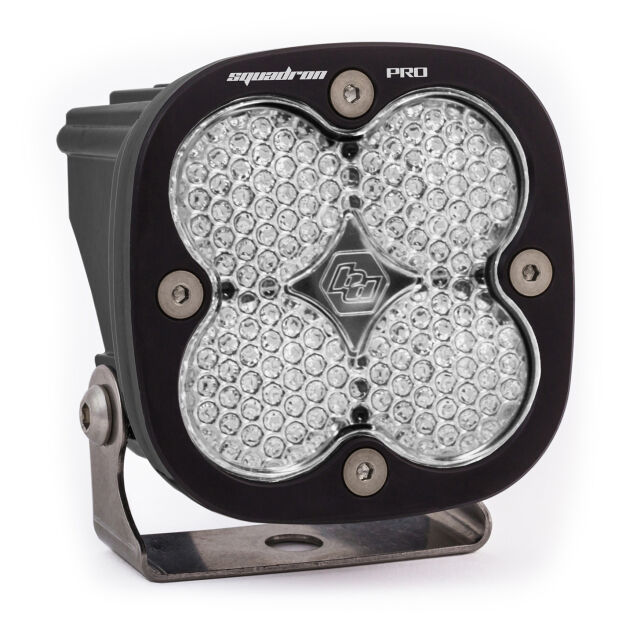

• Work/Scene - Spreads illumination over a wide nearby area for reverse, cargo, camp, pit, and stationary work tasks.
• Clear Lens - Provides neutral 5000K white output for general nighttime visibility.

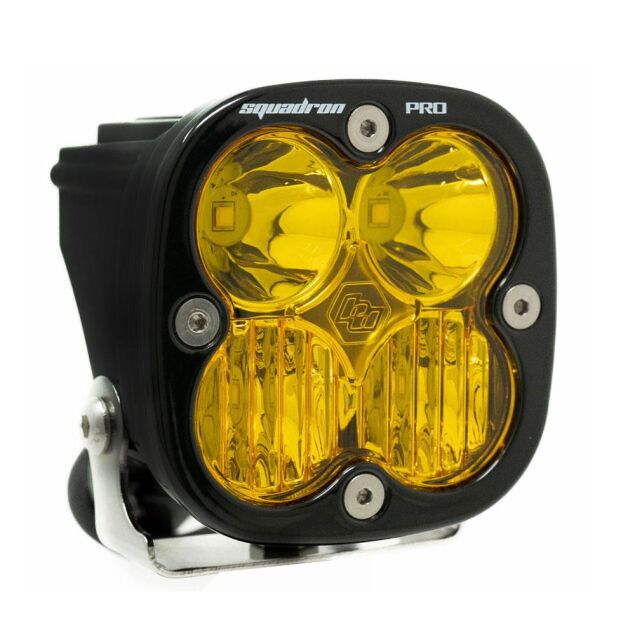

• Baja Amber Lens - Supports contrast and reduced reflected glare in dust, fog, rain, or snow.
• Single Light - Fits one dedicated mounting point or a custom mixed-light layout; wiring is selected separately.
• Light Pair - Creates balanced left and right coverage and includes a compatible wiring harness in the pair package.

Choose Spot or Driving/Combo for forward-focused travel, or choose Wide Cornering or Work/Scene for broader nearby coverage. Select Clear for neutral white output or Baja Amber for glare-prone and low-visibility conditions.



---



Why Choose

This product is ideal for customers who want substantial output, multiple beam choices, and rugged construction in a compact three-inch housing.

• Produces meaningful auxiliary output without requiring an oversized fixture.
• Provides four purpose-shaped optics for different lighting zones and tasks.
• Offers lens colors that support both clear conditions and dust or fog.
• Uses a compact adjustable bracket for flexible aiming and placement.
• Combines durable housing materials with water and impact resistance.
• Includes built-in overvoltage protection for a properly planned electrical system.
• Uses replaceable lenses and optics to support maintenance and future changes.
• Supports single-light repairs, custom layouts, and complete pair installations.



---



What's Included

• One or two Squadron Pro LED light pods depending on the selected quantity
• Adjustable mounting bracket for each light
• Stainless steel mounting hardware
• Two-light wiring harness with pair packages
• Product documentation

Note: Confirm included components before installation.



---



Installation Notes

• Confirm mounting strength, fastener access, bracket movement, airflow, rear clearance, and a protected wiring path before installation.
• Single-light packages do not include a wiring harness; select a compatible harness for the light quantity and desired controls.
• Pair packages include a coordinated wiring harness, but fuse placement and vehicle electrical capacity still require verification.
• Aim each pod after final tightening so the selected beam pattern supports its intended forward, cornering, reverse, or work-light role.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs backs qualifying Squadron Pro products with a limited lifetime warranty for covered defects in materials and workmanship, together with a 30-day satisfaction guarantee. Replaceable lenses and optics support approved service over the life of the light.

Warranty coverage generally excludes improper installation, incorrect wiring, misuse, unauthorized modification, tampering, neglect, and impact damage outside the applicable terms. Proof of purchase may be required.
