Baja Designs Squadron Pro Black Flush Mount LED Auxiliary Light Pod

The Baja Designs Squadron Pro Black Flush Mount LED Auxiliary Light Pod is designed for drivers who want powerful auxiliary lighting with a clean, integrated appearance. Its flush mount housing makes it ideal for bumpers, rear panels, bedsides, utility panels, and custom fabrication locations where a recessed light pod is preferred.

Built with a hard anodized and powder-coated cast aluminum housing and hardcoated polycarbonate lens, the Squadron Pro Flush Mount is engineered for demanding off-road, work, and trail environments. The compact design helps it fit into tight mounting locations while still delivering serious output, with Baja Designs listing the light at 4,095 lumens.

Additional features include uService replaceable lenses and optics, ClearView optics, MoistureBlock waterproof construction, CopperDrive LED management, 5000K daylight color, built-in overvoltage protection, and a 49,930-hour average rated life.

Engineered with universal fitment, the Squadron Pro Black Flush Mount LED Auxiliary Light Pod can be adapted to a wide range of trucks, SUVs, Jeeps, UTVs, off-road vehicles, work vehicles, and custom lighting setups.

Installation typically requires a flush-mount cut-in or recessed mounting location, making it best suited for bumpers, panels, or custom installs where a clean integrated look is desired. Mounting hardware is included, but the wiring harness is not included. Baja Designs lists harness 640117 as the applicable harness for this light family.

Whether you're upgrading for trail visibility, bumper lighting, work lighting, reverse lighting, fog lighting, or custom recessed auxiliary lighting, the Baja Designs Squadron Pro Black Flush Mount LED Auxiliary Light Pod delivers high-output performance in a clean flush mount package. Now Available at LEER!

Features & Specifications

Product Type: Squadron Pro Flush Mount LED Light Pod
Brand: Baja Designs
Series: Squadron Pro
Housing Color: Black
Housing Material: Hard anodized and powder-coated cast aluminum
Bezel Material: Powder-coated cast aluminum
Lens Material: Hardcoated polycarbonate
Lighting Technology: Cree LED
Lighting Quantity: 4 LEDs
Light Quantity: 1 pod
Lighting Type: Forward Projecting
Lighting Modes: Beam
Brightness: 4,095 lumens
Wattage: 41.4W
Amperage: 3.0A
Average Rated Life: 49,930 hours
Mounting Hardware: Included
Mounting Hardware Material: Stainless steel
Wiring Harness Included: No
Applicable Harness: Baja Designs 640117
Overvoltage Protection: Built-in
Fitment: Universal

Dimensions:

• Length: 3.50"
• Height: 3.50"
• Depth: 2.77"
• Weight: 0.75 lbs.

Standards & Compliance:

• Durability: Exceeds MIL-STD810G
• Impact Resistance: IK10 compliant
• Water Resistance: IP69K waterproof up to 9 ft. and pressure washable


Available Options

The Baja Designs Squadron Pro Black Flush Mount LED Auxiliary Light Pod is available in multiple beam pattern and lens color configurations:

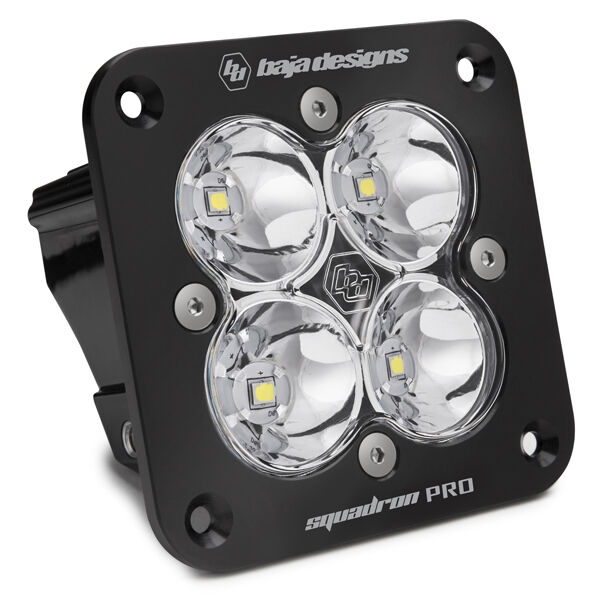

• Spot / Clear Lens – Focused long-distance lighting for seeing farther down the trail or road.

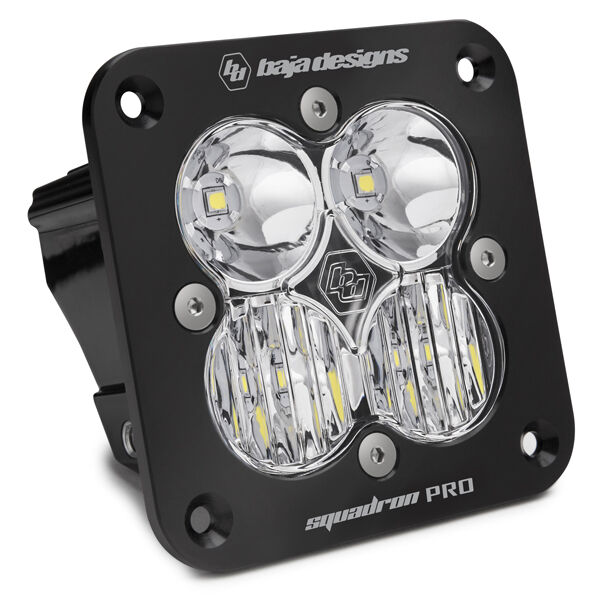

• Driving/Combo / Clear Lens – Balanced forward lighting that combines distance projection with wider near-field visibility.

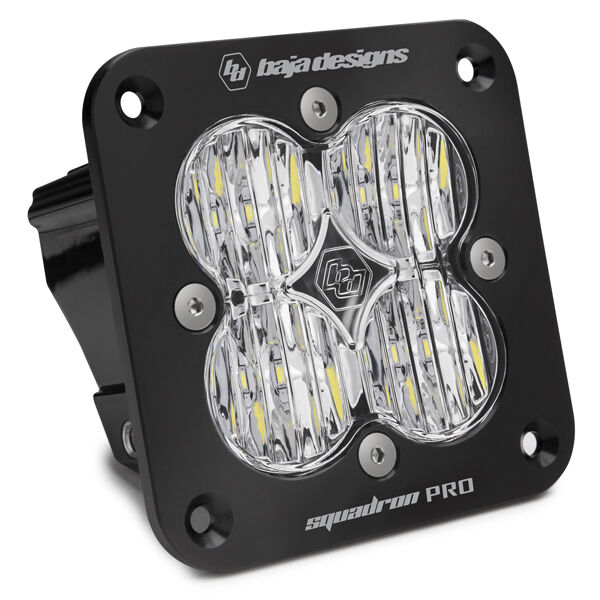

• Wide Cornering / Clear Lens – Wide side-to-side coverage for fog lighting, cornering, trail-edge visibility, and low-speed technical driving.

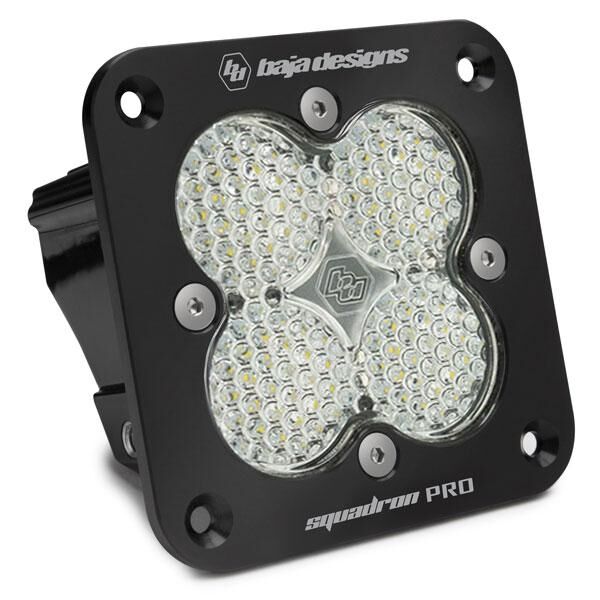

• Work/Scene / Clear Lens – Broad area lighting for reverse lighting, cargo lighting, campsite lighting, and general utility illumination.

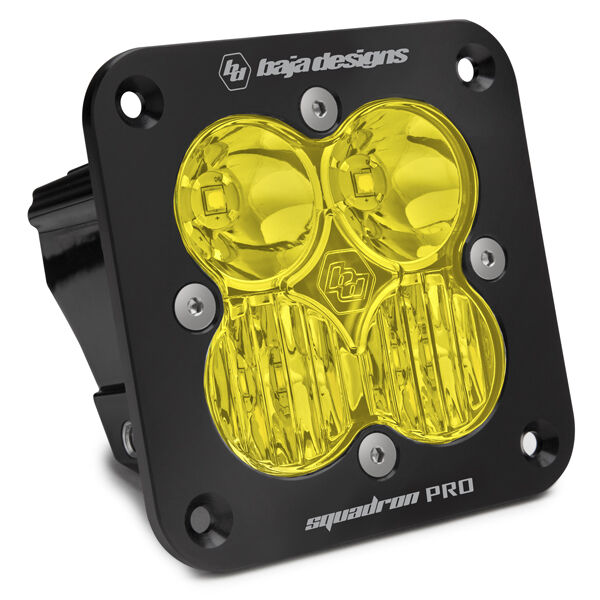

• Driving/Combo / Baja Amber Lens – Balanced forward lighting with amber contrast for dust, fog, rain, snow, and low-visibility conditions.

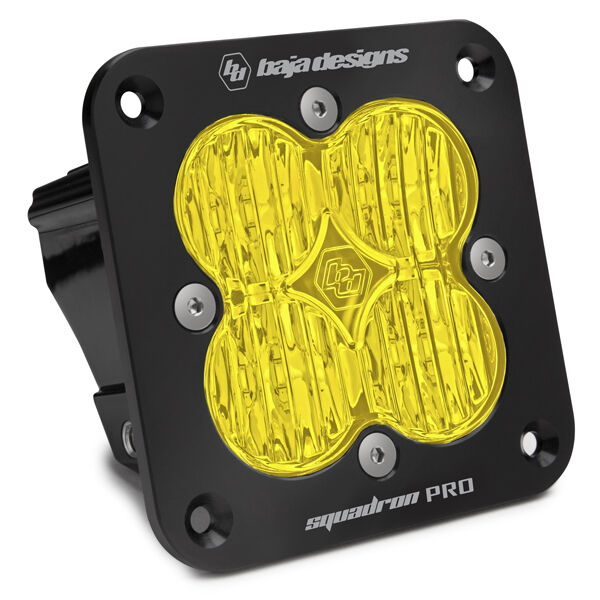

• Wide Cornering / Baja Amber Lens – Wide fog and cornering coverage with amber contrast for poor weather, dust, and trail-edge visibility.



Why Choose the Baja Designs Squadron Pro Black Flush Mount LED Auxiliary Light Pod?

This product is ideal for customers who want high-output auxiliary lighting with a clean recessed installation.

• Flush mount design creates a clean, integrated appearance
• 4,095-lumen output provides strong lighting performance from a compact pod
• Multiple beam patterns support different lighting zones and applications
• Clear and Baja Amber lens options match different visibility needs
• Durable Baja Designs construction for off-road, work, and daily use
• Universal fitment for trucks, SUVs, Jeeps, UTVs, and custom builds
• Replaceable lenses and optics support long-term serviceability


What’s Included

• Baja Designs Squadron Pro Black Flush Mount LED Auxiliary Light Pod
• Selected beam pattern and lens color configuration
• Stainless steel mounting hardware
• Installation instructions

Note: Wiring harness is not included. Baja Designs lists 640117 as the applicable wiring harness for this product family.

Installation Notes

• Universal flush mount auxiliary light pod
• Best for bumpers, rear panels, bedsides, cargo areas, utility panels, and custom recessed mounting locations
• Flush mount installation may require cutting, drilling, or fabrication depending on vehicle and mounting surface
• Mounting hardware is included
• Wiring harness is sold separately
• Use Baja Designs Squadron Flush Mount Template for installation layout
• Buyer is responsible for use in accordance with applicable vehicle, road, off-road, and local lighting laws


Warranty Information

Baja Designs Warranty

Baja Designs lists the Squadron Pro Black Flush Mount LED Auxiliary Light Pod with:

• 30-Day Satisfaction Guarantee
• Limited Lifetime Warranty
