Baja Designs Squadron Behind Grille Light Kit

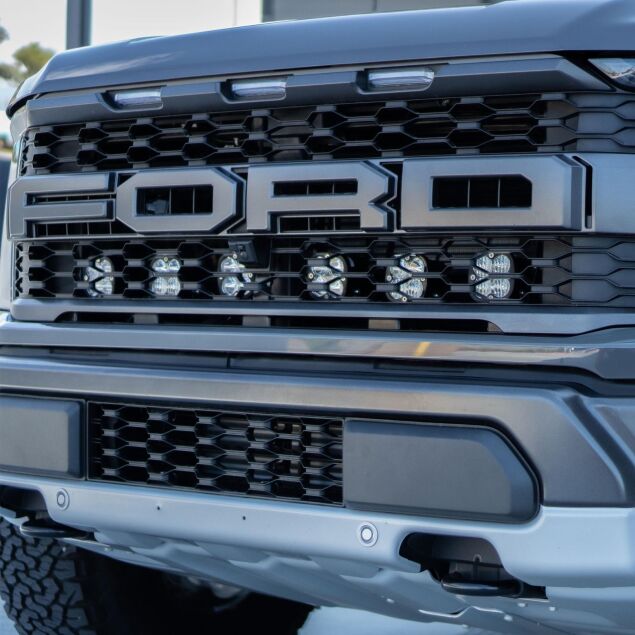

The Baja Designs Squadron Behind Grille Light Kit is a six-light vehicle-specific behind-grille auxiliary lighting package built for customers who need broad multi-zone illumination while retaining a clean pickup front end without an exposed roof bar or bumper-top array. Its six-pod concealed bracket system keeps the upgrade integrated behind the grille while supporting trail driving, open-terrain travel, backroad use, nighttime obstacle detection, and high-output off-road visibility. That combination makes it a practical choice for performance pickup owners who want a hidden layout with dedicated near-field, blended forward, and distance optics where useful illumination, thoughtful placement, and dependable operation matter after dark.

The lighting system is organized around six Squadron Sport or Squadron Pro lights arranged as two Wide Cornering, two Driving/Combo, and two Spot pods. The three-pattern mix covers lighting zones 1 through 4, combining broad front-corner visibility, balanced mid-range illumination, and focused distance projection. Instead of relying only on raw brightness, the design helps customers place controlled light in the driving, cornering, reverse, fog, work, or scene zone that matches the installation. This makes the output easier to use in real conditions, especially when space, sight lines, and beam direction are important.

Construction centers on vehicle-specific behind-grille brackets, six cast-aluminum light pods, hardcoated polycarbonate lenses, stainless steel hardware, and kit-matched wiring. The lights use sealed weather-resistant construction, built-in overvoltage protection, and replaceable lenses and optics for demanding trail and utility exposure. These details support repeated exposure to vibration, dust, moisture, temperature changes, and the impacts that can come with trail travel, utility work, towing support, and outdoor equipment use. The result is a lighting package prepared for regular use where dependable materials and secure mounting matter as much as the light output itself.

Customers can tailor the lighting package through Squadron Sport and Squadron Pro output levels with the same six-light optical strategy. Sport provides 3,162 lumens at 30 watts per light, while Pro raises output to 4,095 lumens at 41.4 watts per light for more demanding visibility needs. The available choices let customers balance distance, width, contrast, electrical demand, mounting style, and overall system output without changing the core purpose of the product. Each selection should be matched to the intended mounting position and the visibility task it needs to support.

Installation is designed around vehicle-specific brackets secured behind the factory grille. The Sport kit includes a wiring harness and upfitter connection, while the Pro kit includes a wiring harness and high-beam connection components. A strong mounting surface, protected wiring route, correct circuit capacity, and final beam aiming are important for reliable performance. Vehicle fitment, trim details, available space, switching method, and local lighting requirements should be confirmed before installation begins.

In regular use, the Squadron Behind Grille Light Kit supports trail and desert travel, dark rural roads, obstacle detection, broad corner visibility, distance spotting, and hidden front-end lighting. Using dedicated optics instead of six identical beams gives the system a layered field of view that is more useful across changing speeds and terrain. Its combination of purpose-shaped light, durable construction, and application-focused mounting helps customers build a lighting system that feels intentional rather than added as an afterthought. Whether customers are upgrading for night driving, trail visibility, hidden auxiliary lighting, backroad use, or high-output off-road performance, Squadron Behind Grille Light Kit delivers wide multi-zone coverage with a clean concealed appearance. Now Available at LEER!



---



Features & Specifications

Product Type: vehicle-specific six-light behind-grille kit

Brand: Baja Designs

Series Options: Squadron Sport and Squadron Pro

Light Quantity: six light pods

Mounting Location: behind the grille

Beam Pattern Mix: two Wide Cornering, two Driving/Combo, and two Spot lights

Lighting Zones: Zones 1-4

Sport Output: 3,162 lumens at 30 watts and 2.2 amps per light

Pro Output: 4,095 lumens at 41.4 watts and 3 amps per light

Lens Color: Clear

Fitment: vehicle-specific Ford F-150 Raptor applications

Wiring: main harness plus upfitter or high-beam connection components, depending on the selected kit

Functionality:

• Adds concealed six-light forward illumination.
• Combines Wide Cornering, Driving/Combo, and Spot optics.
• Covers near-field, mid-range, and distance lighting zones.
• Supports trail, desert, backroad, and nighttime off-road use.
• Offers Squadron Sport and Squadron Pro output levels.
• Uses vehicle-specific brackets for a clean installation.
• Integrates with upfitter or high-beam wiring based on the selected kit.
• Preserves a more integrated front-end appearance than exposed light arrays.



---



Available Options

The Squadron Behind Grille Light Kit is available in multiple configurations:

• Squadron Sport kit: six 3,162-lumen lights with two Wide Cornering, two Driving/Combo, and two Spot optics plus upfitter-oriented wiring.
• Squadron Pro kit: six 4,095-lumen lights with the same three-pattern layout plus high-beam-oriented wiring components for higher-output use.

Choose Squadron Sport for dependable six-light coverage with lower electrical demand, or choose Squadron Pro for higher output while retaining the same Wide Cornering, Driving/Combo, and Spot beam strategy.



---



Why Choose

This product is ideal for customers who want a hidden six-light system that delivers layered near-field, forward, and distance coverage.

• Uses six lights for broader coverage than a basic pair or single bar location.
• Combines three optics to support changing terrain, speed, and visibility needs.
• Keeps the light array behind the grille for a cleaner front-end appearance.
• Offers Sport and Pro output levels for different electrical and performance priorities.
• Uses vehicle-specific brackets for secure and consistent light placement.
• Includes wiring components matched to the selected light model.
• Supports lens and optic replacement for service and future changes.
• Includes Baja Designs satisfaction and limited lifetime warranty support.



---



What's Included

• Six Squadron Sport or Squadron Pro LED light pods
• Two Wide Cornering Clear lights
• Two Driving/Combo Clear lights
• Two Spot Clear lights
• A pair of behind-the-grille mounting brackets
• Main wiring harness
• Upfitter or high-beam wiring components, depending on the selected kit
• All necessary mounting hardware
• Product documentation

Note: Confirm included components before installation.



---



Installation Notes

• Confirm vehicle year, grille design, sensor locations, and selected Sport or Pro kit before ordering.
• The kit is not compatible with adaptive cruise control relocation systems that occupy the required mounting area.
• Installation may require grille access, bracket assembly, six-light alignment, harness routing, and connection to the specified switching circuit.
• Aim and test the Wide Cornering, Driving/Combo, and Spot pairs as one coordinated system after final assembly.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs supports this product with a 30-day satisfaction guarantee and a limited lifetime warranty covering qualifying defects in materials and workmanship under the applicable warranty terms.

Warranty coverage typically excludes improper installation, misuse, unauthorized modifications, unsuitable wiring, tampering, overloading, and impact damage outside the warranty terms. Proof of purchase may be required for a warranty claim.
