Baja Designs Squadron 2.0 Vent Kit



The Baja Designs Squadron 2.0 Vent Kit is a vehicle-specific four-light vent-mounted auxiliary lighting system built for customers who need high-output forward illumination from an integrated location that follows the front-end body lines instead of relying on a roof, bumper-top, or exposed grille bar. Its paired vent-area bracket layout with four compact light pods keeps the upgrade integrated and aligned with the factory bodywork while supporting trail driving, overlanding, backroad travel, campsite access, worksite visibility, and nighttime obstacle detection. That combination makes it a practical choice for truck owners who want application-specific mounting and a distinctive hidden-in-plain-sight lighting position where useful illumination, thoughtful placement, and dependable operation matter after dark.

The lighting system is organized around four Squadron 2.0 Sport or Pro light pods, with Pro versions producing 5,921 lumens at 65 watts per light and Sport versions using the lower-draw 3,200-lumen platform. The multi-pattern arrangement provides forward reach and usable width, while adjustable brackets let customers refine beam direction after the vent-mounted hardware is secured. Instead of relying only on raw brightness, the design helps customers place controlled light in the driving, cornering, reverse, fog, work, or scene zone that matches the installation. This makes the output easier to use in real conditions, especially when space, sight lines, and beam direction are important.

Construction centers on vehicle-specific vent brackets, four Squadron 2.0 light pods, 4-pin Deutsch connectivity, updated sealing components, and kit-matched wiring. Redesigned gaskets, clip-in reflectors, weather-resistant construction, and serviceable optics support vibration, moisture, dust, and repeated off-road exposure. These details support repeated exposure to vibration, dust, moisture, temperature changes, and the impacts that can come with trail travel, utility work, towing support, and outdoor equipment use. The result is a lighting package prepared for regular use where dependable materials and secure mounting matter as much as the light output itself.

Customers can tailor the lighting package through Sport and Pro output levels with a Clear multi-pattern lens arrangement. Sport provides strong coverage with lower electrical demand, while Pro prioritizes maximum output from the same four-light vent location. The available choices let customers balance distance, width, contrast, electrical demand, mounting style, and overall system output without changing the core purpose of the product. Each selection should be matched to the intended mounting position and the visibility task it needs to support.

Installation is designed around application-specific brackets positioned at the headlight vent or designated front-fender vent area. The kit uses matched wiring and 4-pin connections for the selected light model, including support for the selectable backlight feature where applicable. A strong mounting surface, protected wiring route, correct circuit capacity, and final beam aiming are important for reliable performance. Vehicle fitment, trim details, available space, switching method, and local lighting requirements should be confirmed before installation begins.

In regular use, the Squadron 2.0 Vent Kit supports night trails, remote highways, open desert, wooded terrain, camp access, jobsite lighting, and supplemental forward visibility. The vent location positions the lights near the vehicle corners, which can help broaden the usable field of view while maintaining a polished installation. Its combination of purpose-shaped light, durable construction, and application-focused mounting helps customers build a lighting system that feels intentional rather than added as an afterthought. Whether customers are upgrading for trail driving, overlanding, nighttime visibility, backroads, worksite access, or a cleaner front-end lighting setup, Squadron 2.0 Vent Kit delivers integrated four-light performance with selectable Sport or Pro output. Now Available at LEER!



---



Features & Specifications

Product Type: vehicle-specific vent-mounted LED light kit

Brand: Baja Designs

Series: Squadron 2.0

Light Quantity: four light pods

Mounting Location: headlight vent or application-specific vent area

Lens Pattern: multi-pattern

Lens Color: Clear

Sport Output: 3,200 lumens at 30 watts and 2.2 amps per light

Pro Output: 5,921 lumens at 65 watts and 4.7 amps per light

Operating Voltage: 12-32 volts

Backlight: nine selectable colors

Connector: 4-pin Deutsch

Fitment: vehicle-specific truck applications

Functionality:

• Adds vent-mounted forward auxiliary lighting.
• Uses four lights for broad and balanced coverage.
• Supports trail, overland, backroad, and worksite use.
• Offers Sport and Pro output levels.
• Supports adjustable beam direction after installation.
• Maintains a clean integrated front-end appearance.
• Adds selectable accent backlighting through the Squadron 2.0 platform.
• Uses application-specific brackets and kit-matched wiring.



---



Available Options

The Squadron 2.0 Vent Kit is available in multiple configurations:

• Squadron 2.0 Sport Vent Kit: four 3,200-lumen, 30-watt lights for strong all-around coverage with lower electrical demand.
• Squadron 2.0 Pro Vent Kit: four 5,921-lumen, 65-watt lights for higher-output trail and forward visibility from the same vent-mounted layout.

Choose Sport for balanced four-light performance and lower power demand, or choose Pro for higher output and more demanding nighttime use from the same integrated mounting position.



---



Why Choose

This product is ideal for customers who want an integrated four-light system that follows the vehicle body lines and offers selectable performance levels.

• Uses a clean vent-area location instead of a large exposed light bar.
• Provides a four-light layout for broad forward coverage.
• Offers Sport and Pro models for different output and power priorities.
• Uses adjustable brackets to refine beam direction.
• Adds modern Squadron 2.0 optics, connectors, sealing, and service features.
• Includes selectable backlighting for coordinated accent illumination.
• Uses vehicle-specific brackets and kit-matched wiring for a purposeful installation.
• Includes Baja Designs satisfaction and limited lifetime warranty support.



---

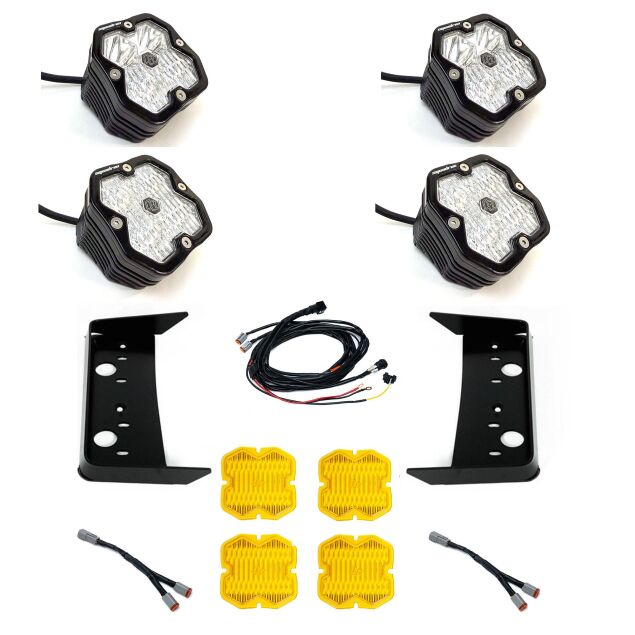

What's Included

• Four Squadron 2.0 Sport or Squadron 2.0 Pro light pods
• Vehicle-specific vent mounting brackets
• Kit-matched wiring harness components
• All necessary mounting hardware
• Product documentation

Note: Confirm included components before installation.



---



Installation Notes

• Confirm vehicle year, model, trim, headlight design, vent shape, and selected light model before ordering.
• Installation may require vent-area access, bracket assembly, light mounting, wiring routing, and switch or auxiliary-circuit connection.
• Verify clearance from headlamp components, body panels, cooling passages, moving parts, and service access points.
• Aim and test all four lights after installation so the multi-pattern layout provides even forward coverage.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs supports this product with a 30-day satisfaction guarantee and a limited lifetime warranty covering qualifying defects in materials and workmanship under the applicable warranty terms.

Warranty coverage typically excludes improper installation, misuse, unauthorized modifications, unsuitable wiring, tampering, overloading, and impact damage outside the warranty terms. Proof of purchase may be required for a warranty claim.
