Baja Designs Squadron 2.0 Fog Pocket Light Kit



The Baja Designs Squadron 2.0 Fog Pocket Light Kit brings the redesigned Squadron platform into compatible factory bumper openings with choices ranging from a clean two-light upgrade to a layered six-light system. Customers can select Sport or Pro output, square or round-face housings, controlled SAE fog components, and compact S1 or S2 support lights. This breadth makes the kit useful for vehicles that move between pavement, towing, camping, work access, and technical off-road terrain.

Squadron 2.0 Sport is the balanced foundation. Each Sport light produces 3,200 lumens at 30 watts and 2.2 amps, giving customers improved trail coverage without the electrical demand of the Pro model. Squadron 2.0 Pro increases output to 5,921 lumens at 65 watts and 4.7 amps, making it the stronger choice for open terrain, higher speeds, dark work areas, and builds with adequate electrical capacity.

Two-light configurations keep the installation simple and visually clean. Square Squadron 2.0 housings create a modern pod appearance, while Squadron-R 2.0 versions use a rounded face that blends naturally with circular fog openings. Sport versions suit balanced auxiliary use, and Pro versions step up the forward output without adding extra secondary lights or additional wiring branches.

S1 and S2 support lights broaden the beam package. S1 produces 2,320 lumens from a compact cube and works well for Wide Cornering and near-field fill. S2 Sport produces 1,581 lumens at 12.42 watts for compact Driving Combo or Wide Cornering coverage, while S2 Pro adds higher-output compact support. These smaller lights can fill the immediate foreground and road edges while Squadron lights handle mid-range and distance.

SAE-equipped combinations add either Squadron SAE or S2 SAE projectors for a controlled fog pattern with a sharp cutoff. Squadron SAE produces 2,420 lumens at 29 watts, while S2 SAE produces 1,210 lumens at 12.42 watts. Pairing these lights with Sport or Pro auxiliary pods gives customers a dedicated low-mounted fog beam plus separate trail lighting that can be controlled for the driving environment.

Vehicle-specific brackets, fascia pieces, adapters, splitters, and harness components package the chosen lights inside the factory fog-pocket area. Whether customers are upgrading for low-visibility weather, road-edge definition, trail coverage, open-terrain distance, worksite access, or a more complete bumper lighting layout, the Baja Designs Squadron 2.0 Fog Pocket Light Kit delivers a matched combination of output, beam control, and compact support lighting. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific Squadron 2.0 fog-pocket light kit

Brand: Baja Designs

Primary Platforms: Squadron 2.0 Sport, Squadron 2.0 Pro, and Squadron-R 2.0

Support Platforms: Squadron SAE, S1, S2 Sport, S2 Pro, and S2 SAE

Squadron 2.0 Sport Output: 3,200 lumens at 30 watts and 2.2 amps per light

Squadron 2.0 Pro Output: 5,921 lumens at 65 watts and 4.7 amps per light

Squadron SAE Output: 2,420 lumens at 29 watts and 2.1 amps per light

S1 Output: 2,320 lumens at approximately 20 watts and 1.42 amps per light

S2 Sport Output: 1,581 lumens at 12.42 watts and 0.9 amps per light

S2 SAE Output: 1,210 lumens at 12.42 watts per light

Beam Choices: Spot, Driving Combo, Wide Cornering, and SAE fog

Lens Choices: Clear and Baja Amber on selected SAE and cornering configurations

Mounting: Vehicle-specific brackets and fascia components

Wiring: Application-specific adapter, splitter, toggle, or upfitter harness components

Functionality:

• Provides simple two-light replacements and layered multi-light bumper systems.
• Offers Sport and Pro output levels for different trail speeds and electrical capacity.
• Adds round-face Squadron-R choices for compatible circular fog openings.
• Uses S1 and S2 lights to fill road edges, turns, and the immediate foreground.
• Adds Squadron SAE or S2 SAE projectors for controlled low-mounted fog illumination.
• Combines Spot, Driving Combo, Wide Cornering, and fog patterns across selected kits.
• Keeps the lights integrated through vehicle-specific brackets, fascia pieces, and wiring.
• Supports commuting, towing, camping, work access, overlanding, and off-road travel.



---



Available Options

The Baja Designs Squadron 2.0 Fog Pocket Light Kit is offered in sixteen principal light combinations:

• Squadron-R 2.0 Sport - A clean two-light round-face layout with balanced Sport output for compatible circular openings.
• Squadron 2.0 Sport - A clean two-light square-pod layout for balanced auxiliary coverage and moderate power demand.
• Squadron-R 2.0 Pro - A round-face two-light layout with stronger Pro output for demanding trail use.
• Squadron 2.0 Pro - A square-pod two-light layout with the highest primary output in the basic configurations.
• Squadron 2.0 Sport with S1 - Adds compact S1 Wide Cornering or near-field support to Sport-level Squadron output.
• Squadron 2.0 Pro with S1 - Adds compact S1 support to higher-output Pro lighting for broader trail coverage.
• Squadron 2.0 Sport with Squadron SAE and S1 - Combines Sport output, a controlled Squadron SAE fog beam, and compact S1 cornering fill.
• Squadron 2.0 Sport with S2 SAE Sportsmen - Pairs Sport-level Squadron lighting with compact S2 SAE fog projectors.
• Squadron 2.0 Pro with S2 SAE Pro - Pairs Pro-level Squadron lighting with compact S2 SAE fog projectors.
• Squadron 2.0 Sport with S2 Sport - Combines Sport Squadron lights with compact S2 Sport fill for layered off-road coverage.
• Squadron 2.0 Pro with S2 Sport - Combines Pro Squadron lights with compact S2 Sport fill for stronger layered coverage.
• Squadron 2.0 Sport with Squadron SAE and S2 Sport - Adds a controlled fog beam and compact S2 fill to the Sport Squadron foundation.
• Squadron 2.0 Sport with S2 Sport and S2 SAE Sportsmen - Uses Sport Squadron, S2 Sport, and S2 SAE lights for a balanced three-pattern system.
• Squadron 2.0 Pro with S2 Pro and S2 SAE Pro - Uses Pro-level primary and compact lights while retaining a controlled S2 SAE fog component.
• Squadron 2.0 Pro with Dual S2 Sport - Adds two compact S2 Sport beam roles around the high-output Pro foundation for broad off-road coverage.
• Squadron 2.0 Sport with Dual S2 Sport Sportsmen - Adds two compact S2 Sport beam roles around the balanced Sport foundation.

Choose a two-light Sport or Pro kit for simplicity, choose an S1 or S2 combination for broader near-field coverage, choose an SAE-equipped kit for a controlled fog component, or choose a Pro multi-light package for the strongest off-road performance.



---



Why Choose

This product is ideal for customers who want a Squadron 2.0 bumper upgrade that can be tailored from a clean two-light system to a complete multi-pattern package.

• Sport and Pro models create clear choices in output, power demand, and intended driving speed.
• Square and round-face housings support different fog-pocket shapes and visual preferences.
• S1 and S2 support lights add useful road-edge, cornering, and foreground illumination.
• Squadron SAE and S2 SAE options add sharply controlled fog patterns.
• Layered beam combinations cover more useful zones than several identical lights.
• Vehicle-specific brackets and fascia pieces keep the system integrated into the bumper.
• Application-specific wiring supports organized control through factory, toggle, or upfitter circuits.
• The extensive range supports simple daily-driver upgrades and advanced off-road builds.



---



What's Included

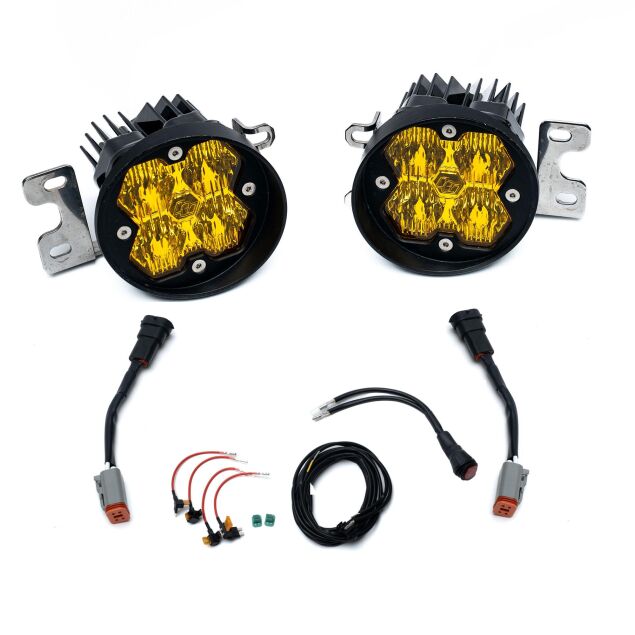

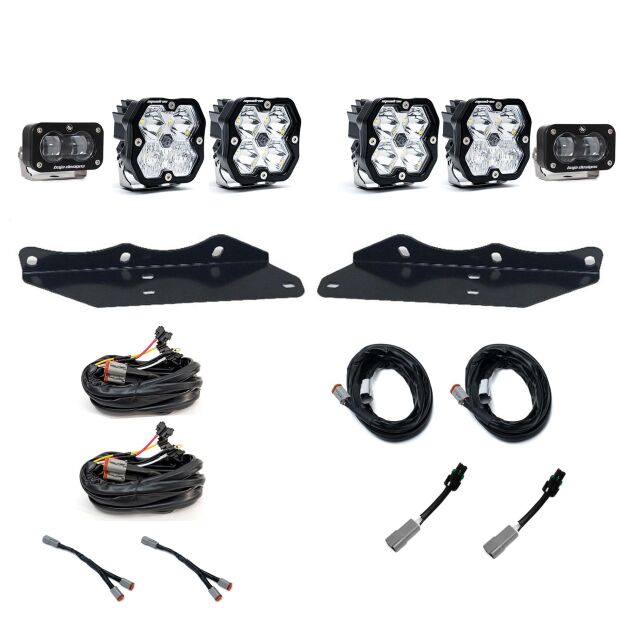

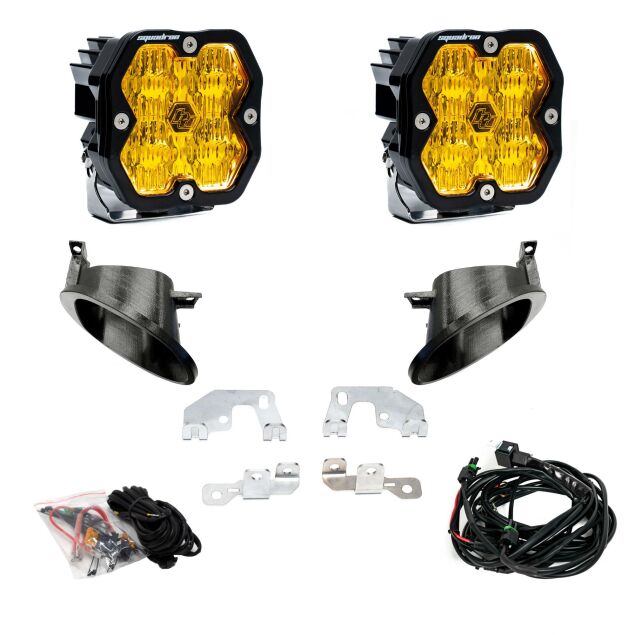

• Baja Designs Squadron 2.0, Squadron-R 2.0, SAE, S1, or S2 lights in the selected combination

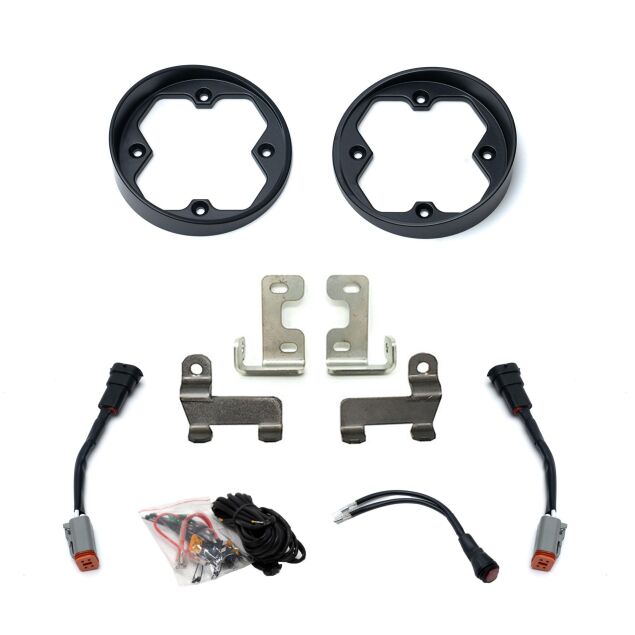

• Vehicle-specific fog-pocket mounting brackets
• Fascia or trim components when required by the application
• Application-specific adapters, splitters, extensions, and control harness components
• Necessary mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the vehicle, trim, bumper, fog-pocket shape, light combination, lens color, and wiring-control choice before installation.
• Install the brackets and fascia, then position each light so the housings clear the bumper and remain accessible for aiming.
• Route and secure all adapters, splitters, and harnesses away from sharp edges, heat, moving parts, and pinch points.
• Aim each Spot, Driving Combo, Wide Cornering, or SAE fog beam for its intended zone and leave sealed SAE lights unmodified.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lists Squadron 2.0 fog-pocket kits with a 30-Day Satisfaction Guarantee and a limited lifetime warranty against qualifying manufacturing defects.

Warranty coverage generally excludes improper installation, misuse, unauthorized modification, electrical damage, overloading, tampering, and impact damage outside warranty terms. uService applies to compatible non-SAE lights, while SAE lights must remain sealed for warranty evaluation.
