Baja Designs S8 Shock Mount Light Bar Kit for UTVs & Off-Road Vehicles



The Baja Designs S8 Shock Mount Light Bar Kit is built for UTV customers who want serious auxiliary lighting without turning the vehicle into a collection of exposed universal parts. Its shock-tower position keeps the lighting visually integrated with the body while placing useful forward illumination where it can support confident travel after dark. The result is a purposeful upgrade that looks considered from every angle and remains practical for daily driving, trail use, and work-oriented builds.

At the center of the kit is the Baja Designs S8, a slim single-row LED light bar that uses eight LEDs per 10-inch section. High-performance reflectors shape the main beam for a useful blend of distance and foreground coverage, while the integrated amber backlight gives the installation a recognizable accent when the primary beam is not needed. The low-profile aluminum housing helps the bar fit tight areas that would be crowded by a taller dual-row design.

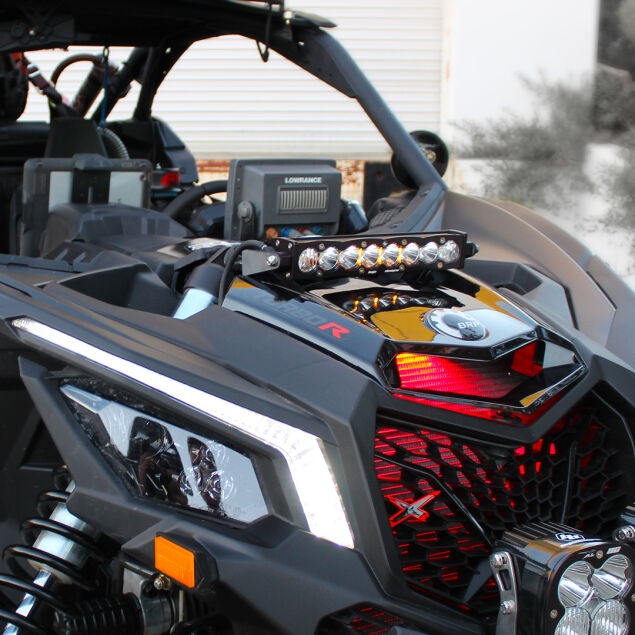

The shock-tower mounting strategy provides a specific real-world advantage: the light stays low, stable, and close to the front suspension structure while remaining clear of the roofline and most bumper-mounted equipment. Customers gain additional light without sacrificing the clean lines of the vehicle or relying on a bulky mount that appears added after the fact. Properly aimed lighting also helps place illumination on the trail and approach path rather than wasting output above the horizon or against nearby bodywork.

The common arrangement uses one 10-inch S8 Driving/Combo light bar with a vehicle-specific shock-tower bracket and application-matched installation components. The S8 platform supports clear and Baja Amber lens choices on many applications, allowing customers to prioritize crisp white illumination or added contrast in dust, fog, rain, and snow. Driving/Combo optics are common in vehicle-specific kits because they blend near-field spread with useful forward reach, while the exact light size and wiring arrangement remain matched to the intended installation.

Durability is addressed through an aluminum housing, a hard-coated polycarbonate lens, MoistureBlock weather protection, and serviceable lenses and optics. These features support repeated exposure to vibration, water, dirt, and changing temperatures encountered on off-road routes and working vehicles. The serviceable design also gives customers a practical path for replacing a damaged lens or changing an optic without discarding the complete light bar.

The mounting system bolts to the supported factory shock-tower area and positions the bar for stable forward illumination over rough terrain. Mounting brackets, wiring components, and installation hardware are selected around the supported application so the finished system can be secured and aimed correctly. Whether customers are upgrading for technical trails, desert running, high-speed recreation, racing support, or compact supplemental lighting, the Baja Designs S8 Shock Mount Light Bar Kit delivers stable forward illumination from a protected low-profile mounting point. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific shock-tower LED light bar kit

Brand: Baja Designs

Series: S8

Vehicle Type: Select UTV applications

Light Bar Size: 10-inch

Output: 6,324 raw lumens

Power Draw: Approximately 57.9 watts and 4.2 amps

Beam Pattern: Driving/Combo

Mounting Location: Factory shock-tower area

Backlight: Integrated amber backlight

Weather Protection: MoistureBlock waterproof, rain proof, and submersible construction

Functionality:

• Adds forward-projecting light from a stable suspension-adjacent position
• Keeps the roofline clear for visibility, storage, or other lighting
• Supports high-speed trail travel and technical off-road use
• Maintains a compact appearance with a 10-inch single-row bar
• Uses Driving/Combo optics for width and forward reach
• Provides an amber backlight for a separate accent function
• Pairs with roof or bumper lighting as a supplemental zone-filling light



---



Available Options

The Baja Designs S8 Shock Mount Light Bar Kit is available with application-specific lens choices where offered:

• Clear Driving/Combo - Uses a clear lens for crisp white output and general nighttime trail visibility.
• Baja Amber Driving/Combo - Uses a Baja Amber lens on supported kits for improved contrast in dust, fog, rain, and snow.

Choose Clear Driving/Combo for broad general use, or choose Baja Amber Driving/Combo when dust and changing weather make contrast and glare control more important.



---



Why Choose

This product is ideal for customers who want a compact light, stable shock-tower placement, and vehicle-specific mounting.

• Low mounting position keeps the roofline uncluttered
• Factory-area bracket placement supports stable high-speed use
• Compact S8 housing preserves aggressive UTV styling
• Driving/Combo optics provide useful near and distance coverage
• Amber backlighting adds visibility and a distinct appearance
• Application-specific hardware reduces unnecessary fabrication
• Serviceable lenses and optics support long-term maintenance



---

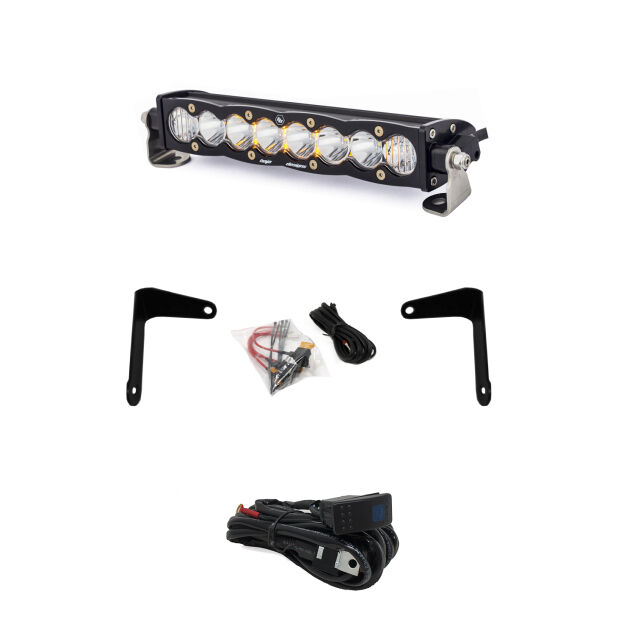

What's Included

• One Baja Designs S8 10-inch Driving/Combo light bar
• Vehicle-specific shock-tower mounting bracket or bracket set
• Installation hardware
• Application-matched wiring components when specified for the selected kit

Note: Confirm included components before installation.



---



Installation Notes

• Confirm vehicle year, model, trim, shock-tower design, lens color, and wiring requirements before installation.
• Install the bracket only at the supported factory mounting area and verify clearance through the full suspension and steering range.
• Route wiring away from shocks, springs, steering components, heat, sharp edges, and debris paths.
• Tighten mounting hardware to the instructions and aim the light after the vehicle is at normal ride height.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lighting products are backed by a limited lifetime warranty against manufacturing defects and a 30-day satisfaction guarantee. Warranty service may require proof of purchase and review of the product condition before a claim is approved.

Coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, impact damage outside the warranty terms, and operation that does not follow the product instructions. Customers should retain purchase records and follow the installed kit instructions for wiring, mounting, aiming, maintenance, and service.
