Baja Designs S8 Roof Mount Light Bar Kit for Trucks & Off-Road Vehicles



The Baja Designs S8 Roof Mount Light Bar Kit is built for truck, SUV, and UTV customers who want serious auxiliary lighting without turning the vehicle into a collection of exposed universal parts. Its roofline or windshield-frame position keeps the lighting visually integrated with the body while placing useful forward illumination where it can support confident travel after dark. The result is a purposeful upgrade that looks considered from every angle and remains practical for daily driving, trail use, and work-oriented builds.

At the center of the kit is the Baja Designs S8, a slim single-row LED light bar that uses eight LEDs per 10-inch section. High-performance reflectors shape the main beam for a useful blend of distance and foreground coverage, while the integrated amber backlight gives the installation a recognizable accent when the primary beam is not needed. The low-profile aluminum housing helps the bar fit tight areas that would be crowded by a taller dual-row design.

The roofline or windshield-frame mounting strategy provides a specific real-world advantage: the elevated position gives the beam a clear view over the hood and front bodywork for broader terrain awareness across open trails and high-speed routes. Customers gain additional light without sacrificing the clean lines of the vehicle or relying on a bulky mount that appears added after the fact. Properly aimed lighting also helps place illumination on the trail and approach path rather than wasting output above the horizon or against nearby bodywork.

Vehicle-specific roof kits commonly use 30-inch, 40-inch, or 50-inch S8 light bars, with the bar length and bracket span matched to the roof or windshield structure. The S8 platform supports clear and Baja Amber lens choices on many applications, allowing customers to prioritize crisp white illumination or added contrast in dust, fog, rain, and snow. Driving/Combo optics are common in vehicle-specific kits because they blend near-field spread with useful forward reach, while the exact light size and wiring arrangement remain matched to the intended installation.

Durability is addressed through an aluminum housing, a hard-coated polycarbonate lens, MoistureBlock weather protection, and serviceable lenses and optics. These features support repeated exposure to vibration, water, dirt, and changing temperatures encountered on off-road routes and working vehicles. The serviceable design also gives customers a practical path for replacing a damaged lens or changing an optic without discarding the complete light bar.

Application-specific brackets secure the light at the intended roofline or windshield-frame points and account for the width and shape of the supported vehicle. Mounting brackets, wiring components, and installation hardware are selected around the supported application so the finished system can be secured and aimed correctly. Whether customers are upgrading for open-trail travel, overlanding, desert routes, racing support, nighttime work, or full-width roof lighting, the Baja Designs S8 Roof Mount Light Bar Kit delivers wide forward coverage from a slim single-row roof-mounted system. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific roof-mount LED light bar kit

Brand: Baja Designs

Series: S8

Mounting Location: Roofline or windshield frame, application dependent

Common Light Bar Sizes: 30-inch, 40-inch, and 50-inch

Output: Starts at 6,324 raw lumens per 10-inch section and scales with bar length

Beam Pattern: Driving/Combo, Spot, or other application-specific optics

Lens Color: Clear or Baja Amber on supported applications

Backlight: Integrated amber backlight

Construction: Aluminum housing with hard-coated polycarbonate lens

Weather Protection: MoistureBlock waterproof, rain proof, and submersible construction

Functionality:

• Projects light from an elevated position for broad terrain awareness
• Supports high-speed open-trail travel and long nighttime routes
• Maintains a slim profile compared with many dual-row roof bars
• Provides an amber accent backlight separate from the main beam
• Uses vehicle-specific brackets for roofline alignment and support
• Offers multiple lengths for different cab, roof, and windshield widths
• Supports serviceable lens and optic changes through the S8 platform



---



Available Options

The Baja Designs S8 Roof Mount Light Bar Kit is available in multiple bar lengths and lens configurations:

• 30-inch Roof Kit - A compact full-width solution for narrower roofs and powersports applications.
• 40-inch Roof Kit - Balances bar width, output, and roofline coverage for many mid-width applications.
• 50-inch Roof Kit - Provides the widest S8 arrangement for supported full-width truck and SUV installations.
• Clear Lens - Delivers crisp white output for natural terrain recognition and general nighttime travel.
• Baja Amber Lens - Improves contrast through dust, fog, rain, and snow on supported roof kits.

Choose the bar length that matches the supported roof or windshield span, then choose Clear for broad all-around use or Baja Amber for added contrast in difficult atmospheric conditions.



---



Why Choose

This product is ideal for customers who want wide roof-level coverage, a slim profile, and vehicle-specific mounting.

• Elevated placement improves sightlines across open terrain
• Single-row design reduces visual bulk at the roofline
• Multiple lengths support compact and full-width applications
• Driving and distance-oriented optics can be matched to the intended use
• Amber backlighting adds a separate accent function
• Vehicle-specific brackets reduce the need for custom fabrication
• Included wiring and hardware simplify system planning



---

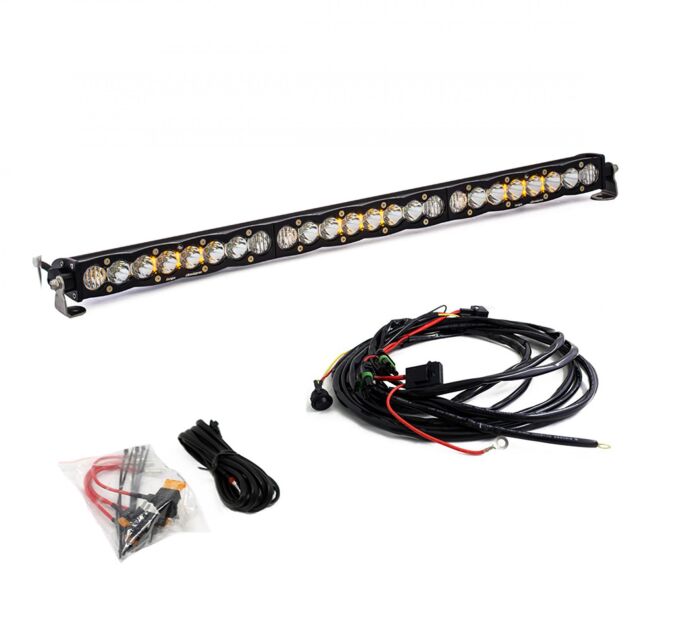

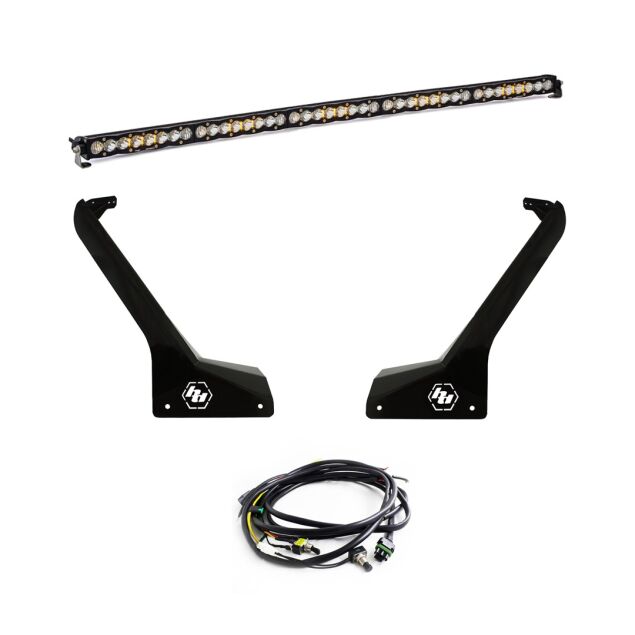

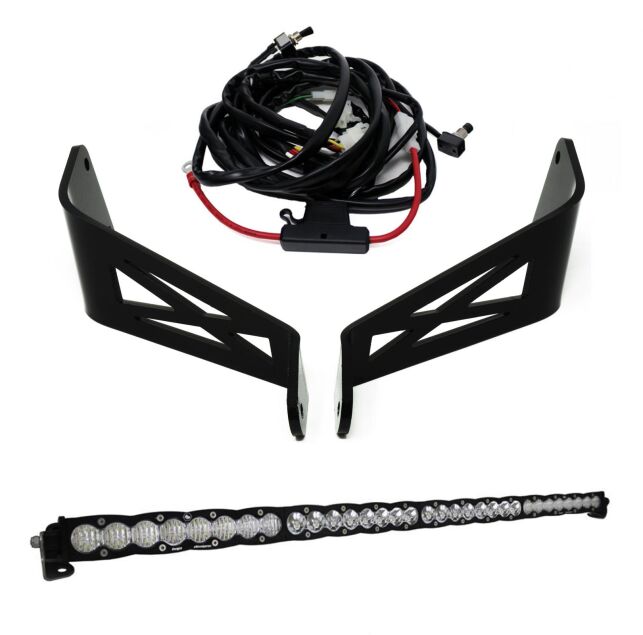

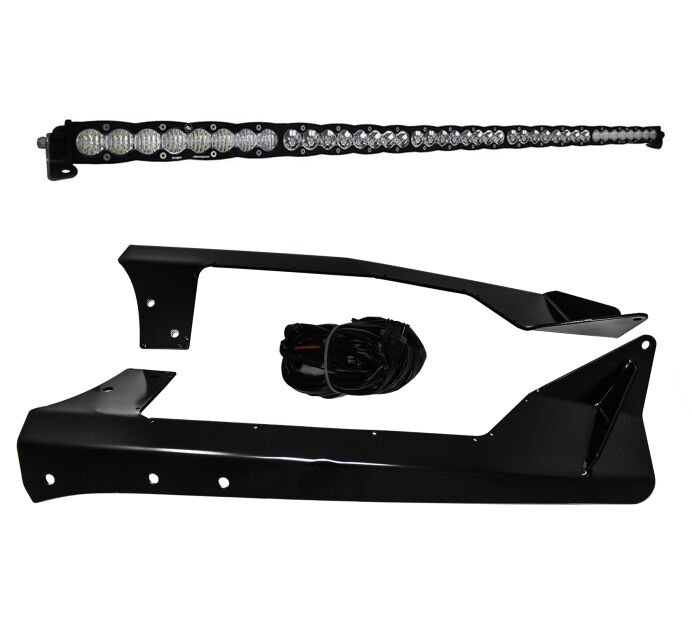

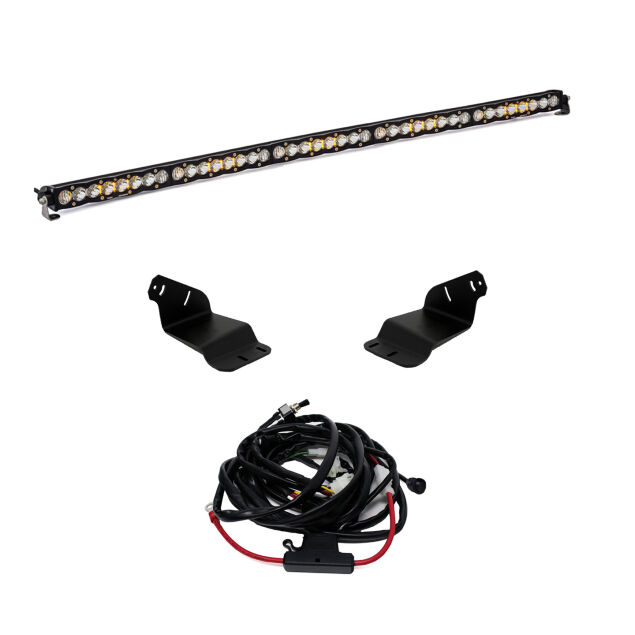

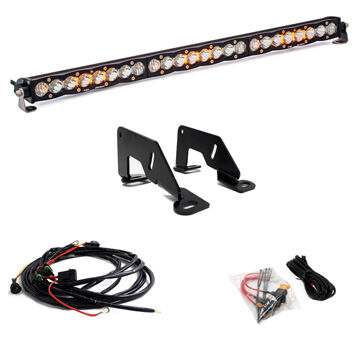

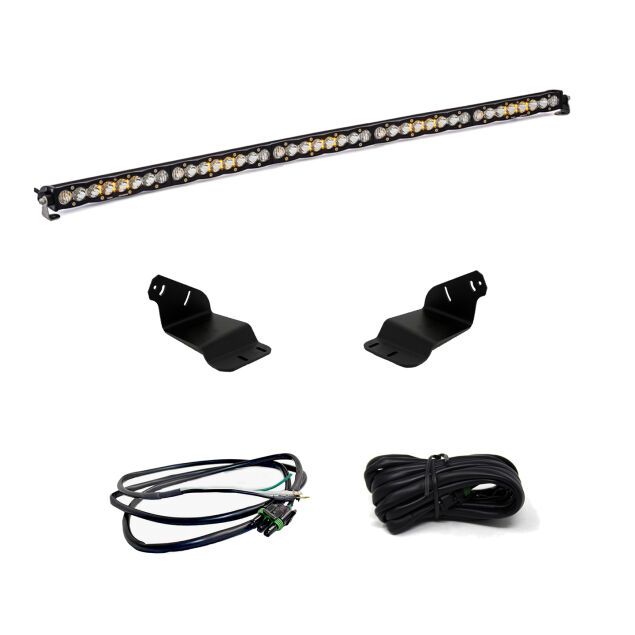

What's Included

• Baja Designs S8 LED light bar in the selected size and lens configuration
• Vehicle-specific roofline or windshield-frame mounting brackets
• Application-matched wiring harness
• Required installation hardware

Note: Confirm included components before installation.



---



Installation Notes

• Confirm vehicle year, model, trim, roof configuration, roof-rack compatibility, bar length, and lens color before installation.
• Roof-mounted lighting can increase wind noise, and bracket position should be checked for weather seals, removable roof panels, doors, and accessory clearance.
• Route wiring through a protected, weather-sealed path and use grommets or approved pass-throughs where the instructions require body access.
• Aim the light after final tightening to control glare and keep the beam focused on the intended off-road travel path.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lighting products are backed by a limited lifetime warranty against manufacturing defects and a 30-day satisfaction guarantee. Warranty service may require proof of purchase and review of the product condition before a claim is approved.

Coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, impact damage outside the warranty terms, and operation that does not follow the product instructions. Customers should retain purchase records and follow the installed kit instructions for wiring, mounting, aiming, maintenance, and service.
