Baja Designs S8 Replacement Kit



The Baja Designs S8 Replacement Kit is built for full-size pickup customers who want serious auxiliary lighting without turning the vehicle into a collection of exposed universal parts. Its factory grille replacement position keeps the lighting visually integrated with the body while placing useful forward illumination where it can support confident travel after dark. The result is a purposeful upgrade that looks considered from every angle and remains practical for daily driving, trail use, and work-oriented builds.

At the center of the kit is the Baja Designs S8, a slim single-row LED light bar that uses eight LEDs per 10-inch section. High-performance reflectors shape the main beam for a useful blend of distance and foreground coverage, while the integrated amber backlight gives the installation a recognizable accent when the primary beam is not needed. The low-profile aluminum housing helps the bar fit tight areas that would be crowded by a taller dual-row design.

The factory grille replacement mounting strategy provides a specific real-world advantage: it uses the existing low-profile center grille location to add substantially more usable forward light without placing a bar on the roof or outside the bumper. Customers gain additional light without sacrificing the clean lines of the vehicle or relying on a bulky mount that appears added after the fact. Properly aimed lighting also helps place illumination on the trail and approach path rather than wasting output above the horizon or against nearby bodywork.

The kit uses one 20-inch S8 Driving/Combo light bar and is offered with either a Clear or Baja Amber lens. The S8 platform supports clear and Baja Amber lens choices on many applications, allowing customers to prioritize crisp white illumination or added contrast in dust, fog, rain, and snow. Driving/Combo optics are common in vehicle-specific kits because they blend near-field spread with useful forward reach, while the exact light size and wiring arrangement remain matched to the intended installation.

Durability is addressed through an aluminum housing, a hard-coated polycarbonate lens, MoistureBlock weather protection, and serviceable lenses and optics. These features support repeated exposure to vibration, water, dirt, and changing temperatures encountered on off-road routes and working vehicles. The serviceable design also gives customers a practical path for replacing a damaged lens or changing an optic without discarding the complete light bar.

The brackets and support pieces are engineered for a specific factory performance grille and retain the intended low-profile appearance of that opening. Mounting brackets, wiring components, and installation hardware are selected around the supported application so the finished system can be secured and aimed correctly. Whether customers are upgrading for trail driving, overlanding, backroad travel, nighttime work, or replacing a factory grille light, the Baja Designs S8 Replacement Kit delivers 12,700 raw lumens with clean grille integration and complete supporting hardware. Now Available at LEER!



---



Features & Specifications

Product Type: Factory grille LED light bar replacement kit

Brand: Baja Designs

Series: S8

Vehicle Fitment: 2022-2026 Toyota Tundra TRD Pro

Mounting Location: Stock TRD Pro grille light opening

Light Bar Size: 20-inch

Output: 12,700 raw lumens

Power Draw: 120 watts and 8.0 amps

Beam Pattern: Driving/Combo

Lens Color: Clear or Baja Amber

Lighting Coverage: Forward illumination through lighting zones 1-4

Backlight: Integrated amber backlight

Functionality:

• Swaps or adds a light bar in the stock TRD Pro grille opening
• Maintains a low-profile front-end appearance
• Provides balanced forward reach and near-field spread
• Supports trail driving, overlanding, backroads, and nighttime work
• Offers Clear and Baja Amber lens choices for different conditions
• Includes a dedicated backlight wiring path
• Uses support brackets designed for the factory grille structure



---



Available Options

The Baja Designs S8 Replacement Kit is available in two lens configurations:

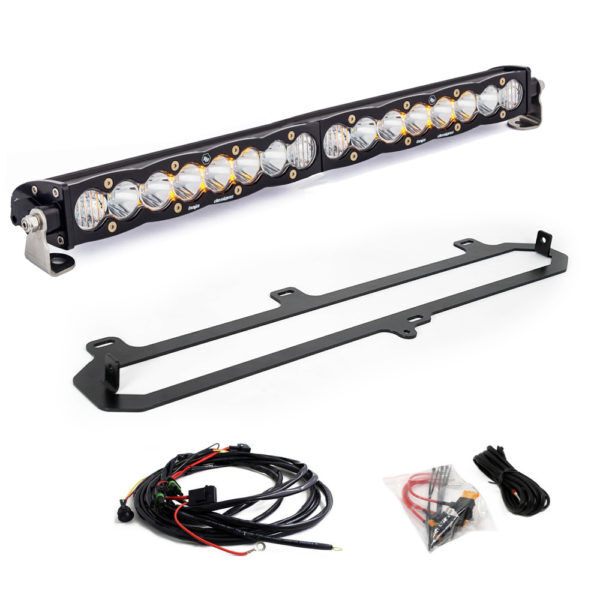

• Clear S8 Replacement Kit - Uses a Clear 20-inch S8 Driving/Combo light bar for crisp white output and broad all-around nighttime visibility.

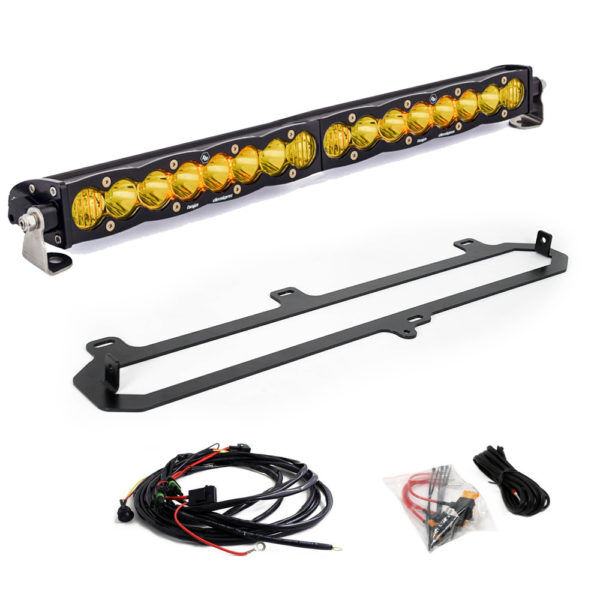

• Baja Amber S8 Replacement Kit - Uses a Baja Amber 20-inch S8 Driving/Combo light bar for improved contrast in dust, fog, rain, and snow.

Choose the Clear kit for general trail, road, and work use, or choose the Baja Amber kit when contrast and reduced reflected glare are priorities in dust or changing weather.



---



Why Choose

This product is ideal for customers who want a direct factory-grille upgrade with high-output S8 performance and complete installation support.

• Preserves the low-profile appearance of the stock grille opening
• Delivers 12,700 raw lumens from a compact 20-inch bar
• Driving/Combo optics support both foreground awareness and forward reach
• Clear and Baja Amber versions address different visibility priorities
• Dedicated support brackets stabilize the light within the grille structure
• Main and backlight harnesses are included for the intended installation
• Serviceable lenses and optics support future maintenance or beam changes



---



What's Included

• One Baja Designs S8 20-inch Driving/Combo light bar in Clear or Baja Amber
• One light bar bracket
• Two upper grille support brackets
• Main wiring harness
• S8 backlight wiring harness
• Required mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Fits 2022-2026 Toyota Tundra TRD Pro models with the supported stock grille configuration.
• A separate conversion kit is required when the vehicle uses a Heritage grille conversion.
• Confirm vehicle year, trim, grille configuration, selected lens color, and electrical connection plan before installation.
• Installation requires grille access, bracket placement, harness routing, backlight connection, final tightening, and beam aiming.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lighting products are backed by a limited lifetime warranty against manufacturing defects and a 30-day satisfaction guarantee. Warranty service may require proof of purchase and review of the product condition before a claim is approved.

Coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, impact damage outside the warranty terms, and operation that does not follow the product instructions. Customers should retain purchase records and follow the installed kit instructions for wiring, mounting, aiming, maintenance, and service.
