Baja Designs S8 Bumper Light Bar Kit for Trucks & Off-Road Vehicles



The Baja Designs S8 Bumper Light Bar Kit is built for truck and SUV customers who want serious auxiliary lighting without turning the vehicle into a collection of exposed universal parts. Its behind-bumper or bumper-integrated position keeps the lighting visually integrated with the body while placing useful forward illumination where it can support confident travel after dark. The result is a purposeful upgrade that looks considered from every angle and remains practical for daily driving, trail use, and work-oriented builds.

At the center of the kit is the Baja Designs S8, a slim single-row LED light bar that uses eight LEDs per 10-inch section. High-performance reflectors shape the main beam for a useful blend of distance and foreground coverage, while the integrated amber backlight gives the installation a recognizable accent when the primary beam is not needed. The low-profile aluminum housing helps the bar fit tight areas that would be crowded by a taller dual-row design.

The behind-bumper or bumper-integrated mounting strategy provides a specific real-world advantage: it keeps the light low, protected, and close to the centerline of the vehicle while preserving a factory-style front-end appearance. Customers gain additional light without sacrificing the clean lines of the vehicle or relying on a bulky mount that appears added after the fact. Properly aimed lighting also helps place illumination on the trail and approach path rather than wasting output above the horizon or against nearby bodywork.

Depending on the supported bumper opening, kits commonly use a 20-inch or 30-inch S8 light bar, with output and bracket geometry matched to the available space. The S8 platform supports clear and Baja Amber lens choices on many applications, allowing customers to prioritize crisp white illumination or added contrast in dust, fog, rain, and snow. Driving/Combo optics are common in vehicle-specific kits because they blend near-field spread with useful forward reach, while the exact light size and wiring arrangement remain matched to the intended installation.

Durability is addressed through an aluminum housing, a hard-coated polycarbonate lens, MoistureBlock weather protection, and serviceable lenses and optics. These features support repeated exposure to vibration, water, dirt, and changing temperatures encountered on off-road routes and working vehicles. The serviceable design also gives customers a practical path for replacing a damaged lens or changing an optic without discarding the complete light bar.

Vehicle-specific fitment aligns the bar with the bumper opening and uses brackets designed around the supported structure. Mounting brackets, wiring components, and installation hardware are selected around the supported application so the finished system can be secured and aimed correctly. Whether customers are upgrading for trail driving, overlanding, backroad travel, nighttime work, or a cleaner bumper-level lighting upgrade, the Baja Designs S8 Bumper Light Bar Kit delivers strong forward visibility with a low-profile integrated appearance. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific bumper LED light bar kit

Brand: Baja Designs

Series: S8

Mounting Location: Behind or within the front bumper

Common Light Bar Sizes: 20-inch and 30-inch, application dependent

Output: 12,700 raw lumens for a 20-inch S8 and 19,050 raw lumens for a 30-inch S8

Beam Pattern: Driving/Combo on many vehicle-specific kits

Lens Color: Clear or Baja Amber on supported applications

Backlight: Integrated amber backlight

Construction: Aluminum housing with hard-coated polycarbonate lens

Weather Protection: MoistureBlock waterproof, rain proof, and submersible construction

Functionality:

• Adds concentrated forward lighting from a protected bumper-level position
• Supports near-field trail awareness and useful distance illumination
• Keeps the roofline and windshield area free of additional hardware
• Provides an amber accent backlight separate from the primary beam
• Supports off-road travel, overlanding, work use, and backroad driving
• Uses application-matched brackets for cleaner alignment and support
• Allows serviceable lens and optic changes through the S8 platform



---



Available Options

The Baja Designs S8 Bumper Light Bar Kit is available in multiple light bar and lens configurations:

• 20-inch S8 Kit - A compact bumper solution that produces 12,700 raw lumens and fits many mid-width bumper openings.
• 30-inch S8 Kit - A wider bar that produces 19,050 raw lumens for applications with additional mounting space.
• Clear Lens - A strong all-around choice for crisp white output and natural terrain recognition.
• Baja Amber Lens - Adds contrast for dust, fog, rain, and snow while reducing reflected glare in difficult conditions.

Choose a 20-inch kit for a compact integrated opening, or choose a 30-inch kit when the bumper supports a wider bar; select Clear for general nighttime illumination or Baja Amber for added contrast in low-visibility conditions.



---



Why Choose

This product is ideal for customers who want clean bumper integration, strong S8 output, and application-matched mounting.

• Low-profile placement preserves the vehicle front-end design
• Protected mounting reduces exposure compared with an unsupported exterior bar
• Driving/Combo optics balance foreground coverage and forward reach
• Amber backlighting adds a distinctive accent when the main beam is off
• Multiple bar lengths support different bumper openings and vehicle sizes
• Included wiring and brackets reduce the need to assemble a system from unrelated parts
• Serviceable lenses and optics support long-term maintenance and beam changes



---

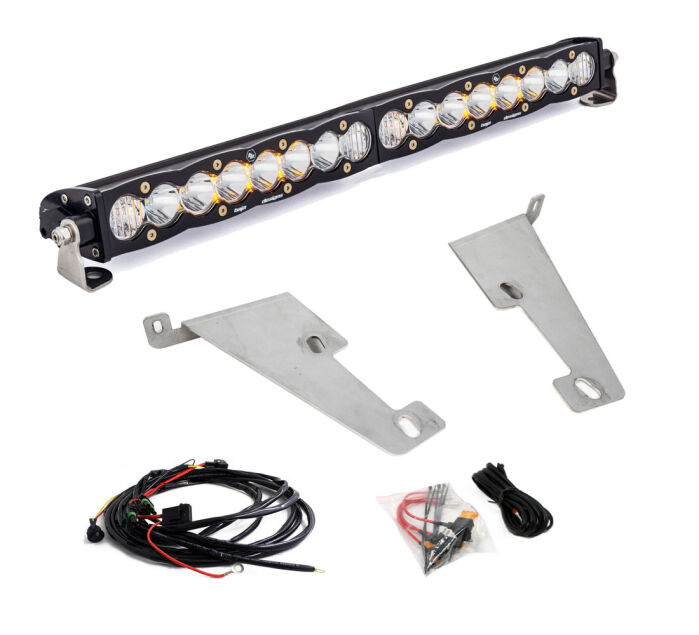

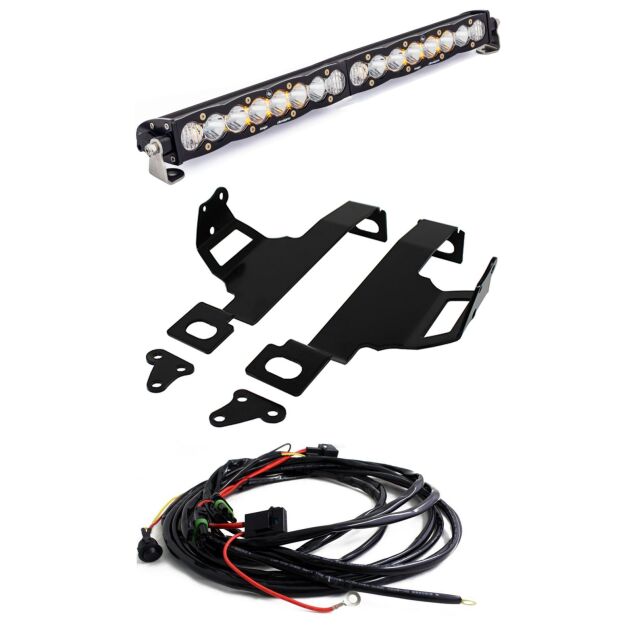

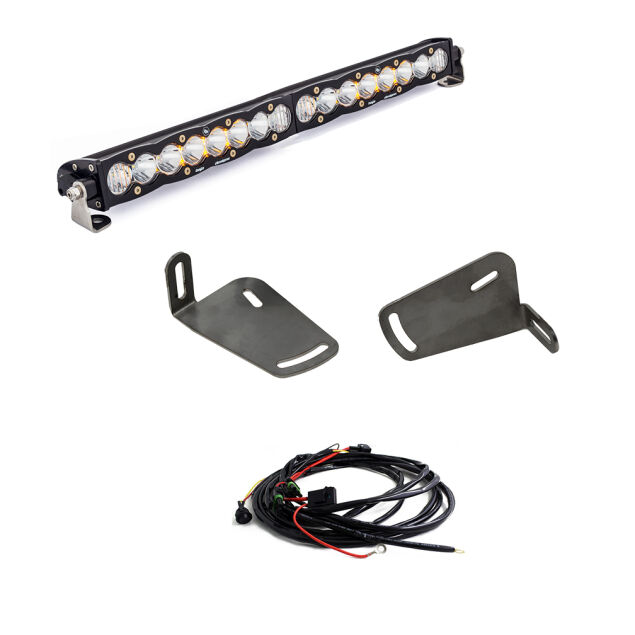

What's Included

• Baja Designs S8 LED light bar in the size and lens color selected
• Vehicle-specific bumper mounting brackets
• Main wiring harness
• Backlight wiring components when specified for the application
• Application-specific installation hardware

Note: Confirm included components before installation.



---



Installation Notes

• Confirm vehicle year, trim, bumper type, sensor package, light size, and lens color before installation.
• Bumper or grille access may be required for bracket placement, wiring, and final beam aiming.
• Some applications install without cutting, while others may require trimming identified in the kit instructions.
• Route wiring away from heat, sharp edges, moving components, and locations exposed to pinch damage.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lighting products are backed by a limited lifetime warranty against manufacturing defects and a 30-day satisfaction guarantee. Warranty service may require proof of purchase and review of the product condition before a claim is approved.

Coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, impact damage outside the warranty terms, and operation that does not follow the product instructions. Customers should retain purchase records and follow the installed kit instructions for wiring, mounting, aiming, maintenance, and service.
