Baja Designs S1 Triple LED Headlight Kit

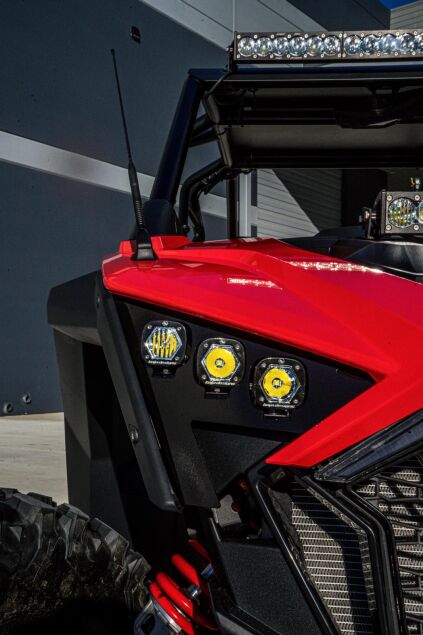

The Baja Designs S1 Triple LED Headlight Kit - Powersports upgrades compatible sport UTVs with six compact lights arranged directly in the factory headlight area. Three S1 pods per side create an aggressive, symmetrical appearance while keeping the lighting package integrated with the front bodywork. Customers gain a substantial increase in usable trail illumination without adding the visual height and exposed placement of a roof-mounted bar.

The six-light system combines Spot and Wide Cornering optics so the vehicle can project light farther ahead while maintaining useful coverage near the front corners. Spot pods help define the route through open terrain and faster sections, while Wide Cornering pods illuminate trail edges, turn-in points, ruts, rocks, and changing surfaces. This mixed pattern is valuable when speed, direction, and terrain vary during the same ride.

Each S1 pod produces 2,320 raw lumens while drawing 19.596 watts and 1.42 amps across a 9-28 volt operating range. The compact housings allow the complete kit to deliver strong output with comparatively low individual electrical demand. Daylight-style light color and focused optics help reveal texture and contrast in dust, shadows, and uneven terrain, supporting quicker recognition of obstacles after dark.

Hard-anodized and powder-coated cast aluminum housings protect the lights, while hardcoated polycarbonate lenses handle exposure to debris and repeated cleaning. Stainless steel mounting hardware, built-in overvoltage protection, serviceable lenses and optics, and sealed construction support use in demanding powersports environments. The S1 design balances durability and performance in a small square housing that fits neatly into vehicle-specific brackets.

Precision-cut brackets and plug-and-play wiring are matched to the selected vehicle application, reducing the fabrication normally associated with universal light conversions. The integrated installation retains a clean front-end appearance and leaves bumper, roof, and pillar locations available for other lighting zones. Included components are tailored to the vehicle, but each supported arrangement centers on six S1 pods and a dedicated mounting and wiring solution.

This headlight upgrade suits trail exploration, dunes, desert travel, recreational night driving, technical terrain, and performance-oriented UTV builds. Customers should select the application that matches the vehicle, verify the original headlight configuration, and complete careful aiming after installation. Whether customers are upgrading for night rides, off-road competition, open-desert visibility, or a sharper factory-location lighting package, the Baja Designs S1 Triple LED Headlight Kit delivers broad and focused output in a compact six-pod design. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific powersports LED headlight kit

Brand: Baja Designs

Series: S1

Vehicle Type: Select sport UTV applications

Light Configuration: Six S1 LED pods with three lights per side

Beam Patterns: Spot and Wide Cornering

Lens Color: Clear

Output: 2,320 raw lumens per light

Power Draw: 19.596 watts and 1.42 amps per light

Operating Voltage: 9-28 volts

Housing Material: Hard-anodized and powder-coated cast aluminum

Lens Material: Hardcoated polycarbonate

Rated Life: 49,930 hours

Electrical Protection: Built-in overvoltage protection

Functionality:

• Replaces factory headlight assemblies with six compact LED pods
• Combines forward Spot reach with broad Wide Cornering illumination
• Improves visibility for trail edges, turns, open terrain, and technical obstacles
• Uses vehicle-specific brackets to preserve an integrated front-end appearance
• Employs plug-and-play wiring for the selected application
• Keeps bumper, roof, and pillar locations open for additional lighting
• Supports service through replaceable lenses and optics



---



Why Choose

This product is ideal for customers who want race-inspired UTV headlight performance in a clean six-light factory-location conversion.

• Six S1 pods create a noticeable increase in usable light from a compact package
• Spot and Wide Cornering patterns address both distance and side-area visibility
• Low individual amperage draw helps manage the electrical demand of the complete system
• Vehicle-specific brackets create a cleaner result than universal fabrication
• Plug-and-play wiring reduces installation complexity on compatible applications
• Durable housings and hardcoated lenses suit dust, mud, vibration, and trail debris
• Serviceable optics support maintenance after normal wear or external damage
• Integrated mounting preserves other vehicle locations for additional lighting zones



---

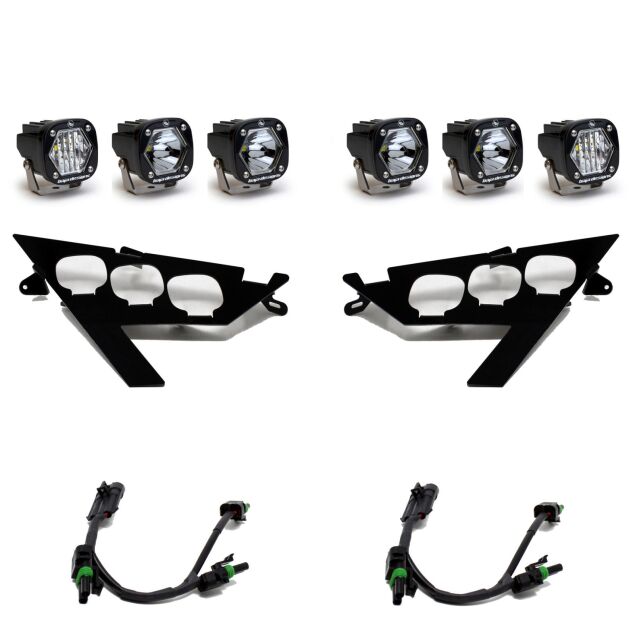

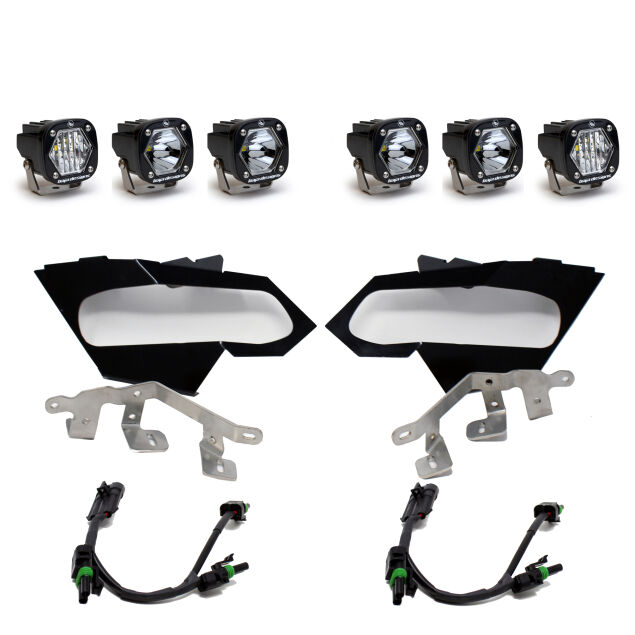

What's Included

• Six Baja Designs S1 LED light pods
• Spot and Wide Cornering optical configurations
• Vehicle-specific precision-cut mounting brackets
• Plug-and-play wiring components for the selected application
• Mounting hardware
• Installation components

Note: Confirm included components before installation.



---



Installation Notes

• Choose the kit that matches the vehicle year, model, trim, and original headlight arrangement; supported applications use different brackets and wiring.
• Installation generally requires removal of factory headlight components, assembly of the vehicle-specific brackets, mounting three S1 pods per side, harness connection, and beam aiming.
• Secure all wiring away from suspension, steering, heat, sharp edges, and moving parts, then test the complete system before driving.
• Recheck fasteners, harness retention, connector seals, and light aim after the first demanding ride or any front-end impact.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs supports S1 lighting kits with a 30-day satisfaction guarantee and a limited lifetime warranty against qualifying manufacturing defects. Proof of purchase may be required, and warranty evaluation can include the light, wiring, mounting, and installation condition.

Coverage typically excludes incorrect installation, incompatible wiring, misuse, unauthorized modifications, tampering, collision or impact damage outside warranty terms, overloading, and operation that does not follow applicable requirements. Replaceable lenses and optics provide a service path for common external wear.
