Baja Designs Polaris RZR Pro Roof Bar Kit



The Baja Designs Polaris RZR Pro Roof Bar Kit adds a 40-inch forward light bar across the roofline for customers who need stronger downrange visibility during fast nighttime travel. The elevated position helps project over the hood and immediate foreground, making it well suited to open trails, dunes, desert routes, dry lake beds, and high-speed recreational driving.

Two distinct light bar platforms allow customers to prioritize maximum output or a slimmer, lower-draw package. The OnX6+ version uses High Speed Spot reflector technology and delivers the stronger raw output, while the S8 version uses a lower-profile housing and includes an amber backlight for marker-style visibility.

Both versions use a clear Driving/Combo main beam to blend long-range projection with practical width. The beam is intended to illuminate the farther lighting zones, helping riders identify route direction, terrain changes, and obstacles earlier when speed makes reaction distance especially important. That forward emphasis is especially useful on open, fast terrain.

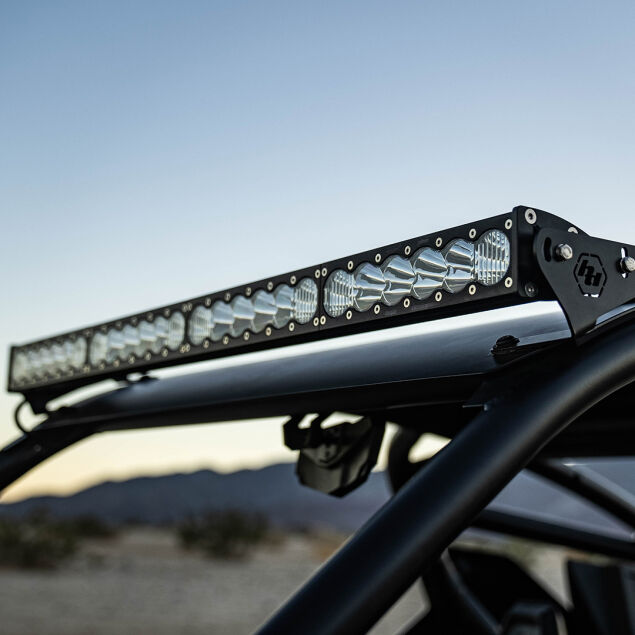

Vehicle-specific roof brackets position the 40-inch bar across the supported side-by-side roofline and use established mounting locations. This creates a cleaner result than adapting a universal roof bar and helps keep the light stable when the vehicle encounters vibration, jumps, ruts, and repeated suspension movement.

The OnX6+ option produces 39,430 raw lumens at 355 watts and 28.2 amps for customers who prioritize maximum distance output. The S8 option produces 25,400 raw lumens at 240 watts and 16 amps, offering substantial forward lighting with a slimmer profile and lower electrical demand.

Whether customers are upgrading for fast trail riding, dunes, desert travel, dry lake beds, nighttime recreation, or farther downrange recognition, the Baja Designs Polaris RZR Pro Roof Bar Kit delivers a matched roof-level lighting system with two clear performance choices. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific roof bar LED light kit

Brand: Baja Designs

Light Bar Size: 40-inch

Available Models: OnX6+ or S8

Beam Pattern: Driving/Combo

Lens Color: Clear main lens

Mounting Location: Roofline

OnX6+ Output: 39,430 raw lumens

OnX6+ Power Draw: 355 watts and 28.2 amps

S8 Output: 25,400 raw lumens

S8 Power Draw: 240 watts and 16 amps

S8 Accent Function: Amber backlight

Lighting Zones: Farther forward zones 3 and 4

Vehicle Fitment: Polaris RZR Pro R applications

Functionality:

• Adds full-width forward lighting from the roofline
• Projects over the hood and near-field obstacles for improved downrange visibility
• Supports high-speed trails, dunes, desert routes, and dry lake beds
• Offers a maximum-output OnX6+ option and a slimmer S8 option
• Balances distance and width through Driving/Combo optics
• Provides amber marker-style backlighting with the S8 version
• Uses vehicle-specific brackets for stable and integrated mounting
• Includes matched wiring and hardware for the selected light bar platform



---



Available Options

The Baja Designs Polaris RZR Pro Roof Bar Kit is available with two 40-inch light bar platforms:

• 40-inch OnX6+ kit - Produces 39,430 raw lumens at 355 watts and 28.2 amps for customers who prioritize the highest output and strongest long-range projection in this group.
• 40-inch S8 kit - Produces 25,400 raw lumens at 240 watts and 16 amps, with a slimmer housing and amber backlight for customers who want lower draw and a lower-profile appearance.

Choose the OnX6+ kit for maximum raw output and downrange intensity, or choose the S8 kit for a slimmer bar, lower electrical demand, and amber backlighting.



---



Why Choose

This product is ideal for customers who want a complete 40-inch roof lighting system with a choice between maximum output and a lower-profile design.

• The elevated position helps illuminate farther terrain beyond the hood line
• Both versions use Driving/Combo optics for a practical mix of reach and width
• OnX6+ delivers the higher raw output for aggressive high-speed use
• S8 reduces electrical demand while retaining substantial downrange light
• The S8 amber backlight adds marker-style visibility when the main beam is not needed
• Vehicle-specific brackets provide a cleaner and more stable roof installation
• Matched wiring and hardware simplify component selection
• The two-platform choice lets customers balance output, draw, and exterior profile



---

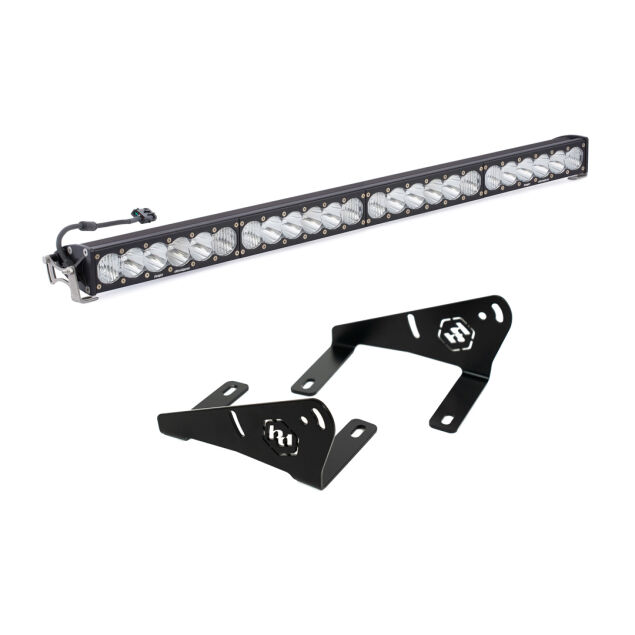

What's Included

• One Baja Designs 40-inch OnX6+ or 40-inch S8 Driving/Combo clear LED light bar based on the selected version
• Two vehicle-specific roof bar brackets
• Wiring harness matched to the selected light bar platform
• Installation and mounting hardware
• Installation instructions

Note: Confirm included components before installation.



---



Installation Notes

• Confirm vehicle, model year, roof structure, cage accessories, and selected light bar platform before installation.
• Verify that the vehicle electrical system and switching equipment support the amperage of the selected OnX6+ or S8 kit.
• Route wiring through a protected path away from sharp edges, moving roof components, and areas exposed to repeated abrasion.
• Aim the bar, check for vibration or wind noise, and re-torque the brackets after the first off-road drive.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lighting products are supported by a limited lifetime warranty against qualifying defects in materials and workmanship, along with a 30-day satisfaction guarantee for eligible purchases.

Warranty coverage typically excludes improper installation, misuse, unauthorized modifications, electrical faults outside the product, overloading, tampering, collision or impact damage outside the written terms, and use that does not comply with applicable requirements. Proof of purchase may be required for a claim.
