Baja Designs OnX6/S8/XL Upfitter Wiring Harness

FROM: $18.95 USD

CONFIRM THIS ITEM FITS YOUR TRUCK:

Year

2021 2020 2019 2018 2017 2014 2013 2012 2011 2010

Make

Model

  • Free Shipping
    Ships within 24 hours! (Business days only)
  • Fast Fulfillment
  • Military Discount

    For all active, reservist, veteran, and retired U.S. military personnel.

    Verify Military Status


Disclaimer: Product information and images are provided by the manufacturer. While we strive for accuracy, LEER is not responsible for errors, omissions, or discrepancies in manufacturer-supplied-content.

Product Overview

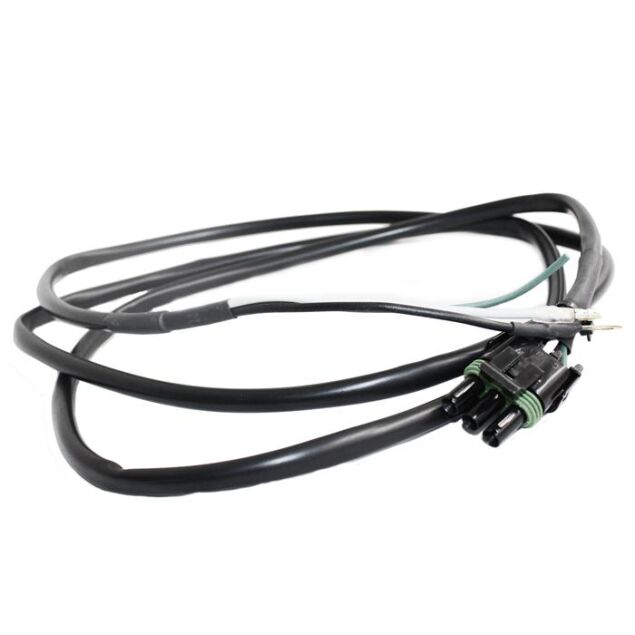

The Baja Designs OnX6/S8/XL Upfitter Wiring Harness is designed for customers installing compatible Baja Designs lights on vehicles equipped with factory upfitter or auxiliary switches. Instead of using a standalone toggle switch harness, this upfitter harness helps connect compatible lighting into an existing switch system for a cleaner and more integrated control setup.

This harness is built for OnX6, S8, and XL Baja Designs lighting applications. It uses a three-pin connection and splice connectors, making it a practical wiring solution for customers who want to connect compatible Baja Designs lighting to factory upfitter switches or an aftermarket switch panel.

Baja Designs also notes that this harness can be used with switch panels such as sPOD or other switch panel units. This makes it useful for builds where accessory lighting is managed through a centralized power control system rather than multiple individual switches.

For customers planning to run two lights from a single harness, Baja Designs specifies that the 3-pin OnX6/S8/XL 2-light splitter, PN 613608, is also needed. Customers should confirm their selected light model, wiring layout, and switch system before installation.

Whether customers are upgrading for off-road lighting, overlanding, worksite lighting, trail visibility, or a cleaner auxiliary switch setup, the Baja Designs OnX6/S8/XL Upfitter Wiring Harness delivers a simple wiring solution for compatible Baja Designs lighting systems. Now Available at LEER!




Features & Specifications

Product Type: Upfitter Wiring Harness
Brand: Baja Designs
SKU: 640094
Application: OnX6/S8/XL
Vehicle Fitment: Universal
Product Function: Connects compatible Baja Designs lights to factory upfitter switches or compatible switch panel systems
Terminal Connection: Three-pin connection
Terminal Type: Splice connectors
Wiring Harness Included: Yes
Switch Included: No
Mounting Hardware Included: No
Fitment: Universal, depending on selected lighting, vehicle wiring, and switch system

Functionality:

  • Factory upfitter switch integration
  • Auxiliary lighting wiring
  • Compatible switch panel integration
  • OnX6 lighting installation support
  • S8 lighting installation support
  • XL lighting installation support
  • Cleaner lighting control setup



Available Options

The Baja Designs OnX6/S8/XL Upfitter Wiring Harness is offered as a universal wiring harness for compatible OnX6, S8, and XL lighting applications.

  • OnX6/S8/XL Upfitter Wiring Harness – Best for customers who want to connect compatible Baja Designs lights to factory upfitter switches or a compatible switch panel system. This harness uses a three-pin connection and splice connectors and does not include a switch or mounting hardware.
    For two-light setups on a single harness, customers should also use the 3-pin OnX6/S8/XL 2-Light Splitter, PN 613608, as noted by Baja Designs.




Why Choose the Baja Designs OnX6/S8/XL Upfitter Wiring Harness?

This product is ideal for customers who want a cleaner way to connect compatible Baja Designs lights to existing auxiliary switch systems.

  • Designed for vehicles with factory upfitter or auxiliary switches
  • Works with compatible Baja Designs OnX6, S8, and XL lights
  • Can be used with sPOD or other switch panel units
  • Helps reduce the need for extra standalone switches
  • Uses a three-pin connection for compatible Baja Designs lighting
  • Includes splice connectors for upfitter-style wiring integration
  • Supports clean, organized lighting control on off-road and overland builds



What’s Included

  • Baja Designs OnX6/S8/XL Upfitter Wiring Harness
  • Splice connector wiring setup

Note: Switch, mounting hardware, lights, and 2-light splitter are not included. If using two lights on one harness, Baja Designs notes that the 3-pin OnX6/S8/XL 2-Light Splitter, PN 613608, is also required.




Installation Notes

  • Universal upfitter wiring harness
  • Designed for compatible Baja Designs OnX6, S8, and XL lighting applications
  • Intended for vehicles with factory upfitter / auxiliary switches or compatible switch panel systems
  • Can also be integrated with switch panels such as sPOD or other switch panel units
  • If using two lights on a single harness, use the 3-pin OnX6/S8/XL 2-Light Splitter, PN 613608
  • Does not include a switch
  • Does not include mounting hardware
  • Confirm compatibility with the selected Baja Designs light, vehicle wiring, and switch system before installation
  • Buyer is responsible for use in accordance with applicable vehicle, road, off-road, wiring, and local laws



Warranty Information

Baja Designs Warranty

Baja Designs wiring and lighting accessories are commonly listed with:

  • 30-Day Satisfaction Guarantee
  • Limited Lifetime Warranty


Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
