Baja Designs OnX6+ Hood Mount

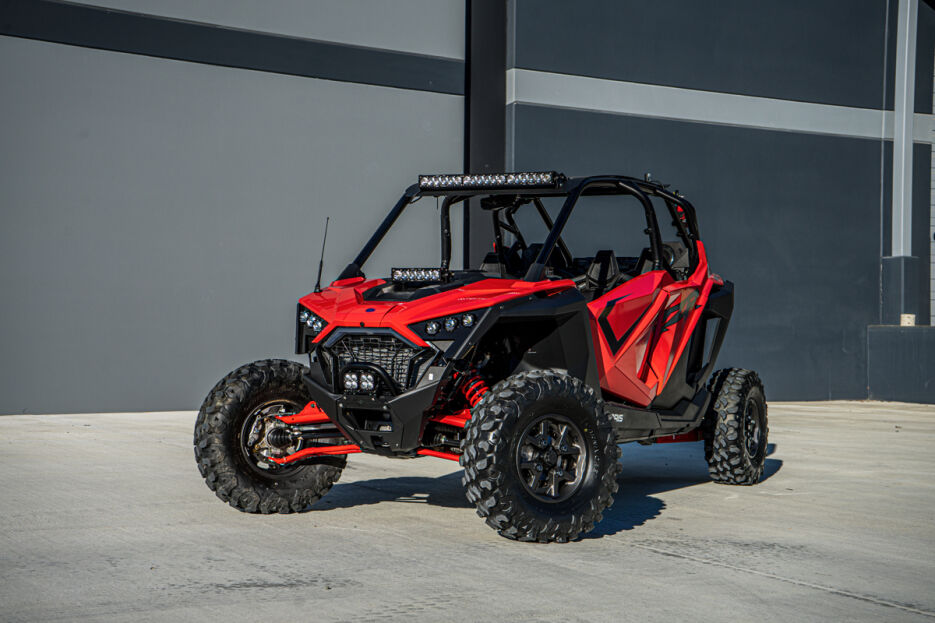

The Baja Designs OnX6+ Hood Mount Light Bar Kit positions a compact 10-inch light bar low on the front of a performance side-by-side for strong forward visibility without the height and visual mass of a full roof bar. It is designed for customers who want a clean, integrated lighting upgrade that follows the vehicle bodywork and keeps the roofline open.

The included OnX6+ light bar uses a Driving/Combo pattern to blend long-distance projection with useful spread through the near and middle lighting zones. That balance helps customers read trail direction, changes in elevation, ruts, rocks, and open terrain while maintaining a concentrated center beam for faster sections.

High and low output capability provides additional control over brightness. Full output supports open terrain and remote nighttime travel, while the lower mode can be useful when the immediate surroundings are already illuminated or when customers want reduced intensity without switching the light completely off.

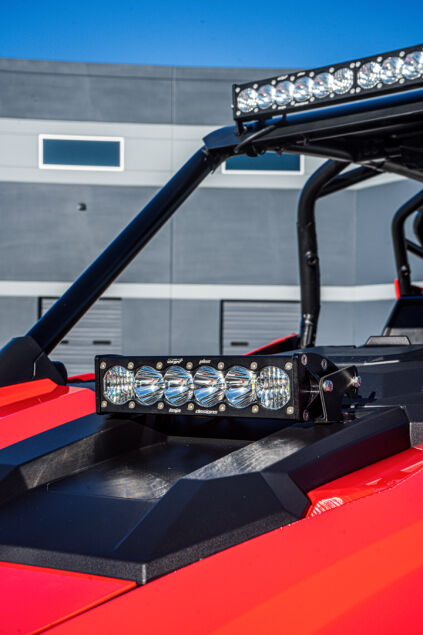

The hood-area brackets are shaped for the supported side-by-side platform and position the bar in a low-profile location. This integrated placement supports a factory-influenced appearance, preserves the upper cage area for cargo or other accessories, and keeps the light close to the vehicle centerline for predictable beam placement. The result keeps the front profile tidy and functional.

The OnX6+ assembly uses an aircraft-grade aluminum housing, billet machined aluminum bezel, hardcoated polycarbonate lens, and stainless steel mounting hardware. IP69K water resistance, IK10 impact compliance, built-in overvoltage protection, and testing beyond MIL-STD810G support use in rain, mud, dust, vibration, and rough terrain.

Whether customers are upgrading for trail riding, dune driving, desert travel, nighttime recreation, or a compact front-lighting package, the Baja Designs OnX6+ Hood Mount Light Bar Kit delivers controlled output and vehicle-integrated mounting. Now Available at LEER!



---



Features & Specifications

Product Type: Hood mount LED light bar kit

Brand: Baja Designs

Series: OnX6+

Light Bar Size: 10-inch

Beam Pattern: Driving/Combo

Lens Color: Clear

Lighting Modes: High and low

Brightness: 10,817 lumens on high and 9,230 lumens on low

Power Draw: 106.26 watts and 7.7 amps

Housing Material: Aircraft-grade aluminum with Mil-Spec hard anodize

Lens Material: Hardcoated polycarbonate

Water Resistance: IP69K, waterproof up to 9 feet and pressure washable

Durability: Exceeds MIL-STD810G and is IK10 compliant

Average Rated Life: 49,930 hours

Vehicle Fitment: Select Polaris RZR Pro XP and RZR Turbo R applications

Functionality:

• Adds forward lighting from a compact hood-level position
• Balances distance and trail width through Driving/Combo optics
• Provides high and low output for changing visibility needs
• Keeps the roofline available for cargo, accessories, or additional lighting
• Uses application-specific brackets for stable and integrated placement
• Supports trail, dune, desert, and nighttime recreational driving
• Resists water, impact, vibration, and pressure washing in off-road use
• Allows lens and optic replacement through uService construction



---



Why Choose

This product is ideal for customers who want a compact hood-mounted light bar with strong OnX6+ output and vehicle-specific fitment.

• Low-profile placement maintains a clean front-end appearance
• The 10-inch bar adds substantial light without requiring a full-width mount
• Driving/Combo optics support both forward reach and practical trail spread
• High and low modes add flexibility for different terrain and surroundings
• Application-specific brackets reduce the need for custom fabrication
• Durable materials support repeated exposure to mud, water, dust, and vibration
• Serviceable lenses and optics help extend useful product life
• Centered hood-level placement creates predictable beam alignment



---

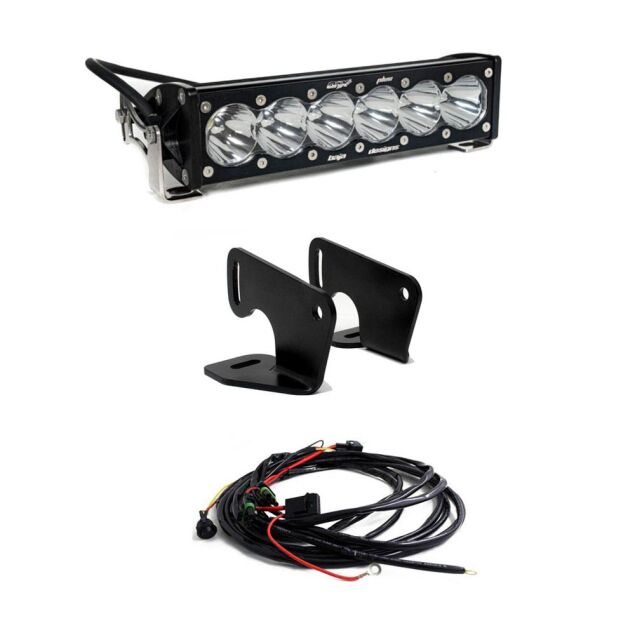

What's Included

• One Baja Designs OnX6+ 10-inch Driving/Combo clear LED light bar
• Vehicle-specific hood mounting brackets
• Hi-Low dongle
• Stainless steel mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Confirm vehicle, model year, trim, hood design, and accessory clearance before installation.
• The main wiring harness is not included with some versions, so verify the required harness and switch arrangement before beginning work.
• Route wiring away from hood hinges, steering components, heat sources, sharp edges, and moving suspension parts.
• Aim the bar after installation and recheck mounting hardware after the first off-road drive.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lighting products are supported by a limited lifetime warranty against qualifying defects in materials and workmanship, along with a 30-day satisfaction guarantee for eligible purchases.

Warranty coverage typically excludes improper installation, misuse, unauthorized modifications, electrical faults outside the product, overloading, tampering, collision or impact damage outside the written terms, and use that does not comply with applicable requirements. Proof of purchase may be required for a claim.
