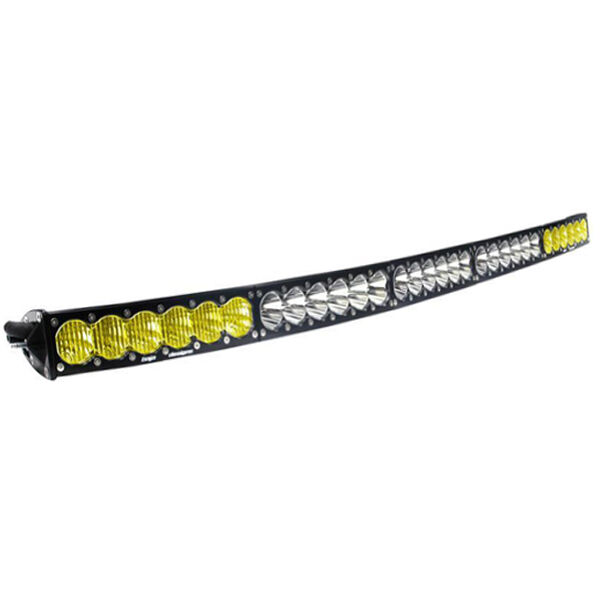

The Baja Designs OnX6 Arc Dual Control LED Light Bar combines the long-distance performance of the OnX6 platform with a curved profile and independent lighting control. The arc design helps the bar follow the natural shape of many bumpers, rooflines, and windshield mounts, while the dual-control setup lets the inner and outer sections operate separately.
With the correct wiring, this configuration allows one light bar to provide both white forward projection and amber lighting for dust, fog, snow, or poor-visibility conditions. It is a versatile option for drivers who want high-output lighting without installing multiple separate bars.
The OnX6 Arc Dual Control is built with Baja Designs' advanced optics, durable aluminum construction, hard-coated polycarbonate lenses, and IP69K-rated sealing. It is designed for high-speed off-road use, trail driving, overlanding, and demanding environments where beam control and durability matter.
For builds that need wide visual coverage, dual-color flexibility, and premium off-road performance, the OnX6 Arc Dual Control LED Light Bar is a strong fit. Now available at LEER.
Features & Specifications
-
System Type: Curved OnX6 dual-control LED light bar
-
Dual Control System: Separate circuits for inner and outer light sections
-
Lighting Colors: Amber and white combination
-
Beam Pattern: Driving/Combo configurations are common; other options may vary
-
Brightness: Varies by size, with larger configurations delivering very high output
-
Design: Curved arc profile for wider vehicle integration
-
Housing: Aircraft-grade aluminum with hard-anodized finish
-
Lens: Hard-coated polycarbonate
-
Waterproof Rating: IP69K, waterproof up to 9 feet and pressure washable
-
Impact Resistance: IK10 compliant on applicable configurations
-
Technology: CopperDrive, MoistureBlock, and serviceable lens technology
-
Average Rated Life: Approximately 49,000+ hours
Size Options
Available in multiple curved lengths for different mounting locations and vehicle widths.
-
30" Light Bar: Compact curved setup with strong output
-
40" Light Bar: Mid-size arc configuration for increased coverage
-
50" Light Bar: Full-width curved lighting for larger builds
-
60" Light Bar: Maximum-width applications where available
Larger sizes provide broader trail coverage, while smaller sizes offer more flexible mounting.
Why Choose the OnX6 Arc Dual Control Light Bar?
This bar is built for drivers who want curved styling, high-output performance, and separate amber/white control in one system.
- Dual-control operation gives you two lighting zones in one bar
- Amber and white lighting options help adapt to changing conditions
- Curved design improves vehicle integration and side-to-side coverage
- Premium Baja Designs optics support distance and trail visibility
- Rugged construction is built for off-road abuse
What's Included
- (1) OnX6 Arc Dual Control LED light bar
- Mounting brackets
- Installation hardware
Note: Wiring harnesses are not included with all configurations and may need to be purchased separately for full dual-control operation.
Installation Notes
- Universal fitment for trucks, SUVs, and custom off-road builds
- Mounts to roof racks, bumpers, windshield mounts, or custom brackets
- Requires compatible wiring for dual-control operation
- Professional installation is recommended
Warranty Information
Baja Designs Warranty
Baja Designs lights are backed by a limited lifetime warranty and a 30-day satisfaction guarantee.
