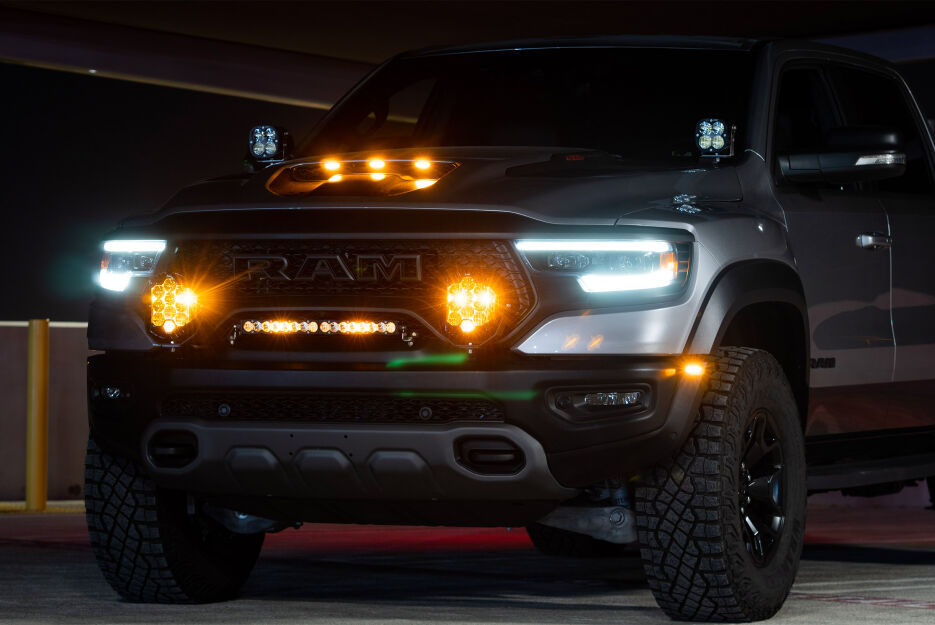

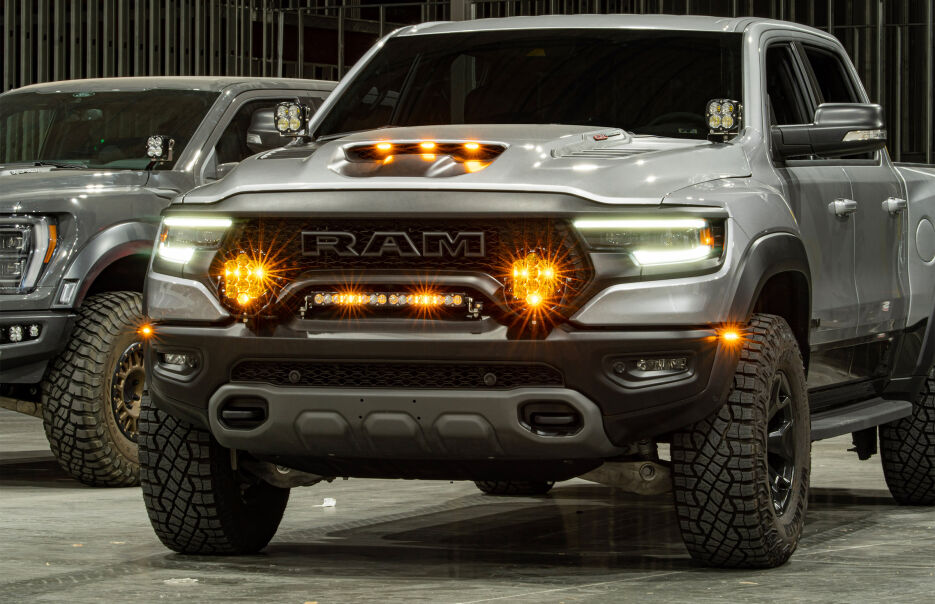

Baja Designs LP9 Pro Bumper Light Kit



The Baja Designs LP9 Pro Bumper Light Kit gives compatible Ram off-road trucks a clean way to add flagship LP-series lighting to the front bumper area. Two LP9 Pro lights, vehicle-specific brackets, and components for factory auxiliary-switch integration create a coordinated package for customers who want substantial output without fabricating a custom mounting system.

Each LP9 Pro produces 12,547 lumens, and the included pair delivers more than 22,000 lumens of combined forward lighting. The clear Driving/Combo pattern balances long-range projection with useful near-to-mid-range spread, making the kit well suited to desert routes, open trails, backroads, overlanding, and nighttime work where both reach and surrounding awareness matter.

Integrated Peripheral Technology adds dedicated illumination to the outer edges of the beam. This broad 200-degree field of usable light helps reveal turns, washes, trail entrances, rocks, brush, ruts, animals, and other hazards that may sit outside the forward centerline. The result is a more complete view of the route than a narrow distance beam alone can provide.

Amber backlighting gives the front of the truck a recognizable LP-series accent and a lower-intensity visual mode when full output is not needed. High-power and low-power operation provide additional control over intensity, while the black housings and clear lenses create a purposeful appearance that complements aggressive factory and aftermarket bumper styling.

The LP9 Pro uses Direct Ducted Cooling, serviceable lenses and optics, built-in overvoltage protection, powder-coated cast aluminum housings, hardcoated polycarbonate lenses, and stainless steel hardware. IP69K water resistance, IK10 impact compliance, and durability testing that exceeds MIL-STD810G support operation in dust, rain, mud, vibration, debris, and demanding off-road conditions.

Whether customers are upgrading for desert travel, open-trail visibility, overlanding, nighttime backroads, work use, or a more capable front bumper lighting system, the Baja Designs LP9 Pro Bumper Light Kit delivers flagship output with Ram-specific mounting and auxiliary-switch integration. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific bumper auxiliary light kit

Brand: Baja Designs

Series: LP9 Pro

Light Quantity: Two LP9 Pro LED lights

Lens and Beam: Clear Driving/Combo

Output: 12,547 lumens per light and more than 22,000 combined lumens

Peripheral Output: 2,302 lumens per light through Integrated Peripheral Technology

Lighting Spread: 200 degrees of usable light

Power Draw: 124.2 watts and 9 amps per light

Lighting Modes: High power, low power, and amber daytime running backlighting

Housing and Lens: Powder-coated cast aluminum housing with hardcoated polycarbonate lens

Protection: IP69K water resistance, IK10 impact compliance, and durability exceeding MIL-STD810G

Vehicle Fitment: 2019-2024 Ram 1500 Rebel and 2021-2024 Ram 1500 TRX

Functionality:

• Adds two flagship LP9 Pro lights to the front bumper area.
• Provides substantial combined output for open terrain and high-speed off-road use.
• Blends long-range projection with near-to-mid-range Driving/Combo coverage.
• Uses dedicated peripheral LEDs to improve awareness around the sides of the beam.
• Adds amber backlighting for a distinctive lower-intensity accent.
• Provides high-power and low-power modes for different lighting demands.
• Uses vehicle-specific brackets for a cleaner installation than many universal mounts.
• Integrates with compatible OEM upfitter switches for factory-style control.



---



Why Choose

This product is ideal for customers who want flagship LP9 Pro output with Ram-specific bumper mounting and compatible factory auxiliary-switch control.

• Includes two clear Driving/Combo LP9 Pro lights for balanced front-end illumination.
• Delivers more than 22,000 combined lumens for demanding nighttime routes.
• Integrated Peripheral Technology broadens awareness beyond the center of the beam.
• Direct Ducted Cooling supports thermal control during extended high-output use.
• Amber backlighting adds a signature Baja Designs appearance.
• Vehicle-specific brackets reduce the need for fabricated mounting solutions.
• Factory auxiliary-switch integration helps preserve a clean control layout.
• Rugged materials and tested protection suit desert, trail, weather, and work environments.



---

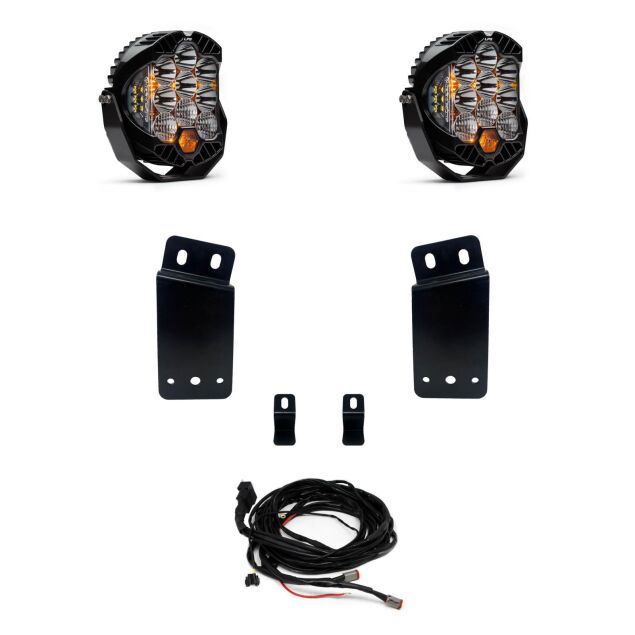

What's Included

• Two Baja Designs LP9 Pro Clear Driving/Combo LED lights.
• Ram-specific front bumper mounting brackets.
• Components for compatible OEM upfitter-switch integration.
• Necessary mounting hardware.
• Installation instructions when supplied.

Note: Confirm included components before installation.



---



Installation Notes

• Confirm 2019-2024 Ram 1500 Rebel or 2021-2024 Ram 1500 TRX fitment, bumper configuration, and factory upfitter-switch equipment before installation.
• Provide adequate bumper-area clearance and support for both eight-inch lights and verify that airflow through the Direct Ducted Cooling passages is not blocked.
• Route wiring through protected paths and connect only to a properly rated, fused auxiliary-control circuit.
• Aim both lights after mounting and verify high-power, low-power, backlight, switch, and harness operation.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lists LP9 Pro lighting with a 30-Day Satisfaction Guarantee and a limited lifetime warranty against qualifying defects in materials or workmanship. Serviceable lenses and optics support long-term maintenance when handled within warranty requirements.

Warranty coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty service.
