Baja Designs LP4 Pro Bumper Light Kit



The Baja Designs LP6 Pro Bumper Light Kit gives compatible Jeep platforms a substantial auxiliary-lighting upgrade centered on the factory bumper area. Two six-inch LP6 Pro lights, application-specific mounting supports, and selected wiring create a coordinated system for customers who want more output and broader coverage than a smaller bumper pod can provide.

Each LP6 Pro produces 11,225 lumens and uses Integrated Peripheral Technology to create a 200-degree field of usable light. The main LEDs project forward while dedicated peripheral LEDs illuminate the sides of the beam, helping reveal trail edges, curves, rocks, ruts, brush, and obstacles near the vehicle. This combination supports both distance awareness and a wider view of surrounding terrain.

Clear Driving/Combo optics balance forward reach with useful near-to-mid-range spread, making the kit suitable for mixed trail speeds, open backroads, overlanding, and nighttime work. High-power and low-power modes add control over intensity, while amber daytime running backlighting gives the front bumper a recognizable Baja Designs accent when full output is not required.

Direct Ducted Cooling channels air across the rear heat sinks to support consistent performance during extended operation. The lights use powder-coated cast aluminum housings, hardcoated polycarbonate lenses, stainless steel hardware, built-in overvoltage protection, and serviceable lenses and optics. IP69K water resistance, IK10 impact compliance, and durability exceeding MIL-STD810G support demanding conditions.

Configurations are available for compatible OE plastic and OE steel bumpers, with toggle and upfitter wiring choices for different control systems. The selected bumper type determines the mounting supports, and the selected harness determines how the lights connect to a dedicated switch or compatible auxiliary controls. Correct selection helps keep the installation stable, aligned, and electrically appropriate.

Whether customers are upgrading for high-output trail lighting, overlanding, nighttime work, bumper-mounted visibility, or broader awareness around the vehicle, the Baja Designs LP6 Pro Bumper Light Kit delivers powerful LP-series performance in an integrated application-specific package. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific bumper auxiliary light kit

Brand: Baja Designs

Series: LP6 Pro

Light Quantity: Two LP6 Pro LED lights

Lens and Beam: Clear Driving/Combo

Output: 11,225 lumens per light

Peripheral Output: 1,972 lumens per light through Integrated Peripheral Technology

Lighting Spread: 200 degrees of usable light

Power Draw: 103.5 watts and 7.5 amps per light

Lighting Modes: High power, low power, and amber daytime running backlighting

Housing and Lens: Powder-coated cast aluminum housing with hardcoated polycarbonate lens

Protection: IP69K water resistance, IK10 impact compliance, and durability exceeding MIL-STD810G

Fitment: Jeep Wrangler JL and Jeep Gladiator JT with compatible OE plastic or OE steel bumpers

Functionality:

• Adds a matched pair of high-output LP6 Pro lights to the bumper area.
• Combines long-range projection with dedicated peripheral coverage.
• Uses Driving/Combo optics for mixed terrain and changing trail speeds.
• Helps illuminate turns, trail edges, obstacles, and open sections after dark.
• Provides high-power, low-power, and amber backlight modes.
• Supports compatible OE plastic and OE steel bumper configurations.
• Offers toggle or upfitter harness choices for different control preferences.
• Uses durable construction for water, dust, vibration, impact, mud, and debris exposure.



---



Available Options

The Baja Designs LP6 Pro Bumper Light Kit is available in bumper-specific and wiring-specific configurations:

• OE Plastic Bumper with Toggle Harness - uses plastic-bumper mounting supports and a dedicated switch harness.
• OE Plastic Bumper with Upfitter Harness - uses plastic-bumper mounting supports and wiring for compatible auxiliary-control systems.
• OE Steel Bumper with Toggle Harness - uses steel-bumper mounting supports and a conventional switched harness.
• OE Steel Bumper with Upfitter Harness - uses steel-bumper mounting supports and wiring for compatible factory or aftermarket power controls.

Choose the version that matches the OE bumper, then choose a toggle harness for a dedicated switch or an upfitter harness for compatible auxiliary-control integration.



---



Why Choose

This product is ideal for customers who want substantial LP6 Pro output, broad peripheral awareness, and a cleaner bumper-specific installation.

• Includes two six-inch LP6 Pro lights for balanced front-end illumination.
• Produces 11,225 lumens per light for demanding nighttime travel.
• Integrated Peripheral Technology improves visibility around the sides of the main beam.
• Driving/Combo optics provide a practical balance of reach and width.
• Direct Ducted Cooling supports thermal control during extended high-output use.
• Amber backlighting creates a distinctive LP-series appearance.
• Application-specific brackets reduce the need for custom fabrication.
• Toggle and upfitter wiring choices support common switch and power-management layouts.



---

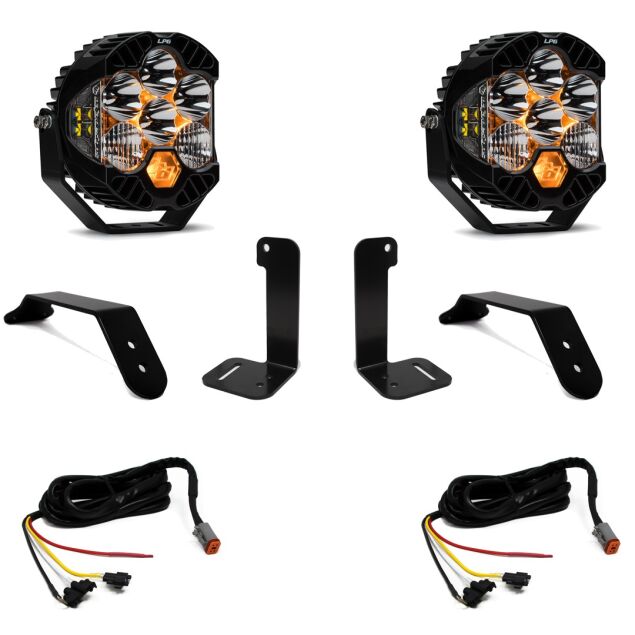

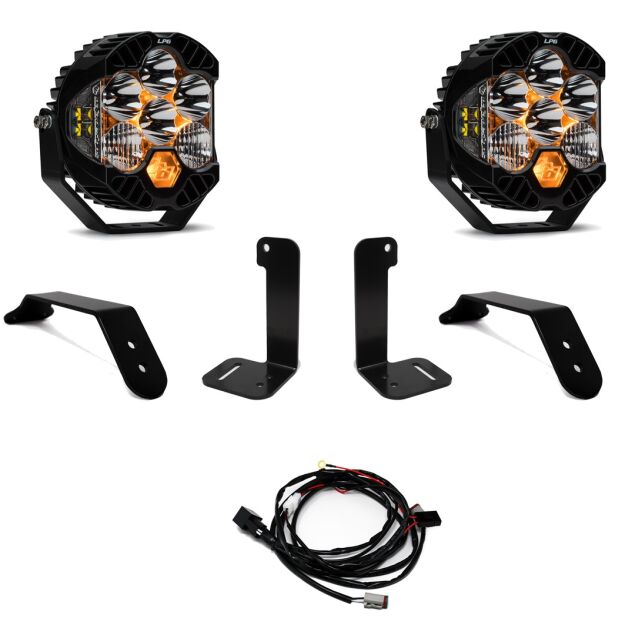

What's Included

• Two Baja Designs LP6 Pro Clear Driving/Combo LED lights.
• Bumper bracket supports for the selected bumper type.
• Light mounting brackets.
• Toggle wiring harness or upfitter harness, depending on selected configuration.
• Necessary mounting hardware.
• Installation instructions when supplied.

Note: Confirm included components before installation.



---



Installation Notes

• Confirm Jeep Wrangler JL or Jeep Gladiator JT fitment, model year, trim, and OE bumper type before installation.
• Use the mounting supports intended for the selected OE plastic or OE steel bumper.
• Route wiring through protected paths and connect through a properly fused switch or compatible auxiliary-control system.
• Aim both lights after mounting and verify high-power, low-power, backlight, switch, and harness operation.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lists LP6 Pro lighting with a 30-Day Satisfaction Guarantee and a limited lifetime warranty against qualifying defects in materials or workmanship. Serviceable lenses and optics support long-term maintenance when handled within warranty requirements.

Warranty coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty service.
