Baja Designs Kawasaki Teryx KRX S1 Headlight Kit

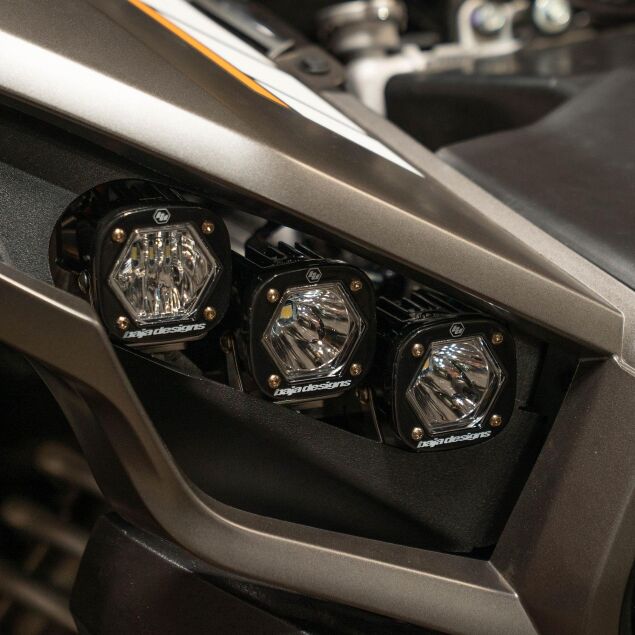

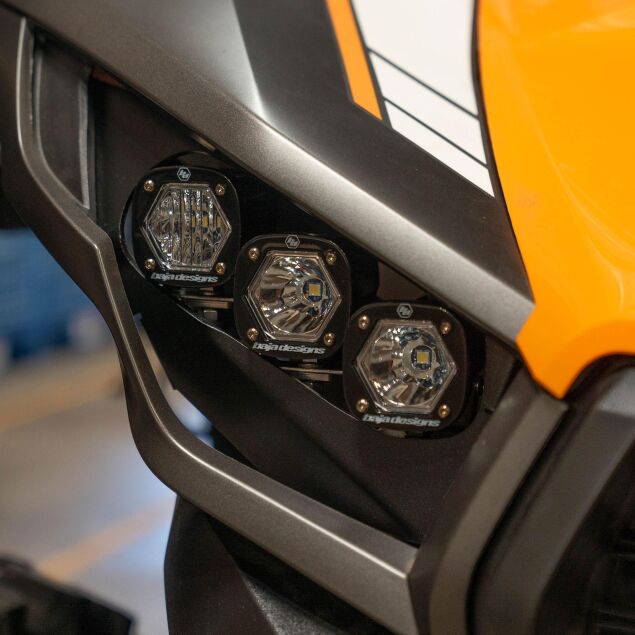

The Baja Designs Kawasaki Teryx KRX S1 Headlight Kit replaces the original headlight assemblies with six compact LED pods arranged for broad and focused off-road visibility. Three S1 lights sit on each side of the vehicle, creating a symmetrical front-end appearance that remains integrated with the factory headlight area. It is a complete lighting conversion for customers who want a stronger view of the trail without relying solely on bumper or roof-mounted accessories.

Four Spot pods and two Wide Cornering pods work together to cover different parts of the driving environment. The Spot optics project light farther down open trails and faster sections, while the Wide Cornering optics spread illumination across turns, trail edges, rocks, ruts, and near-field hazards. This combination gives customers useful depth and width instead of concentrating all six lights into a single narrow beam.

Each S1 delivers 2,320 raw lumens while using 19.6 watts and 1.42 amps. The complete arrangement supports lighting zones 1 through 3 and reaches into zone 4, helping drivers see close terrain, changing direction, mid-range trail features, and objects farther ahead. Specialized reflectors and next-generation LEDs keep the pods compact while producing a focused, purposeful beam for low-light driving.

Vehicle-specific mounting brackets position the six lights within the original headlight area and preserve a clean, aggressive appearance. Headlight adapter harnesses support plug-and-play connection, and the included hardware helps customers complete the conversion without fabricating universal mounts. Keeping the system in the factory location also leaves other mounting areas open for dedicated chase, roof, bumper, or side lighting when a larger multi-zone setup is desired.

The mixed-beam layout is well suited to technical rock sections, wooded trails, desert routes, recreational night rides, and uneven terrain where hazards can appear both ahead and to the sides. Wide Cornering light supports slower maneuvering and turn entry, while the Spot pods add reach for straighter sections. The six-light arrangement also provides a distinctive performance look that matches the rugged character of a sport UTV.

Correct fitment, bracket orientation, connector engagement, and final aiming are important to system performance. Customers should verify the vehicle year and front-end configuration, route harnesses away from heat and suspension movement, and recheck fasteners after the first demanding ride. Whether customers are upgrading for rock crawling, trail exploration, desert driving, or clearer low-light terrain recognition, the Baja Designs Kawasaki Teryx KRX S1 Headlight Kit delivers wide and focused illumination in a complete factory-location conversion. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific LED headlight conversion kit

Brand: Baja Designs

Series: S1

Vehicle Fitment: Kawasaki Teryx KRX 1000 2023-2024

Mounting Location: Factory headlight area

Light Configuration: Six S1 pods with three lights per side

Beam Configuration: Four Spot pods and two Wide Cornering pods

Output: 2,320 raw lumens per light

Power Draw: 19.6 watts and 1.42 amps per light

Lighting Coverage: Zones 1 through 3 with reach into zone 4

Lens Color: Clear

Wiring: Plug-and-play headlight adapter harnesses included

Functionality:

• Replaces the original headlights with a complete six-pod LED system
• Combines long-range Spot lighting with broad Wide Cornering coverage
• Improves visibility of trail edges, turns, rocks, ruts, and surface transitions
• Supports low-speed technical driving and faster open-trail travel
• Keeps the lighting package integrated into the factory headlight area
• Uses vehicle-specific brackets for controlled positioning and aiming
• Preserves roof and bumper space for additional lighting zones



---



Why Choose

This product is ideal for customers who want a rugged factory-location headlight conversion with useful coverage from the foreground into longer-range zones.

• Six S1 pods provide a substantial visual and functional change from the original headlights
• Three lights per side create balanced coverage and a clean front-end layout
• Four Spot pods support forward reach on open sections and faster terrain
• Two Wide Cornering pods improve awareness around turns and close obstacles
• Compact light housings deliver strong output without oversized external hardware
• Plug-and-play adapters simplify electrical integration for the matching vehicle
• Included brackets reduce the need for custom fabrication
• Serviceable lenses and optics help support long-term ownership



---



What's Included

• Four Baja Designs S1 Spot LED lights
• Two Baja Designs S1 Wide Cornering LED lights
• Two headlight adapter harnesses
• Four vehicle-specific mounting brackets
• Necessary mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Fits Kawasaki Teryx KRX 1000 applications from 2023 through 2024; verify year, trim, front fascia, and factory headlight configuration before installation.
• Installation requires removal of the original headlight components, assembly of the supplied brackets, placement of three S1 lights per side, harness connection, and careful final aiming.
• Route and secure wiring away from steering, suspension, exhaust heat, sharp edges, and moving parts, then test all functions before driving.
• Inspect bracket fasteners, wiring retention, and beam aim after the first trail ride and after impacts or front-end service.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs backs this S1 headlight kit with a 30-day satisfaction guarantee and a limited lifetime warranty against qualifying manufacturing defects. Warranty evaluation may require proof of purchase and inspection of the product and installation.

Coverage typically excludes improper installation, incorrect wiring, misuse, unauthorized modification, tampering, impact damage outside warranty terms, and use that does not follow applicable requirements. Replaceable lenses and optics support service when external components are damaged or worn.
