Baja Designs DOT LP6 Headlight Kit



The Baja Designs DOT LP6 Headlight Kit brings the bold round appearance of the LP6 platform to a street-focused headlight replacement for compatible Jeep applications. Six projector optics create controlled illumination for normal road use, while integrated low beam, high beam, and daytime running light functions give customers a complete lighting upgrade rather than a simple auxiliary pod conversion.

Low beam output is shaped to improve usable nighttime visibility while controlling glare for approaching traffic, and high beam adds greater intensity when road and traffic conditions allow. A 5000K color temperature produces a natural white appearance that helps reveal pavement detail, signs, lane edges, and roadside objects. The result is a headlight package designed for daily driving as well as the rugged visual character customers expect from Baja Designs.

The daytime running light can be selected in amber or white, allowing the front-end appearance to lean warmer and more off-road inspired or remain clean and neutral. DRL color does not change the low-beam or high-beam performance, so the choice is primarily visual. Both versions retain the same round projector-based face and integrated lighting functions.

Vehicle-specific brackets and wiring components help the lights fit compatible factory headlight openings and electrical systems. Different kits support factory LED or halogen-equipped applications, so the original headlight type is an important fitment detail. Choosing the correct application helps preserve proper mounting, electrical communication, daytime running light operation, and beam adjustment.

The DOT LP6 is built for customers who want a road-use headlight with more distinctive styling than a conventional replacement lamp. Its housing is designed for harsh vehicle environments, and the kit combines the lights with the brackets, adapters, and hardware needed for the selected application. Final aiming and a complete function check remain essential after installation.

Whether customers are upgrading for road visibility, daily driving, distinctive Jeep styling, or a more capable headlight replacement, the Baja Designs DOT LP6 Headlight Kit delivers integrated low beam, high beam, and daytime running light performance. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific LED headlight replacement kit

Brand: Baja Designs

Series: DOT LP6

Beam Functions: Integrated low beam and high beam

Daytime Running Light: Amber or white

Low Beam Output: 3,480 raw lumens and 42,568.7 candela per light

High Beam Output: 5,280 raw lumens and 62,611.5 candela per light

Power Draw: 26 watts and 1.8 amps on low beam; 40 watts and 2.8 amps on high beam; 5 watts and 0.4 amps for the DRL

Voltage: 10.5 to 32 volts

Dimensions: 6.5 inches long, 6.5 inches high, and 3.2 inches deep per light

Compliance: FMVSS 108

Protection: IP69K water resistance, IK10 impact compliance, and durability exceeding MIL-STD810G

Functionality:

• Replaces compatible factory headlights with integrated projector-based LED lighting.
• Provides controlled low-beam illumination for normal road use.
• Adds a high-beam mode for greater nighttime reach when conditions permit.
• Includes daytime running light function in amber or white.
• Uses application-specific brackets to position the round headlights in compatible openings.
• Connects through included harnesses or adapters selected for the original headlight system.
• Supports daily driving while adding the aggressive round appearance of the LP6 platform.
• Allows post-installation beam aiming so the headlights can be aligned to the vehicle.



---



Available Options

The Baja Designs DOT LP6 Headlight Kit is available in platform, original-headlight, and daytime running light configurations:

• JL and JT for Factory LED Headlights with Amber DRL - for compatible newer Jeep applications originally equipped with LED headlights and a warm amber daytime accent.
• JL and JT for Factory LED Headlights with White DRL - for compatible newer Jeep applications originally equipped with LED headlights and a clean white daytime accent.
• JL and JT for Factory Halogen Headlights - application-specific versions provide the required mounting and electrical integration for compatible halogen-equipped vehicles.
• JK for Factory Halogen Headlights with Amber DRL - replaces compatible halogen headlights and adds an amber daytime running light.
• JK for Factory Halogen Headlights with White DRL - replaces compatible halogen headlights and adds a white daytime running light.

Choose the kit that matches the Jeep platform and original factory headlight type, then choose amber DRL for a warmer accent or white DRL for a neutral daytime appearance.



---



Why Choose

This product is ideal for customers who want a road-focused round LED headlight with integrated beam functions, vehicle-specific mounting, and a choice of daytime running light color.

• Combines low beam, high beam, and daytime running light functions in one coordinated headlight assembly.
• Projector optics create controlled illumination for street-focused use.
• FMVSS 108 compliance supports use as an automotive headlight when correctly installed and aimed.
• Amber and white DRL choices let customers tailor the daytime appearance without changing headlight output.
• Vehicle-specific brackets and harness components support a cleaner installation than a universal conversion.
• Natural 5000K light helps reveal road detail with a crisp white appearance.
• IP69K, IK10, and MIL-STD810G-related protection supports demanding weather and vehicle environments.
• The round LP6-inspired face gives compatible Jeeps a distinctive, performance-oriented front end.



---

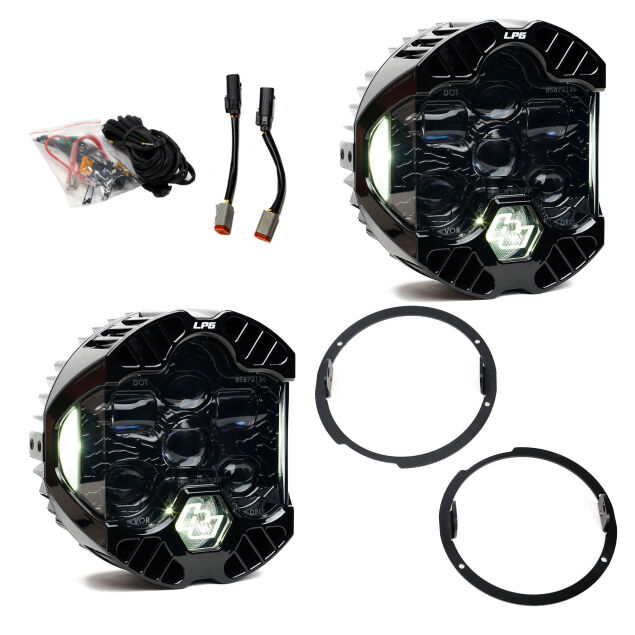

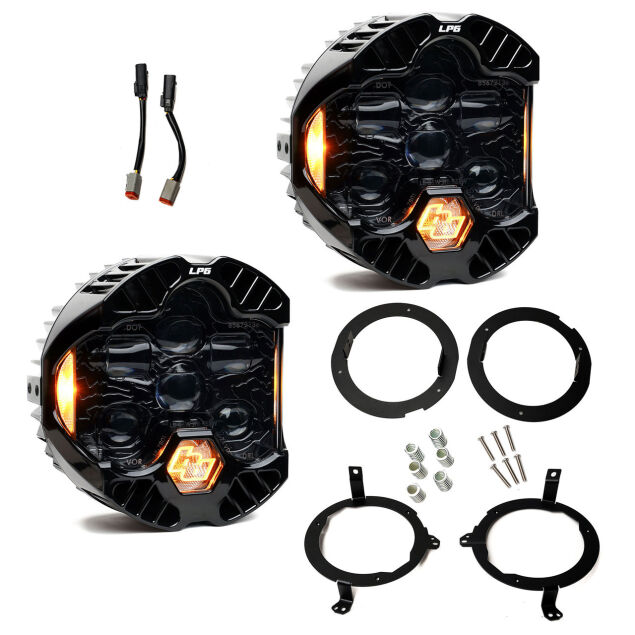

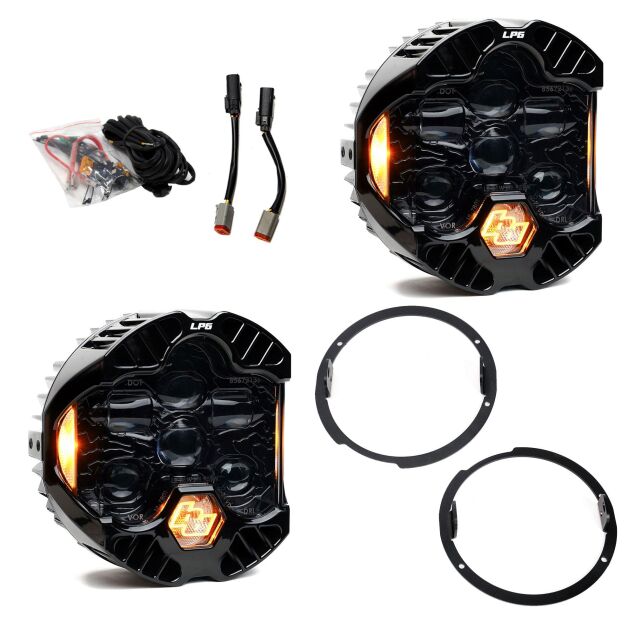

What's Included

• Two Baja Designs DOT LP6 headlights in the selected DRL color.
• Application-specific headlight mounting brackets.
• Wiring harnesses or wiring adapters for the selected original headlight system.
• Backlight add-on harness where included by application.
• Necessary mounting hardware.

Note: Confirm included components before installation.



---



Installation Notes

• Confirm Jeep platform, model year, trim, and original factory headlight type before selecting the kit.
• JK kits are intended for compatible halogen-headlight applications and are not compatible with certain late JK trims equipped with factory LED headlights.
• Install the supplied brackets and electrical components, then verify low beam, high beam, DRL operation, connector security, and moisture sealing.
• Aim both headlights after installation and do not open or tamper with DOT light assemblies, as tampering can affect compliance and warranty coverage.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs lists the DOT LP6 Headlight Kit with a 30-Day Satisfaction Guarantee and a limited lifetime warranty. DOT assemblies must be returned for qualifying repairs and are not designed for user service or internal modification.

Warranty coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty service.
