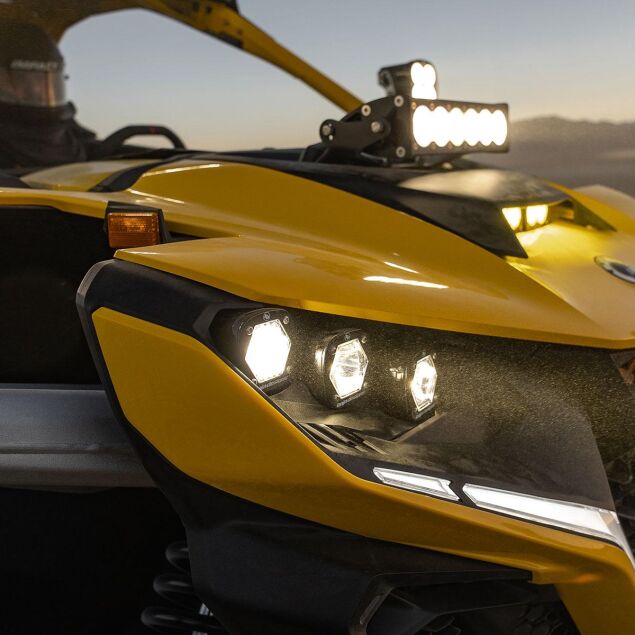

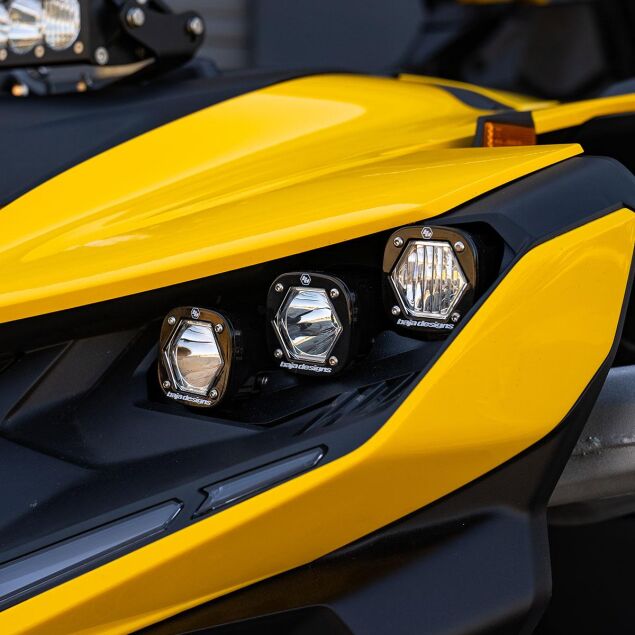

Baja Designs Can-Am Maverick R Triple S1 Headlight Kit



The Baja Designs Can-Am Maverick R Triple S1 Headlight Kit transforms the factory headlight area into a compact six-light system built for fast-moving off-road use. Three S1 LED pods on each side create a balanced appearance that follows the front bodywork instead of adding a large external bar. The result is a purposeful lighting upgrade for customers who want greater trail awareness while preserving an integrated, performance-oriented front end.

A combination of four Spot pods and two Wide Cornering pods gives the kit a useful blend of reach and spread. The Spot optics concentrate light farther ahead for reading the route at speed, while the Wide Cornering optics add broad near-field coverage around turns, trail edges, ruts, and changing terrain. This mixed pattern helps customers avoid the tunnel effect that can come from relying on distance lighting alone.

Each S1 produces 2,320 raw lumens while drawing 19.6 watts and 1.42 amps, allowing six compact lights to create substantial usable output without the bulk of larger housings. The layout covers lighting zones 1, 2, and 3, supporting close-range awareness, cornering visibility, and forward trail illumination. The daylight-style color and focused optics also help reveal terrain texture, surface transitions, and obstacles during low-light driving.

The vehicle-specific brackets place the S1 pods in the original headlight location for a clean installation and a factory-integrated look. A plug-and-play headlight adapter system reduces the amount of custom wiring needed, while the supplied mounting hardware supports accurate positioning and final aiming. Customers gain a complete conversion rather than a loose collection of universal lights that must be adapted to the front fascia.

The six-pod arrangement is well suited to nighttime trail rides, dunes, open desert routes, wooded paths, and technical sections where visibility changes quickly. Broad side illumination helps with slower maneuvering and corner entry, while the Spot pods support a longer view down straighter sections. The compact S1 format keeps the front end visually sharp and leaves roof and bumper locations available for additional lighting zones when a larger system is planned.

Fitment is engineered for the matching sport UTV headlight area, so vehicle year, trim, body panels, and factory lighting configuration should be verified before installation. Properly aimed lights help place usable illumination on the trail and reduce distracting glare, and all connectors should be secured away from heat, sharp edges, and moving components. Whether customers are upgrading for night rides, desert travel, technical trails, or stronger factory-location lighting, the Baja Designs Can-Am Maverick R Triple S1 Headlight Kit delivers balanced coverage in a clean six-light package. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific LED headlight conversion kit

Brand: Baja Designs

Series: S1

Vehicle Fitment: Can-Am Maverick R 2024-2026

Mounting Location: Factory headlight area

Light Configuration: Six S1 pods with three lights per side

Beam Configuration: Four Spot pods and two Wide Cornering pods

Output: 2,320 raw lumens per light

Power Draw: 19.6 watts and 1.42 amps per light

Lighting Coverage: Zones 1, 2, and 3

Lens Color: Clear

Wiring: Plug-and-play headlight adapter harnesses included

Functionality:

• Replaces the original headlight assemblies with a compact six-pod LED layout
• Combines forward reach with broad cornering and near-field illumination
• Improves trail-edge awareness when turning through uneven terrain
• Supports nighttime driving on dunes, wooded trails, and open desert routes
• Keeps lighting integrated within the factory headlight area
• Uses vehicle-specific brackets to support consistent placement and aiming
• Leaves bumper and roof mounting areas available for additional lighting zones



---



Why Choose

This product is ideal for customers who want a complete factory-location lighting conversion with both distance and cornering coverage.

• Six compact S1 pods create a substantial upgrade without an oversized external light bar
• Three lights per side maintain a balanced, intentional front-end appearance
• Spot optics help customers read farther down fast or open sections of trail
• Wide Cornering optics add useful coverage around turns and close obstacles
• Low individual power draw supports strong output from a compact package
• Plug-and-play adapters reduce the need for custom wiring work
• Vehicle-specific brackets support a clean installation in the original headlight location
• Baja Designs serviceable optics support long-term ownership and repairability



---



What's Included

• Four Baja Designs S1 Spot LED lights
• Two Baja Designs S1 Wide Cornering LED lights
• Two headlight adapter harnesses
• Four vehicle-specific mounting brackets
• Necessary mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Fits Can-Am Maverick R applications from 2024 through 2026; verify year, trim, front fascia, and original headlight configuration before beginning work.
• Installation involves removing the factory headlight components, assembling the supplied brackets, mounting three S1 pods per side, connecting the adapter harnesses, and aiming the lights.
• Secure wiring away from steering, suspension, heat, sharp edges, and moving parts, then test all lighting functions before driving.
• Recheck fastener torque and light aim after the first trail outing and after any hard impact or front-end service.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs supports this lighting kit with a 30-day satisfaction guarantee and a limited lifetime warranty against qualifying manufacturing defects. Warranty service may require proof of purchase and inspection of the affected components.

Coverage typically excludes damage caused by improper installation, incorrect wiring, misuse, modification, tampering, collision, environmental abuse outside the stated product limits, or operation that does not follow applicable requirements. Serviceable lenses and optics can simplify maintenance when wear or trail damage affects external components.
