Baja Designs Can-Am Maverick R Roof Mount Kit



The Baja Designs Can-Am Maverick R Roof Mount Kit brings serious forward lighting to the upper cage area of a performance UTV. The roof position is designed to push useful illumination farther down the trail while keeping the front bumper and hood area open for other accessories. Its vehicle-specific mounting approach creates a cleaner profile than a universal bar adapted with separate brackets.

Customers can choose a 40-inch OnX6+ light bar or a seven-light XL Linkable assembly. The OnX6+ creates a continuous, traditional bar appearance with high and low output modes, while the 7XL arrangement delivers the distinctive linked-pod look and individual aiming control. Both configurations are intended for fast trails, dunes, desert routes, and open terrain where forward visibility is critical.

The 40-inch OnX6+ option produces 38,900 raw lumens on high beam and 32,440 raw lumens on low beam. Its broad light-bar format favors drivers who want a unified beam and a smooth roofline installation. The high mounting point helps the light reach beyond close obstacles, making it useful when speed and sight distance increase together.

The 7XL Linkable option is offered in XL Sport and XL Pro output levels. Seven independently aimable lamps can be arranged straight or in an arc, while vertical pitch adjustment helps place the combined beam across the desired trail zones. This makes the linked system attractive for customers who prefer more control over the shape and direction of the light package.

Both roof-mount styles use brackets engineered around the vehicle's cage area and preserve a low, purposeful appearance. Correct harness routing, switch selection, and final aiming remain important because roof-mounted lights can create glare when pointed too low or reflected from body panels. Customers should match the configuration to the desired output, appearance, and control strategy before installation.

Whether customers are upgrading for dunes, desert running, high-speed trails, open-terrain exploration, or nighttime recreation, the Baja Designs Can-Am Maverick R Roof Mount Kit delivers powerful overhead illumination in two distinct lighting formats. Now Available at LEER!



---



Features & Specifications

Product Type: Vehicle-specific UTV roof lighting kit

Brand: Baja Designs

Vehicle Fitment: 2024-2026 Can-Am Maverick R

Mounting Location: Roof and cage area

Lighting Models: 40-inch OnX6+ or 7XL Linkable

OnX6+ Output: 38,900 raw lumens on high and 32,440 raw lumens on low

7XL Output: 22,050 lumens with XL Sport or 28,665 lumens with XL Pro

Lighting Type: Forward projecting LED

Functionality:

• Adds long-range illumination from the roofline
• Supports high-speed trail and open-terrain visibility
• Offers a continuous light bar or linked-pod appearance
• Provides high and low output with the OnX6+ configuration
• Allows detailed individual aiming with the 7XL configuration
• Keeps lighting above the front bodywork and bumper accessories
• Uses vehicle-specific cage-area brackets
• Supports dunes, desert routes, night rides, and recreational off-road use



---



Available Options

The Baja Designs Can-Am Maverick R Roof Mount Kit is available in multiple configurations:

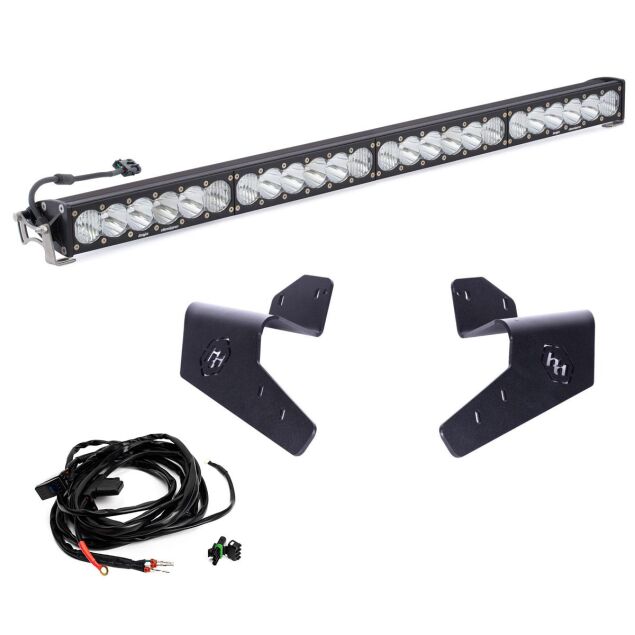

• 40-Inch OnX6+ Roof Mount Kit - Uses one continuous high-output light bar with high and low modes for customers who prefer a traditional roof-bar appearance and a unified forward beam.

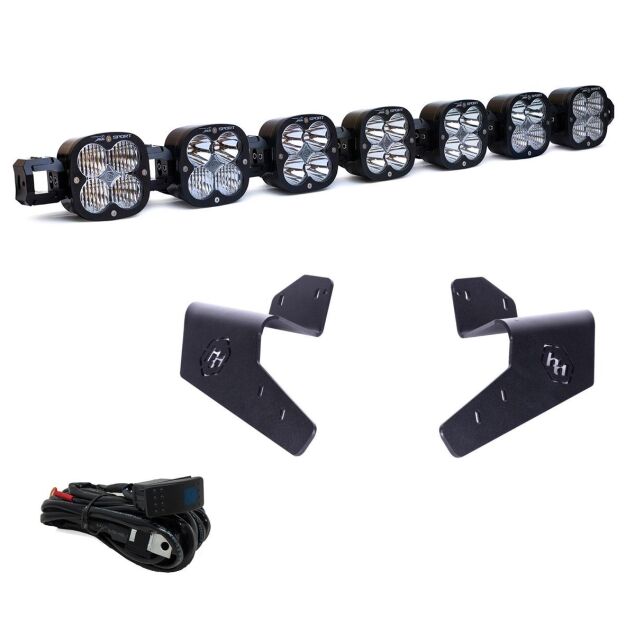

• 7XL Sport Linkable Roof Mount Kit - Uses seven adjustable XL Sport lights for strong output, straight or arced alignment, and detailed beam placement.
• 7XL Pro Linkable Roof Mount Kit - Uses seven higher-output XL Pro lights for customers prioritizing greater intensity with the same linked-light adjustability.

Choose the 40-inch OnX6+ for a continuous high-output bar, choose 7XL Sport for adjustable linked lighting with balanced output, or choose 7XL Pro for the highest-output linked configuration.



---



Why Choose

This product is ideal for customers who want vehicle-specific roof lighting with a choice between a continuous bar and an individually adjustable linked-light system.

• Places forward lighting high on the cage for extended reach
• Offers distinct OnX6+ and XL Linkable visual styles
• Provides multiple output levels for different driving demands
• Supports low-profile vehicle-specific mounting
• Gives linked-light customers straight or arc alignment flexibility
• Keeps the bumper area available for other equipment
• Creates a coordinated lighting package for fast off-road use
• Includes mounting and wiring components matched to the selected setup



---



What's Included

• Selected 40-inch OnX6+ light bar or seven-light XL Linkable assembly
• Vehicle-specific roof and cage mounting brackets
• Wiring harness matched to the selected configuration
• Required mounting hardware
• Installation instructions
• Rock guards and pre-load components where included with the selected XL Linkable kit

Note: Confirm included components before installation.



---



Installation Notes

• Confirm vehicle year, cage configuration, roof panels, mirrors, and other overhead accessories before ordering.
• Mount the brackets and light assembly securely before routing the harness through protected cage and cabin paths.
• Use the correct switching and power components for the selected OnX6+ or XL Linkable configuration.
• Aim the roof lights to control glare and verify fastener torque after the first ride.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs supports these roof-lighting kits with a 30-Day Satisfaction Guarantee and a Limited Lifetime Warranty for qualifying defects.

Warranty coverage typically excludes improper installation, misuse, unauthorized changes, electrical faults, impact damage outside the warranty terms, tampering, or operation that does not follow applicable rules. Proof of purchase may be required.
