Warn Heavyweight Winches

The WARN Heavyweight series delivers serious pulling power for large trucks, commercial rigs, trailers, and extreme work/recovery applications. These winches share rugged large-frame construction, a 3-stage planetary geartrain, and reliable automatic cone braking with robust sealing to withstand harsh environments.

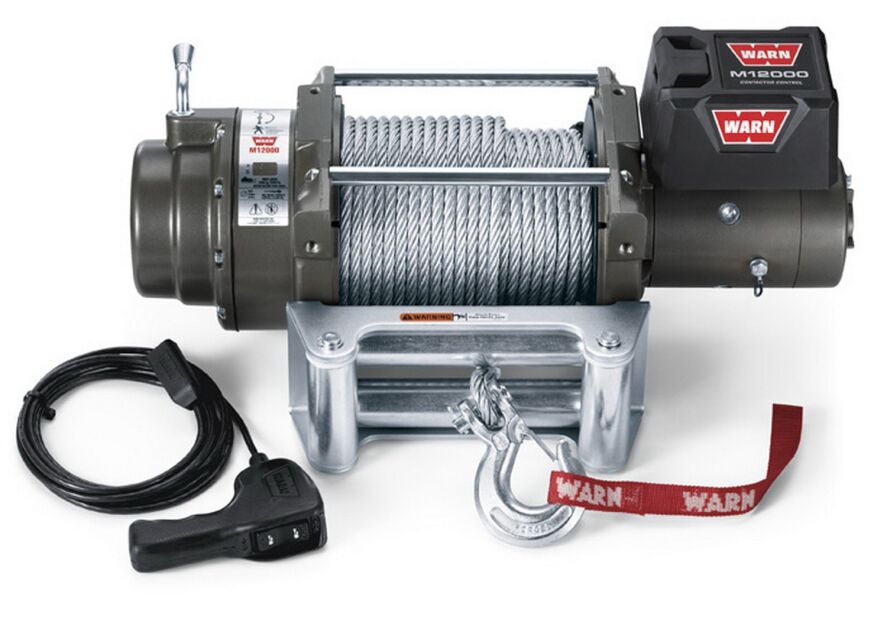

Warn M12000 & CE M12000

• Rated Pull: 12,000 lb single-line
• Motor: Series-wound, 12V (and CE international variants)
• Rope: Steel (approx. 3/8″ × 125′)
• Fairlead: Rolle
• Large, rugged winch built to handle high loads repeatedly.

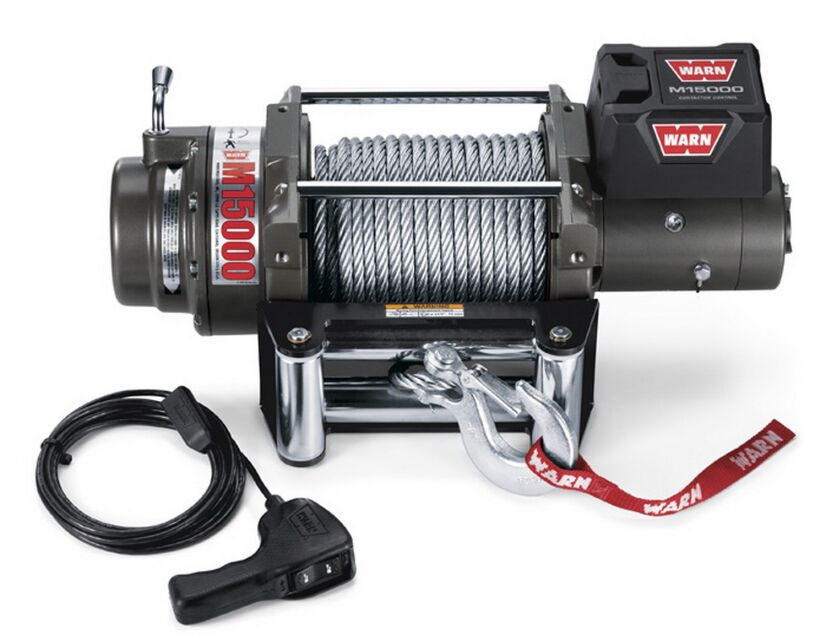

WARN M15000 & CE M15000

• Rated Pull: 15,000 lb single-line
• Motor: Series-wound, 12V (and 24V CE variant)
• Rope: Steel (7/16″ × 90′)
• Fairlead: Roller
• Heavy-duty torque and capacity for the toughest jobs

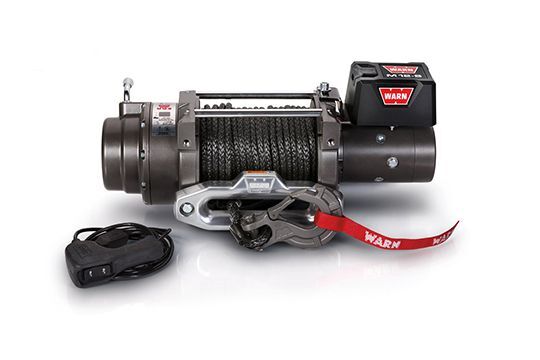

WARN M12-S

• Rated Pull: 12,000 lb
• Rope: 3/8″ × 100′ Spydura® synthetic
• Fairlead: Aluminum hawse
• Easier rope handling and less weight than steel.

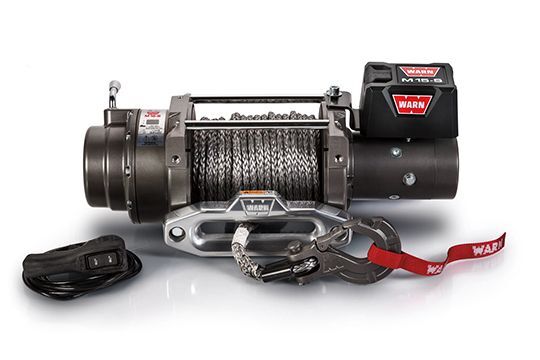

WARN M15-S

• Rated Pull: 15,000 lb
• Rope: 3/8″ × 80′ Spydura® Pro synthetic
• Fairlead: Aluminum hawse
• Great balance of power and lightweight synthetic line management.

Thermometric (“ti”) Series – Advanced Feedback

The 16.5ti family takes the Heavyweight winches to their highest capacity and added operational intelligence using WARN’s thermometric feedback system (LED remote reporting motor temperature, improved sealing, and robust electronics).

WARN 16.5ti

• Rated Pull: 16,500 lb
• Rope: 7/16″ × 90′ steel
• Fairlead: Roller
• Best choice where ultimate rated load and rugged steel rope are demanded.

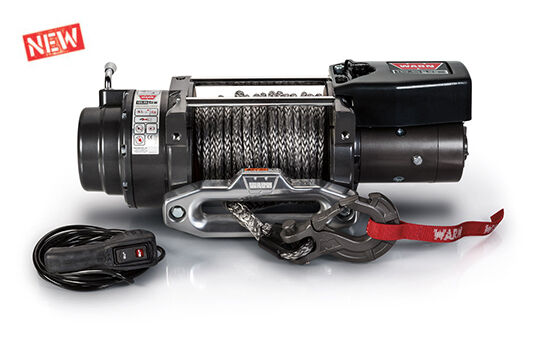

WARN 16.5ti-s

• Rated Pull: 16,500 lb
• Rope: 3/8″ × 80′ Spydura® Pro synthetic
• Fairlead: Aluminum hawse
• Peak hydraulic-style strength with lightweight rope and superior feedback tools.
